update on my 66 pro touring mustang, project wild horse.


So far the things I have done.

full frame made out of 2x3 steel
replace floor pans that needed it
replace lower rear quarter and inner panels
seam seal entire under side of car
fabricated firewall and trans tunell.
paint whole underside of car with 3m body sholtz
tub car and install martz four bar rear suspension
install heidts mustang 2 ifs and fabricate inner fenders and upper fender mount rails.

I will be mounting the suspension back on the car and hanging fenders and starting body work now setting all the gaps etc, shaving the drip rails and smoothing the roof
Fabricate the dash mods and center console
fabricate the mounts under the dash for the ac system
fabricate the mounts for the 07 gt-500 motor and 5 speec tk0-600 transmission.

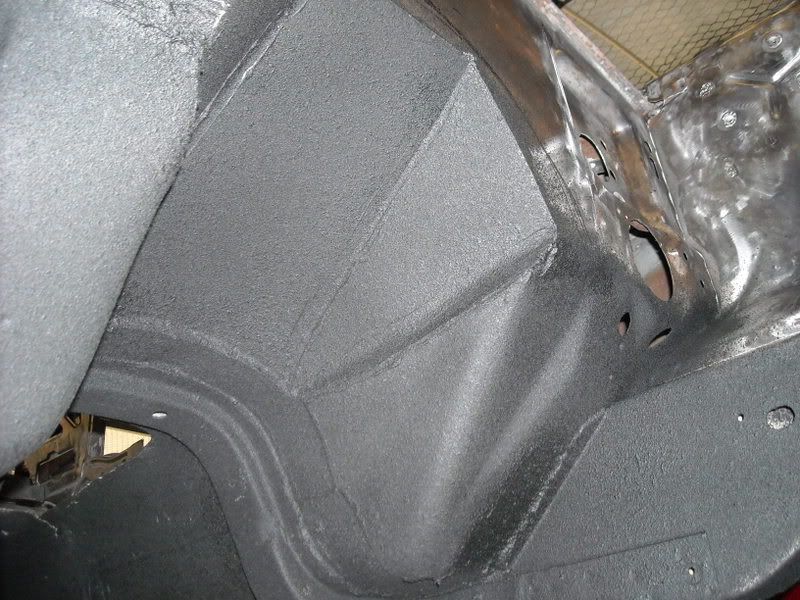

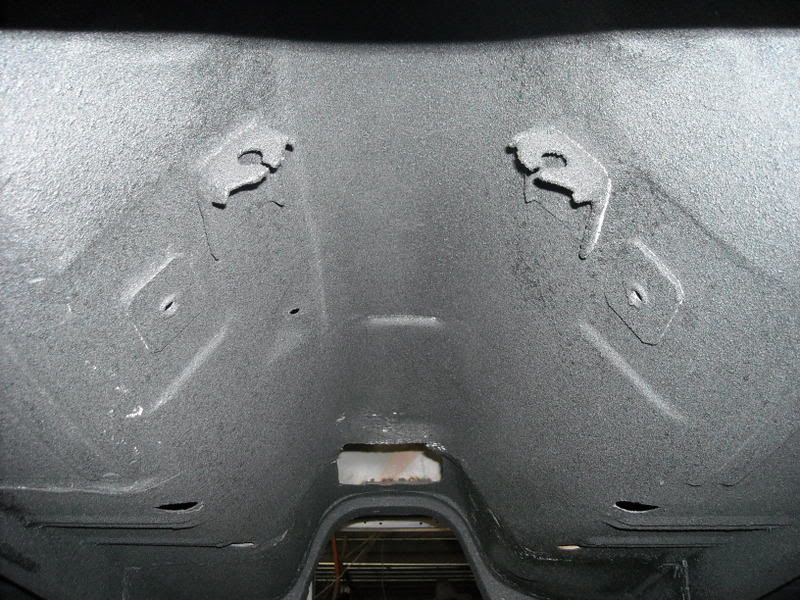

trans tunel already coated
http://i76.photobucket.com/albums/j1...g/DSCN0145.jpg
http://i76.photobucket.com/albums/j1...g/DSCN0139.jpg

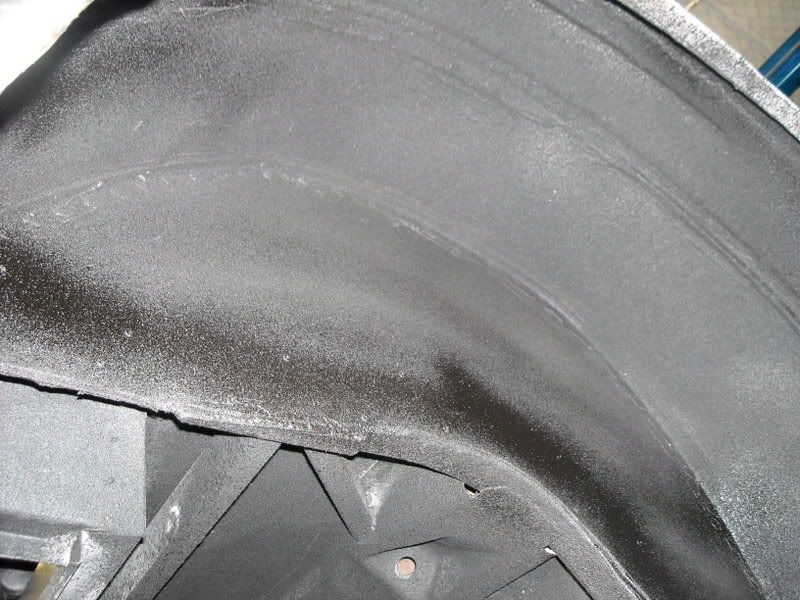

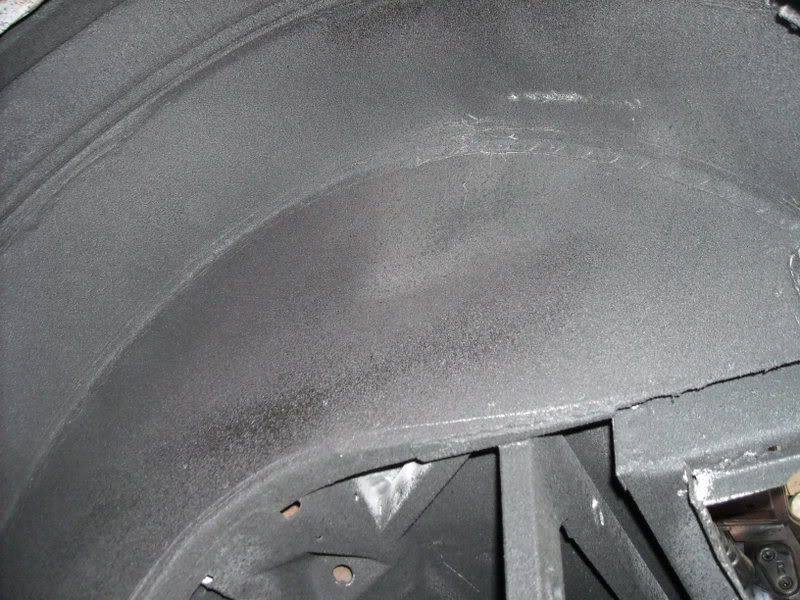

wheel tubs
http://i76.photobucket.com/albums/j1...g/DSCN0141.jpg
http://i76.photobucket.com/albums/j1...g/DSCN0142.jpg

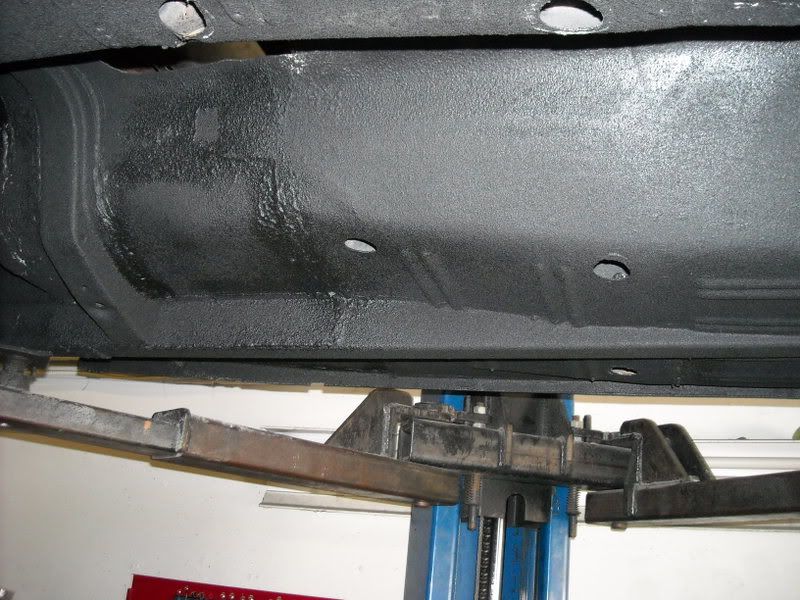

through floor new fram rails
http://i76.photobucket.com/albums/j1...g/DSCN0138.jpg

pics

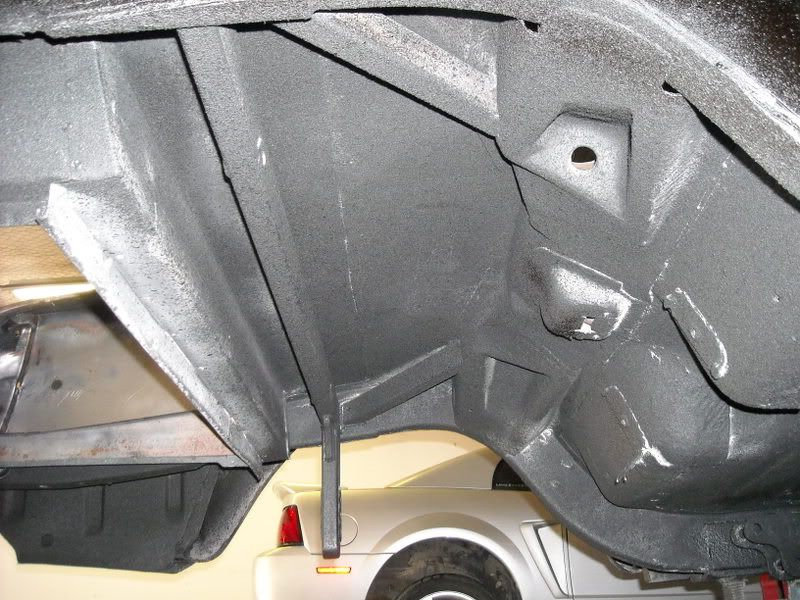

rear suspension
http://i76.photobucket.com/albums/j1...g/DSCN0143.jpg

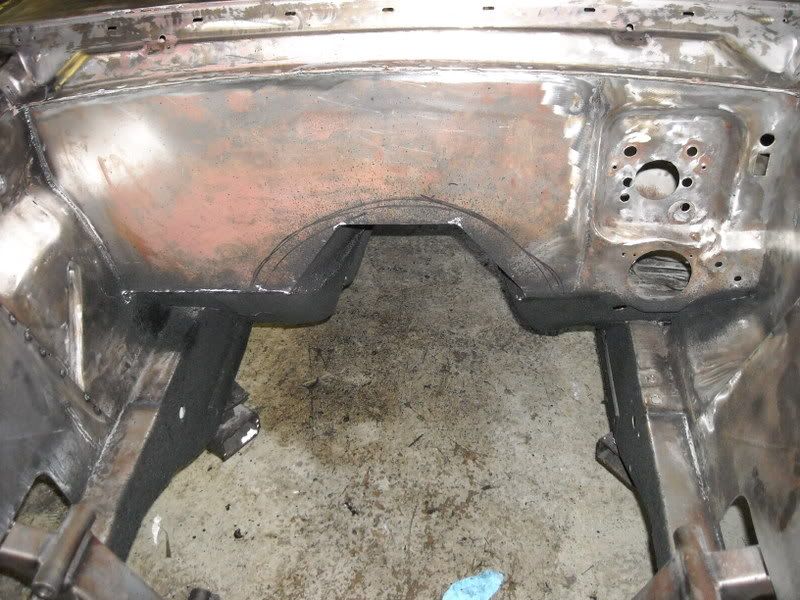

new firewall
http://i76.photobucket.com/albums/j1...g/DSCN0159.jpg

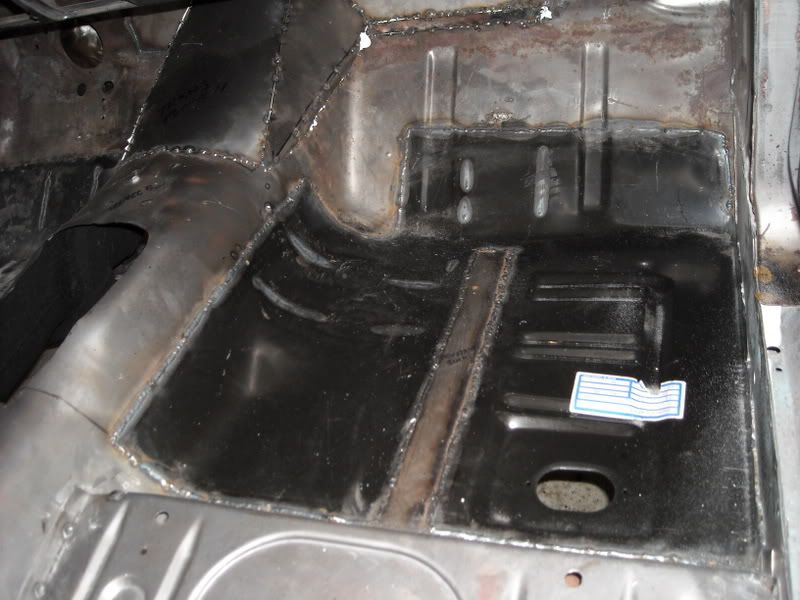

front floor pan and trans tunel tacked in
http://i76.photobucket.com/albums/j1...g/DSCN0156.jpg

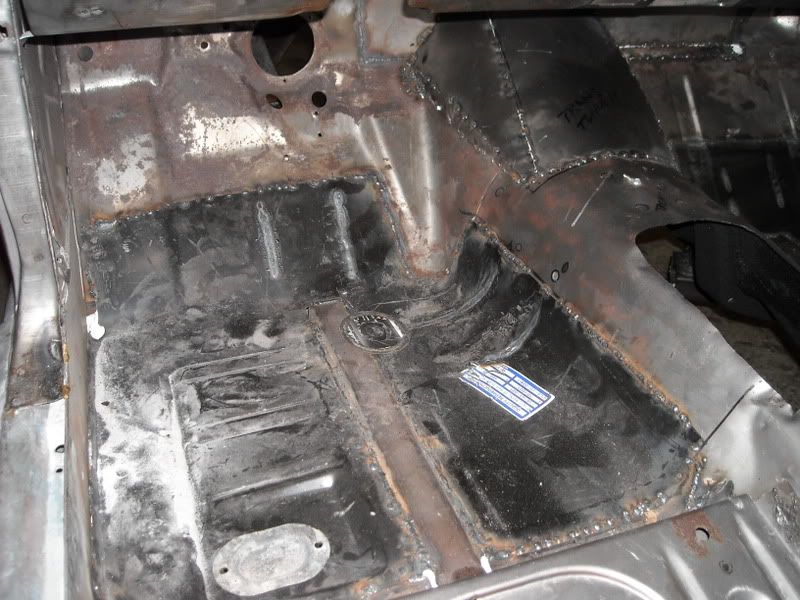

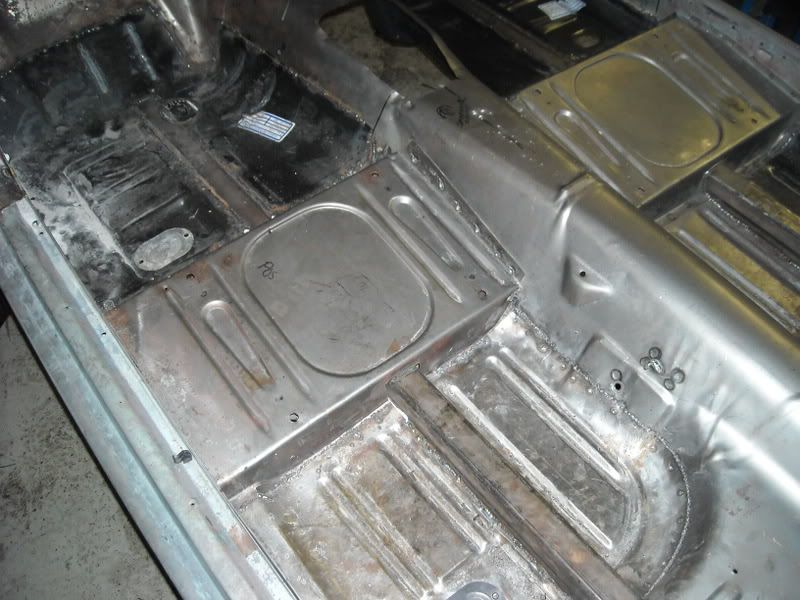

drivers floor pan and new through floor full frame.
http://i76.photobucket.com/albums/j1...g/DSCN0146.jpg
http://i76.photobucket.com/albums/j1...g/DSCN0147.jpg

pics

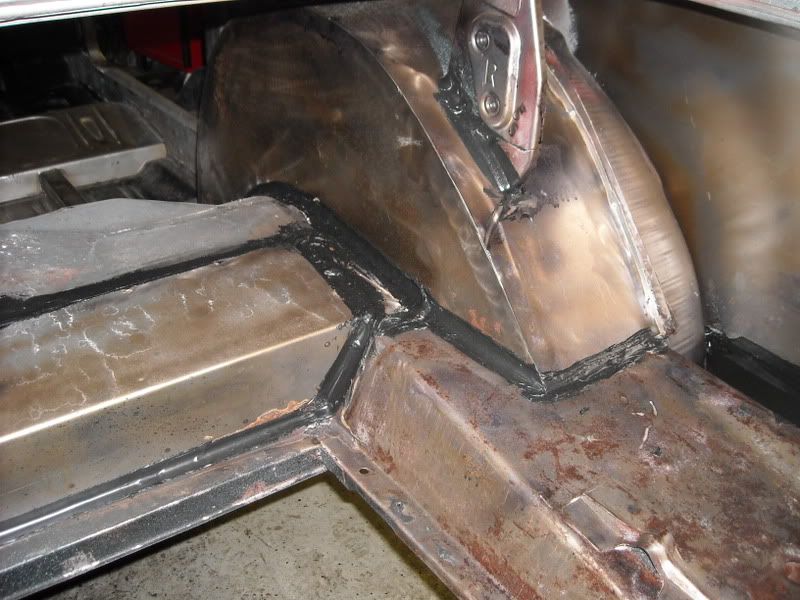

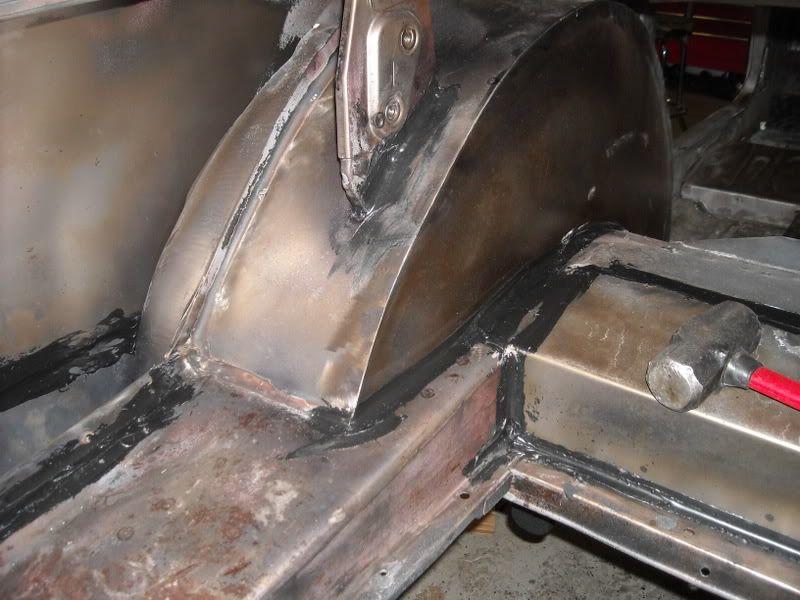

rear trunkl tubs seam sealed
sealer you see inside fender is there to protect inside of the quarter panel weld I will be body shultzing the whole trunk and inner quarters as well then painting it with splater paint for a strong durable atractive trunk finish.

http://i76.photobucket.com/albums/j1...g/DSCN0148.jpg
http://i76.photobucket.com/albums/j1...g/DSCN0149.jpg

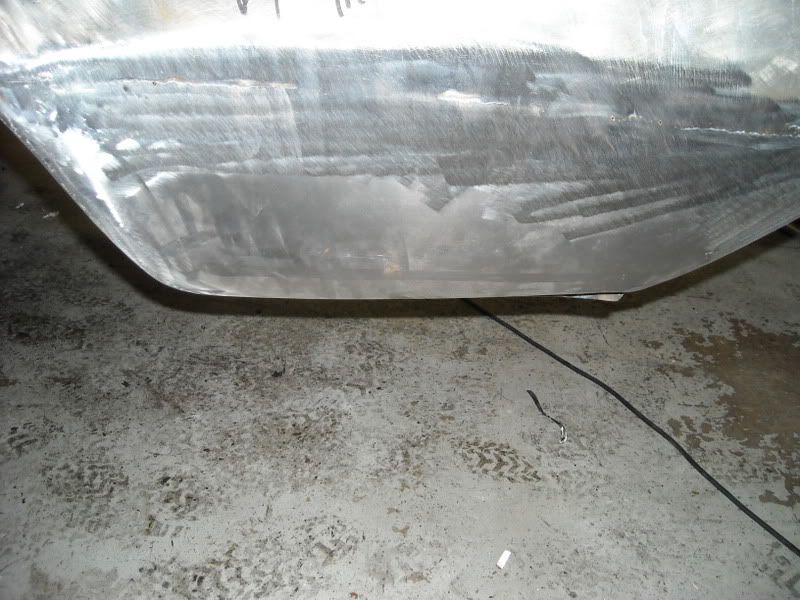

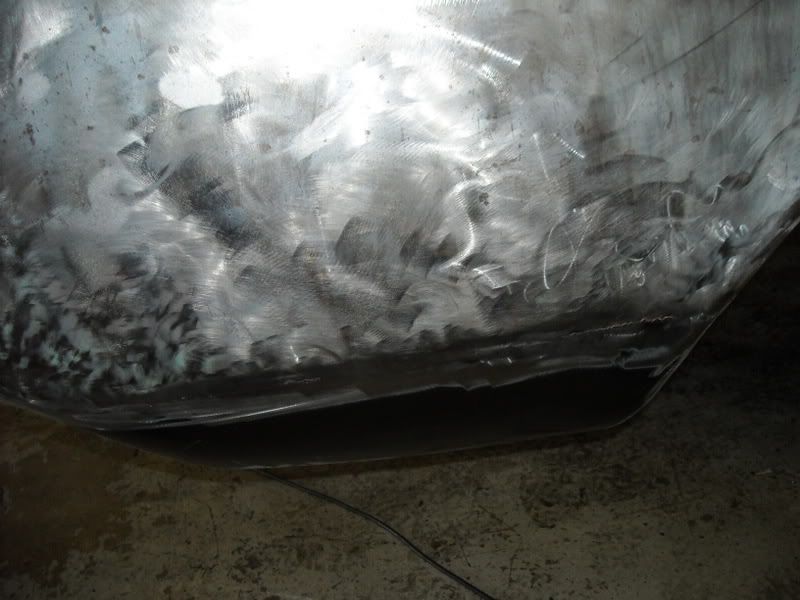

new lower quarter panels installed
http://i76.photobucket.com/albums/j1...g/DSCN0150.jpg
http://i76.photobucket.com/albums/j1...g/DSCN0151.jpg

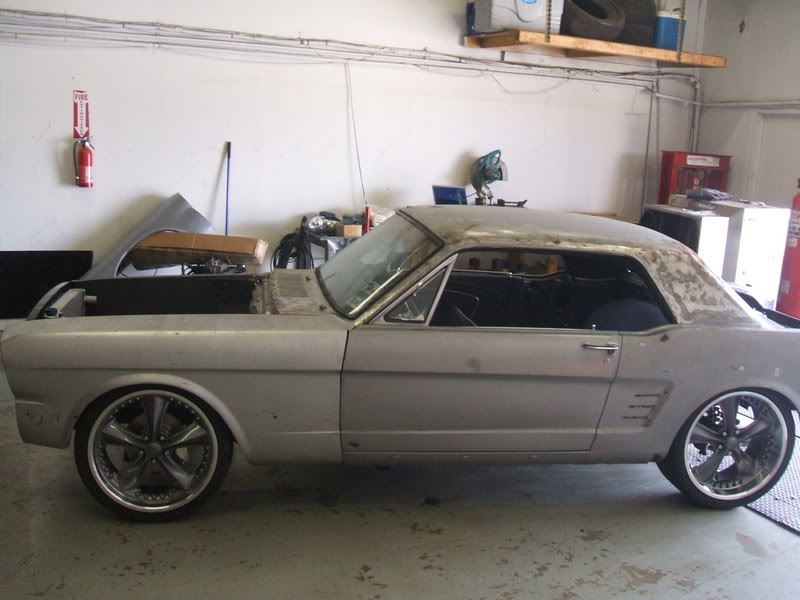

just a pic of the car with the fenders hung and suspension on it.
http://i76.photobucket.com/albums/j1...g/DSCF0309.jpg

Looks great. Keep us posted :thumbsup:

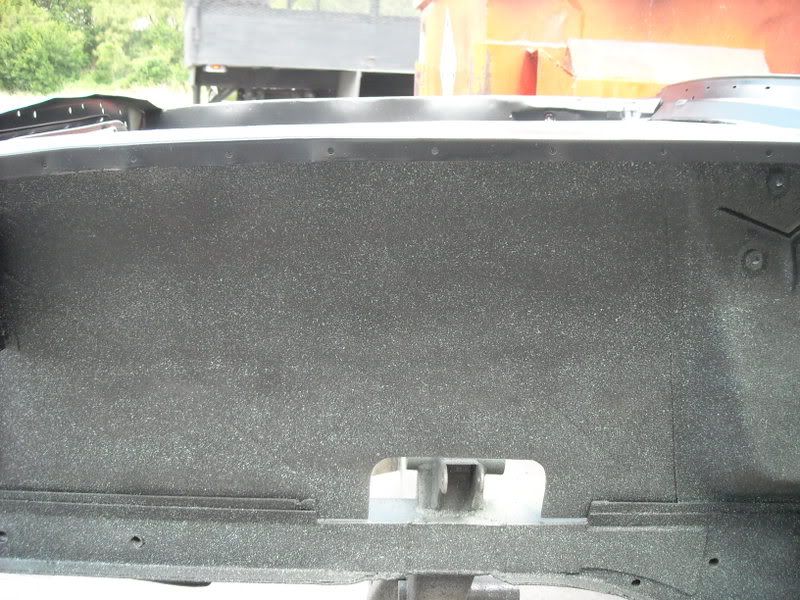

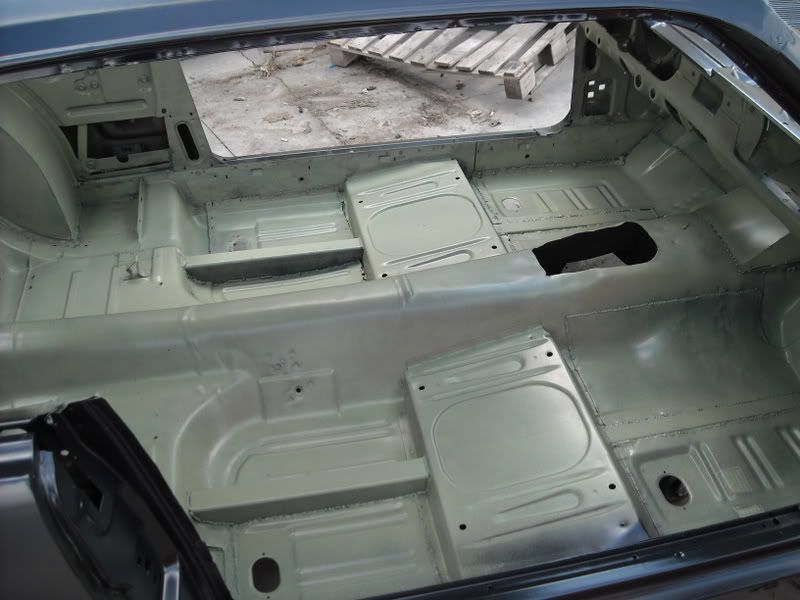

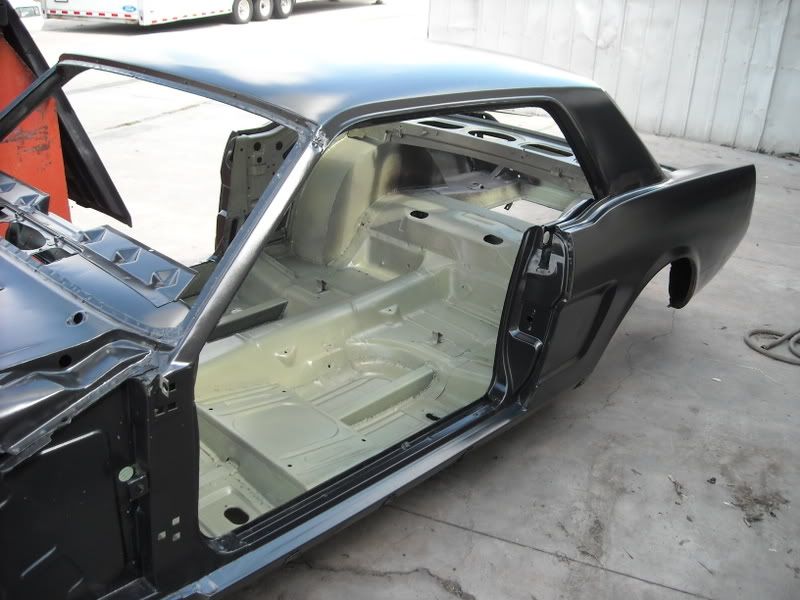

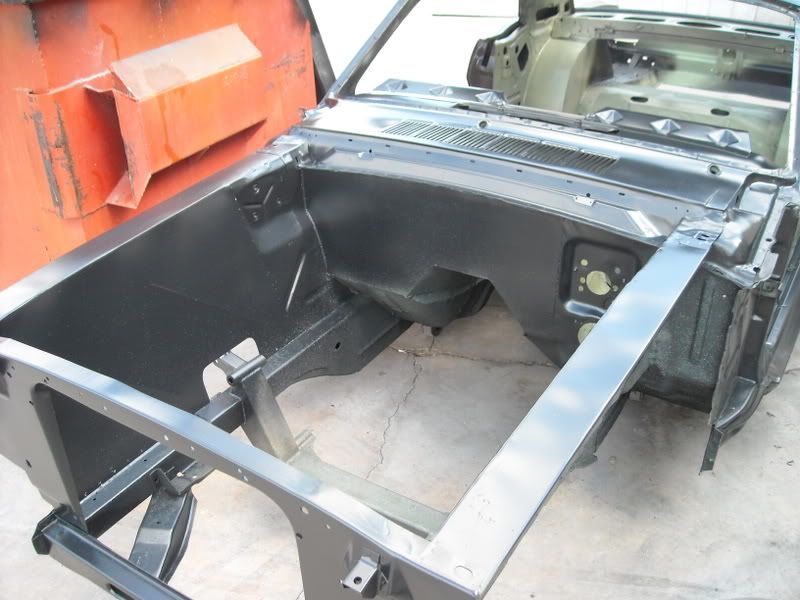

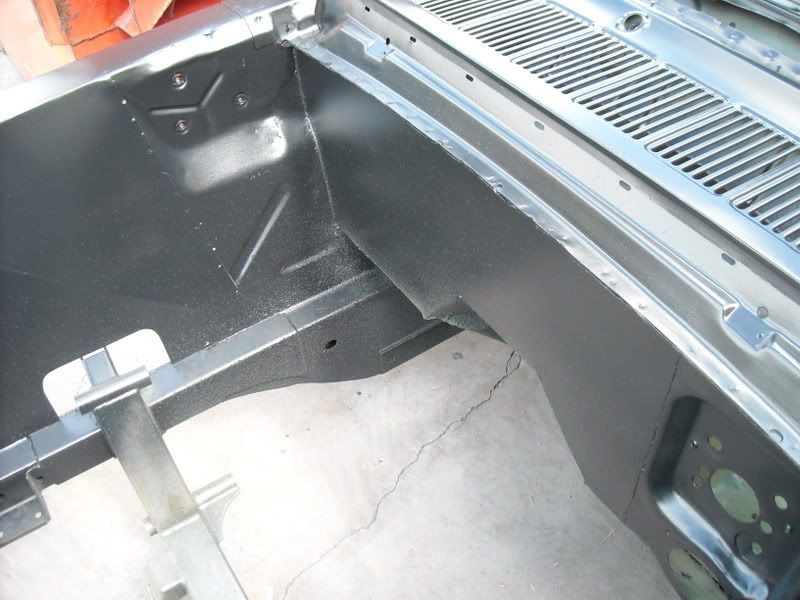

Got the whole car into three coats of green self etching primer

Then painted the whole out side of the car in black epoxy, so now no worries about rust while I seam seal the inside.

Then I will put the lizzard skin down then start on all the custom dash work and the actual body work.
http://i76.photobucket.com/albums/j1...g/DSCN0168.jpg
http://i76.photobucket.com/albums/j1...g/DSCN0167.jpg
http://i76.photobucket.com/albums/j1...g/DSCN0166.jpg
http://i76.photobucket.com/albums/j1...g/DSCN0165.jpg
http://i76.photobucket.com/albums/j1...g/DSCN0163.jpg

k

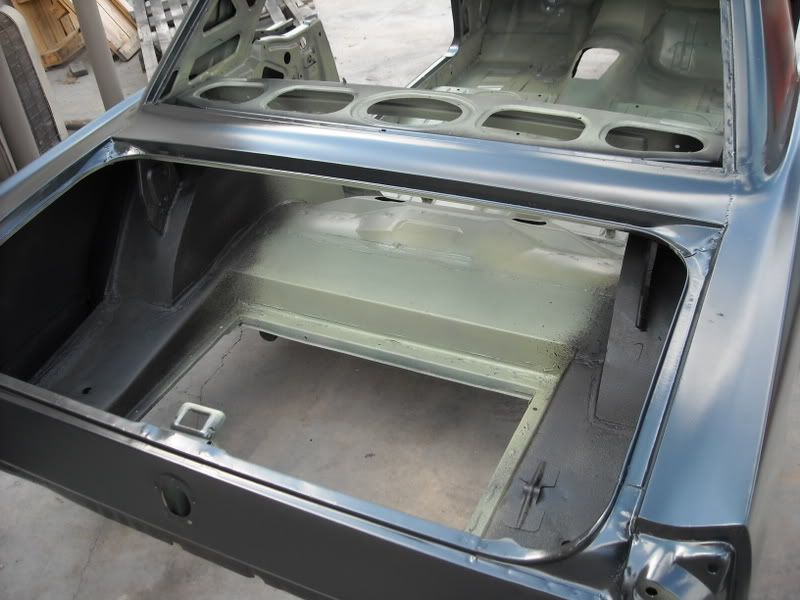

more
http://i76.photobucket.com/albums/j1...g/DSCN0162.jpg

Good looking project :thumbsup: :cheers:

lookin good!

Very nice.
What size tire will you be using in the rear?
Will the car have a back seat?

Scott

tires


rear will be 335 or 345 front a 265 or 275
