Katech coil relocation bracket


Can someone tell me where the main bracket mounts, looking at pictures of the bracket its difficult to understand where its actually bolting to. Is it the inside surface of the valve covers or intake manifold mounting bolts? Do they require modifying the valve covers?

Thanks Rich

I think it's pretty slick, I like the design.

https://store.nexternal.com/katech/i...SCF3162_12.jpg

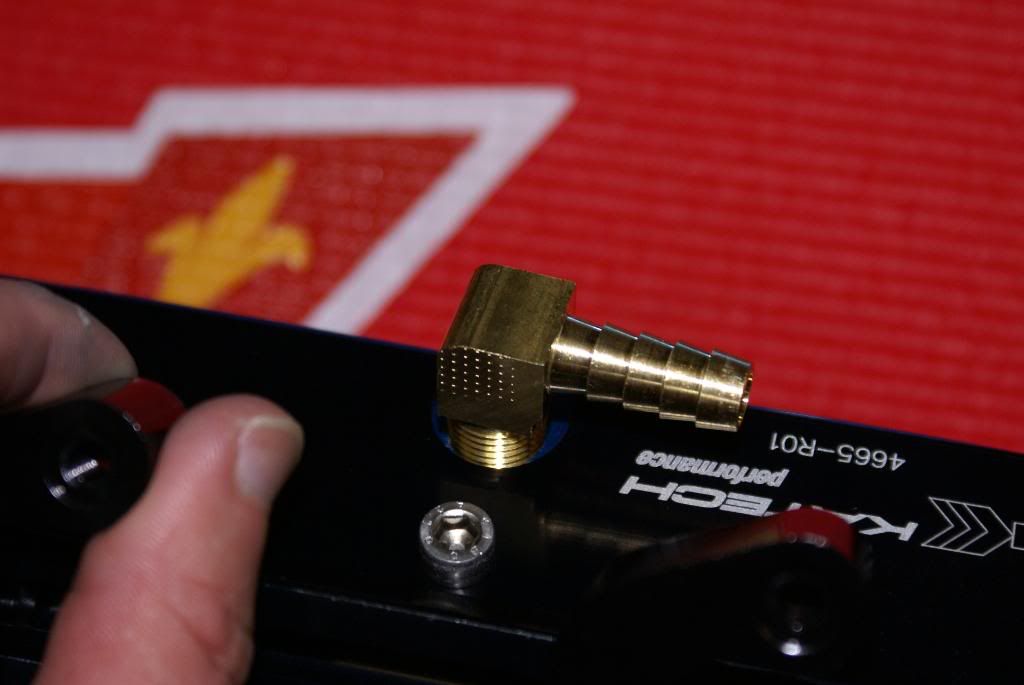

Edit, here's a close up of how it mounts:

http://i146.photobucket.com/albums/r...install002.jpg

I can give you some more info next week we just prdered some valve covers and coil brackets for a project we have.

Yea, to the inside vertical plane of the valve cover.

It's what I'm running on Penny, very nice design. The main functional benefit is that you don't have to pull the coils to remove the valve cover.

http://i42.tinypic.com/2ed8egk.jpg

You can see here.. imagine the fasteners like Scott showed holding it the valve covers. The VCs are drilled and tapped for the bolts and there are around 5 per a valve cover.

I haven't been too fond of the newer gen stuff just because the engines often look all cluttered with the extra electronics and prefer the old school stuff from an aesthetics perspective. However, I must admit that dayum, that sure is purty :-)

John

yep pretty basic- u need to space the coils before u tighten them down- very easy

Thanks Guys- so your pretty much stuck buying there valve covers to mount them. I was wondering if I could mount them to a set of gm center bolt competition Chevrolet valve covers. I amagine the threaded holes in the inside verticle plain of your VC's must have a casted boss. The Katech covers aint cheap, the gm chevy covers are nice for 110 bucks per.

Thanks again Rich

i got mine from LS1 tech classifieds- I've seen em for $300- well worth the money

No Rich. You can mount them to others VC.

http://i518.photobucket.com/albums/u...y/DSC00823.jpg
Mike
