'08 All Wheel Drive Denali


I'm not sure if this project fits in great around here, so just let me know if you guys want to see more of it and i'll keep posting pictures...

I consider it the "family" car that everyone would love to have! An all wheel drive brand new Denali with a Supercharged 6.0L and big wheels.

This was our 2009 SEMA project and made it to the show (not quite finished). Since then, we've been working on all of the details to get it right and get it the way we want it before re-painting it and going for SEMA again this year!

Here's some pics of it:

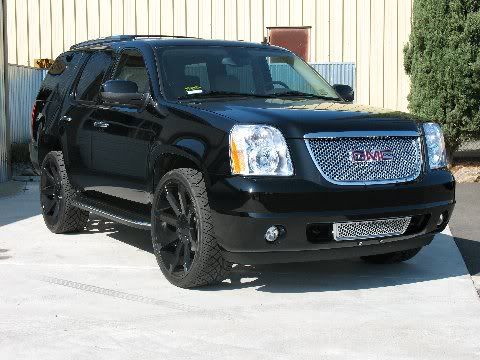

What we started with

http://i55.photobucket.com/albums/g1...alismall02.jpg

http://i55.photobucket.com/albums/g1...alismall01.jpg

http://i55.photobucket.com/albums/g1...alismall03.jpg

http://i55.photobucket.com/albums/g1...alismall04.jpg

Here's some more photos starting in on the fab work.

http://i55.photobucket.com/albums/g1...alismall09.jpg

http://i55.photobucket.com/albums/g1...alismall08.jpg

http://i55.photobucket.com/albums/g1...alismall15.jpg

http://i55.photobucket.com/albums/g1...alismall06.jpg

http://i55.photobucket.com/albums/g1...alismall22.jpg

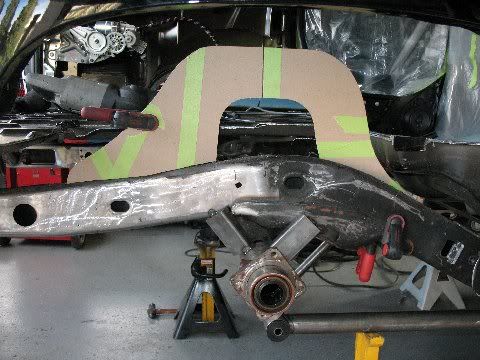

Rear suspension and framework...

BIG notch for the 34 inch tall tires!

http://i55.photobucket.com/albums/g1...alismall23.jpg

http://i55.photobucket.com/albums/g1...alismall24.jpg

http://i55.photobucket.com/albums/g1...alismall25.jpg

http://i55.photobucket.com/albums/g1...alismall28.jpg

http://i55.photobucket.com/albums/g1...alismall26.jpg

LOVE TO SEE MORE PICS! :D

wow-some serious work on a new rig- can't wait to see how it sits

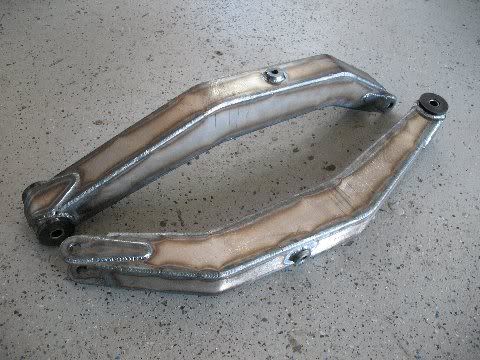

More rear suspension

http://i55.photobucket.com/albums/g1...alismall21.jpg

http://i55.photobucket.com/albums/g1...alismall30.jpg

http://i55.photobucket.com/albums/g1...alismall31.jpg

http://i55.photobucket.com/albums/g1...alismall34.jpg

http://i55.photobucket.com/albums/g1...alismall35.jpg

http://i55.photobucket.com/albums/g1...alismall36.jpg

i love this truck! been watching it on streetsource. go ahead show everybody the rendering!

I'll get to the rendering in a bit...One of them at least...

I forgot to mention that we tried to keep every OEM part on the truck. We re-used the factory electronically controlled shocks which change the valving depending on road conditions. There were (and still are) 3 computers that control just the chassis on this vehicle.

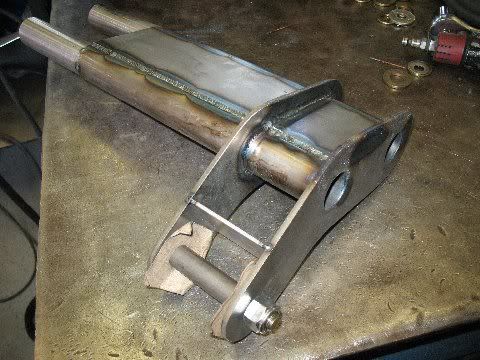

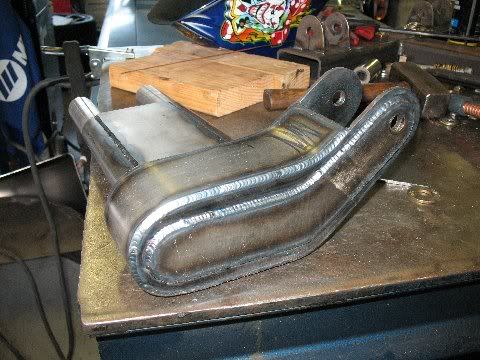

The only good suspension we could fit in the back is a 3-link with a panhard bar setup because we wanted to keep the gas tank in the stock location. To keep cutting to a minimum (I really tried even though it's VERY cut), we actually designed the panhard bar to run around the upper 3-link bar. We chose to go with a panhard bar over a watts link as it provided us a better roll center since it is a top heavy SUV.

http://i55.photobucket.com/albums/g1...alismall32.jpg

http://i55.photobucket.com/albums/g1...alismall37.jpg

http://i55.photobucket.com/albums/g1...alismall38.jpg

http://i55.photobucket.com/albums/g1...alismall40.jpg

Post it up!

Darren

Should be pretty cool. I like what you had to start with too! :thumbsup:

Are you using some stainless steel?? I see the pretty blue/gold color cant really tell from the pics.

Also when making suspension parts like the ones your doing do u have to use
chromoly??

Awesom build btw.

jr.
