We recently started a whole bunch of chevelles. The count is up to two 67 chevelles and 3 70's!

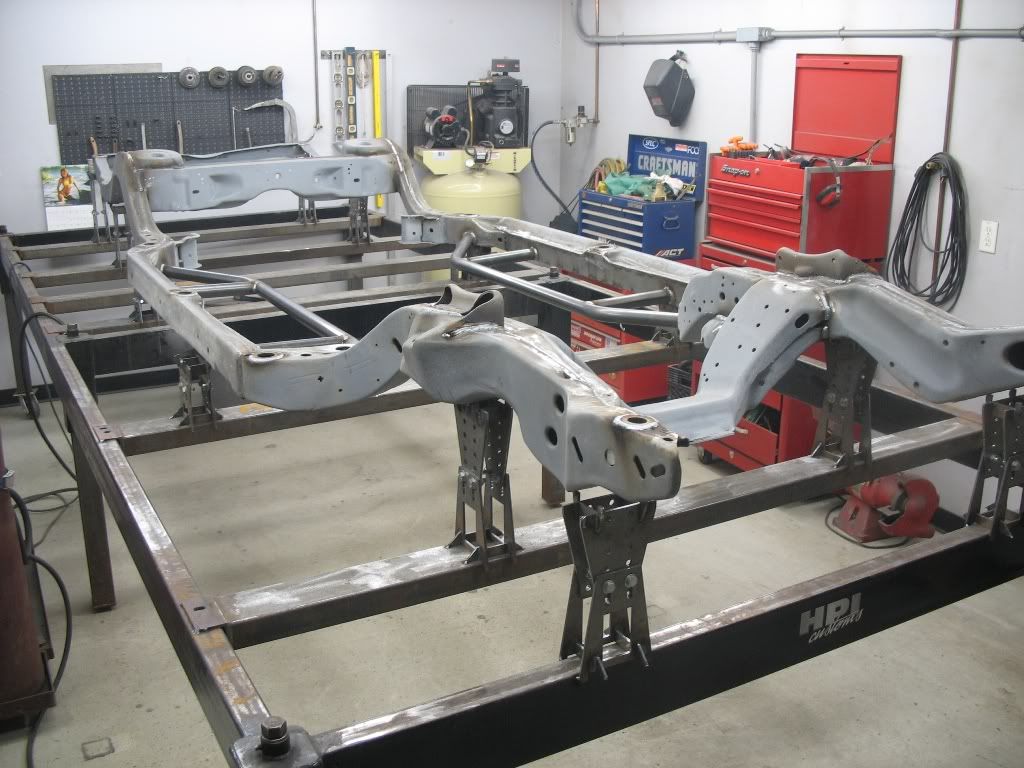

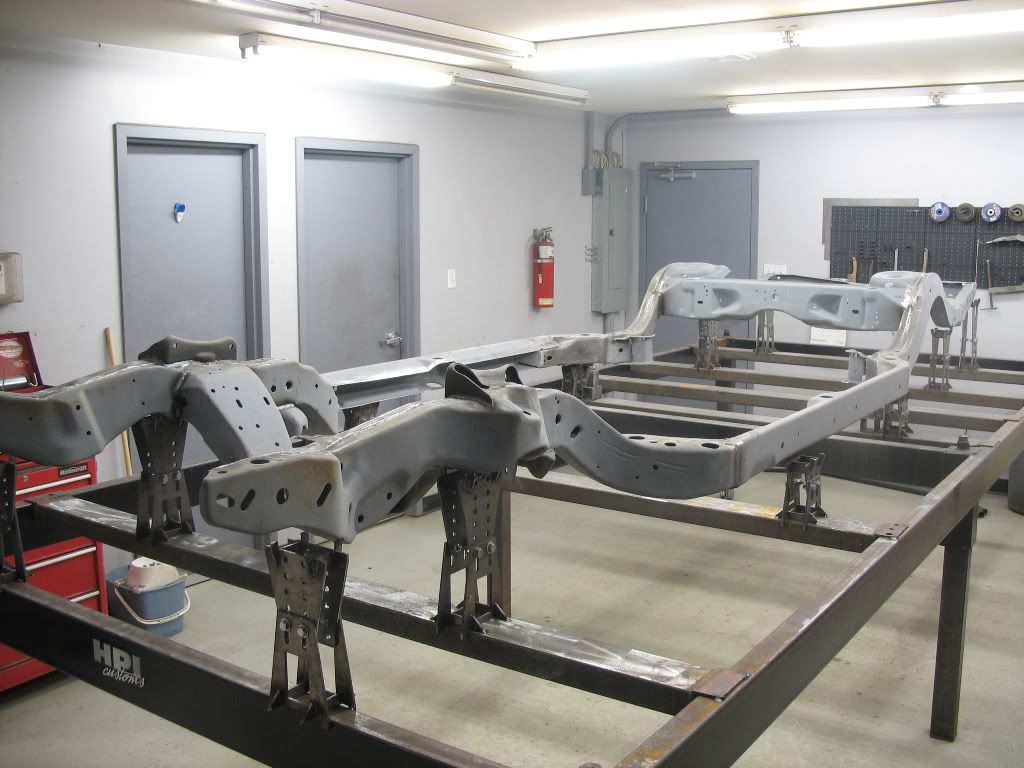

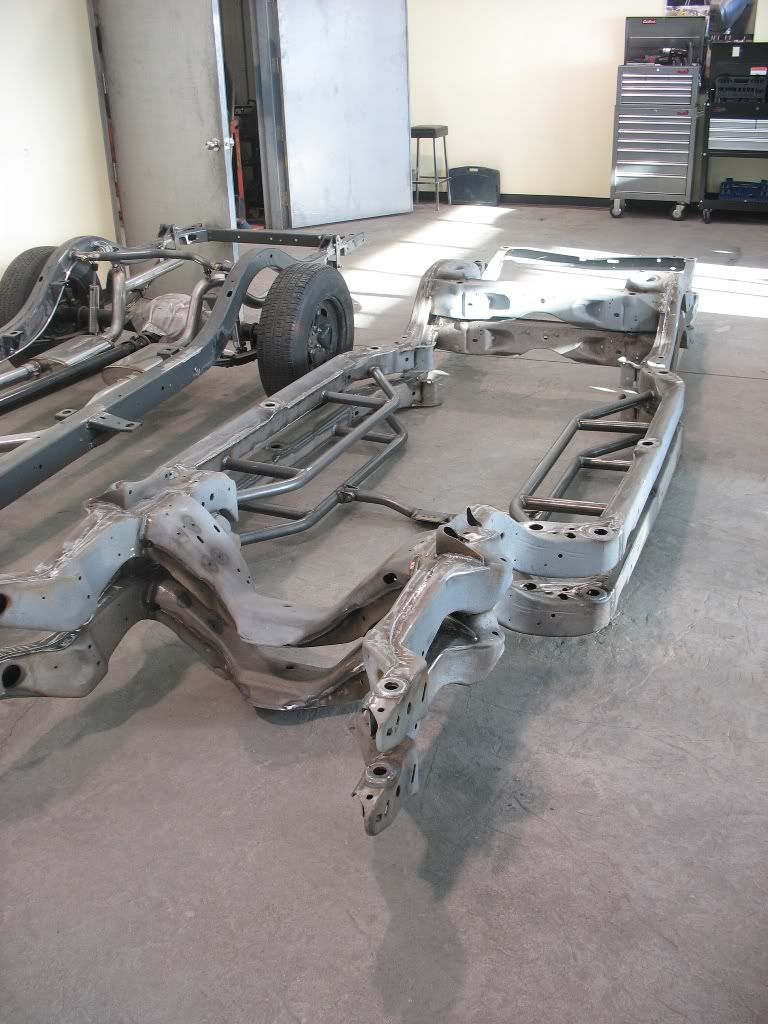

For two of the 70 chevelles, we are using stock chassis with Speedtech Road Assault Suspension packages. On top of that, we developed a k-member system that we are now installing in all our customers chevelles that aren't getting a custom frame, and even using a tweaked version for our custom frames! It consists of :
a tubular k brace
frame boxing
total front-to-back factory seam re weld
Body mount reinforcement and billet body mount set
exhaust/driveshaft crossmember
trans mount system.

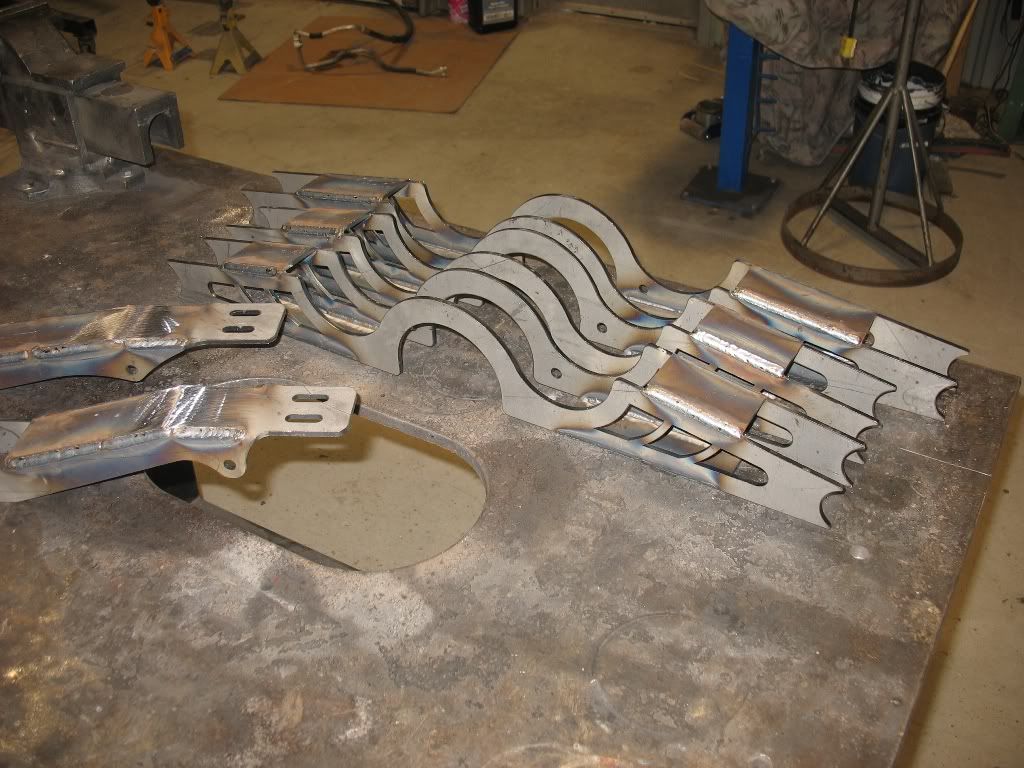

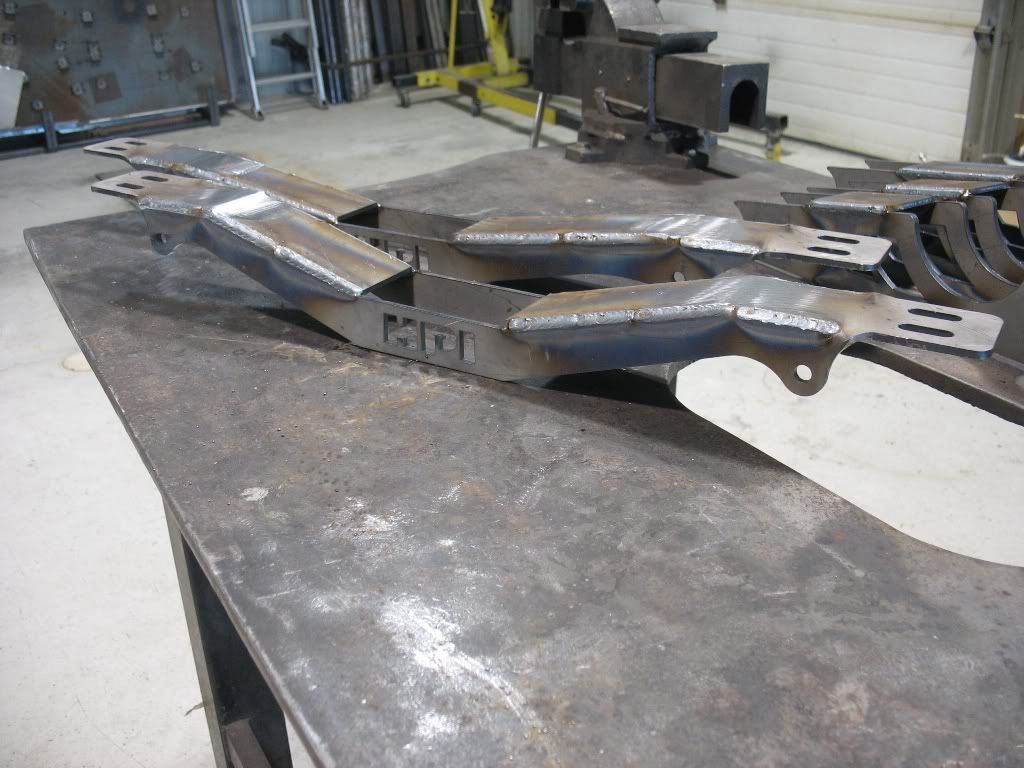

Our trans mount is slotted to accept LS/SBC/BBC with any GM auto, t56, t5, or tko trans!

http://i1204.photobucket.com/albums/...elleframe2.jpg

http://i1204.photobucket.com/albums/...elleframe1.jpg

http://i1204.photobucket.com/albums/...s/IMG_2869.jpg

http://i1204.photobucket.com/albums/...mes/frame1.jpg

http://i1204.photobucket.com/albums/...ossmember2.jpg

http://i1204.photobucket.com/albums/...rossmember.jpg

http://i1204.photobucket.com/albums/...ountsystem.jpg

http://i1204.photobucket.com/albums/...s/IMG_3261.jpg

http://i1204.photobucket.com/albums/...s/IMG_3262.jpg

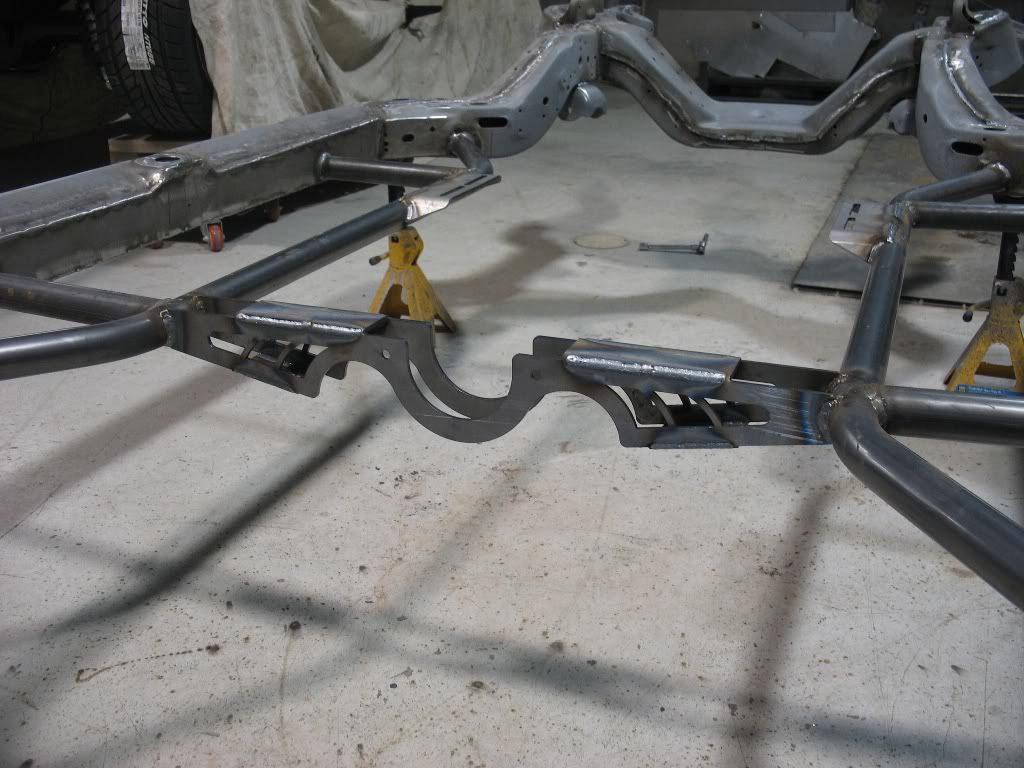

We integrate exhaust hanger holes into the crossmembers and then use our laser cut stainless tabs and rubber grommets to isolate the exhaust.

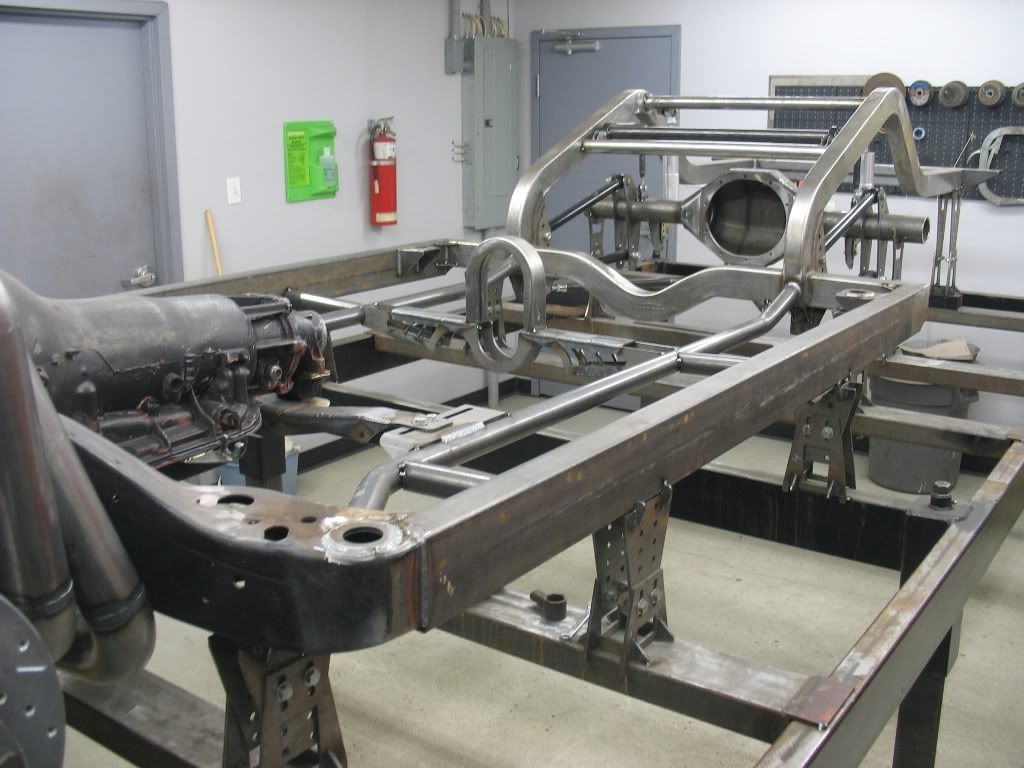

This is a 70 chevelle that we are doing a bit more "drag race". Typical 4 link/wishbone/anti-roll bar combo with a Dart big block up front, lemons headers, and we are doing a 3.5 inch exhaust. Used our chevelle k brace system and tweaked it for the back half style chassis.

http://i1204.photobucket.com/albums/...0chevelle1.jpg

http://i1204.photobucket.com/albums/...s/IMG_3335.jpg

Nice work, very similar to what I am doing to my 72 frame.

I checked out your build thread Greg, nice car! I like the rendering, especially the black bumpers. Are those Boze stingers? I have the same rims going on my own car.

Cool stuff

Great looking stuff!

Nice...very nice!! :hail:

Thanks, still a work in progress. the wheels are actually Boze Hi Octane's. but I may end up with something else that Frank @ prodigy recommended to me. but it will look similar.

Two questions, what size tube are you using on the outer tubes and how much would you want for a set of the slotted tabs?
