War Hammer: 1972 Camaro

On January 28 1997(2 days after my birthday) I was going around looking for a 1970-73 Firebird Formula or T/A.. On my way back to the house from looking at a 1973 Formula that was so rigged and full of bondo that even I didnt want to mess with it. I came acrossed a 1971 Camaro RS that had its nose sticking out in the street with a FORE SALE sign in the window, he really had it spelled like that..:D Anyways, I had to stop to look at it since it was only $1600 dollars. I got to looking at this car and noticed that the back window was getting ready to fall in, he says that it would be a easy fix.. I tell him this car is going to need both quarters,both trunk extensions and fenders, as I am walking around the car to see how bad it is I see a car under a tarp.. I ask him what that is and he says that is a 1972 Camaro with a 327/TH350 and it is all there and has a title.. It has been drug down a poll on the driverside. He wanted $500 for it, I ask if it runs. He says it will run but only for 10 second or as long as he can poor gas down the carb, I tell him I will give him $300.He says $500 and I can go through his stash of parts.. I say OK..I went to his storage and grabbed just about everything I could put in my truck..

So that starts my journey, back then I was just a High School kid trying to build a cool car.. I got the car to my garage and started to see what the deal was with the fuel. I checked the fuel lines, and everything and couldnt find anything wrong with it.. So I kick the key on and nuthing comes out of the fuel line at the motor. He had the electric fuel pump in backwards.. Easy Fix, turned it around and look at that it fires right up and runs fine.. This is what it looked like when I took it off his lot and got it to my place..

http://farm4.static.flickr.com/3301/...a5f81d9d_o.jpg

The Car lasted a couple of weeks and then the cam went flat from him trying to start it and only run for 10 seconds while break in.. So I pulled the motor and decided I was going to rebuild the motor, the bottom end was good. So I bought a Cam, lifters and pushrods and started there.. I also Ported and Polished the heads. Well my luck sucked and the motor in my daily went south and I had to use everything for the Camaro in the 62' C10 and when I got that motor installed in the Truck it turned out to be just to much motor for a daily driver(283 bored .030 with 480 lift cam and 11.2 to 1 compression), it makes 430hp at the crank @ 7200 rpm.. So the Camaro when on the back burner while I paid off my new daily driver. I bought a 2000 GMC Sierra 4.8L V8 hoping I wouldnt get the bug to mod it.. Well, I did and this is what it looks like today..

http://farm1.static.flickr.com/97/23...e06bd859_b.jpg

So that took me five years and then I started working on the Camaro again..I started with repairing the windshield and back window area. Then new quarter and trunk extensions on along with some patches for the passenger quarter..

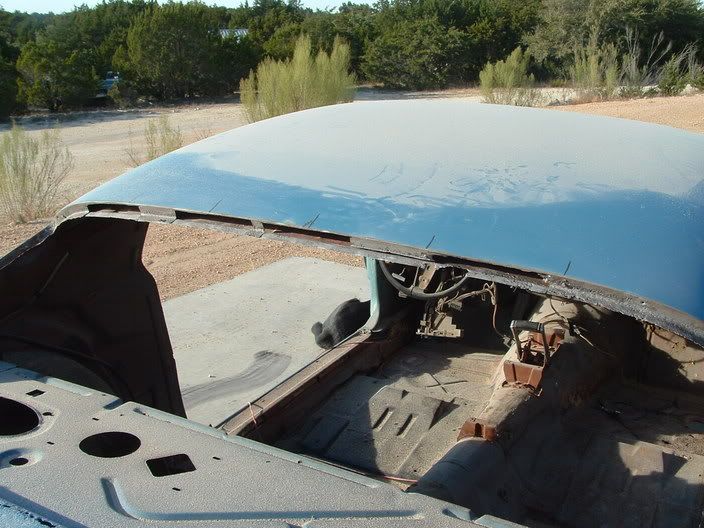

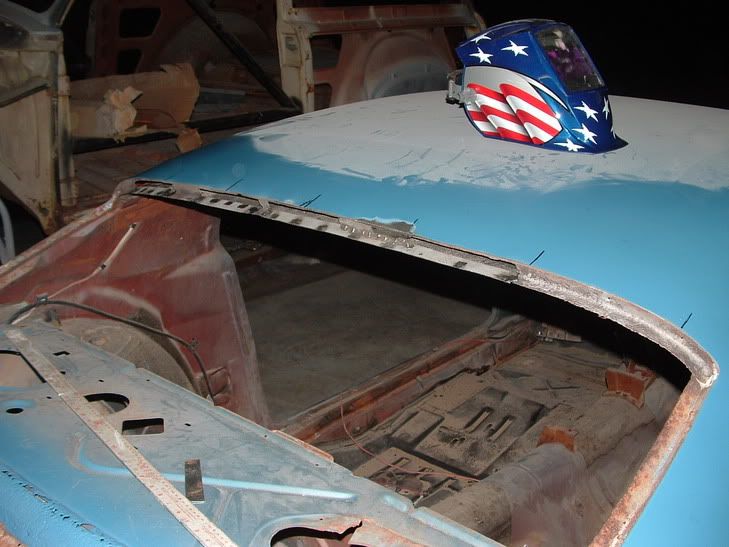

Back Window.http://img.photobucket.com/albums/v1...r102005004.jpg
http://img.photobucket.com/albums/v1...r102005003.jpg
http://img.photobucket.com/albums/v1...r112005001.jpg

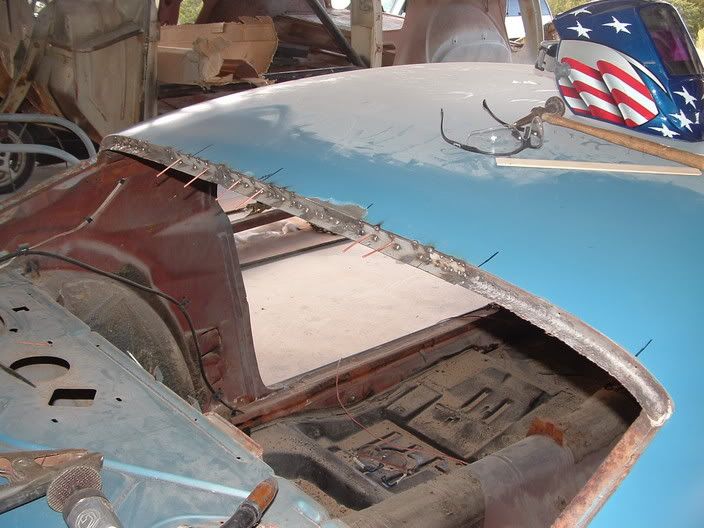

Windshield
http://img.photobucket.com/albums/v1...r112005001.jpg

Her are some pics of the qaurter panel work.

http://farm3.static.flickr.com/2416/...bca72a59_b.jpg

POR15 on the stuff that is going under the quarter.
http://farm3.static.flickr.com/2102/...8dd40aa4_b.jpg

New Quarter on.
http://farm4.static.flickr.com/3048/...9b959c85_b.jpg

Then the Car went on the backburner again when I got the urge for a motorcycle again..

That is where this fast little ******* came into my life.

2007 GSXR 750
http://farm1.static.flickr.com/154/3...56e63faad9.jpg

Instead of Working on my car on the weekends I was riding this thing and loving it.. On October 18 2007(almost one year after buying it) I went down hard on it, I highsided off of it in a diesel soaked road and landed on my shoulder instantly blowing my collar bone in many many peices.. I found out that day that the guy had shoved a rag in a hole in his fuel tank and when he went through the turn the fuel pushed it out and poured all over the road. Needless to say I sued him and the company for it and was able to get back on my bike along with getting much needed parts for the Camaro... :D

Here is the rest of the project in pics because I am sick of typing..

http://www.flickr.com/photos/2641401...7603998601359/

This is what is looks like right now. So it took me alot of breaks and 12 years to get here, but it is worth it..
http://farm4.static.flickr.com/3600/...ff47420338.jpg

Here is the rundown of what is done to it..

Factory Options:

This car was a base 307ci Camaro from the factory...
Exterior Modifications:

Boyd Coddington Rebels 17x8 w/ 245/40/17 front and 17x11 w/ 315/35/17 rear
Harwood 4" Cowl Hood
Factory one peice spolier
Grand Sport Blue with White w/ silver pearl stripes
Interior Modifications:

Interior is pretty much all factory style other then the 1990 300ZX Seats and Auto Meter Gauge Cluster..
Performance:

Started life as a 1990 SS454 Truck block(4 bolt main).

Eagle 496ci Stroker Kit-Forged Crank
ARP Main Studs and Heads Studs
6.385 H-Beam Rods
10.2:1 JE Pistons
Comp Cams Hydraulic roller tappet
-Basic Operating RPM Range: 2,500-6,200
-Intake Duration at 050 inch Lift: 232
-Exhaust Duration at 050 inch Lift: 232
-Advertised Intake Duration: 290
-Advertised Exhaust Duration: 290
-Intake Valve Lift with Factory Rocker Arm Ratio: 0.578 in.
-Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.578 in.
-Lobe Separation (degrees): 110
Roller Lifters
1.7 Comp Cam Roller Rockers
Brodix Heads
Combustion Chamber Volume (cc): 119
Intake Runner Volume (cc): 270cc
Intake Port Shape: Oval
Exhaust Port Shape: Round
Intake Valve Diameter (in): 2.250 in.
Exhaust Valve Diameter (in): 1.880 in.
Retainer Material: Steel
Locks Included: Yes
Lock Style: 10 degree
Rocker Arm Nut Thread Size: 7/16-20 in.
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 26
Exhaust Valve Angle: 26
Valve Seat Machine Style: 3-angle
Dart intake
Single Plane
850cfm Holley dp
March Pulley Kit
MSD Ingnition and Distibutor
Be Cool Radiator and Fans

Suspension/Chassis:

Global West Upper and Lower Control Arms
Hotchkis TVS Kit
Blistein Shocks
2008 Z51 Front Brakes(13.4in rotors)
SSBC Rear Disc Brake setup
Master cylinder off of a later model Corvette with Disc/Disc Prop Valve
8" Dual Diaphram Booster
All New MOOG Steering Components

Drivetrain:

Moser 12Bolt
33 spline axle and a detroit Locker with 3.73s
Built TH400 with a 2600 TCI Street Fighter Stall Converter

Electronics:

MSD 6AL

Cool anothher 2nd. gen project.Please keep posting updates.:thumbsup: Scott.

Here is the link for the rest of the pics..

http://www.flickr.com/photos/2641401...7603998601359/

Fired it off for the first time the other night, tranny and stall should be in my hands this weekend.

http://m.flickr.com/#/photos/26414016@N00/5850855556/

Michael nothing coming up when I click on the link.

Quote:

Originally Posted by waynieZ (Post 364755)

Michael nothing coming up when I click on the link.

X2,but congrat's on getting it running.:thumbsup:

cool project congrats and starting it!

I dont know why it didnt work, I will try again..

http://www.flickr.com/photos/2641401...n/photostream/
