Coils.....where'd ya put them.


I know a lot of us want to relocate the coils on their LS conversions. Show us where you put them and what brackets you used.

Here's what I'm doing with mine. I have the Ironworks relocation brackets. They put the coils into a nice compact area. I'm leaning towards putting my coils on the subframe right in front of the motor mounts. The only concern I have is if I get caught in the rain. Anyone know how well the coils hold up if they get wet? Anyways, here's some pics of where I'm thinking of putting mine.

http://i222.photobucket.com/albums/d...9/P1000836.jpg

http://i222.photobucket.com/albums/d...9/P1000838.jpg

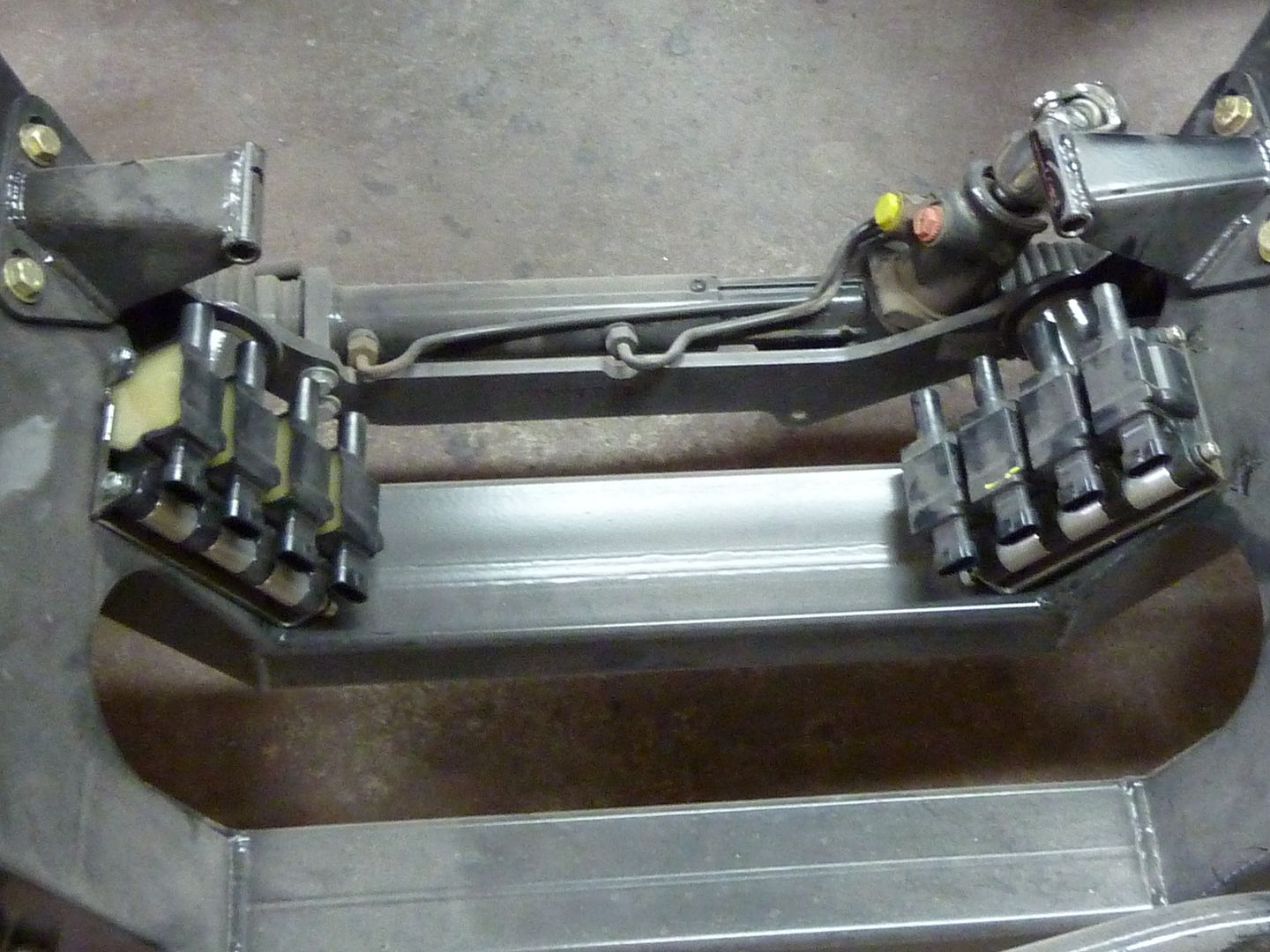

http://i222.photobucket.com/albums/d...9/P1010222.jpg

You can put them just about anywhere.
The coil packs I make have the same bolt pattern as the back of the heads.
A few lat-g members have them mounted this way. Anywhere where there is a flat surface works.
The coils can get wet, its not like an opti-spark on the LT series engines.

http://www.automotivedesigneng.com/p...c/P1030016.jpg
http://www.automotivedesigneng.com/p...c/DSC_0125.jpg

I had mine planned to go on the back of the motor but they ended up on the frame...

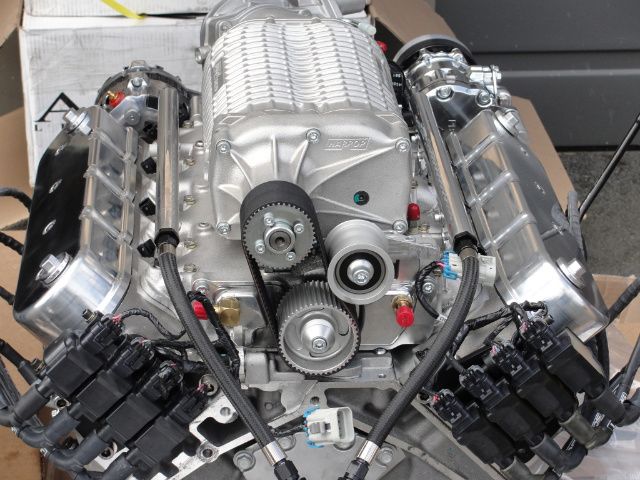

http://i1028.photobucket.com/albums/...2/DSC00431.jpg

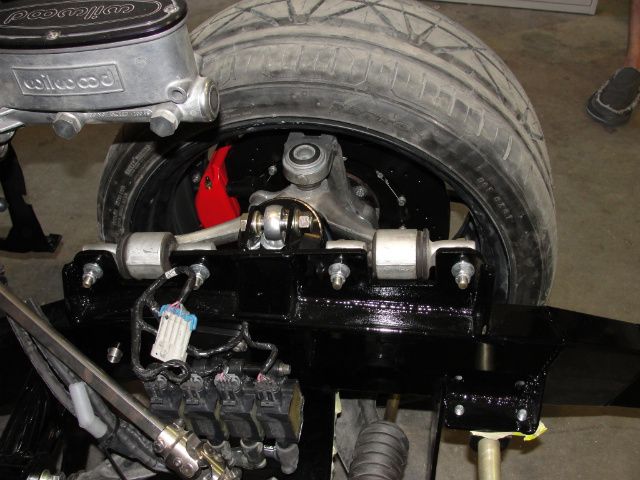

http://i1028.photobucket.com/albums/...2/DSC01852.jpg

bump

I'd like to see the different options as well.
