1980 Z28


When this first came in we thought we could do a quick paint job, update the suspension and brakes make it a roller so the customer could install a GM crate engine. The owner bought it sight unseen but had it inspected. At first it looked great.

http://img.photobucket.com/albums/v3...psfbf68b1c.jpg

We removed the rear bumper and found this.

http://img.photobucket.com/albums/v3...ps25393360.jpg

http://img.photobucket.com/albums/v3...ps8b89dc3f.jpg

Cut out the first layer of rust

http://img.photobucket.com/albums/v3...ps6097f373.jpg

http://img.photobucket.com/albums/v3...psa5a1bc8e.jpg

http://img.photobucket.com/albums/v3...psc50f4c39.jpg

http://img.photobucket.com/albums/v3...ps1a300482.jpg

http://img.photobucket.com/albums/v3...ps1ba0b01a.jpg

http://img.photobucket.com/albums/v3...ps0bac873d.jpg

http://img.photobucket.com/albums/v3...ps7c8490f1.jpg

So this is why the Mustang is on the back burner! :lol:

What's the plan for this? How involved do you plan on getting with this one? Stock or modified?

It will take me a little while to get up to date. Yesterday 6 piston 14" Baer brakes came in.

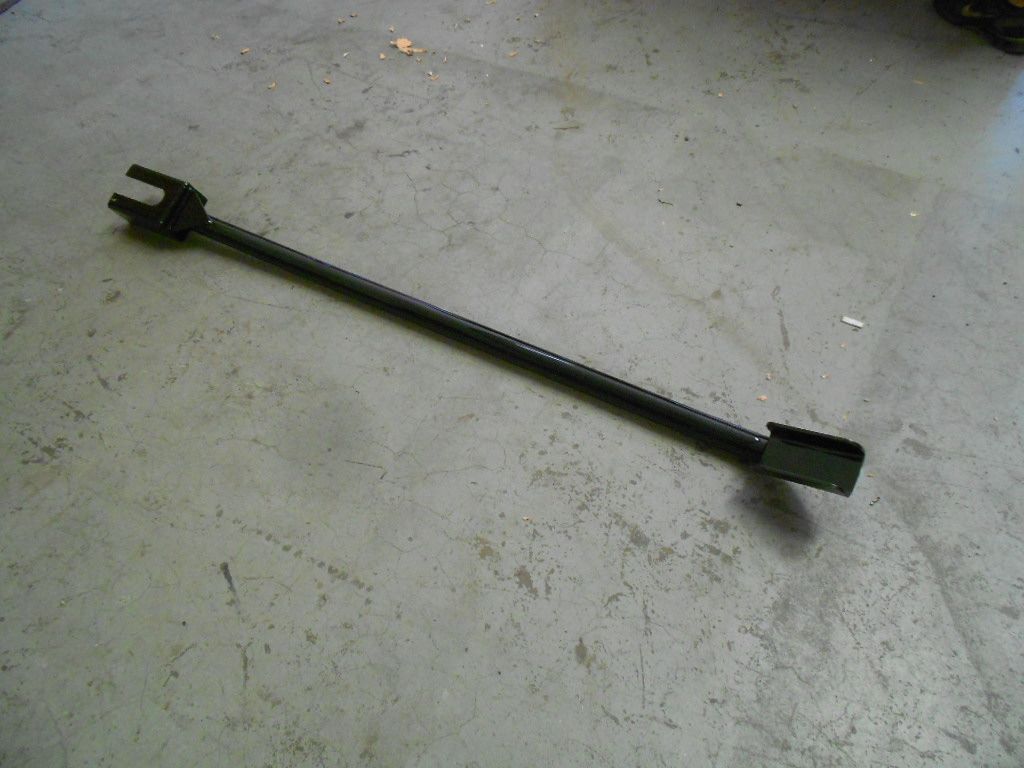

One of the first things we did was install Global West subframe connectors

http://img.photobucket.com/albums/v3...psd2f3a14f.jpg

http://img.photobucket.com/albums/v3...ps316006de.jpg

http://img.photobucket.com/albums/v3...psd67951c9.jpg

Thats a common place for rust on these cars

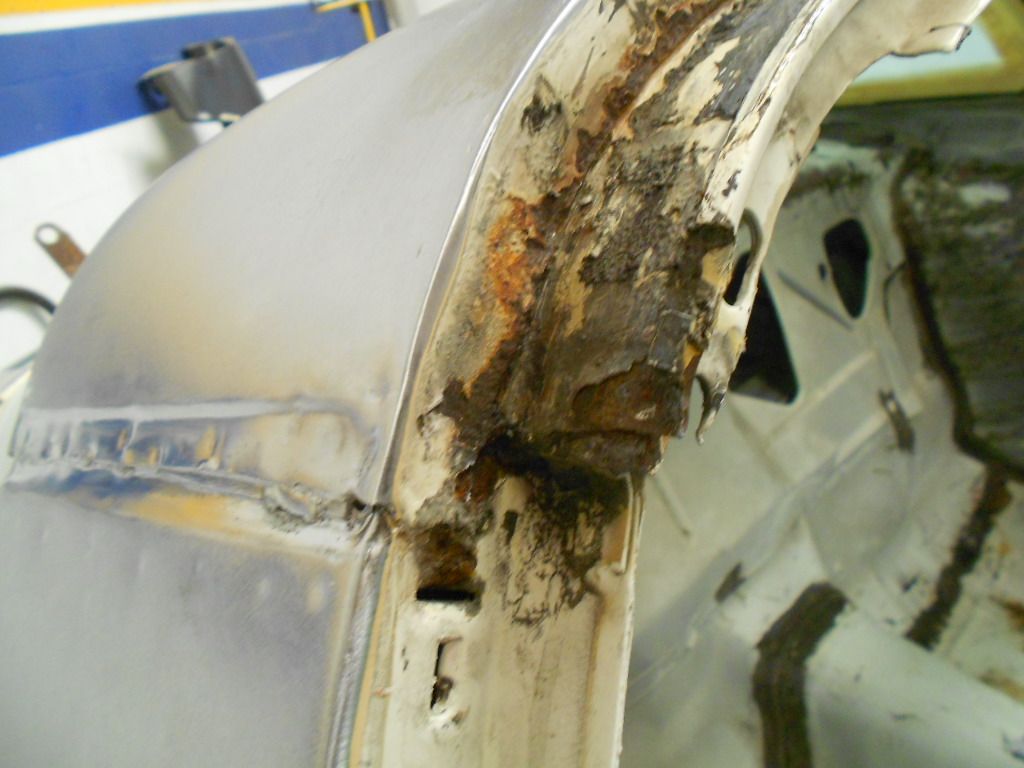

The T-top channel had rust that Brian had to cut out and fabricate patches

http://img.photobucket.com/albums/v3...psb3bda6d3.jpg

http://img.photobucket.com/albums/v3...pse7907f90.jpg

http://img.photobucket.com/albums/v3...ps1b2ce84c.jpg

http://img.photobucket.com/albums/v3...pse2bf2a86.jpg

http://img.photobucket.com/albums/v3...psbe937290.jpg

http://img.photobucket.com/albums/v3...ps86f7947f.jpg

The owner ordered a DSE roll bar made for a 1980 Camaro.

http://img.photobucket.com/albums/v3...psabfba9ce.jpg

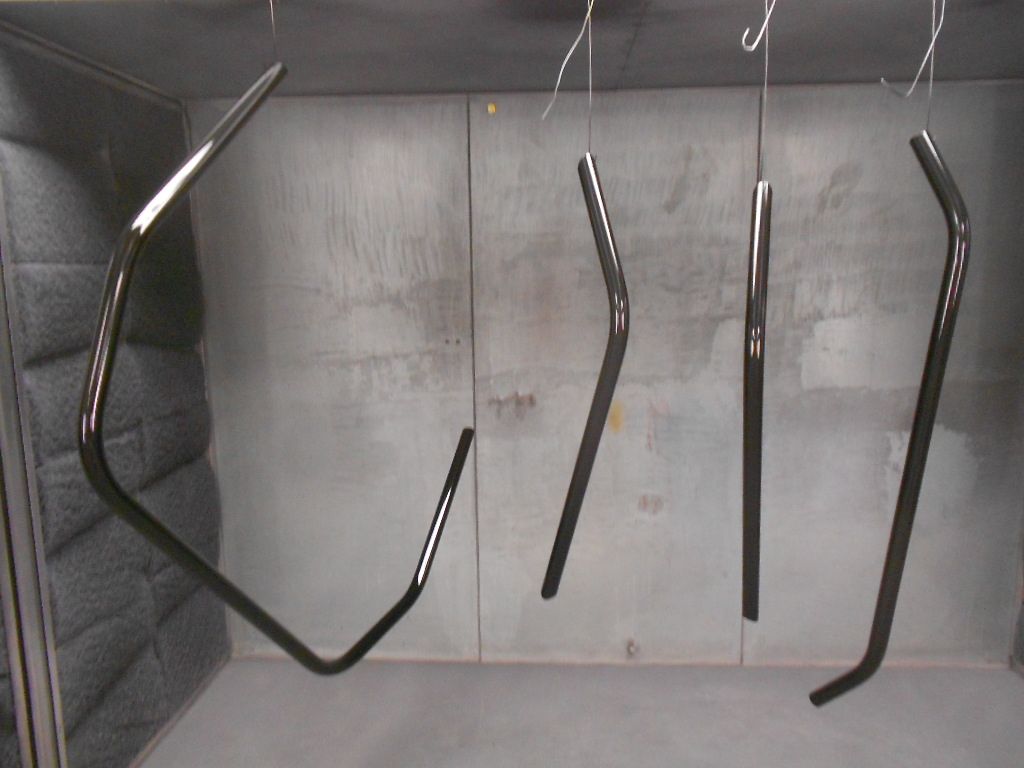

Sanded and epoxy primed

http://img.photobucket.com/albums/v3...ps9dba3ed3.jpg

http://img.photobucket.com/albums/v3...ps36e2e23f.jpg

http://img.photobucket.com/albums/v3...ps51e63443.jpg

http://img.photobucket.com/albums/v3...psd5ae8194.jpg

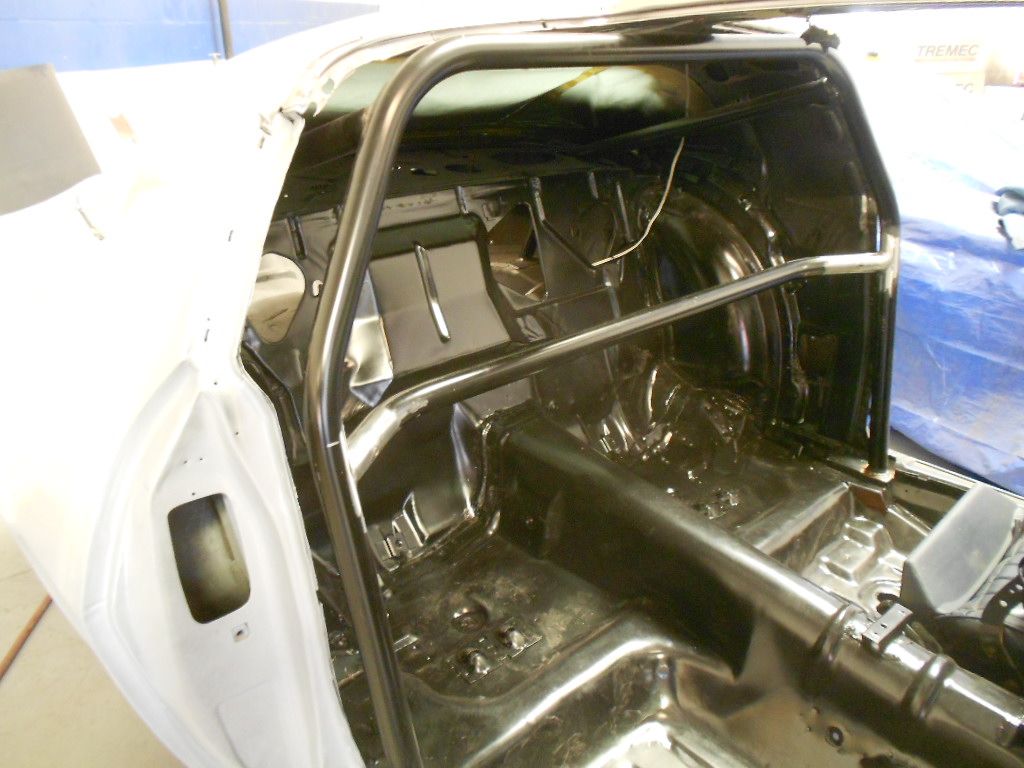

Before installing the roll bar we had to patch a few small holes in the floor and sand followed by a couple coats of epoxy

http://img.photobucket.com/albums/v3...psdffbce1a.jpg

http://img.photobucket.com/albums/v3...ps33e29c01.jpg

http://img.photobucket.com/albums/v3...ps86cf7efd.jpg

http://img.photobucket.com/albums/v3...ps32762367.jpg

http://img.photobucket.com/albums/v3...psf9c41923.jpg

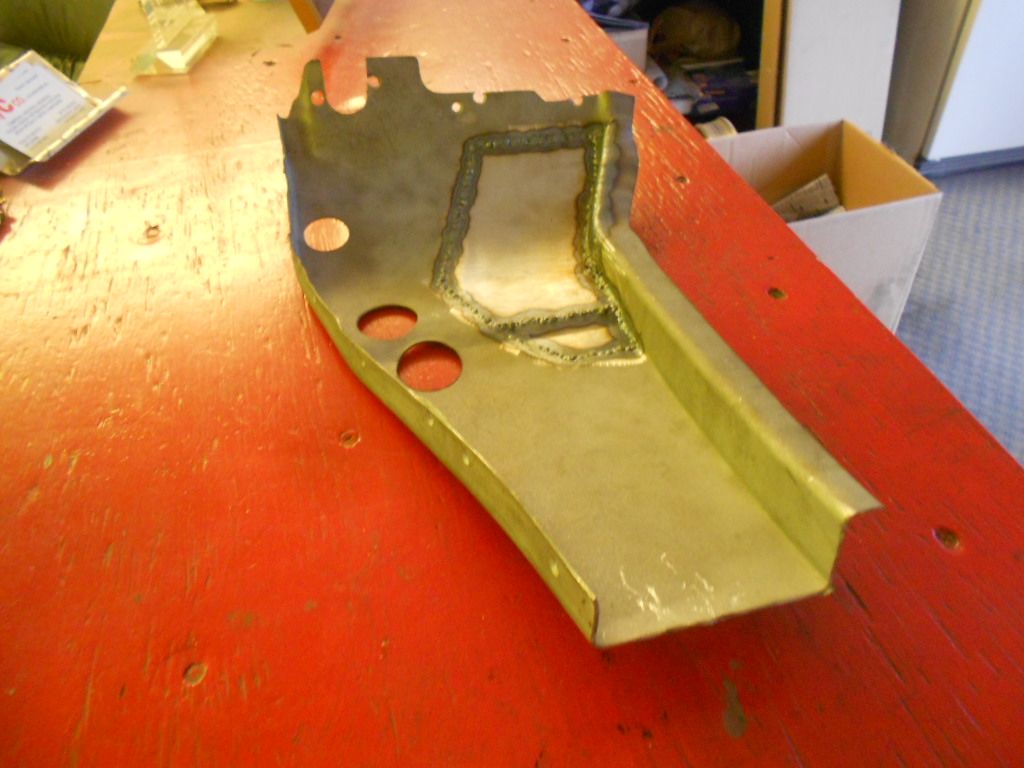

The right fender had rust in the brace plus a small spot on the fender. This is what it looked like under the brace.

http://img.photobucket.com/albums/v3...psd7cb9131.jpg

http://img.photobucket.com/albums/v3...psb1ae4808.jpg

http://img.photobucket.com/albums/v3...ps73477885.jpg

http://img.photobucket.com/albums/v3...ps824a78eb.jpg

http://img.photobucket.com/albums/v3...ps23b92ab4.jpg

http://img.photobucket.com/albums/v3...ps7d69e9ce.jpg

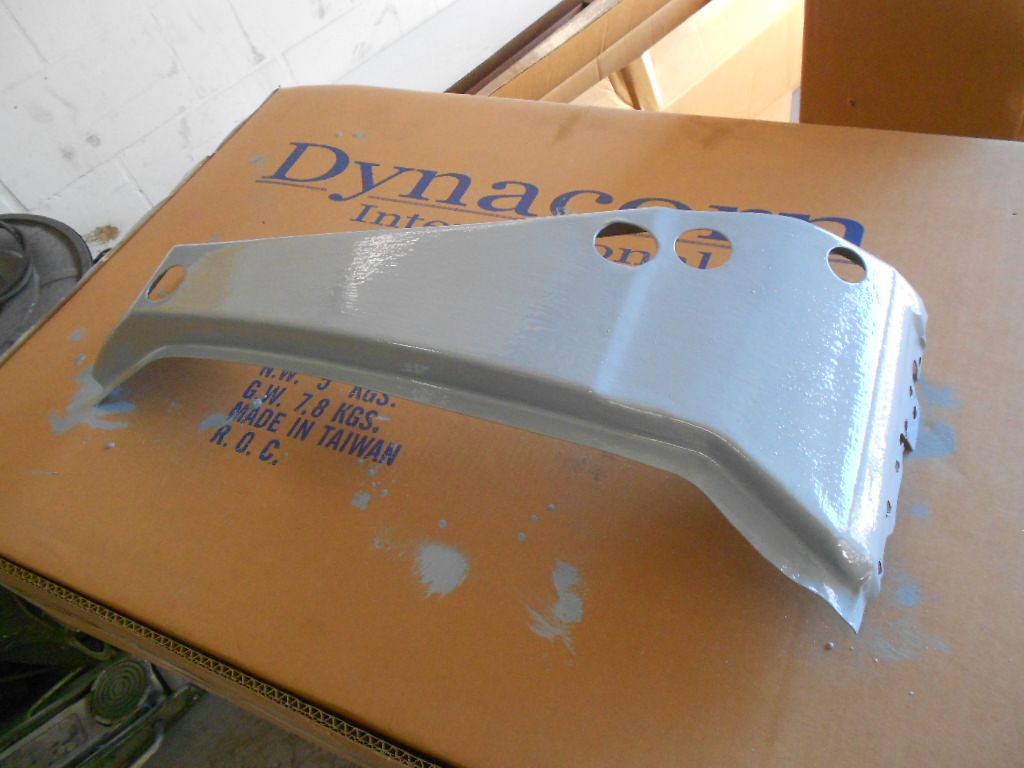

The left fender did not have any rust showing but the owner wanted it taken apart and epoxy primed also.

http://img.photobucket.com/albums/v3...pseb95cf74.jpg

http://img.photobucket.com/albums/v3...ps7f848590.jpg


http://img.photobucket.com/albums/v3...ps0097145e.jpg

http://img.photobucket.com/albums/v3...pse63024c4.jpg

http://img.photobucket.com/albums/v3...pse7d7a5fb.jpg

As we were taking the front end apart we noticed we had a rust problem where the steering box and sway bar bolted to the frame

http://img.photobucket.com/albums/v3...psb1a1f589.jpg

Sway bar bolts

http://img.photobucket.com/albums/v3...ps2789aab0.jpg

There was a lot of rust inside the frame

http://img.photobucket.com/albums/v3...ps6938c517.jpg

Last Friday a semi delivered this DSE powdercoated assembled hyrdoformed subframe with rack and pinion steering and coilover shocks.

http://img.photobucket.com/albums/v3...ps931722d3.jpg

http://img.photobucket.com/albums/v3...ps02ad801f.jpg

Wow...those thing do not come cheap! Sure seems like it's being done right and then some!
