Dave Diluca LS2 402 with AFR Heads


Item Location (City/State): Las Vegas, NV

Price: Asking $6900 (No Reasonable offer refused) Will ship for FREE to lower 48

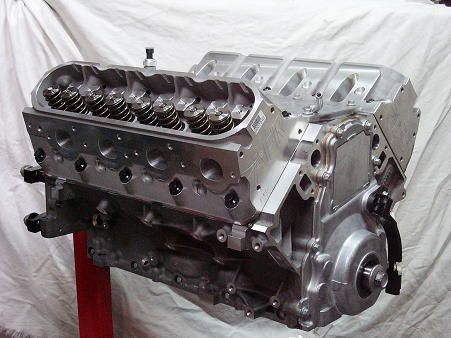

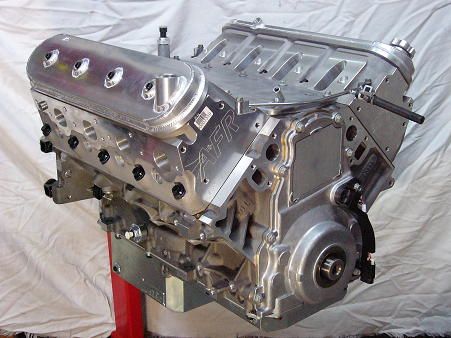

Description: LS2 Stroker


Just purchased a 69 Camaro Project Car from a friend of Jody's and I am going a different direction with the engine so this great LS2 is up for crabs.

I also have a an OEM LS2 Intake and Fuel Rails we can work into the deal and I'll work with you on the shipping.

-Brand spanking new, built by Dave Diluca 402" LS2, motor is good for 850+ HP, and will make 525+ as is at the rear wheels

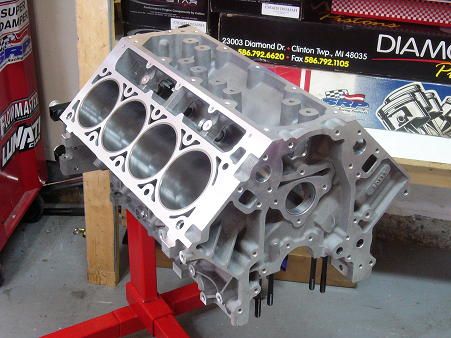

-LS2 4.00" block
-AFR 225cc CNC heads
-Block clearanced for rods
-Hone w/ torque plate
-Line hone
-Knock sensor tapping and sensor
-ARP main studs
-Eagle 4.00" 4340 crank

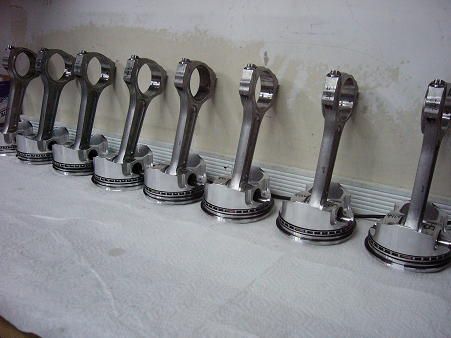

-Lunati Billet 6.125 rods

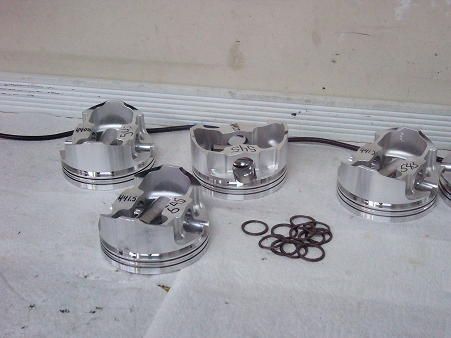

-Custom pistons/rings/pins
-Internally balanced
-Custom Comp cam
-Morel lifters
-JP double chain
-Ported oil pump
-Valley and front covers
-Lifter trays
-Rear cover
-GM MLS Head gaskets
-ARP bolts throughout
-Billet valve covers
-ATS oil pan
-All sensors installed

http://i103.photobucket.com/albums/m...ps433affd6.jpg

http://i103.photobucket.com/albums/m...ps612400cc.jpg

http://i103.photobucket.com/albums/m...ps256d84c2.jpg

http://i103.photobucket.com/albums/m...psde066155.jpg

http://i103.photobucket.com/albums/m...psbb07dbfb.jpg

Sweet motor! Good luck with the sale John. Car is going to be stunning!

:captain:

This is the motor my best friend bought to go in his 69 Camaro project that the OP just bought. Brand new, never fired, been sitting in my secured insulated shop the last few years waiting for my buddy to finish the car which never happened.

I will say, my friend paid more than that for it years ago, and it was a good deal then, so someone needs to snatch this up.

A couple of things people will want to see if you have them... Cam details and a dyno sheet? Do the heads have any porting work done to them other than the standard AFR ports?

GLWS!

From what I understand Dave Diluca did not disclose the custom cam specs. He sold this engine as a 525 RWHP build.

Jody may know more details

I think all AFR heads that come directly from them already assembled, are fully CNC'd IIRC.

that is a deal. I'll pass the info along

No cam specs, the engine builder held those close to his chest. I believe the grind was in the .600 lift range and 240/244 @ .050, on a 110 lsa. But the exact specs are unknown. Heads are full CNC as far as I could tell.

It was his 525 rwhp package, at least in a late model F body or Vette. Might be slightly less in our older cars.

This was listed on 10-25-2006 for $8500. Just a little reference.


http://www.corvetteforum.com/forums/...k-forsale.html

Great price here guys. Anyone in the market for an engine will appreciate this price.
