Need LS motor CAD file


Hey guys, I have a friend who's going to school in Seattle for engineering and he needs a CAD file of an LS engine for a Solidworks project he's working on. I was hoping one of you fine gentlemen might be able to point me in the right direction, or even have the file available.

Thanks,

Matt

What is his email address? Pm it to me. I'll send him an LS3 model.

Thanks so much! I'll get that for you ASAP!

:king:

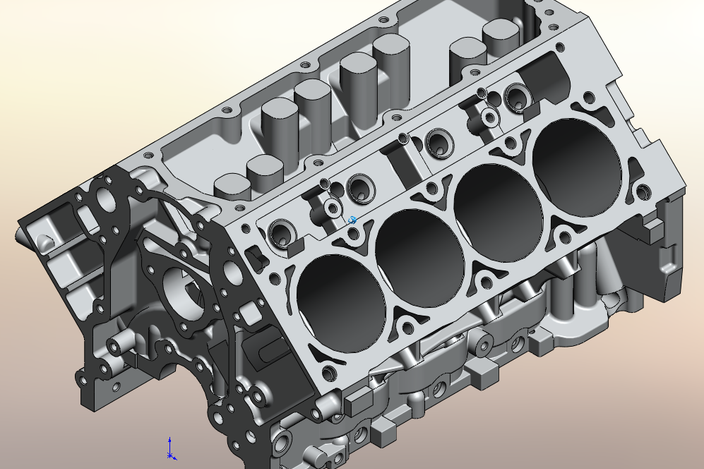

Grabcad has the block, or complete

http://grabcad.com/library/chevy-ls3-6-2l-1
http://grabcad.com/library/ls3-engine-block-1

https://d2t1xqejof9utc.cloudfront.ne...a6f/medium.bmp

https://d2t1xqejof9utc.cloudfront.ne...e269/large.jpg

Thank you sirs!

I passed the links posted to my friend as well.

You guys rock!

I think that is the same model I have.

Matt. I'm sent mine to your friend and he replied that it was working for him.

For everyone else that asked, I'll send what I have tomorrow. What I have is not a solid works file, just an autocad 3d .dwg. But it can be imported into solidworks. It just won't be editable.

Awesome. Thank you again sir!
