Wegner LS3 TVS2300 900hp


Item Location (City/State): ok

Price:18,500

Description:

This is the engine that started it all for the Wegner TVS2300 blower kits. I asked Casey to develop a front drive system for the TVS2300 and this monster was the result. 914hp @ 6400rpm and 870tq @ 4400rpm. That was also done on 1 3/4" headers and stock sized LS3 throttle body. It now has a Nick Williams DBW102mm throttle body so with that and larger headers there is probably more power left in this beast. Also installed on the engine is a set of one off billet valve covers I had Casey make to mimic the 2300 case. Everyone that has seen them thought they were made by Magnuson. Only thing not included is coils or plug wires. Engine is brand new, has dyno time only on it. Over $23k was spent on this monster. Asking $18,500, may take partial trade on LS3 or LS7, but prefer to sell outright. Here are the specs:

- LS3 balanced & blueprinted aluminum block (4.080” bore and 4.00” stroke -
418 cid) with Callies CompStar 4.00” cranks and 6.125” CompStar rods and Diamond
Racing forged, dished 4.010” pistons with steel top ring sets and moly coated
skirts. Full gasket set, rod and main bearings, timing set. Engine assembled and
dynoed by Wegner Motorsports

- 9.43:1 compression ratio

- Wegner Motorsports L92 CNC ported heads, Race Flow stainless steel intake
valves, Manley Inconel Extreme Duty exhaust valves, Manley Nextech dual valve
springs and retainers

- Magnuson supercharger - painted MP2300 6th generation, 4 lobe, 160° helix
rotor design with internal bypass valves

- Magnuson cogged belt drive

- Ported lower tub manifold on supercharger

- ARP 12 point head/main stud kit

- Nick Williams 102mm throttle body with custom billet inlet

- Comp camshaft: 237°/243° int/exh @ 0.05” duration - .600”/.600” lift @ 115°
LSA

- GM 1.7:1 rockers with upgraded trunions, bearing, rings, and bars

- GM lifters and lifter holders

- FRAM Autolite spark plugs

- 85 lb. FAST high impedance injectors

- Valley tray

- Melling high-flow oil pump

- Autokraft oil pan and pickup

- Crank, cam, and water temp sensor


Also included is all the parts that came with the Magnuson kit which was for a 5th Camaro. i will have the motor out of the car this weekend and the dust cleaned off it for any serious buyers that want more pics. Thanks!

http://i1309.photobucket.com/albums/...psoueqipol.jpg

This would cost over 26k today from Wegner. Awesome deal Mike!!

Thanks, hope someone else agrees and buys it.

How many pounds of boost?

Whats the duty cycle on the injectors?

14 psi. I don't have any specs on the injectors.

Mike, it looks like it has stock head bolts in the pic. I have a guy that is interested---but before I send him your way, just want to confirm that the parts list that says ARP Head/Main studs is correct. Perhaps this is an old pic. Please let me know---thank bro.

Doug

Thomson Automotive has done lot of testing on the headers and throttle body. Bigger headers won't increase the power, and the stock 90 mm throttle body is fine for LS3 418. I will be using Ultimate Headers 1 3/4" headers on mine, but Thomson Automotive tests their engines with stock corvette exhaust manifolds. I asked Brian about porting the tub, but it doesn't increase the power. Thomson Automotive rebuilt my engine, but the biggest increase was change to LS9 heads (same as Hellfire) and Cam. Mikels never tested mine at 15 psi, but it is in the plans. Hellfire uses a 90 mm throttle body. This is a great price for the engine.

Good luck with the sale

Jeff

Yes it does have the ARP bolts installed. I just double checked.

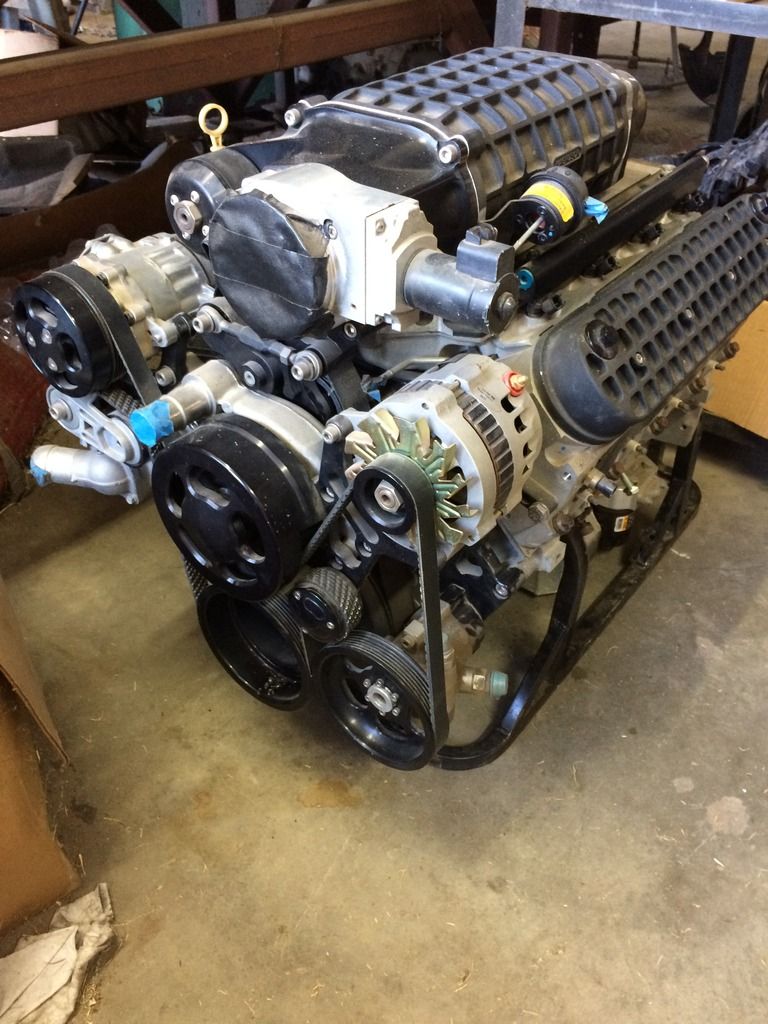

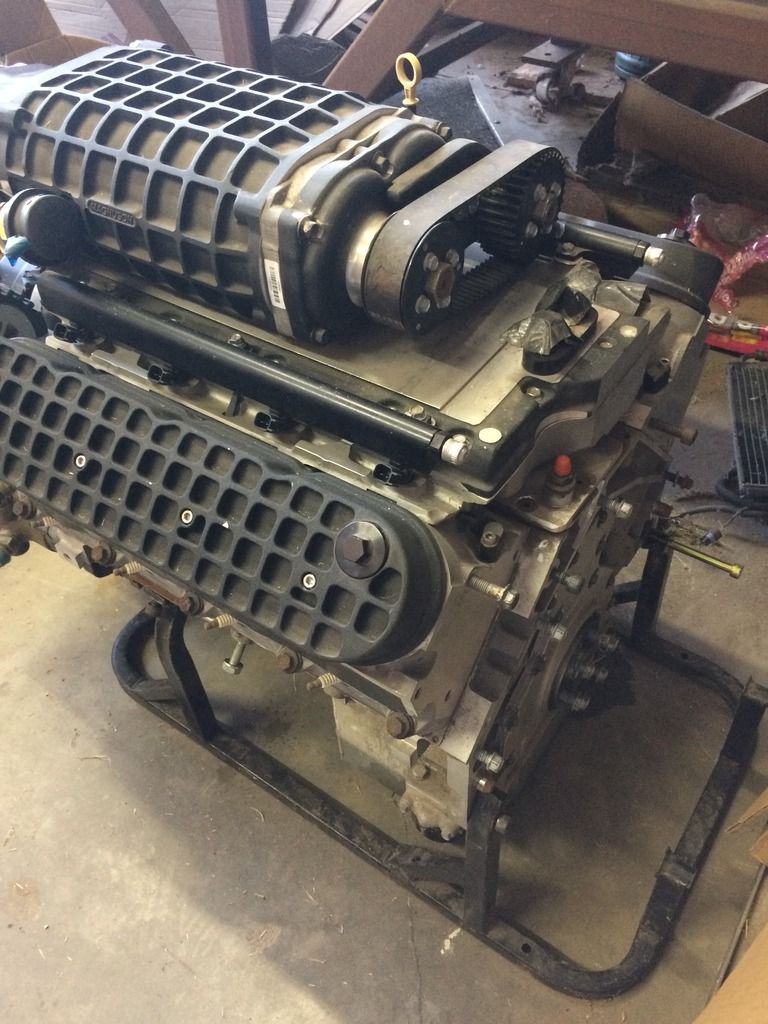

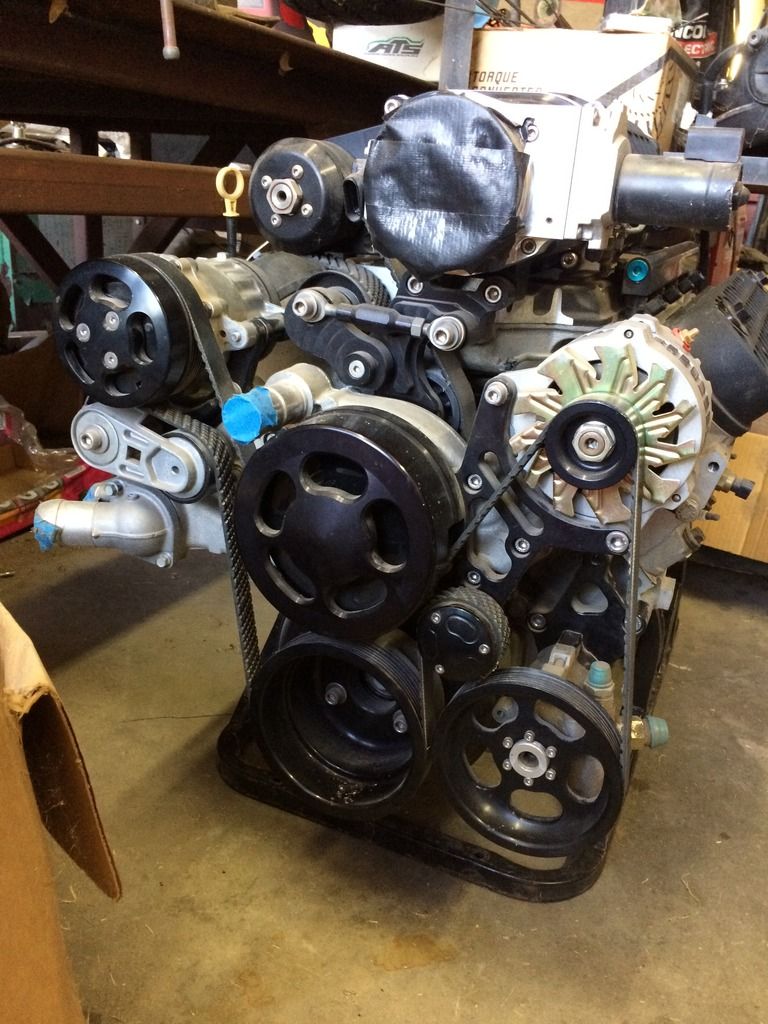

Engine is out of the car, still needs a final cleaning. There is a few spots on a couple pulleys where the anodizing is bad. I will have those parts re-anodized before shipping engine to its new owner. Price dropped to $18k shipped.

http://i1309.photobucket.com/albums/...psjicpqwmy.jpg

http://i1309.photobucket.com/albums/...psrvbcjfus.jpg

http://i1309.photobucket.com/albums/...psxlmmjnaj.jpg

what electronics did you run on this Mike? I assume its set up with 58?
