C6/C7 Hybrid Floater Adaptors - Big Ford End


Item Location (City/State): Mesa, AZ

Price: $600 plus PayPal & shipping ***SOLD***

Description: NEW - this design has been recently replaced with a slightly more cost effective version from a manufacturing standpoint https://lateral-g.net/forums/showthread.php4?t=49657 , however this close out offering will still perform the same as the new design,,, only you save hundreds!

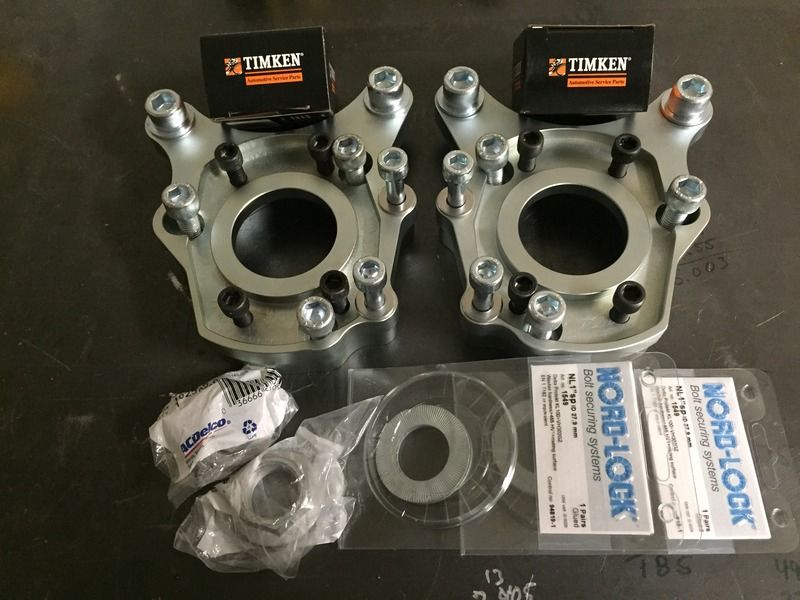

Includes (2) Billet Steel Adaptors (zinc plated) & Complete Hardware Kit

Excludes Hubs, E-brake Assemblies, Brakes, & Axles (sold separately)

Fits "New Style/Torino" Big Ford End

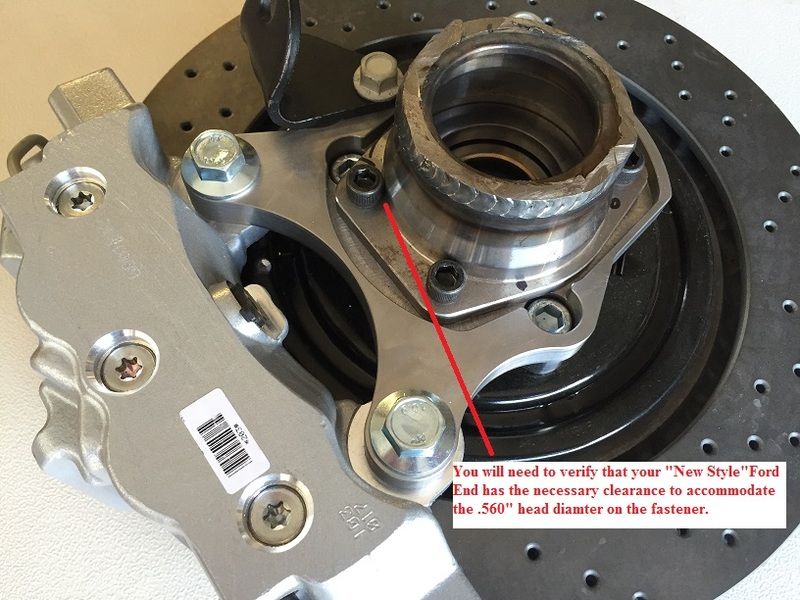

Converts your existing semi-float axle configuration into a hybrid floater that eliminates piston knockback. Also utilizes the robust C6 ZR1/C7 Hub Bearing Unit, C6 E-brake Assembly, and ANY brake package designed to fit the C5/C6 Corvette!

Note: This design adds 1/4" per side. Also note that this design will accept both the C6 ZR1 & C7 33 spline Hub Bearing unit, however does not have accommodations for the abs wire.

http://i35.photobucket.com/albums/d1...ps6vcmmart.jpg

http://i35.photobucket.com/albums/d1...psnbd6ztbe.jpg

http://i35.photobucket.com/albums/d1...psog8bjggq.jpg

http://i35.photobucket.com/albums/d1...psguzta13p.jpg

http://i35.photobucket.com/albums/d1...pss1j6nzfn.jpg

http://i35.photobucket.com/albums/d1...psqmnrxdyt.jpg

Does it change the flange to flange measurements? Effecting Wheel backspace?

This design adds 1/4" per side. Also note that this design will accept both the C6 ZR1 & C7 33 spline Hub Bearing unit, however does not have accommodations for the abs wires. I will include this info into the original post. This set has also been zinc plated too, so no additional coating is required.
Let me know if you have any other questions.

http://i35.photobucket.com/albums/d1...psqmnrxdyt.jpg

Is this just for this set or are you selling them at 600.00 from here on in?

Yes, only for this set. The new version of these with hardware are $798 +PayPal & shipping and will remain at that price.

Not shown in the picture, but I am including all hardware & axle seals....

SOLD! And headed to Cali!

Thanks!

http://i35.photobucket.com/albums/d1...pspbs5rbip.jpg
