NEW- Chevy 12 Bolt - "Bolt-On" C6/C7 Hybrid Floater


C6/C7 Hybrid Floater System -


[SIZE="4"]Installs onto GM 10/12 Bolt (except Impala or Truck)[/SIZE] rear-ends,,,,, BOLT-ON!


That's right, you can use your current GM 10/12 Bolt rear-end housing, NO welding & simple installation!


Advantages:

• Bolts to GM 10/12 Bolt housing end / brake flange (except Impala or Truck)(Big Ford application also available! https://lateral-g.net/forums/showthread.php4?t=49657 )
• Eliminates the weak/dangerous factory c-clip axles
• Reduces/eliminates brake “knockback”
• Eliminates axle deflection
• Wheel & tire remains intact should an axle failure occur
• Front or Rear Caliper / E-Brake Cable Positions
• Utilizes the robust, zero maintenance C6/C7 ZO6 Hub Bearing Unit
• Utilizes OEM C5/C6/C7 Corvette, and 5th Gen Camaro brake kits
• Utilizes aftermarket C5/C6/C7 Corvette, and 5th Gen Camaro brake kits
• Utilizes your existing BAER / WILWOOD caliper & rotor (some restrictions apply)
• Super compact design compared to traditional style full floaters
• All advantages of a traditional style full floater without the maintenance
• Replacement parts available at local GM dealer or local parts house
• No modifications required to the hub bearing unit as other kits in the marketplace

Note: this applications will add 1/16″ per side to your existing wheel mount surface (based on an existing 2.810″ axle/brake offset)

Fitment: OEM 10/12 Bolt Rears: 67-81 Camaro, 64-72 Chevelle, 64-74 Nova

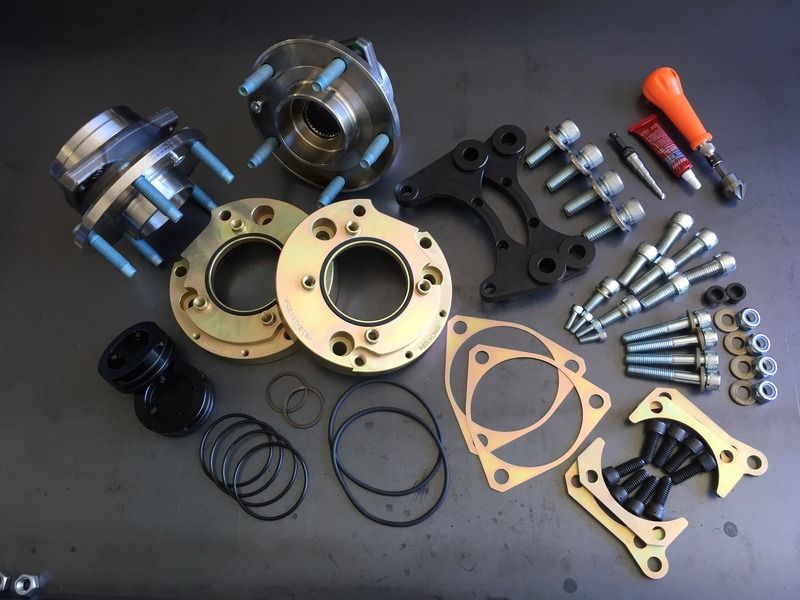

GM 10/12 Bolt Bolt-On “Base Kit” (pictured below)

http://i35.photobucket.com/albums/d1...psnanxqyi1.jpg

GM 10/12 Bolt Bolt-On “Base Kit” (pictured above)


Base Kit Includes:

• (2) Billet Steel, C-Series, Hybrid Floater Adaptors
• (2) Billet Aluminum Caliper Brackets
• (2) C7 Corvette, SKF 33 Spline Hub Assemblies
• (1) Install Kit
• (2) Hub Spacers
• (2) Billet Aluminum Hub Cap Seals
________________________________________
PRICED AT - $1498.00


Add Axles - $400.00
• (2) Hy-Tuf Full Float Axles

Add E-Brake items - $325.00
• (2) C5/C6 Corvette Complete E-brake Assemblies
• (2) C5/C6 Corvette Parking/E-brake Cable Brackets


Have interest?
Have questions?
Need more info?

Dealer Inquires Welcome!

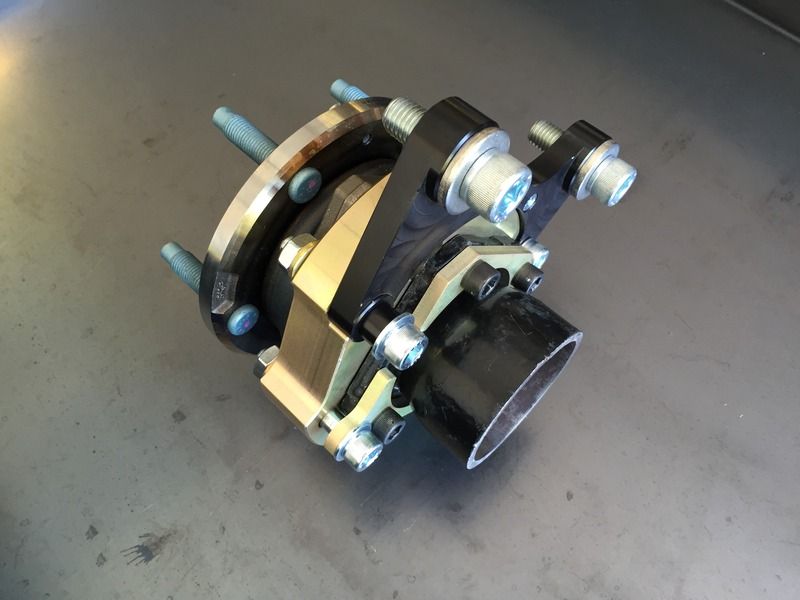

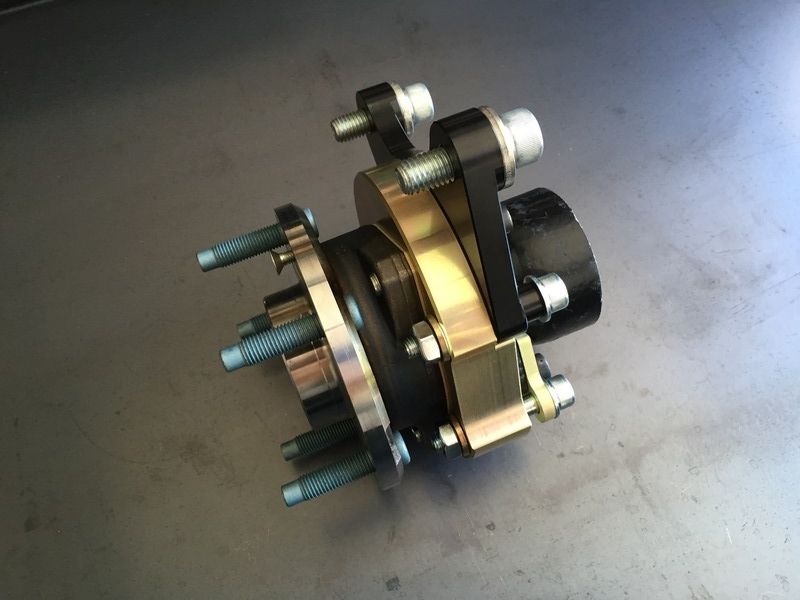

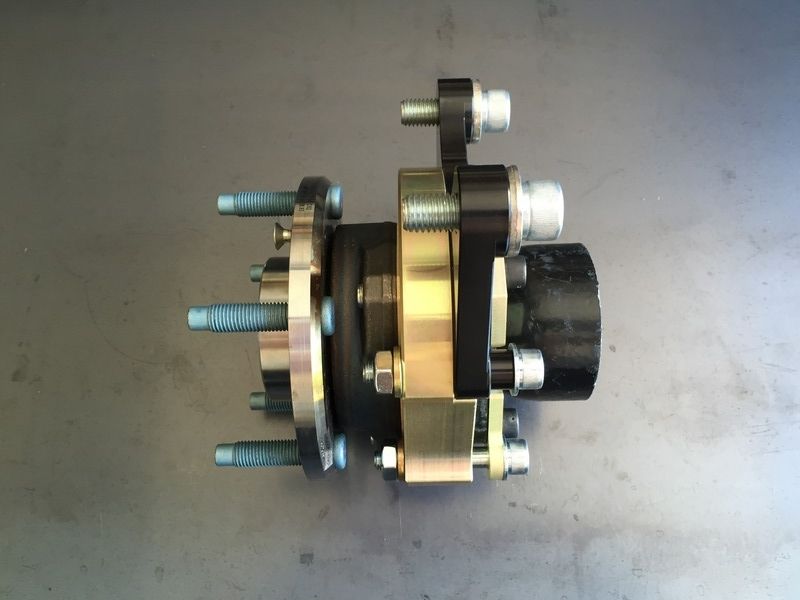

Below pics of the assembled "Base Kit".... (attached 10/12 Bolt End is for display purposes only)

http://i35.photobucket.com/albums/d1...pswedlkutz.jpg
http://i35.photobucket.com/albums/d1...ps7ks6mdjb.jpg
http://i35.photobucket.com/albums/d1...psjlt2gtue.jpg

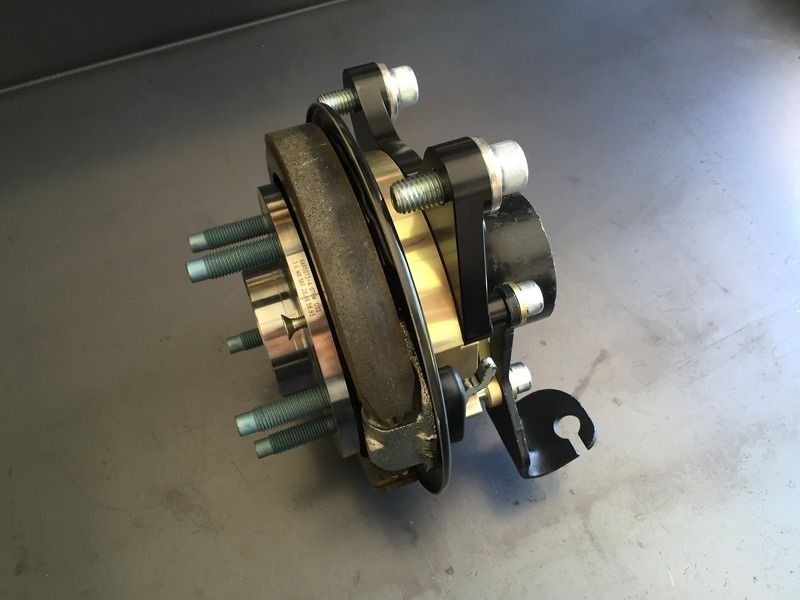

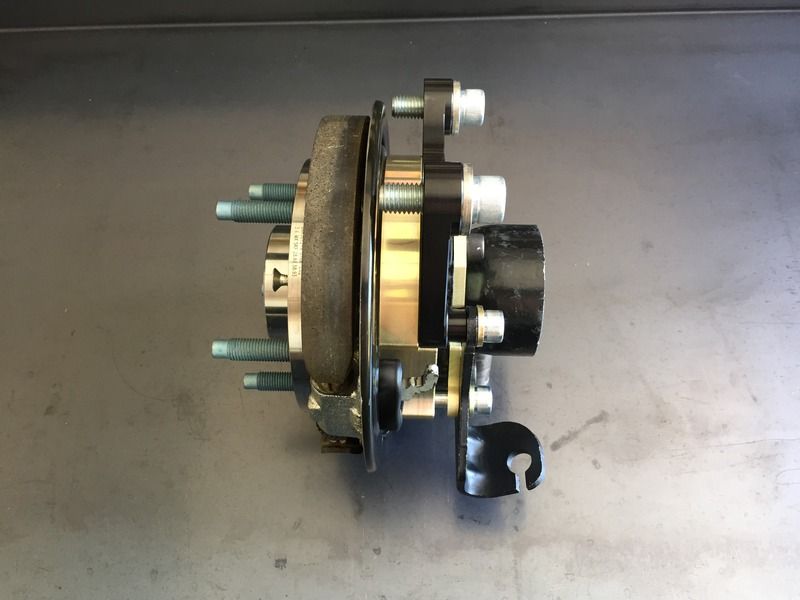

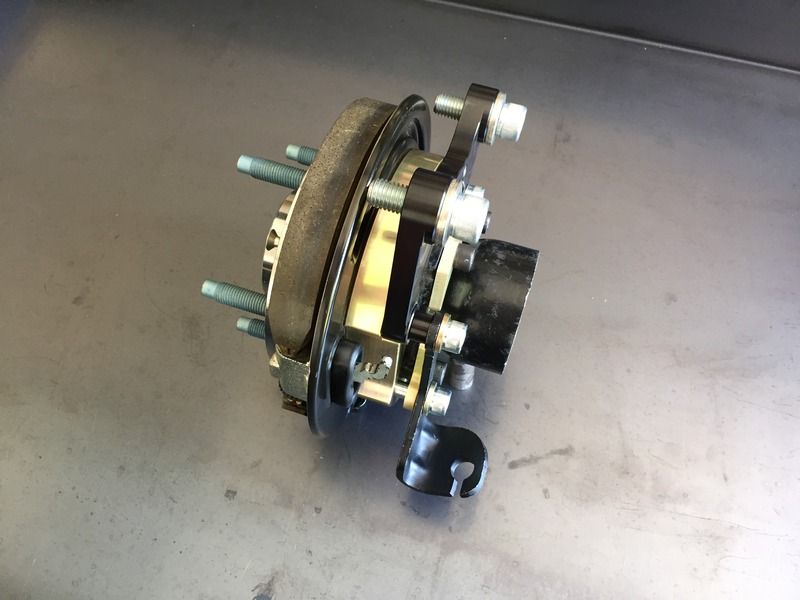

Below pics shown with optional C5/C6 E-brake Assembly & E-brake Cable Bracket. These two e-brake items are optional and the system can be run without and added at a later date if desired.... (attached 10/12 Bolt End is for display purposes only)



http://i35.photobucket.com/albums/d1...psrvgja599.jpg
http://i35.photobucket.com/albums/d1...psfkuhs7jb.jpg
http://i35.photobucket.com/albums/d1...ps2j03lwsf.jpg

Few pics below of this 10/12 Bolt Kit in action!

http://i35.photobucket.com/albums/d1...psdplkpxhp.jpg

http://i35.photobucket.com/albums/d1...psb61cwfl7.jpg

http://i35.photobucket.com/albums/d1...psbax8w3hy.jpg

These are some pretty cool products you have. If they were avialble 2 years ago it probably would have changed my build direction. Good luck with all the new ideas!

did you not already have a bolt on kit developed ? if so whats the difference

Hello Ryan,

Yes I do have another bolt-on application, however the other one you are referring to is specific to Big Ford Ends.

This one is specific to Chevy 12 Bolt OEM style End.

If I recall correctly, you currently have a Chevy 12 Bolt with OEM style Ends :poke:

Jay

Hey Jay
Yes I do have a 12 bolt.... I was positive you had another 12 Bolt , bolt on kit .....anyways I keep getting other parts instead of Your ..."rear end " lol kit ...I will be buying the weld on kit regardless

I'm interested in the 12 bolt kit. Not ready to buy right away but I would like the option over other alternatives.

They were available,,,, only on a napkin at that point haha! Thank you for the positive comment!

Hey Ryan - Maybe I had mentioned the Chevy 12 Bolt "Bolt-On" design while trading emails with you. The design has been in my head for quite some time. Either way, it sound like you are after my Weld-On. I'll keep one with your name on it! Now quit buying everything else :lol:

I am VERY proud of this one. I feel Chevy 12 Bolt guys lacked a solid Pro Tour/Auto-X type solution to the dreaded axle c-clips, and brake packages...
Now you can have it ALL :thumbsup:

Stay tuned for some actual product pictures that I will be displaying real soon. These are beautiful pieces!!

Parts!!


I love it when a idea goes from my head, to napkin, to CAD, to my workbench, then to Indiana and onto a Camaro, thennnnn to the Midwest Musclecar Challenge for Road Course & Auto-X thrashing :)

http://i35.photobucket.com/albums/d1...pshhdqmb0z.jpg

Will that setup work with the 10 bolt? Being that the ends are the same as the 12 bolts.

Yes, however I have not physically verified, but is my understanding they are identical.

Jay
