Big Ford End - "Bolt-On" C6/7 Hybrid Floater


C6/C7 Hybrid Floater System -


Installs onto any Rear-End that utilizes "Early" or "New Style/Torino" Big Bearing Ford Ends.


That's right,,,, you can use your current rear-end housing, NO welding & simple installation. BOLT-ON! :headspin:



Advantages:

• Bolts to your Early OR New Style/Torino Big Ford Housing End (Chevy 10/12 bolt application now available! https://lateral-g.net/forums/showthread.php4?t=52854 )

• Reduces/eliminates brake “knockback”
• Eliminates axle deflection
• Wheel & tire remains intact should an axle failure occur
• Front or Rear Caliper / E-Brake Cable Positions
• Utilizes the robust, zero maintenance C6/C7 ZO6 Hub Bearing Unit
• Utilizes OEM C5/C6/C7 Corvette, and 5th Gen Camaro brake kits
• Utilizes aftermarket C5/C6/C7 Corvette, and 5th Gen Camaro brake kits
• Utilizes your existing BAER / WILWOOD caliper & rotor (some restrictions apply)
• Super compact design compared to traditional style full floaters
• All advantages of a traditional style full floater without the maintenance
• Replacement parts available at local GM dealer or local parts house
• No modifications required to the hub bearing unit as other kits in the marketplace

Note: this applications will add 3/16″ per side to your existing wheel mount surface (based on an existing 2.50″ axle/brake offset)

Fitment: Any rear-end housings that utilizes Early or New Style/Torino Ends

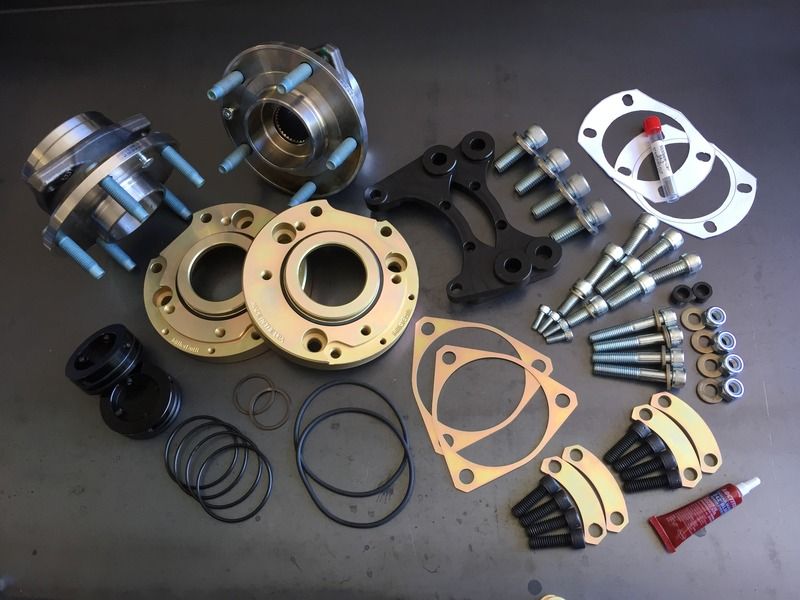

Big Ford Bolt-On “Base Kit” (pictured below)

http://i35.photobucket.com/albums/d1...psnt1tqujq.jpg

Big Ford Bolt-On “Base Kit” (pictured above)


Base Kit Includes:
• (2) Billet Steel, C-Series, Hybrid Floater Adaptors
• (2) Billet Aluminum Caliper Brackets
• (2) C7 Corvette, SKF 33 Spline Hub Assemblies
• (1) Install Kit
• (2) Hub Spacers
• (2) Billet Aluminum Hub Cap Seals
________________________________________
PRICED AT - $1,398.00



Add Axles - $400.00
• (2) Hy-Tuf Full Float Axles

Add E-Brake items - $325.00
• (2) C5/C6 Corvette Complete E-brake Assemblies
• (2) C5/C6 Corvette Parking/E-brake Cable Brackets



Have interest?
Have questions?
Need more info?

Distributor Inquires Welcome!

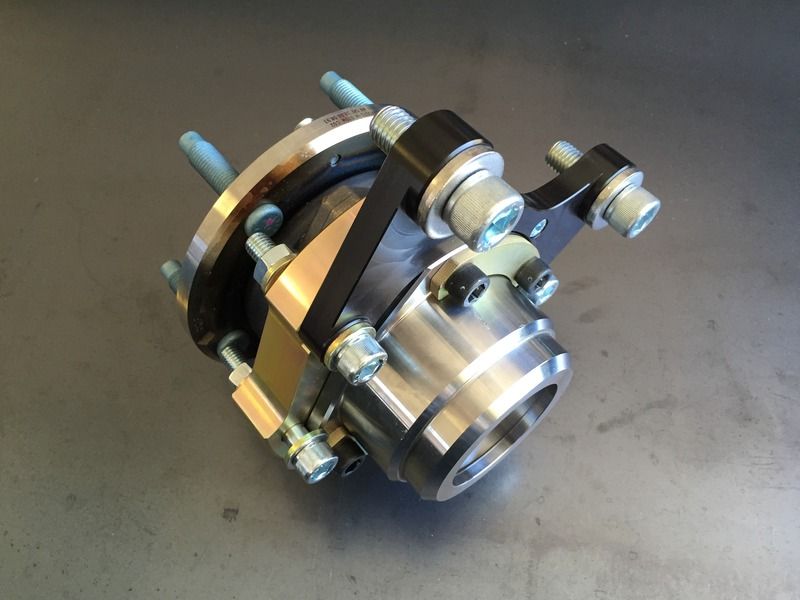

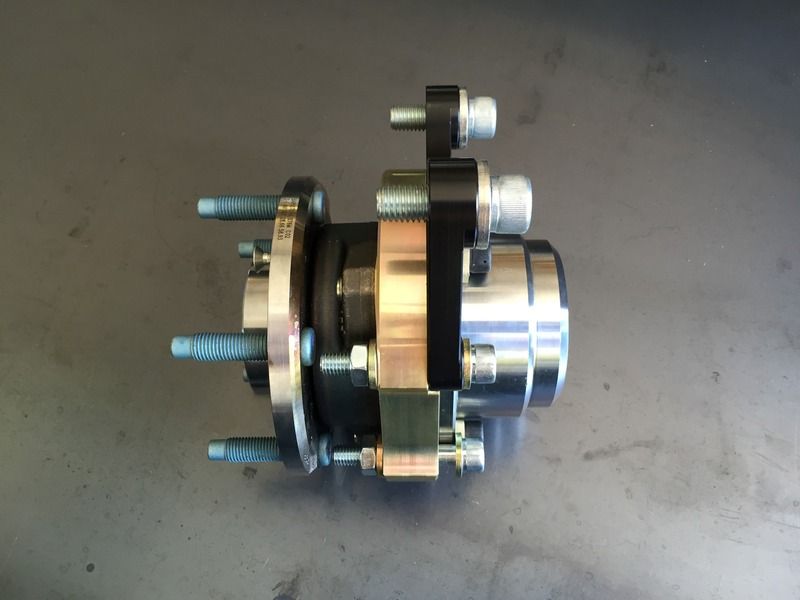

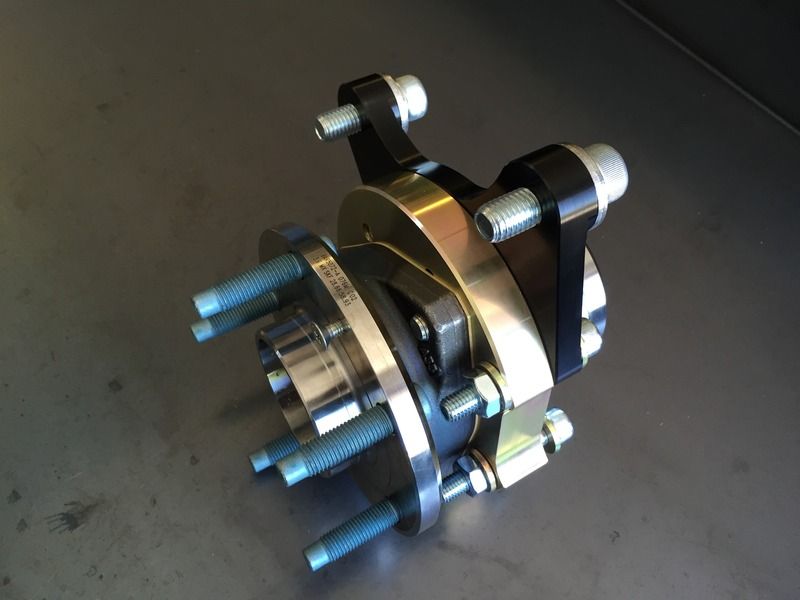

Below pics of the assembled "Base Kit".... (attached Big Ford End is for display purposes only)

http://i35.photobucket.com/albums/d1...psjpfgqbf1.jpg
http://i35.photobucket.com/albums/d1...pscufmbsxq.jpg
http://i35.photobucket.com/albums/d1...psffq0zgok.jpg

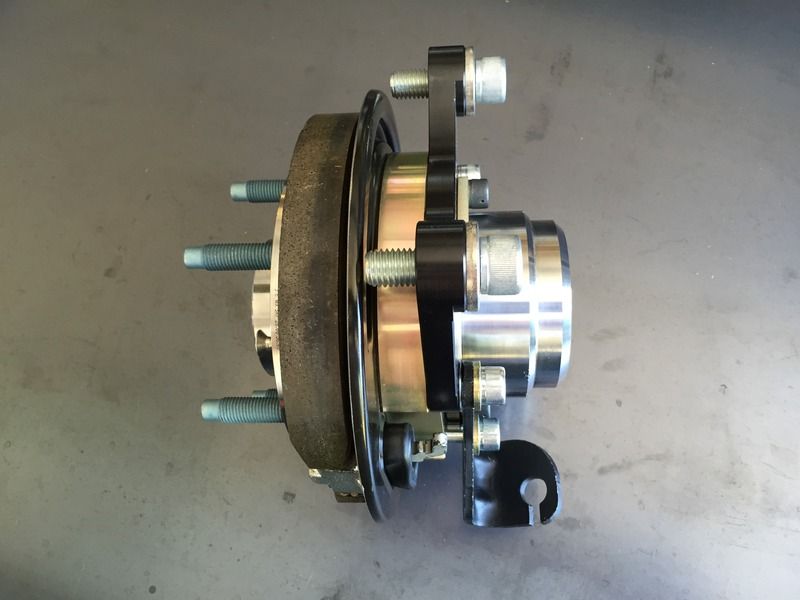

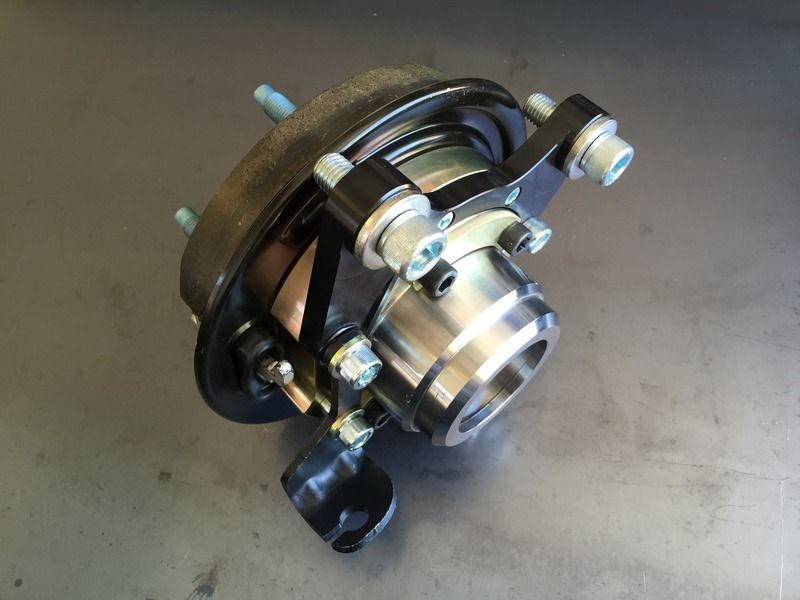

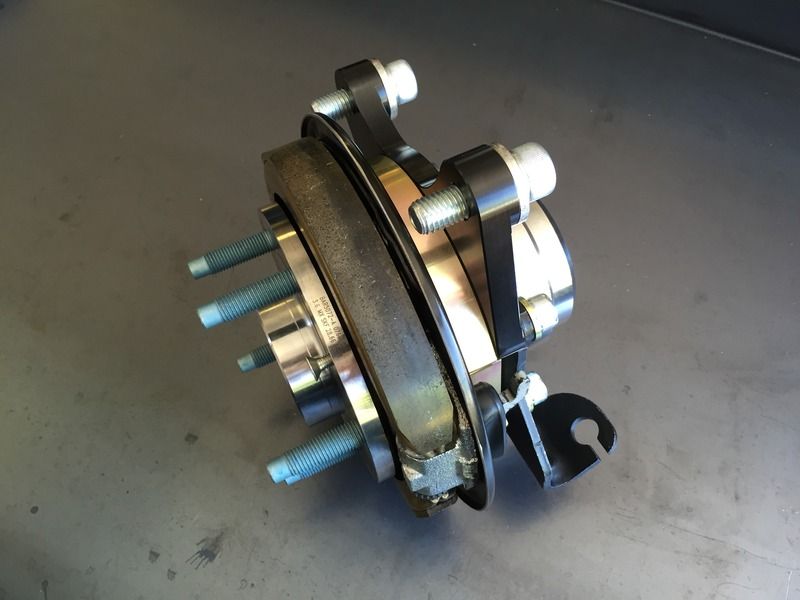

Below pics shown with optional C5/C6 E-brake Assembly & E-brake Cable Bracket. These two e-brake items are optional and the system can be run without and added at a later date if desired.... (attached Big Ford End is for display purposes only)


http://i35.photobucket.com/albums/d1...psbkdyb2mm.jpg
http://i35.photobucket.com/albums/d1...pstji44xps.jpg
http://i35.photobucket.com/albums/d1...psprbaaird.jpg

Big Ford "Bolt-On" kit in action!

http://i35.photobucket.com/albums/d1...pseplkab3u.jpg

Sounds cool but it might just push the axle out to wide. But perfect for people who want to narrow there rear end but not be commited to the corvette ends.

I'm interested For sure. Parking brake capable?

That could be the case if you have zero room to push your existing wheel/tire combo out a bit (3/16""), but if your current set-up will clear with the addition of a 1/4", then this will work for you.

If anyone is thinking of whether or not this will work for them, pick up a 3/16" wheel spacer, stack of washers, etc. and bolt it on with your existing set-up, if you have the clearance your car requires,,, you are GOOD :thumbsup:

Or perhaps you are ready for new tires, and changing your tire size a bit may even get you the clearance you need?

YES, takes the OEM C5/6 Park Brake set-up. Most people can even utilize their existing Caliper & Rotor so long as the manufacturer of these pieces offers them in a C5/6 Corvette application.

This set-up takes the same axle as my "weld-on" set=up with the exception of the seal surface on the axle is slightly larger...

Have you came up with a price yet for just the adapters And seal?

HOLY CRAP! thats awesome....totally want :popcorn2:

:trophy-1302:

Stupid question- does this make a conventional rear with torino ends into a semi-floater? Curious on pricing as well. Any info would be appreciated.

Yes, with the floating axles it should. I've run a similar weld on style flange and it absolutely has no knock back.
