Default Holley 12.3 Pro Dash screen dimensions
We need the actual height, width, thickness, and corner radius of the Holley 12.3 Pro Dash screen if anyone can help.
We've asked Holley Tech a couple of times and they only provide the body dimensions for a cutout.
We are in the process of 3D printing a dash and the screen needs to recess into that dash.
Thanks!
Reply With Quote
  #2
Old 04-14-2025, 04:20 PM
dontlifttoshift's Avatar
dontlifttoshift dontlifttoshift is offline
Senior Member

Join Date: Oct 2012
Location: Beach Park. IL
Posts: 965
Thanks: 20
Thanked 192 Times in 109 Posts
Default
https://www.holley.com/support/fuel_..._3in_pro_dash/

Cad files on this page.
__________________
Donny

Support your local hot rod shop!
Reply With Quote
The Following 2 Users Say Thank You to dontlifttoshift For This Useful Post:
camcojb (04-14-2025), ttmott (04-15-2025)
  #3
Old 04-15-2025, 06:46 AM
ttmott ttmott is offline
Junior Member

Join Date: Dec 2010
Posts: 7
Thanks: 1
Thanked 6 Times in 3 Posts
Default
Thanks!
Forwarded to the designer - I think he can use STEP files.
Reply With Quote
  #4
Old 04-24-2025, 08:06 AM
ttmott ttmott is offline
Junior Member

Join Date: Dec 2010
Posts: 7
Thanks: 1
Thanked 6 Times in 3 Posts
Default
Quote:
Originally Posted by dontlifttoshift View Post

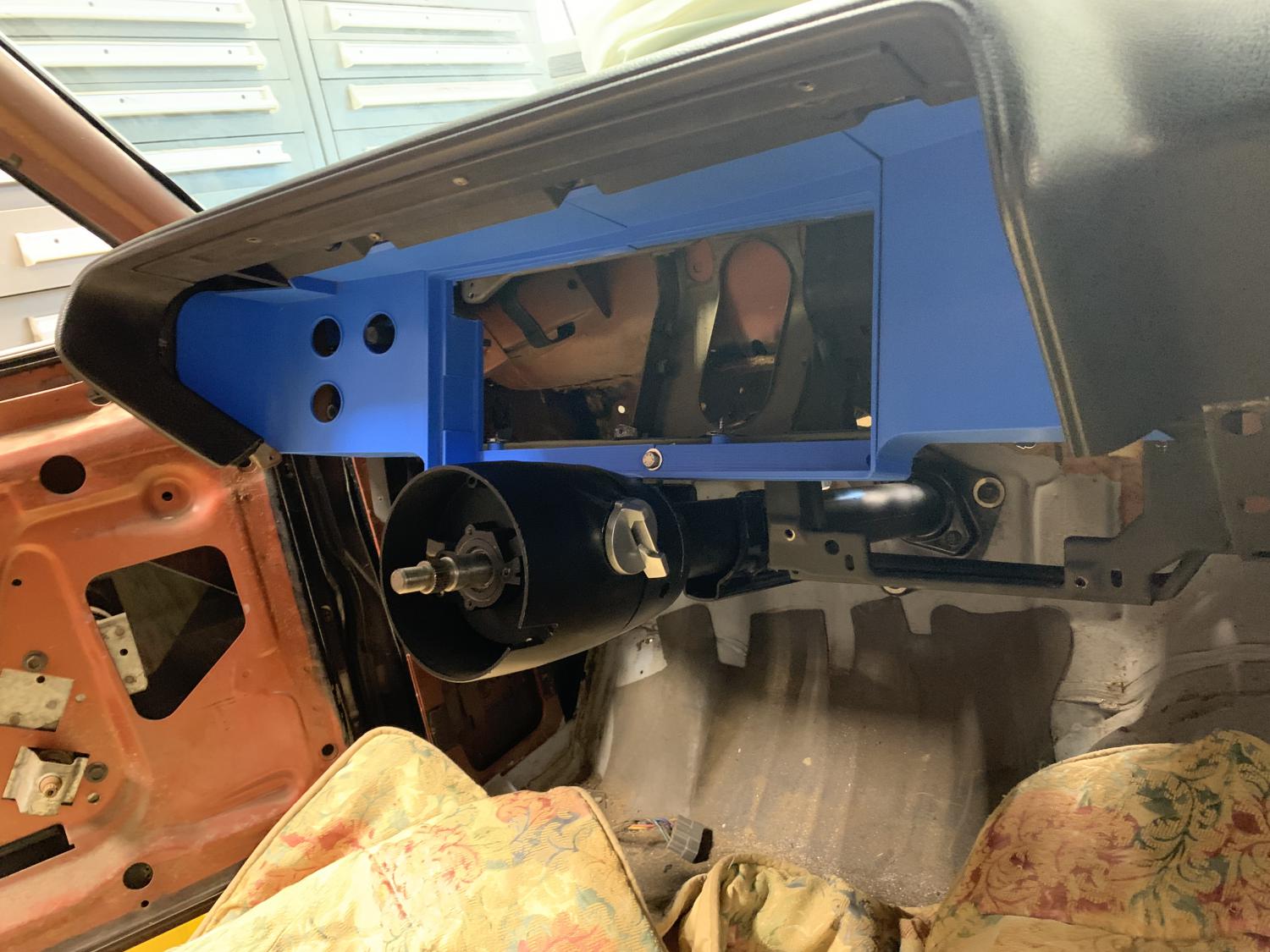

I just wanted to say the CAD files were a BIG help. Our test print and "fit-check" 3D print of the Cuda' dash.
Thanks! I just don't know why our discussions with Holley Tech couldn't point us to the files......
