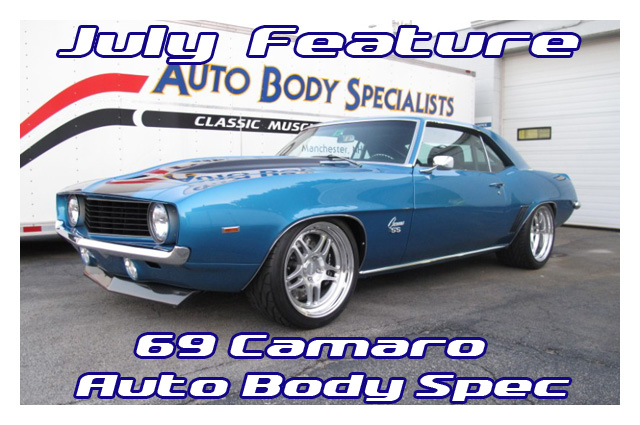

Jeff has always wanted a 69 Camaro. It wasn't until he saw a cool protouring style car being built that he knew what
he really wanted.
So he
soon began his search for a nice clean 69 Camaro. He found
one on Craigslist and went to check it out. It was a real Lemans Blue
350SS with a 4 speed and he bought it on the spot. For most of that
first year of owning the car he just drove it around in the condition
that he bought it in. By the end of that first summer Jeff decided to
give his Camaro the full Pro Touring treatment.. The main goal Jeff wanted to achieve was to keep the car looking pretty
much stock except for some custom wheels and big brakes. He wanted a
car with all the factory chrome and stainless trim and an interior that
still had a 69 Camaro feel to it. He also wanted the reliability of a
modern drive train; a car that was very subtle looking that most people
wouldn't know was totally custom.
Specs:

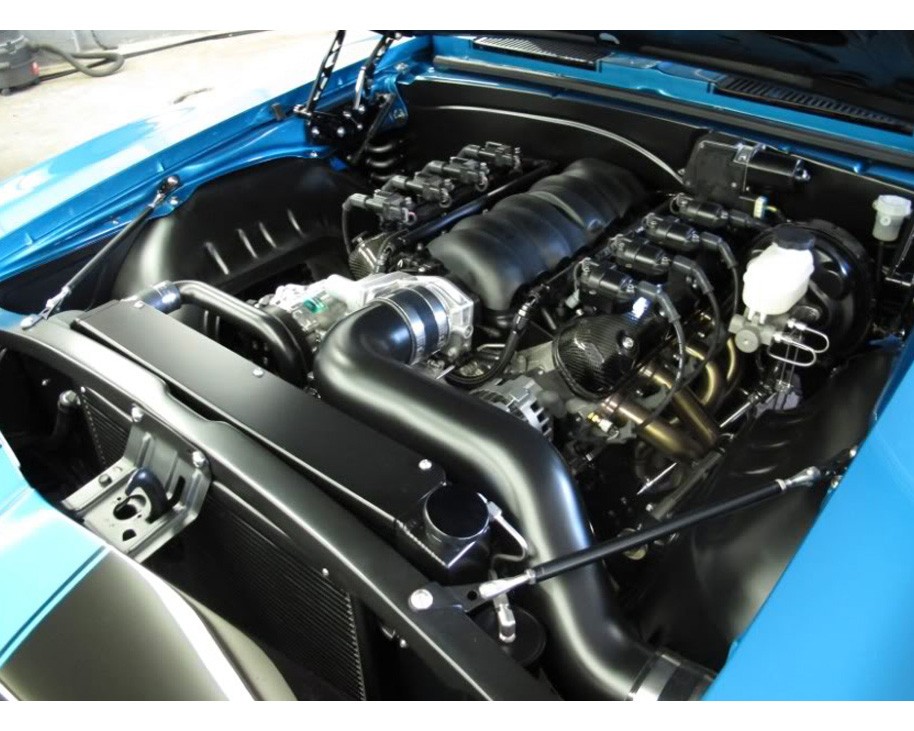

Mast
Motorsports L99 427 675hp LS7
Custom
ARP hardware
DSE
Custom Stainless Headers
Tremec
T56 Magnum 6 speed manual
Hurst
Shifter
Quick
Time bell housing
McLeod
RST Twin disc clutch
Custom
drive shaft
Currie
9” Ford style rear aluminum housing and 3rd member 3:73 gear ratio
Custom
Ron Davis radiator and shroud with dual SPAL 13” fans
Custom
fabricated upper and lower radiator tubes
Custom
Ricks Stainless gas tank with internal Aeromotive A1000 fuel pump
& pre-filter
Aeromotive
external fuel filter
Aeromotive
fuel pressure gage w/ Auto Meter fuel pressure gage
Custom
stainless fuel lines and clamps
Custom
XRP 37* fuel line fitting and black braided fuel line
Vintage
Air Front Runner accessory engine drive system
Custom
made A/C hoses
DSE
steel braided power steering hoses
Custom
made A/C hoses
Custom
fabricated stainless steel exhaust system with Borla XP Pro mufflers

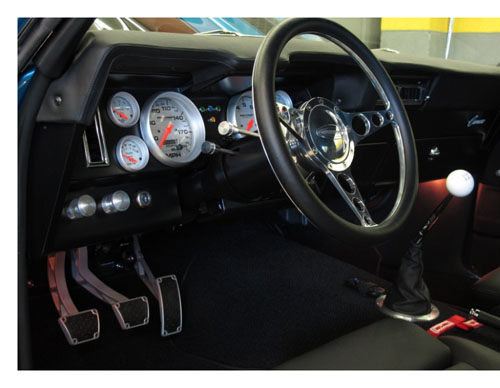

Interior:
DSE
custom dash inserts
Auto Meter PRO COMP Ultra-Lite gages
DSE
roll bar
Simpson
4 point harnesses for driver and passengers
Custom
leather hand stitched interior
Custom
Mercedes leather bound carpeting and floor mats
Custom
Suede headliner
Custom
made package tray cover in leather
Custom
Recaro seats with suede inserts
Custom
made rear seat to match front Recaro seat
Custom
Clayton Machine clutch, brake and gas pedal assembles
Custom
Clayton Machine window cranks
Custom
made glove compartment covered in suede
All
hardware and painted items in the interior are brand new and freshly
painted
Vintage
air billet heater and A/C controller
DSE
Vintage Air mounting bracket
Vintage
Air A/C GEN 4 Magnum Climate Control
Custom
made A/C condenser mounting bracket
Custom
install stereo system

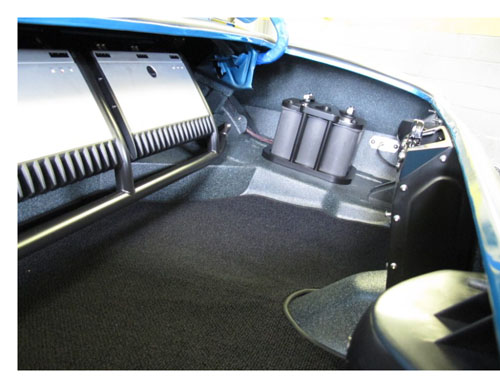

Sound
System :
Kenwood
KIV-BT901 receiver with built in Bluetooth
4
Focal K2 Power 165 K2P 2 way kits
4 6” components and tweeters with crossovers
JL
12” subwoofer
JL
Audio 500/1v2 amplifier
JL
Audio 300/300 4v2 amplifier
Custom
fabricated subwoofer box
Custom
fabricated 6” component speaker and tweeter enclosures
Custom
fabricated amplifier mounting rack
Body,
Chassis
and Suspension:
Complete
body off restoration.
Completely
disassembled to a bare shell &
& completely refurbished.
DSE
Hydroformed front sub frame
DSE
Frame connectors

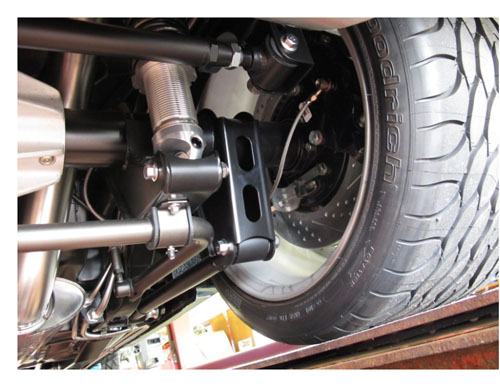

DSE
Quadra line rear suspension
DSE
Front and rear adjustable coilover
DSE
Mini tubs (inner wheel wells)
DSE
Fender brace kit
DSE
Firewall filler plate
DSE
Billet hood hinges
DSE
Hood pin latch pin
DSE
Hood latch bezel
New
left and right quarter panels
New
left and right outer wheel house
New
trunk pan modified for exhaust clearance
All
new date coded factory tinted glass
All
new weather striping and rubber stops and bumpers
Original
stainless trim re-polished to show condition
Factory
bumper have been narrowed & shaved of bumper bolts and show
chrome plated
All
emblems are brand new
Paint:
Lemans
blue, base coat, clear coat PPG refinish system
PPG
finish, wet sanded to a miraculous custom show finish
Undercarriage
is painted in PPG semi flat in show condition
All
suspension is painted in PPG semi flat in show condition
The
paint is brand new with NO imperfections
Braking
System:
DSE
Power brake booster and master cylinders

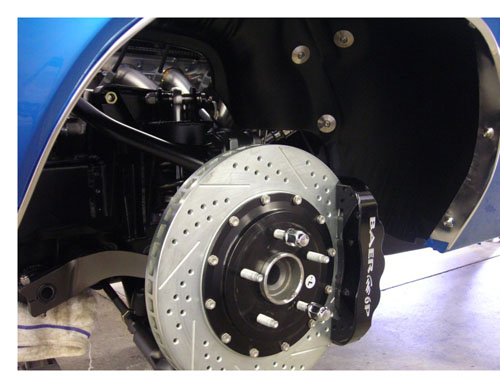

Baer
Brakes 6P 6 piston calipers front and rear
Baer
Brakes 14” cross drilled
Eradispeed
front and rear rotors
Baer
Brakes emergency brake kit
Lokar
emergency brake handle
Custom
made 37* flaired brake lines w/ polished stainless fittings
Custom
stainless brake hardware and fittings
Wheels
& Tires:
Front
wheels are 18 X 10 FIKSE wheels with 275/35ZR-18 95Y BFG radials tires.
Rear
wheels are 18 X 12 FIKSE wheels with 335/30ZR-18 102Y BFG radial
tires.
Tires
and wheels are brand new and in perfect condition.
Electrical:
American
Auto Wire wiring kit
IS
Motorsports Mill Spec fire wall through connectors
Custom
cloth braided engine wiring harness
Custom
cloth braided tail lamp wiring harness
