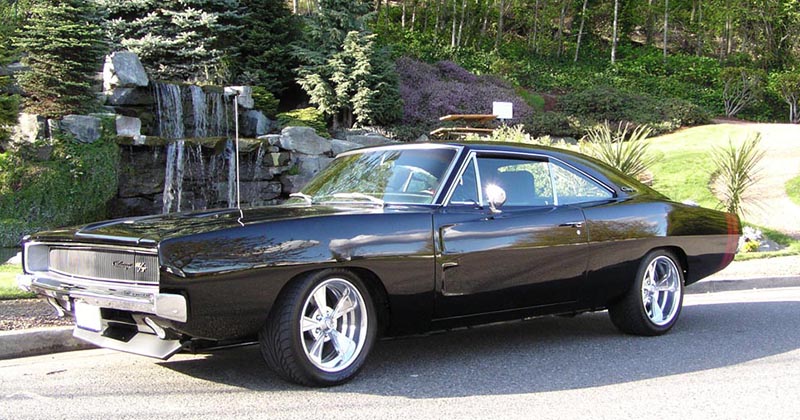

Mike Musto's ProTouring 68 Charger |
 |
 |
|
MR. ANGRY

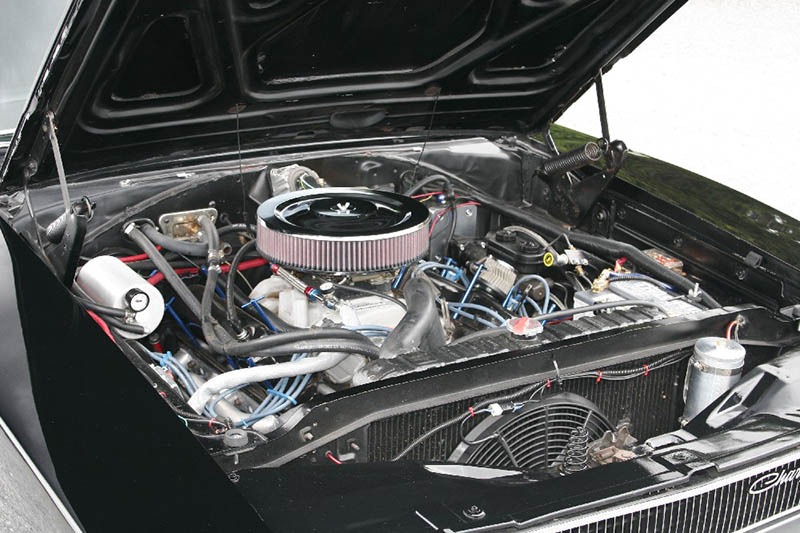

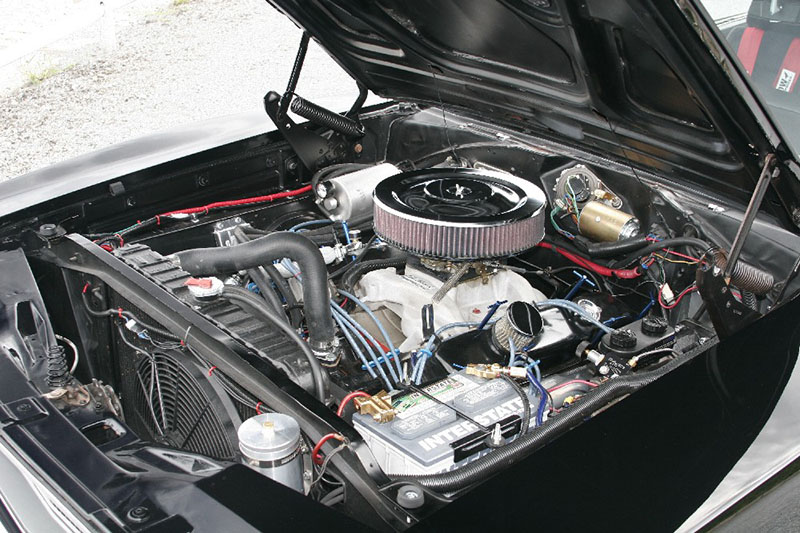

Engine Compartment
440 Big Block with ported 906 heads 0.030 over
Dual Plane Edelbrock Performer 440 Intake.
Forged Pistons
Stainless Valves
.470 lift cam
Hardend Valve Seats
Ceramic coated headers with full 3� aluminized flowmaster exhaust
850cfm HolleyDP carb.
Crane HI-6 digital ignition system with Mopar performance distributor
Aux. electric pusher fan
Toyota/Bosch 218X alternator installed instead of stock. Eliminates stock
voltage regulator and many wires. New alternator is internally regulated and
is much lighter. Bracket was obtained through AR Engineering.
High volume Mechanical Fuel pump
Brakes
Baer Racing 13" Discs (front) / 12" Discs (rear) w/parking brake
mechanism, Baer Racing proportioning valve
Hydroboost Hydraulic Brake Assist system replaces stock power booster.
This type of assist unit uses the hydraulic pressure from the power steering
system to provide a potent brake pedal assist.
Suspension
Energy Suspension bushings installed front to rear

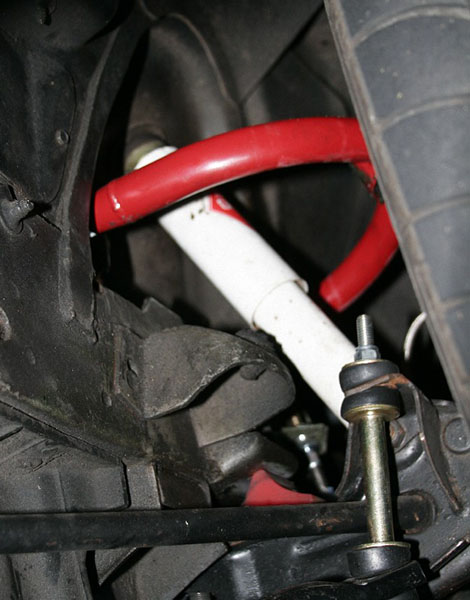

MagnumForce Racing fully adjustable tubular upper control arms

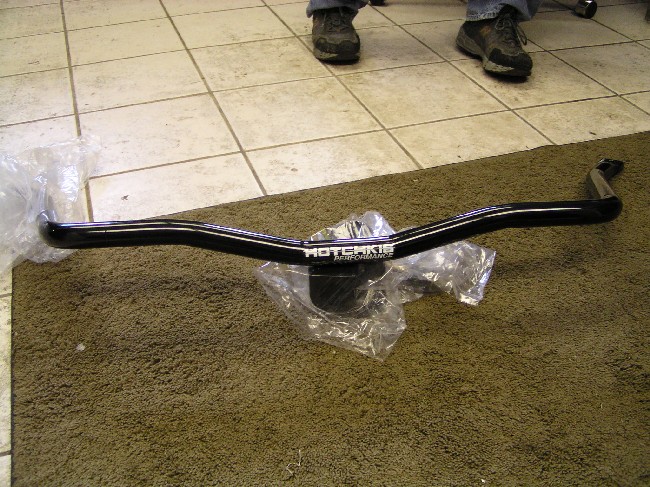

Hotchkis 1 3/8� Hallow front Sway Bar kit
All ball joints and tie rods replaced
Mopar Performance 1� pre-lowered Hemi rear leaf springs; 1� block lowering
kit for a total of 2� in the rear
Mopar Performance oversized front .960 torsion bars. Lowered to be just
above bump stops.
KYB Gas-adjust Shocks
Drive train
727 Torqueflite Transmission. Has a reverse manual valve body shifter
mechanism.
8 �� Suregrip rear with 3.55 gears
Gear Vendors Over/Underdrive Unit w/final 2.76 ratio in OD
Cheetah SCS reverse pattern cable driven shifter

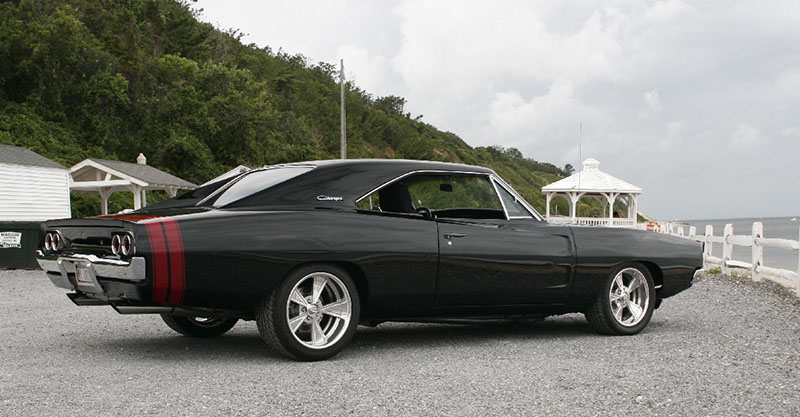

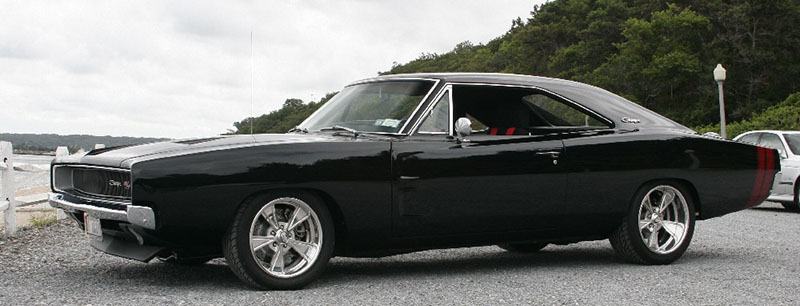

Body
Automotive Development of Monroe, Washington did the bodywork and paint.
Rain gutters and side markers were shaved and smoothed
90% of the chrome around the windows and rear taillight area was removed.
A custom front spoiler was added to smooth the line under car.
Black and red paint provided by PPG paint.
All new seals for the doors and trunk, etc.

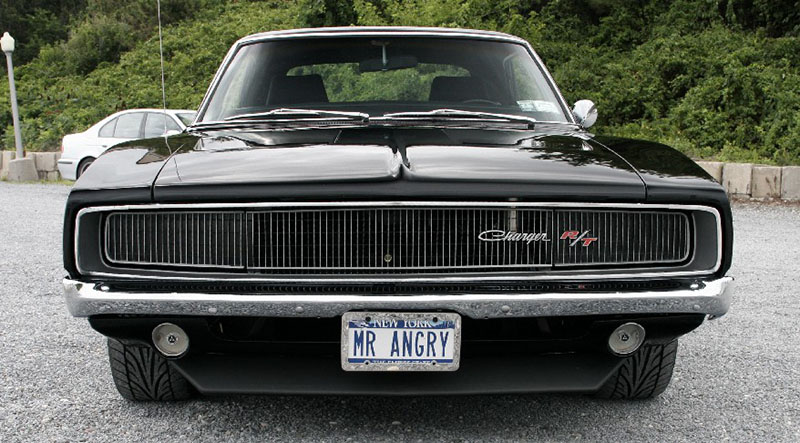

Original R/T grill installed

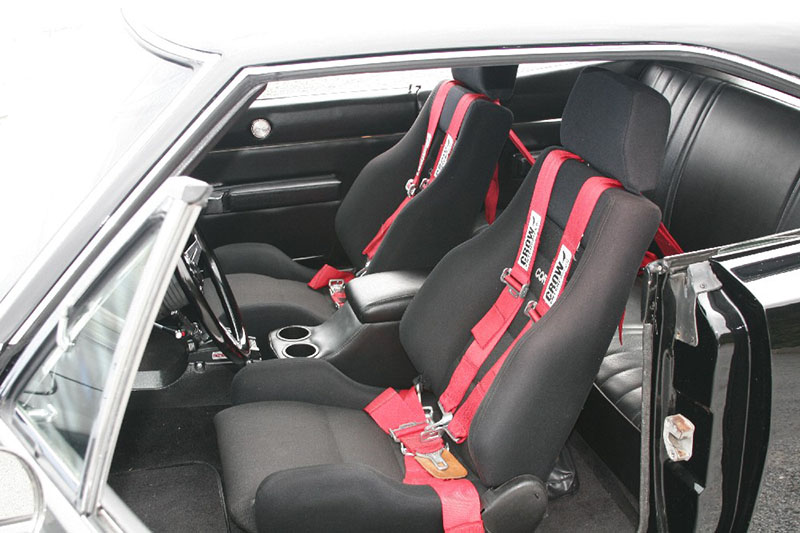

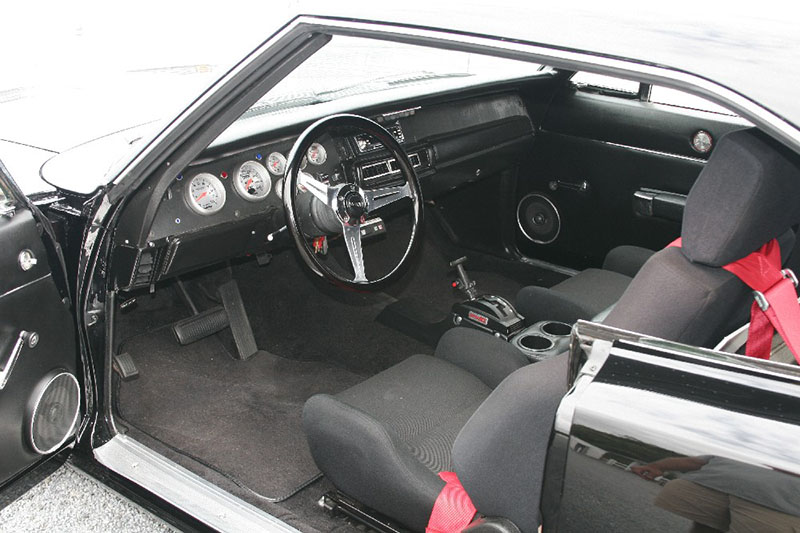

Interior
Corbeau GTS II Racing reclineable seats
New carpet and headliner installed
Grant Billet and Mahogany 3 spoke steering wheel
Custom center console provided by Classic Consoles
Custom dash with Auto Meter Ultra-lite gauges.
Crow 4-point harnesses for front occupants / rear Crow lap-belts installed
for passengers
Custom JVC stereo system
Wheels and Tires
Boyd Coddington custom billet 18x10 rear wheels and 17x9 front wheels
Dunlop SP9000 tires
 |
|
|
 |
|
|
|
|
|
