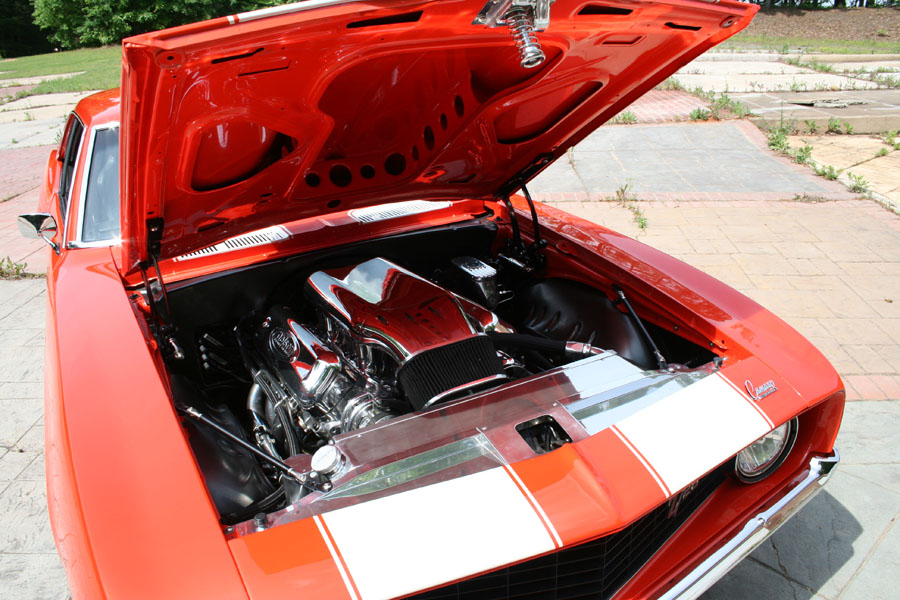

Nelson Racing 632ci BBC Hot Rod Series Engine Block: Dart engine block splayed main caps 10.2 deck height Bore/Stroke: 632c.i. 4.600”/4.750” Crank Shaft: Callies 4.75 magnum 4340 Forged Steel Crank Shaft Connecting Rods: Callies h beam 4340 connecting rods Bearings: Clevite 77 H Main and Rod Bearings Cam Bearings: Durabond HP Cam Bearings Rear Seal: Fel-Pro Viton Rear Seal Balanced: SFI Internal Balancing dynamic within 1 gram Pistons: JE 9.8 Forged Pistons Piston Rings: Je Pro hell fire Rings Wrist Pins: Je Steel Wrist Pins Camshaft: Custom Billet Nre Solid Roller Cam Lock Plate: Comp Cams Lock Plate and Bolt Kit Cam Button: Comp Cams Roller Cam Button Lifters: Crower Solid Roller Lifters Pushrods: Smith Bros Chrome Molly Push Rods Timing Chain: Dyna Gear Billet Roller Timing Chain w/ Torrington Bearing Timing Cover: Milodon Cast cover Timing Chain Cover Gasket: Fel-Pro Timing Chain Cover Gasket Cylinder Heads: Aluminum Head Hunter 380 Big Brodie Cyl heads Brodix Main/Head Bolts: ARP Head Bolts Dart Main Bolts Head Gaskets: Sce Head Gaskets Shaft Rocker Arm Roller Rocker 1.7 ratio Valves: Stainless Steel Valves 2.350” Intake, inconel 1.9” Exhaust ” One Piece Valve Locks: 10 degree Machined Steel Valve Locks Seals: Viton Valve Seals Valve Springs: 210 seat 560 open Double Valve Springs Retainers: 1.550 Manley Retainers w/ 10º Locks Spring Cups: Comp Cams Spring Cups Intake Manifold: NRE Billet Dual injector Alien intake manifold Fel-Pro Intake Gaskets Button head Stainless Steel Intake Bolts Throttle Body: NRE Billet dual throttle body Igniton System: Electromotive 60 tooth crank trigger ignition with ignition coils Fuel System : 1 Aeromotiver fuel pumps Fuel Management unit: Electromotive tec 3r fully laptop programmable with full wire harness and all sensors Autolite 3924 spark plugs Billet fabrication oil pan Fel-Pro 1 Piece Silicone Oil Pan Gasket Titan Gerotor Oil Pump Steel Oil Pump Drive Shaft ARP Oil Pump Stud Locar Dipstick Oil Filter Adapter w/ Oil Filter 20W50 Racing Oil NRE Billet Valve Covers w/ Stainless Steel Valve Cover Bolts Brass Freeze Plug Kit and Stainless Steel Oil Pan Bolts NRE Billet 60 tooth Super Damper SFI Approved w/ ARP Bolts Professionally Blueprinted Gas: Runs on 91 Octane Gasoline Billet Specialties Tru Trac Serpentine System Polished 140 amp 1-wire alternator Billet aluminum 1pc. alternator fan & pulley EnduraShine Edelbrock reverse rotation water pump Billet aluminum water pump pulley Billet aluminum bridge bracket Patent-pending billet aluminum tensioner engineered specifically for the Tru Trac system Billet aluminum tensioner pulley Billet aluminum crankshaft pulley Polished ARP 12-point stainless steel fasteners Goodyear Gatorback serpentine belt BS Air Conditioner: Polished Sanden SD-7 compressor · Billet AC compressor clutch cover · Patented billet compressor manifold BS Power Steering: · Polished Maval Mfg. power steering pump with AN fittings · Billet aluminum power steering pulley Engine oil cooler: none Radiator: Aluminum AutoRad Custom built radiator with 1.5 inch core tubing and dual Viper fans Air cleaner housing manufacturer K&N element brand K&N Ignition manufacturer Electromotive model WinTech type R3 Ididit key less Push Button ignition control Headers: Custom built by Calvin Elston at Elston Exhaust Coating material: none Exhaust system custom by Calvin Elston at Elston Exhaust material Stainless Steel Size 3 inch Mufflers manufacturer: Stainless Works model Turbo Chambered Crossover pipe: yes__X__ no_____ X/Y______ Engine accessory and dress-up equipment: Auto Rad aluminum custom core support closeout panel; DSE fender braces Estimated horsepower on engine dyno 800 at 5500 rpm Estimated torque 740 at 5200 rpm Other custom features: All lines braided or stainless steel All wires are loomed All wire connections are soldered and heat wrapped Lines and wires run within the body when feasible Emergency brake is electronic and controlled by an actuator and switch Ricks Custom built stainless steel gas tank with internal pump TRANSMISSION Make Tremec model TKO year_N/A Number of forward gears 5 Assembled by: stock Clutch: McLeod RXT Twin Disc hydraulic 26 spline clutch rated to 1000 HP / McLeod zero balanced fly wheel bellhousing mfg ? Driveshaft: make ? year ? modifications___________ Rear axle make Dana size 12 bolt gear ratio 3.73 limited slip?_y____ Assembled by Spraker Racing SUSPENSION FRONT- Detroit Speed Complete Subframe assembly / powder coated by DS Shocks manufacturer DSE/JRi Coilovers adjustable? Yes two way Total front lowering inches ? Brakes Manufacturer: Front: Baer Pro+14" system, 6 piston calipers on a 14" 2 piece rotor with silver caliper REAR- Detroit Speed Complete QUADRALink suspension kit / powder coated by DS Shocks manufacturer DSE/JRi Coilovers adjustable? Yes two way Total rear lowering inches _____________ Rear: Baer SS4+ system, 4 piston caliper on a 2pc 13" rotor with Silver calipers. ABS Power Brake's Electric High Power Brake System WHEELS Budnik Cobalt Rims (18x10 front and 18x12 rear) TIRES BF Goodrich G force KDW Tires : Rear 335/30zR18 102Y and Front 275/35zR18 95Y
