  #31
Old 02-18-2013, 05:57 PM
RBuhr69's Avatar
RBuhr69 RBuhr69 is offline
Senior Member

Join Date: Dec 2011
Location: Jacksonville, FL
Posts: 286
Thanks: 0
Thanked 0 Times in 0 Posts
Default

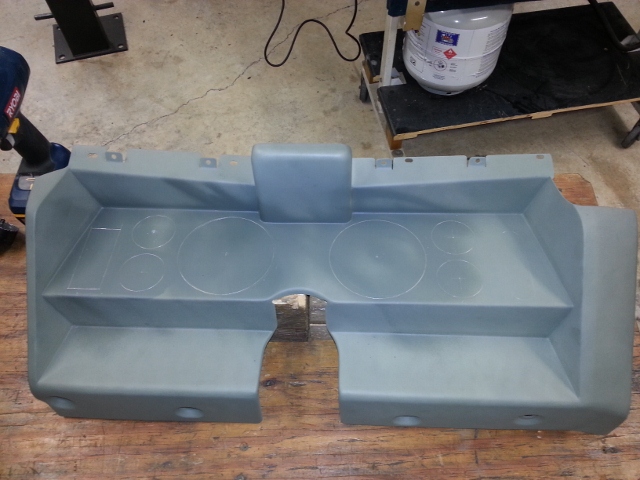

Well it's time to do the fun stuff.......Measure 5 times right..
Attached Images
File Type: jpg 20130217_154421 (640x480).jpg (164.4 KB, 266 views)
Reply With Quote
  #32
Old 02-18-2013, 07:32 PM
Vortech404 Vortech404 is offline
Senior Member

Join Date: Nov 2010
Location: Plymouth,MA
Posts: 118
Thanks: 0
Thanked 0 Times in 0 Posts
Default

I wish you guy's would post what size gauges you are using.

They all look great though and I hope to get mine started soon.

John
Reply With Quote
  #33
Old 02-18-2013, 08:08 PM
RBuhr69's Avatar
RBuhr69 RBuhr69 is offline
Senior Member

Join Date: Dec 2011
Location: Jacksonville, FL
Posts: 286
Thanks: 0
Thanked 0 Times in 0 Posts
Default

I am using 5" for Tach & RPM, and 2 1/16 for the others....I will have it all cut out tomorrow night.

IF you go with 5", it doesnt leave much room on the left side of the dash for 2 gauges and an a/c vent as the dash is not symetric. I bought one a/c vent and ended up changing it out to get more room for spacing the gauges around. We will see what the final look is tomorrow and I wll post pictures of it..

Last edited by RBuhr69; 02-18-2013 at 08:11 PM.
Reply With Quote
  #34
Old 02-19-2013, 05:57 PM
RBuhr69's Avatar
RBuhr69 RBuhr69 is offline
Senior Member

Join Date: Dec 2011
Location: Jacksonville, FL
Posts: 286
Thanks: 0
Thanked 0 Times in 0 Posts
Default

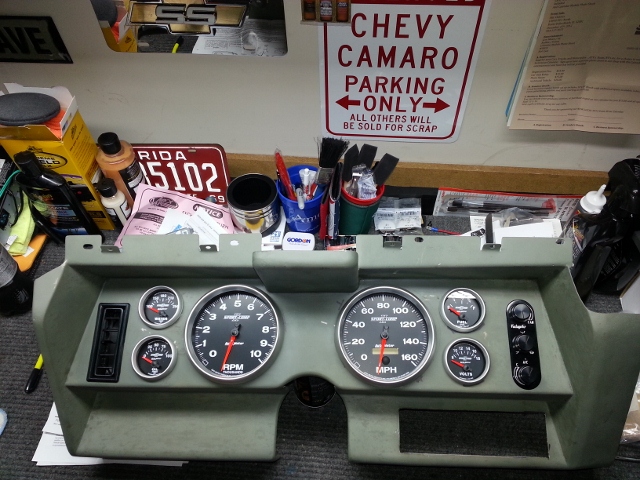

Another step closer and very happy with how it is working out, still got to paint it yet (Matte Black)....Thanks to all those who contributed to the project and or I bought from
Attached Images
File Type: jpg 20130219_173751 (4) (640x480).jpg (215.4 KB, 349 views)
File Type: jpg 20130219_173010 (3) (640x480).jpg (205.7 KB, 300 views)

Last edited by RBuhr69; 02-19-2013 at 06:07 PM.
Reply With Quote
  #35
Old 02-19-2013, 06:01 PM
ProPont ProPont is offline
Member

Join Date: Mar 2009
Location: Plainfield,IL
Posts: 56
Thanks: 2
Thanked 0 Times in 0 Posts
Default

Looking Good
Reply With Quote
  #36
Old 03-12-2013, 05:26 PM
domcenzo domcenzo is offline
Junior Member

Join Date: Apr 2012
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Default

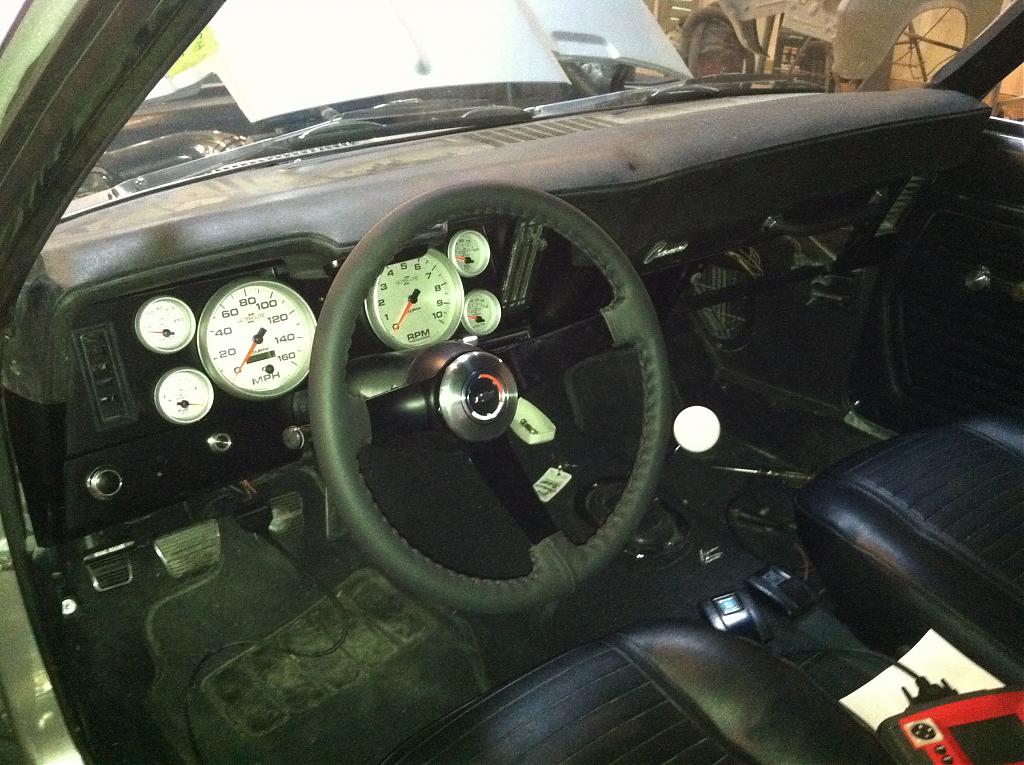

Paradise Road Rod and Custom just finished mine. 5" UL II tach and speedo with 2 1/16" others. Really happy with the look.
Attached Images
File Type: jpg image.jpg (118.2 KB, 326 views)
Reply With Quote
  #37
Old 03-28-2013, 07:06 PM
RBuhr69's Avatar
RBuhr69 RBuhr69 is offline
Senior Member

Join Date: Dec 2011
Location: Jacksonville, FL
Posts: 286
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Woohoo...Just got dash back from paint this afternoon...more progress and ready to get started on hooking it up.
Attached Images
File Type: jpg Camaro Dash1 (640x480).jpg (243.0 KB, 298 views)

Last edited by RBuhr69; 03-28-2013 at 08:48 PM.
Reply With Quote
  #38
Old 04-06-2013, 07:42 PM
RBuhr69's Avatar
RBuhr69 RBuhr69 is offline
Senior Member

Join Date: Dec 2011
Location: Jacksonville, FL
Posts: 286
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Woohoo...dash all back together, now on to the next project
Attached Images
File Type: jpg Finished dash (640x480).jpg (167.8 KB, 281 views)
File Type: jpg 20130407_195057 (3) (640x480).jpg (132.8 KB, 273 views)

Last edited by RBuhr69; 04-07-2013 at 07:00 PM.
Reply With Quote
  #39
Old 05-01-2013, 02:33 PM
Moose Moose is offline
Senior Member

Join Date: Apr 2005
Location: Chester, md
Posts: 429
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Could some please measure how much metal I'd be working with where you guys are mounting the tach and speedo..

I'm thinking of using a tablet for all my gauges and wonder what size I can go with.

Width I know I'm fine, its just the height part..
Reply With Quote
