Default LSA PCV Options / Routing

I've seen a few threads on PCV systems and was looking for some input into my system. I have a LSA and i'm questioning how I have it set up.

Current set up cheap catch can (vented to atmosphere) with mesh inside.
-Both valve cover banks are connected to it. (it has 2 ports)
-The valley cover pulls fresh air from the intake filter
- The snout port is blocked off
I've driven this set up for 300 or so miles and have no issues other than a gas blow by smell after stepping on it. I drained it yesterday and it is collecting oil.

I've seen 2 ways to route a catch can based on the CTS-V and ZL1 forums

Option 1
-Closed catch can (elite engineering style)
-Plumbed in the loop from the valley cover to the supercharger snout
-Stock valve cover lines run to the intake tube after MAF

Option 2
Mighty Mouse catch can (vented)
-Oil fill cap adapter to catch can inlet
-Catch can outlet run supercharger snout
-Valley cover to intake (after MAF)

I have a provent 100 I purchased thinking I was going to use that but went with a mesh / vented one.

Can/Should i switch to the provent? I don't want to use the drain back function since i'd need to find a way to do that.I really just want limited blow by gas smell and way to collect oil vapor and keep crankcase ventilation down.

Thanks Nick
Reply With Quote
  #2
Old 05-05-2020, 03:17 PM
randy randy is offline
Senior Member

Join Date: Jan 2011
Posts: 966
Thanks: 2
Thanked 25 Times in 21 Posts
Default

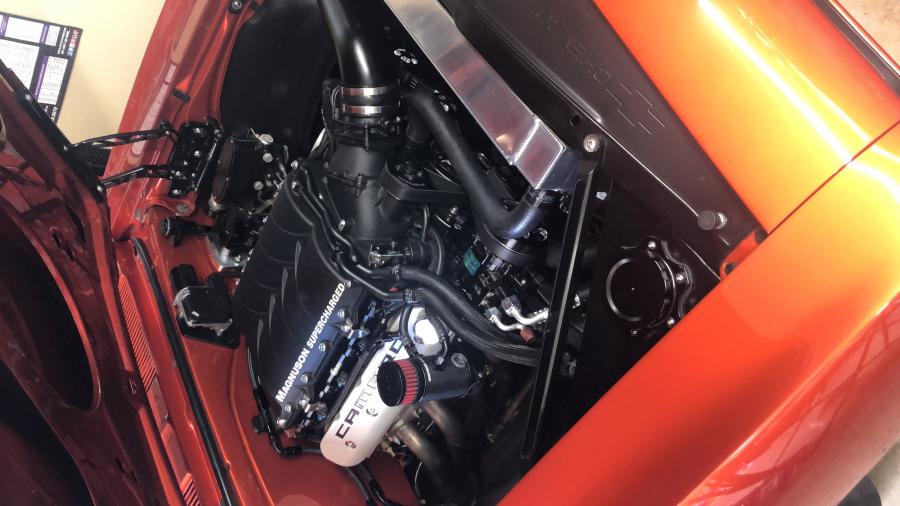

Iím using the Mighty Mouse mood setup. Passenger valve cover and drivers side valve cover are T together And then a line routed between the throttle body and maf. The valley tray goes to the catch can and then catch can to the supercharger Works perfectly.
Attached Images
File Type: jpg A4FDA26C-9927-4053-9254-9516EFB24363.jpg (64.9 KB, 0 views)
Reply With Quote
  #3
Old 05-05-2020, 05:37 PM
nicks67ca nicks67ca is offline
Senior Member

Join Date: Oct 2007
Location: Southbury Ct
Posts: 299
Thanks: 9
Thanked 13 Times in 7 Posts
Default

Thanks randy. The mighty mouse has a built in pressure relief. Do you notice any fuel smell under hard throttle?
Reply With Quote
  #4
Old 05-05-2020, 06:44 PM
WSSix WSSix is online now
Lateral-g Supporting Member

Join Date: Nov 2008
Location: Dunwoody, GA
Posts: 5,540
Thanks: 23
Thanked 169 Times in 151 Posts
Default

This is a timely topic. My 540i sucks oil from the PCV system it seems. It's ridiculous in my opinion. I really want to stop this was occurring. It's so bad, that oil is dripping out of my filter down onto the ground in front of the front tire. My Vortech pulls air from below and behind the passenger headlight. I hate it. Everything inside the intake tract is coated in oil. Is this the same thing you guys are fighting? My crank case vent comes in after the MAF and right before the blower.

I don't mind and fully expect some oil to coat the intake tract, but dripping out of my air filter is crap. Almost makes me want to LS swap the BMW
__________________
Trey

1979 Trans Am WS6: LT1/T56, Kore 3 C5/6 brakes, BMW 18in rims

Holy crap! I finally have a Lat-g Build thread: https://lateral-g.net/forums/showthread.php4?t=46415
Reply With Quote
  #5
Old 05-06-2020, 07:55 AM
nicks67ca nicks67ca is offline
Senior Member

Join Date: Oct 2007
Location: Southbury Ct
Posts: 299
Thanks: 9
Thanked 13 Times in 7 Posts
Default

Im getting blow by fuel vapor which i think is due to mine having a open filter on the oil vapor side.
Reply With Quote
  #6
Old 05-06-2020, 08:55 AM
dhutton dhutton is online now
Senior Member

Join Date: Nov 2006
Location: Mountain Springs, Texas
Posts: 1,570
Thanks: 301
Thanked 118 Times in 77 Posts
Default

I used a dual catch can with two check valves on my LSA. Seems to work well under all boost conditions. Lot of plumbing though.

Don
Reply With Quote
  #7
Old 05-06-2020, 09:30 AM
nicks67ca nicks67ca is offline
Senior Member

Join Date: Oct 2007
Location: Southbury Ct
Posts: 299
Thanks: 9
Thanked 13 Times in 7 Posts
Default

Don you running them in line to each other?

These LSA have tons of Plumbing.
Reply With Quote
  #8
Old 05-06-2020, 08:10 PM
randy randy is offline
Senior Member

Join Date: Jan 2011
Posts: 966
Thanks: 2
Thanked 25 Times in 21 Posts
Default

None. I spent weeks thinking about this setup and finally went this route. I couldnít be anymore happy.


Quote:
Originally Posted by nicks67ca View Post
Thanks randy. The mighty mouse has a built in pressure relief. Do you notice any fuel smell under hard throttle?
Reply With Quote
  #9
Old 05-06-2020, 08:25 PM
WSSix WSSix is online now
Lateral-g Supporting Member

Join Date: Nov 2008
Location: Dunwoody, GA
Posts: 5,540
Thanks: 23
Thanked 169 Times in 151 Posts
Default

Randy, I didn't find the mood setup on Might Mouse's site. Did you mean mild?
__________________
Trey

1979 Trans Am WS6: LT1/T56, Kore 3 C5/6 brakes, BMW 18in rims

Holy crap! I finally have a Lat-g Build thread: https://lateral-g.net/forums/showthread.php4?t=46415
Reply With Quote
  #10
Old 05-07-2020, 06:42 AM
dhutton dhutton is online now
Senior Member

Join Date: Nov 2006
Location: Mountain Springs, Texas
Posts: 1,570
Thanks: 301
Thanked 118 Times in 77 Posts
Default

Quote:
Originally Posted by nicks67ca View Post
Don you running them in line to each other?

These LSA have tons of Plumbing.
No they are independent but in the same housing. Itís from RX Performance. I installed it a few years ago and I canít remember all the details but it was for a supercharged application on a CTS-V or ZL1.

Don
