  #221
Old 11-11-2019, 01:08 AM
rixtrix1's Avatar
rixtrix1 rixtrix1 is offline
Senior Member

Join Date: Apr 2008
Location: Arizona
Posts: 175
Thanks: 30
Thanked 19 Times in 18 Posts
Default

Wow, having the car on a rotisserie sure looks like a good way to set up a suspension and weld all the brackets from a right side up position. Do you have to notch the rear frame rails for a pocket to accept the front of the lower arms?
__________________
Ric

2002 S-10, Daily Driver and autoX
1966 Chevelle MALIBU ( mine since 1971) Drag car converting to a track car!
Reply With Quote
  #222
Old 11-11-2019, 07:47 AM
Gmachine1911's Avatar
Gmachine1911 Gmachine1911 is offline
Senior Member

Join Date: Oct 2017
Location: Southern IN
Posts: 345
Thanks: 17
Thanked 215 Times in 183 Posts
Default

Coming along great, Joe! Cleco pins are one of the best things ever invented!
__________________
Shane
#theanchorholds

Link to my 68 Camaro build thread:
https://lateral-g.net/forums/showthread.php?t=56387

Link to my 67 Nova build thread:
https://lateral-g.net/forums/showthread.php?t=57769
Reply With Quote
  #223
Old 11-11-2019, 10:39 AM
jarhead's Avatar
jarhead jarhead is offline
Senior Member

Join Date: Dec 2011
Location: Colorado, in a van down by the river
Posts: 994
Thanks: 221
Thanked 85 Times in 56 Posts
Default

Quote:
Originally Posted by rixtrix1 View Post
Wow, having the car on a rotisserie sure looks like a good way to set up a suspension and weld all the brackets from a right side up position. Do you have to notch the rear frame rails for a pocket to accept the front of the lower arms?
Yes I am measuring to see if I can put pockets in the original frame rails and reinforce the outside of them. I have been looking at how SpeedTech manufactures their extreme chassis, that looks like a great option on making the pockets. I want them to be inside the frame rails rather than on top with sandwich brackets if that makes sense.

Quote:
Originally Posted by Gmachine1911 View Post
Coming along great, Joe! Cleco pins are one of the best things ever invented!
Thanks Shane!
__________________
joe
Semper Fi
Reply With Quote
  #224
Old 11-14-2019, 12:05 AM
TAC TAC is offline
Member

Join Date: Nov 2010
Location: osoyoos BC
Posts: 73
Thanks: 0
Thanked 1 Time in 1 Post
Default

Wow. you have been hard at it Joe. Good to see all the progress.
__________________
71 bronco...fully custom built...daily driver
69 Torino...to be built

gary
Reply With Quote
The Following User Says Thank You to TAC For This Useful Post:
jarhead (11-14-2019)
  #225
Old 11-14-2019, 05:30 PM
jarhead's Avatar
jarhead jarhead is offline
Senior Member

Join Date: Dec 2011
Location: Colorado, in a van down by the river
Posts: 994
Thanks: 221
Thanked 85 Times in 56 Posts
Default

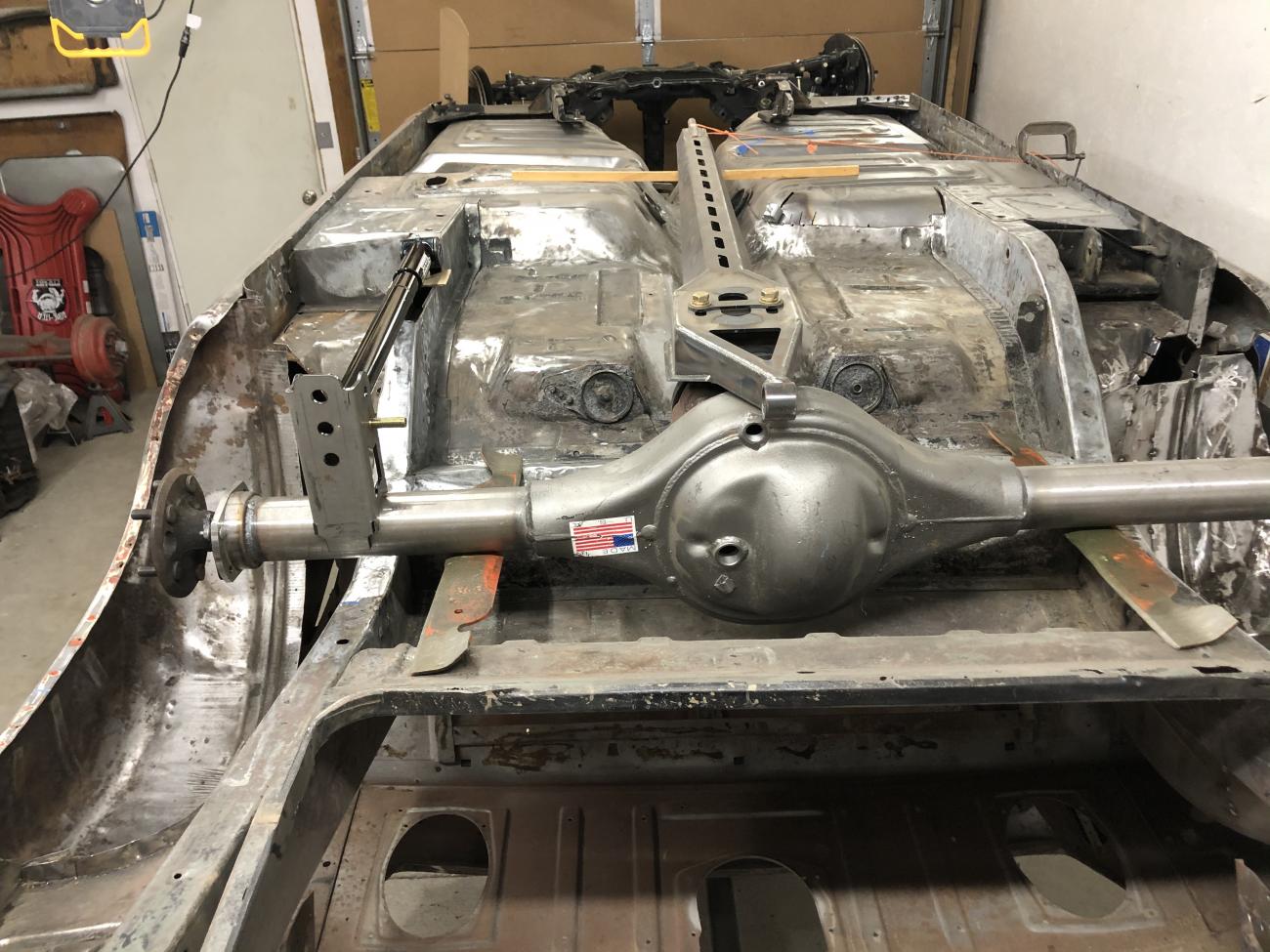

More work the last two days.
Had to remove the temporary supports I had holding the housing. I didn't have enough steel on hand so I used a couple of old lawn tractor blades

I ordered some spring perches so I could drop it down a little farther to mock-up trailing arm clearance.

A couple more days to work on it then I am off to Austin to see my daughter/ We are taking a sheet metal class at Hammerfab next week.
Attached Images
File Type: jpg trailingArm.jpg (147.6 KB, 0 views)
File Type: jpg Housing.jpg (177.8 KB, 0 views)
__________________
joe
Semper Fi
Reply With Quote
The Following User Says Thank You to jarhead For This Useful Post:
waynieZ (11-17-2019)
  #226
Old 11-16-2019, 02:56 PM
214Chevelle's Avatar
214Chevelle 214Chevelle is offline
Lateral-g Supporting Member

Join Date: Jul 2008
Location: Good, Ole Texas
Posts: 3,839
Thanks: 17
Thanked 103 Times in 67 Posts
Default

Joe, did you ever get the wheels in? Let's see pics if so....
__________________
'68 C10 swb
'69 Camaro convertible
'72 Chevelle

Reply With Quote
  #227
Old 11-16-2019, 04:26 PM
jarhead's Avatar
jarhead jarhead is offline
Senior Member

Join Date: Dec 2011
Location: Colorado, in a van down by the river
Posts: 994
Thanks: 221
Thanked 85 Times in 56 Posts
Default

Quote:
Originally Posted by 214Chevelle View Post
Joe, did you ever get the wheels in? Let's see pics if so....
Not yet, have to finish paying for them Dec 2nd.

Larry and Zak are awesome to deal with. They allowed me the time (weeks and weeks) to get the measurements right.

I agonized over the measuring , built jigs, built supports for a 9" housing, had a friend come over and double check all my measurements.

Going with titanium centers and brushed barrels.
__________________
joe
Semper Fi
Reply With Quote
  #228
Old 12-09-2019, 08:53 PM
jarhead's Avatar
jarhead jarhead is offline
Senior Member

Join Date: Dec 2011
Location: Colorado, in a van down by the river
Posts: 994
Thanks: 221
Thanked 85 Times in 56 Posts
Default

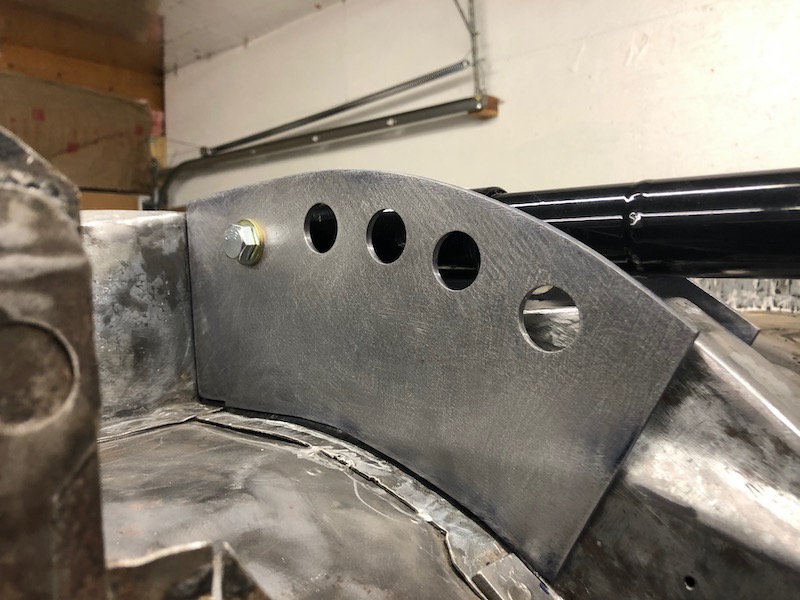

I got the housing setting on some square tubing that is tacked to the frame rails and on top of actual spring perches. I got it as low/high as I think it will be for bottoming out.

I then was able to get it all squared up and centered so I mad some templates out f cardboard, then hardboard. I need to get these dialed in and have four of them plasma cut.

more fiddling ahead
Attached Images
File Type: jpg IMG_3721.jpg (134.2 KB, 0 views)
__________________
joe
Semper Fi
Reply With Quote
The Following User Says Thank You to jarhead For This Useful Post:
Goosesdad (12-10-2019)
  #229
Old 12-09-2019, 09:40 PM
waynieZ's Avatar
waynieZ waynieZ is offline
Lateral-g Supporting Member

Join Date: Oct 2006
Location: Ma
Posts: 8,134
Thanks: 222
Thanked 108 Times in 94 Posts
Default

Looking good Joe.
__________________
_Wayne________

___________________________________
https://lateral-g.net/forums/show...ghlight=FNQUIK
Reply With Quote
