Tuning in to see more. I am with JIm, I bounce between here and the truck site too.

This site is making me want to do a car of some type, just not sure what to build since I have too many that I like.

I really want a 67-72 C10 to complete my "set" of the C10 body styles.

few more for today..

http://i353.photobucket.com/albums/r...ps47be011e.jpg

http://i353.photobucket.com/albums/r...pse10fe6bb.jpg

http://i353.photobucket.com/albums/r...psa40e5aaf.jpg

Justin decided he wanted a cool detail to run the perimeter of the engine bay, so he came up with this belt-line. It will run along the inner fender wells as well as the core support cover.

Most people want to win the lottery not me I just want to win this truck.

ps - Great work guys and Brycen it was good talking to you at Sema. What size shirt are you so I can get you one.

Here you can see where the kick panel is moved forward 5 inches. This really makes a difference with leg room.

http://i353.photobucket.com/albums/r...psac19397d.jpg

http://i353.photobucket.com/albums/r...ps85d38edb.jpg

http://i353.photobucket.com/albums/r...ps258a9c82.jpg

Only thing left now on the firewall is a whole lot of grinding...

Chassis was finished up this week. Finally got around to setting it on.

The Goodguys trailer mandated that the overall height on the truck be no taller than 57". Right now we are sitting at 57.5" Once we chop the truck it will put us right where it needs to be.

Here it is sitting on a set of mock up rims. Enjoy the pics.

http://i353.photobucket.com/albums/r...ps66564a10.jpg

http://i353.photobucket.com/albums/r...psedf7cb1e.jpg

http://i353.photobucket.com/albums/r...psff6a723f.jpg

http://i353.photobucket.com/albums/r...ps7fa579ad.jpg

http://i353.photobucket.com/albums/r...ps0dfa4997.jpg

Awesome build...look forward to seeing more of the great work from your very talented team there. :thumbsup:

Really like the truck from this angle.

http://i353.photobucket.com/albums/r...ps7337c229.jpg

It's looking really good guys. One question, have you checked the turning radius with the foot area extended? My guess is you have really limited yourself unless you moved the cab on the chassis or moved the spindles forward on your chassis. I would really like to know if this works since I'm taller than average! :D

Again, looks awesome! :thumbsup:

Quote:

Originally Posted by FaBrycation (Post 518796)

......
1.Scotts tube chassis

Looking good! I thought you guys were gonna do a tube chassis? Looks good either way though. :thumbsup:

Quote:

Originally Posted by ccracin (Post 525060)

The front wheels at full compression have plenty of room.When the front wheels are turned lock to lock there is plenty of room.The front centerline
of the wheels are moved forward 1 inch from stock.We do this on our c-10
chassis and our c-10 ifs kits.This will center the front wheel into the fender.

Quote:

Originally Posted by Scotts Hotrods (Post 525129)

Awesome, I figured you guys were on it! Can't wait to see more. Thanks for the reply!

Quote:

Originally Posted by ccracin (Post 525060)

I'll shoot a few pictures so you guys can see the frame and firewall clearance. We set them up with the wheels set forward 1". As it sits right now, there is a ton of room between the firewall and wheels. I think the mock ups are about 3" shorter than the actual wheels/tires being used, but even with that, there's plenty of room.

Quote:

Originally Posted by 214Chevelle (Post 525068)

Looking good! I thought you guys were gonna do a tube chassis? Looks good either way though. :thumbsup:

I guess it just depends on what the definition of tube chassis is. We build some chassis's with round tubing, and build some with square tubing. We wanted our typical "off the shelf" chassis under this one to represent what would be typical if someone were to call an order one. I have a few round chassis cars I'll take a few pics of for you guys. They do look pretty cool.

Right now the guys are setting up the ground clearance. The rockers are being trimmed and remade, ad the rear of the cab is being redone too.

http://i353.photobucket.com/albums/r...psc7586179.jpg

You can see just how much we are taking out of the rocker. Seems like a lot, but it'll really not be noticeable when it's all finished.

http://i353.photobucket.com/albums/r...psa9e217f1.jpg

http://i353.photobucket.com/albums/r...ps0e5927f5.jpg

http://i353.photobucket.com/albums/r...ps7dcb404f.jpg

The body will sit level with the frame when it's finished. All said and done, it will give us our 4" of ground clearance that we need.

Here's a better view of the rocker. It'll be finished with a sheet metal cap and shaped correctly.

http://i353.photobucket.com/albums/r...ps2ddb2581.jpg

I can't wait to see this one finished.

Not the best of pics cause the cars pretty low on the ground, but here's a pretty much finished rocker.

http://i353.photobucket.com/albums/r...ps6bf19c71.jpg

http://i353.photobucket.com/albums/r...ps509cf0f1.jpg

http://i353.photobucket.com/albums/r...ps83d409b4.jpg

Absolutely love this style truck!!!! This is gonna be a bad ass build for sure!!! Gotta keep my eye out to win this!!!!

Here's a quick look at it before it's finished. You can see how the rear window stays full size, and how the windshield is leaned back. The dash isn't affected so long as the pillars are relieved correctly. Getting close...

http://i353.photobucket.com/albums/r...psd8af2b55.jpg

http://i353.photobucket.com/albums/r...ps2ca41ab1.jpg

http://i353.photobucket.com/albums/r...pse7f14ac6.jpg

Man I hope I win this truck !!!

:king:

Quote:

Originally Posted by syborg tt (Post 527293)

Man I hope I win this truck !!!

:king:

Not gonna happen. This one is mine! :bigun2:

Killer work you guys are doing on this.

In total, the windshield is laid back 2-3/4" and the total chop is 1-3/4". In the earlier pictures the windshield wasn't fully laid back yet. Here's the final height.

http://i353.photobucket.com/albums/r...ps050c37c0.jpg

Once the welding and cutting started to happen, it was apparent that some more rust repair needed to be done. Since that was happening anyhow, Justin decided to take out the hard edge and smooth it out a bit.

Here's some more pictures.

http://i353.photobucket.com/albums/r...psff42db1e.jpg

http://i353.photobucket.com/albums/r...ps2146a77f.jpg

http://i353.photobucket.com/albums/r...pse26cf9a3.jpg

http://i353.photobucket.com/albums/r...psdc01674e.jpg

http://i353.photobucket.com/albums/r...psaf00da8f.jpg

very nice work, this truck will be very nice

Nice core support. It is all cool.

You can see in the pic that the top corner on the door is rounded off from the factory square corner that comes on these doors stock.This adds a nice look when the drip rail is removed

Justin

Quote:

Originally Posted by tech@scotts (Post 529024)

http://i353.photobucket.com/albums/r...psf7d46e26.jpg

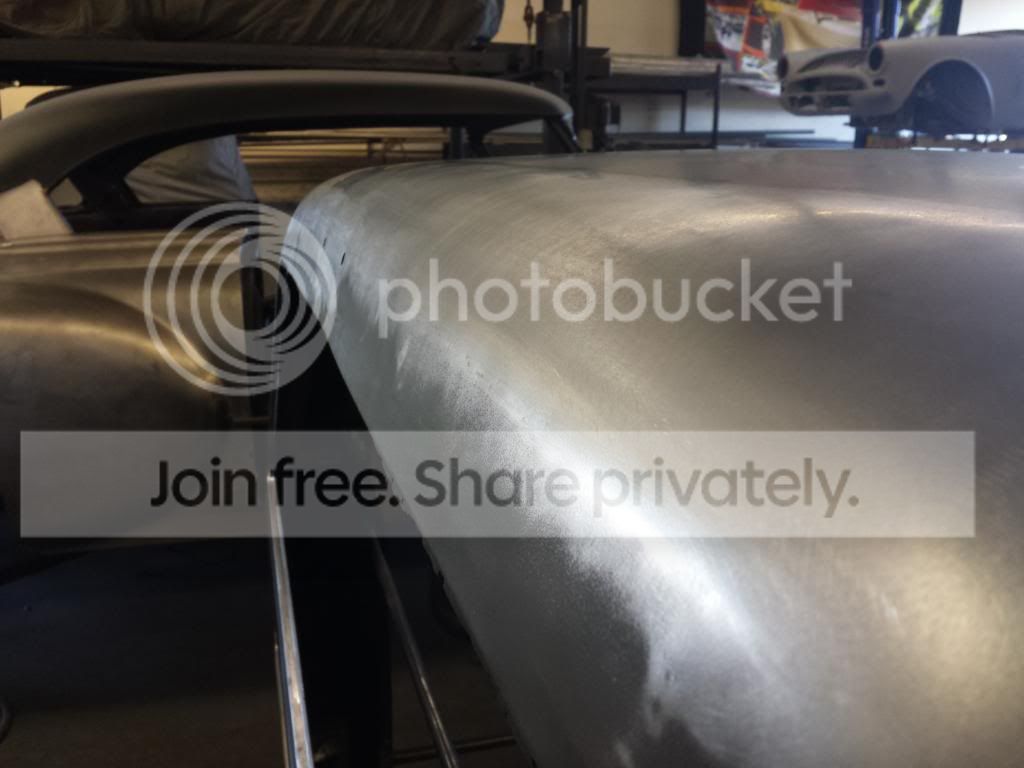

for those of you that are thinking it. It is the shadow of the lip on the pillar that make the gap look uneven although it is the same.

When you do the final TIG welding on something like that windshield header, how long is your average pull ? Judging by the HAZ it looks like you only go about 1-2" at a time. Is that about right ? Just fill in between a tack or two ?

Oh man. I have my truck sitting outside my shop and wanna build it so bad now. This truck is sick

Quote:

Originally Posted by preston (Post 529117)

On a piece like that, I actually get it tacked about every 1/2 - 5/8 of an inch. This helps it retain is shape through the welding process. And then when I weld it I try to count out the number of times I add rod to the weld then stop and cool it. I typically count to 6 on detailed piece like this one which equals about a 1/2 - 5/8.
With that being said I don't necessarily stick to going tack to tack as sometimes that is to long of a pass. I mainly try to have short and very consistent heat affect zones, as this keeps the warping and pulling to a minimum and makes for a easier time metal finishing.
Also, if the piece is cut in correctly and you have near zero gap as I do that drastically reduces warping along with my welding process.

OK I'll stop

DO you just spot every inch, grind, and then good to go or do you spot the entire seem? Thanks
