not pro-touring but REAL fun build

this is my new 4 seat rock crawler

6.0l , with ls6 ported heads , nitrous express intake ,fast efi , headers .
th400 trans , with a 4 speed atlas transfercase .

front and rear spidertrax axles ( 9in ) with 50 degree steering . high pinion front , standard rear , with 4.88 gears

4 link front and rear , with 7075t6 bars , shocks are nitrogen fox 2.5 .

tires are 39.5 red's BFG comp crawlers

guages are race pack

suspension seats

this will climb anything you point it up ! ( just wear you seatbelt )
http://i1209.photobucket.com/albums/...sofcars090.jpg http://i1209.photobucket.com/albums/...sofcars081.jpg

Thats sweet Kenny. Where did the chassis come from ?

Even better..... I like the Liberty Grille..... nice touch

Man look at you go, Your like a mute kid who just learned to talk.

That thing looks cool, and it is pro-touring for the rocks.

That thing is wild. We need some action pics when you get out there.:thumbsup:

Just a rock toy or do plan running KOH?

Looks like the chassis is setup just right for it...:thumbsup:

I want to go to the hammers , but i didn't build it to compete . My last one was a campbel ent 2 seat , it was more of a comp. rig than this .
This one cam compete in smaller events , but i would have to change to coilovers for hammers and longer events .

Quote:

Originally Posted by strtlegal (Post 324334)

Just a rock toy or do plan running KOH?

Looks like the chassis is setup just right for it...:thumbsup:

I understand. I honeslty thought the shocks were just mock up..hahaha

Are you running an Air shock on that?

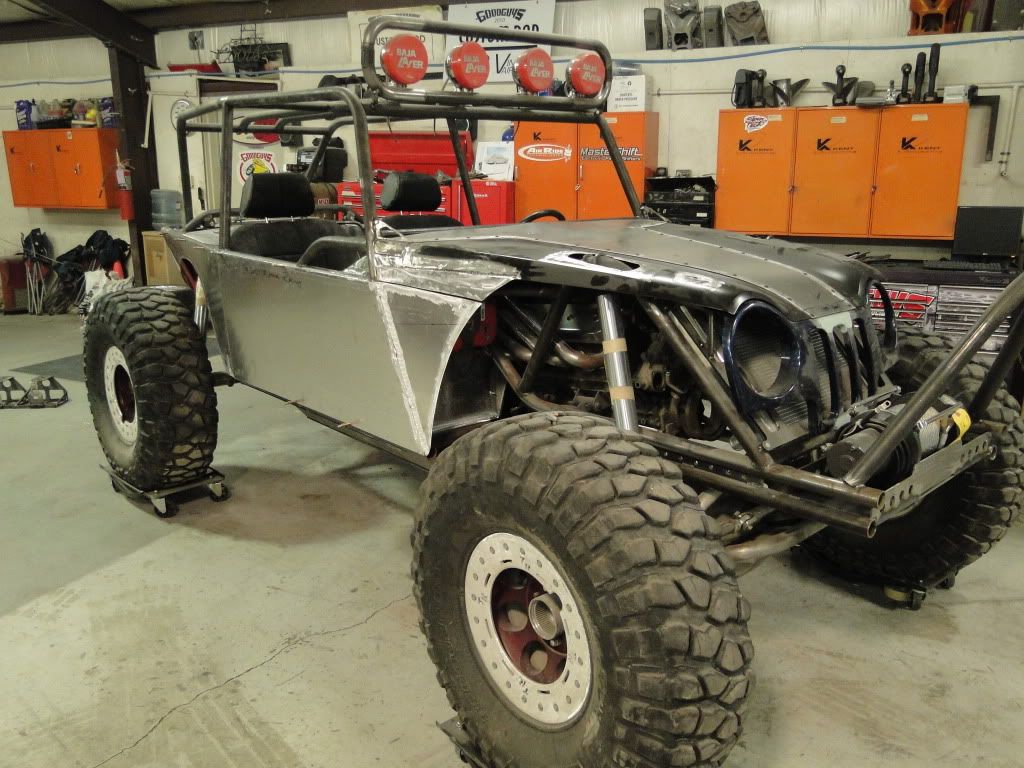

http://i1209.photobucket.com/albums/...5photos604.jpg

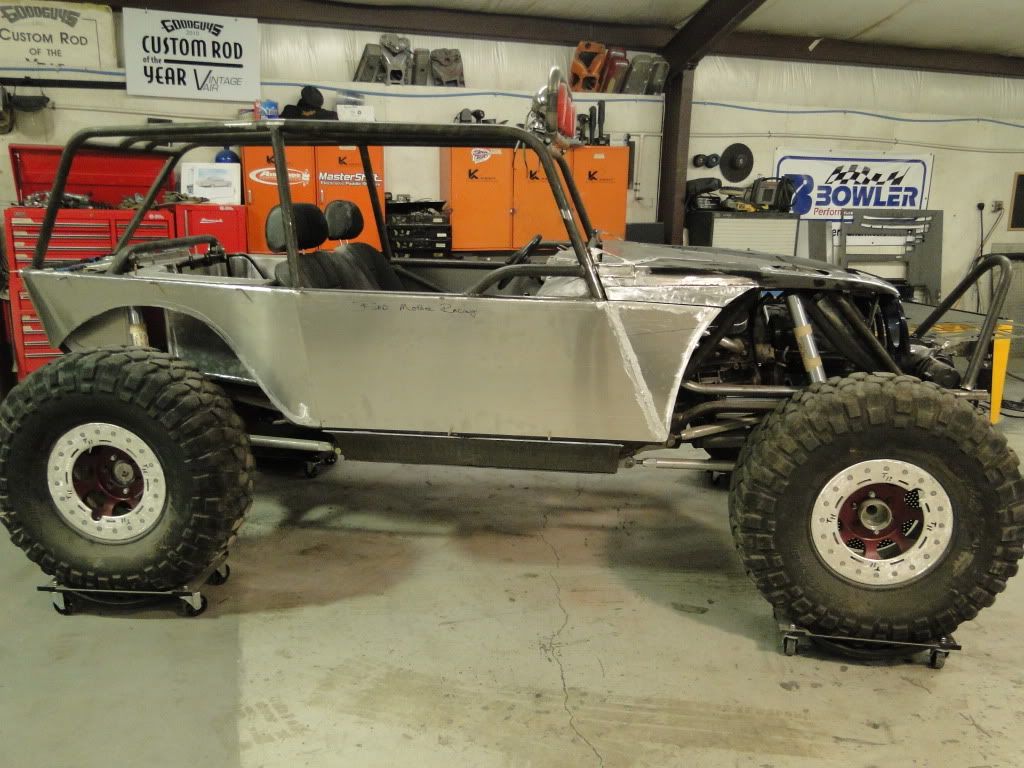

http://i1209.photobucket.com/albums/...5photos607.jpg

Kenny if you click on the IMG code link it will bring it up in the right format to post the pics not just the links.

I'm just trying to be helpful, not an ass for once.....

Thats funny , because i was going to call you and ask AGAIN how to make photobucket work .

Does it come with 4 helmets????

Yall be carefull now yahear!!

Thats is awesome. Keep the pictures coming :thumbsup:

That there is pretty sweet! What running gear and transfer case are you going to run?

Quote:

Originally Posted by killer69 (Post 330052)

Does it come with 4 helmets????

Yall be carefull now yahear!!

Probably only 3 since Kenny is blessed with the luck of 10 leprechans!!! :lol:

It has 4.88 gears , atlas 4 transfercase , with a 10.2 low , th400 trans , and a 6.0l ls . the LS has ls6 ported heads , nitrous express intake , comp cam and springs .

and yes 4 helmets !

Kenny!

Coming out great, definitely dig the clean lines in the buggy!

I am not sure what traile you hit and your wheeling style, but seeing you built a four-seater, a small recommendation is to add more triangulation on the cage if you are going to be attempting something a bit wilder (and I think with your build specs it definitely looks like you will!

I would add braces on the B to B pillar, and B to C pillars, and also V or inverted V on the A pillar to center of dash.

Killer build, so keep it coming and great to see I am not the only one with project ADD here, hehe!

Hope I am not cluttering:

Current project (TJ on tons, 4 sp atlas and other toys) - CO's are sitting getting dusty in the garage :D
http://img.photobucket.com/albums/v2...d/IMGP0556.jpg

My old buggy (Cruiser..ish Pontiac 400 engine, one tons, CO's rear, blah blah):

http://i103.photobucket.com/albums/m...9/IMGP0298.jpg

a few more pics here:

http://i103.photobucket.com/albums/m...9/IMGP0300.jpg

http://i103.photobucket.com/albums/m...9/IMGP0301.jpg

http://i103.photobucket.com/albums/m...9/IMGP0307.jpg

http://i103.photobucket.com/albums/m...9/IMGP0308.jpg

Nice rigs. I miss my Landcruiser.
