my drip rails are gone/


i cut the rails off and instead of just rounding it over ,i had a line moulded into it close to the edge.it really looks great in my opinion.
question is about the chrome weatherstrip channel that gets screwed to the body itself.now the drip rails are gone .what is the correct way to have them installed?do they get trimmed?painted black?or can they be ditched and a special weaterstrip be used?
thank you

How about some pics!!!!

i have some cell phone pics but they dont do it justice/ill get camera pics tomorrow

any pics of the work yet?

No trimming necessary. The trim isnt as tall as the weatherstrip or the flange that is on the interior side of the top (Where the pinch moulding goes that covers the Headliners attachment....Just paint them black, they fit right under. Like this.

The flange seen in the pic is the flange that accept the pinch mouling... it is actually hidden by weatherstrip...

http://i290.photobucket.com/albums/l...1222297620.jpg

http://i290.photobucket.com/albums/l...l1/photo11.jpg

http://i290.photobucket.com/albums/l...l1/photo13.jpg

http://i290.photobucket.com/albums/l...l1/photo12.jpg

drip rail removal


Robert,

Very nice. I'd like to do the same to my '67. I think it will look great with your seamless glass kit. Can you provide more detail on how you did this, maybe some more pics of the work in progress (if you have any).

Thanks again!

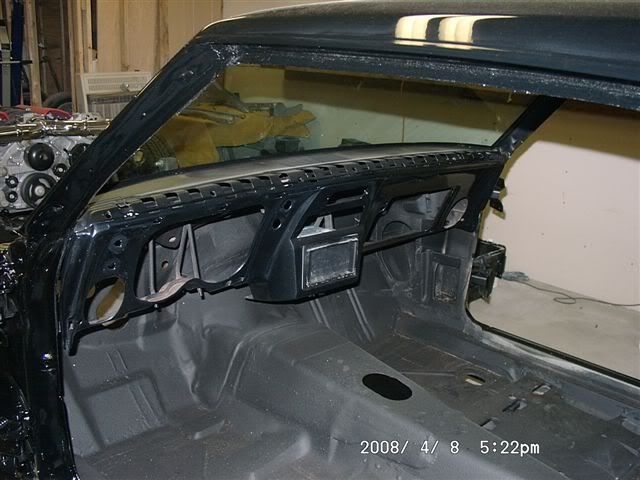

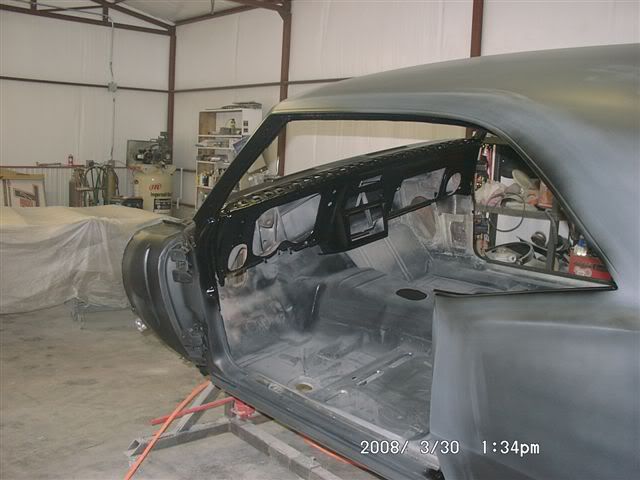

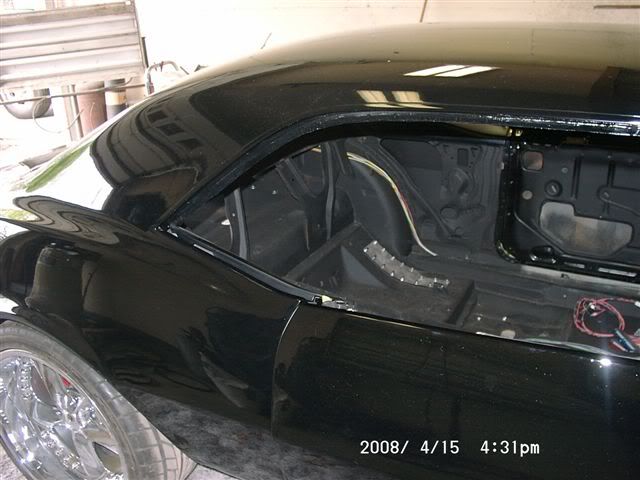

I cant seem to find the pics of the actual cutting.. But what you see here is after they are cut off.. The rise just at the edge of the top is the factory shape of the top. I accented the factory rises by cutting a slight V-Channel at the edge of this rise. It just highlights it a bit from the side profile. We tried the totally smooth look, but from the side profile, it appeared to be lacking something.

If you have any questions feel free to PM me or give me a call.. I can talk you through the process...

http://i290.photobucket.com/albums/l...1222297470.jpg

http://i290.photobucket.com/albums/l...1222297544.jpg

http://i290.photobucket.com/albums/l...22297618-1.jpg

http://i290.photobucket.com/albums/l...1222297714.jpg

robert that looks great.im trying to put my pics up but there to big.mine is almost the same as yours.very sharp

Any luck on the flush glass for 67-72 trucks yet?? car looks very nice --- jim:hail:

I have a couple of more car lines coming out before the 67-72 Trucks.. The trucks are going to be very complicated, but already in the works..
