My own custom fender braces for a 69 Camaro *PICS!*


i bought stock the other day, 1/4" 6061 aluminum, cadded a template of my 3 choices, and... well take a look..

I laid card out 1.75 wide, and made a template to get exact angles i need, and also easier to see what it would look like playing with each angle.
http://i361.photobucket.com/albums/o...9/DSC00911.jpg

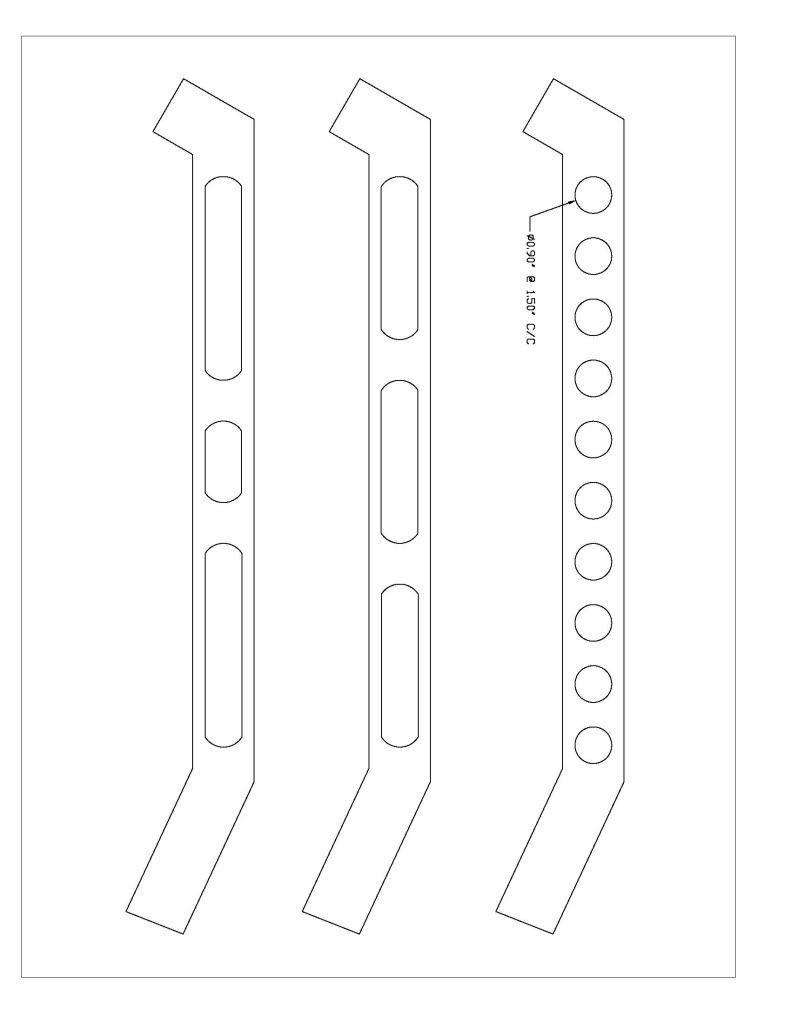

then, cadded up some templates based on my specs, made a few designs and picked which one i liked best..

http://i361.photobucket.com/albums/o...969/fender.jpg

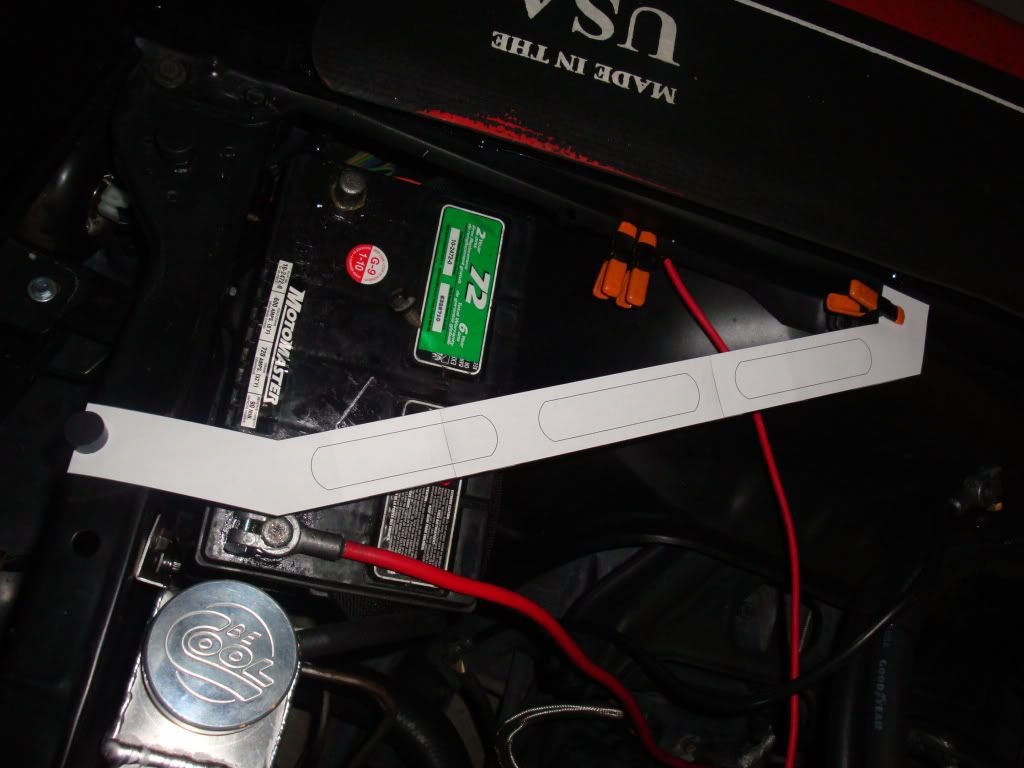

made template to size, printed it and mocked it up
http://i361.photobucket.com/albums/o...9/DSC00915.jpg

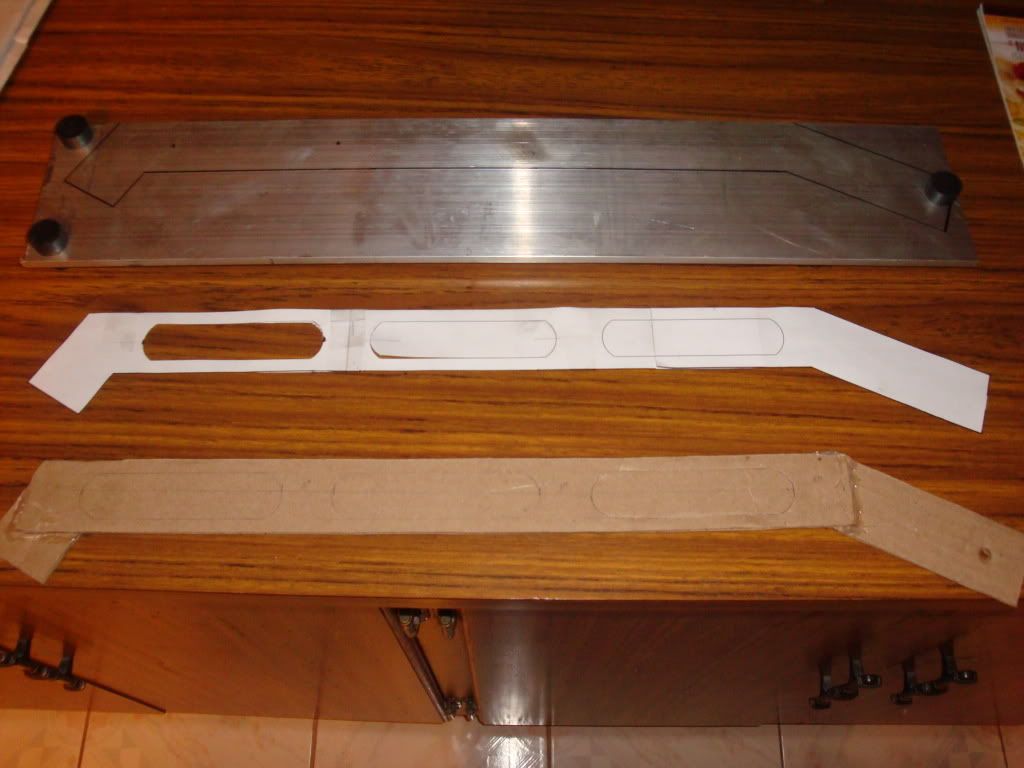

transferred the paper to the stock
http://i361.photobucket.com/albums/o...9/DSC00919.jpg

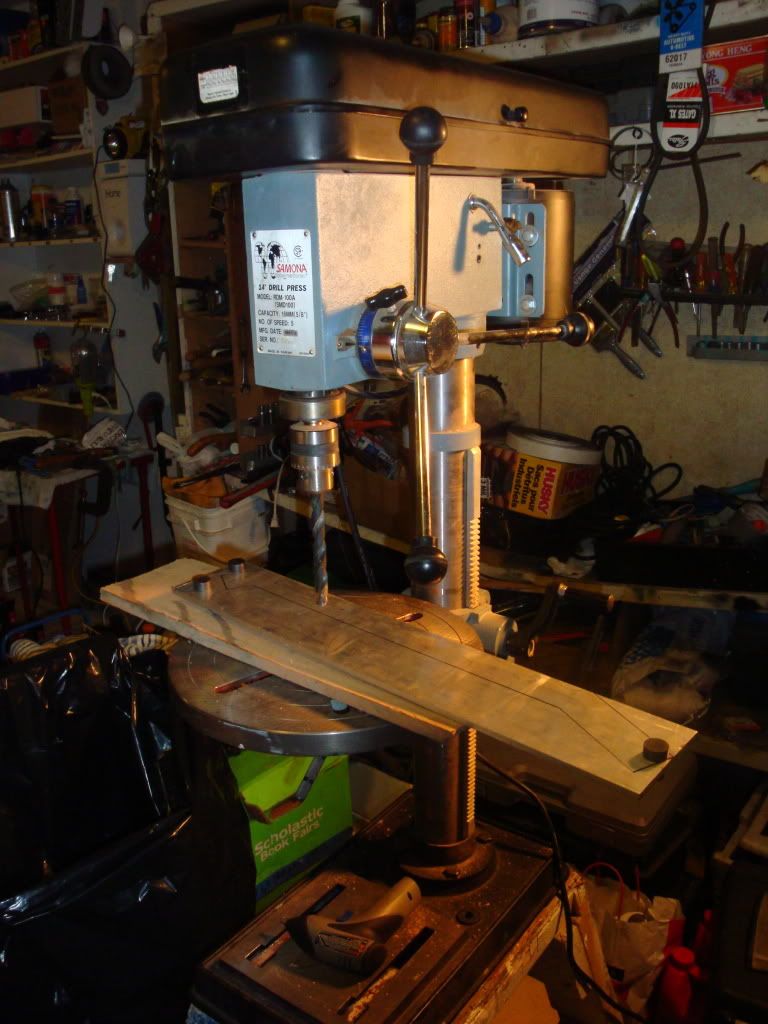

my new toy for 90$ lol
http://i361.photobucket.com/albums/o...9/DSC00920.jpg

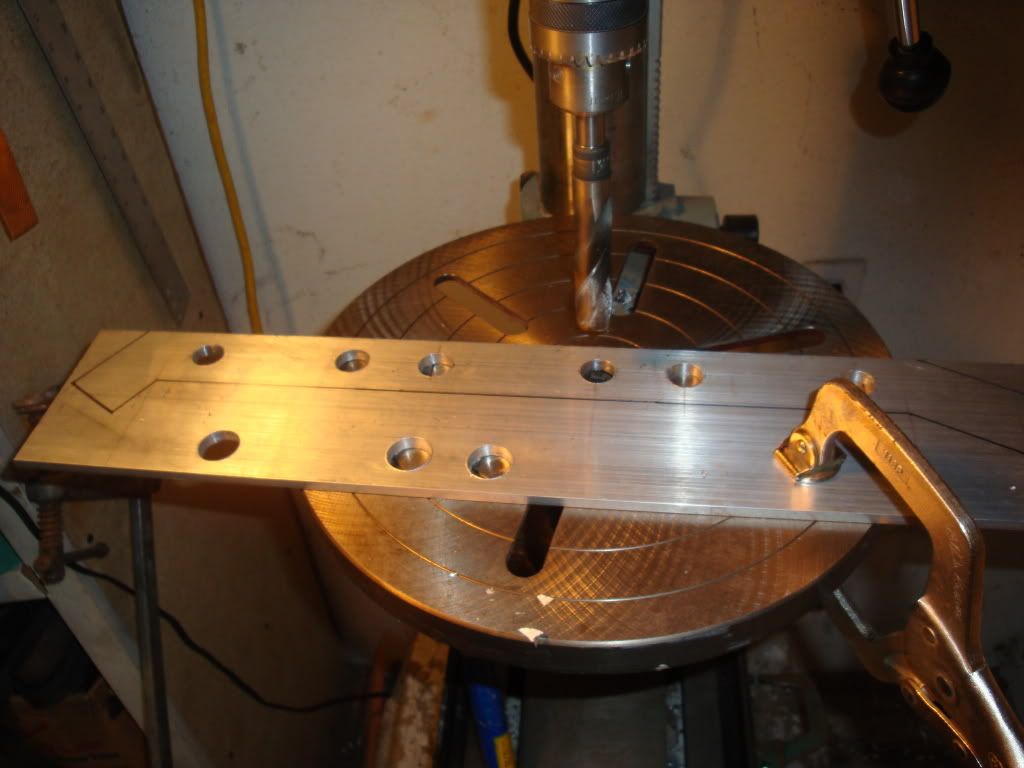

drilled my holes
http://i361.photobucket.com/albums/o...9/DSC00923.jpg

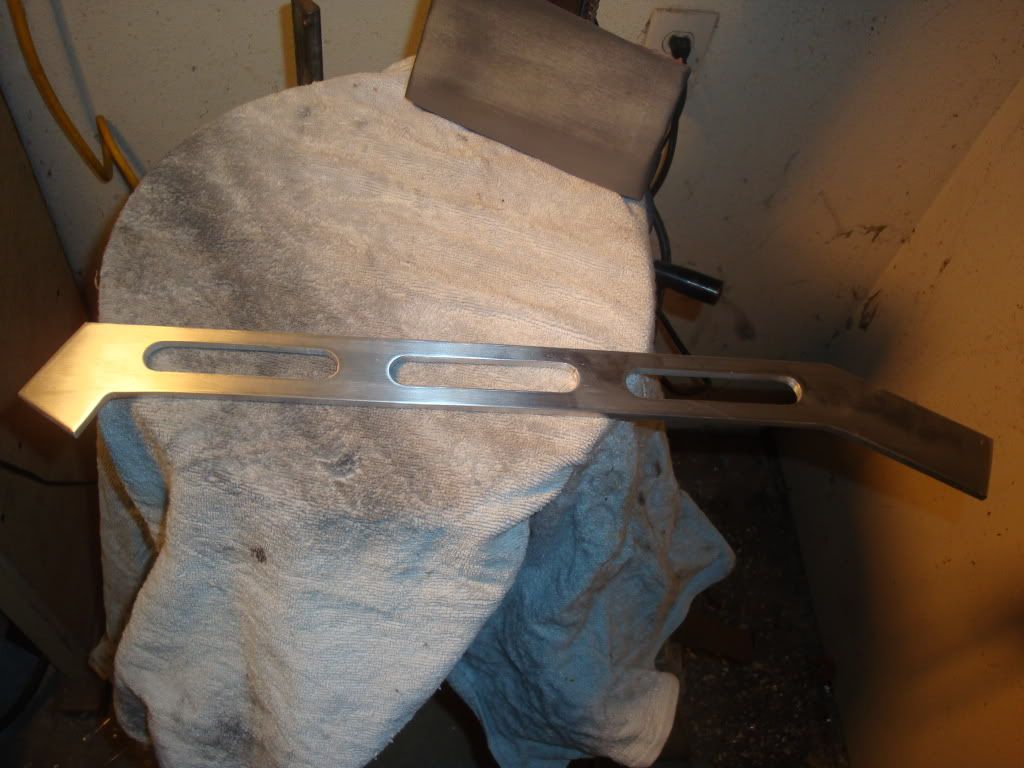

cut and sanded to brushed steel, started with 260-400-600 grits, matches my radiator
http://i361.photobucket.com/albums/o...9/DSC00927.jpg

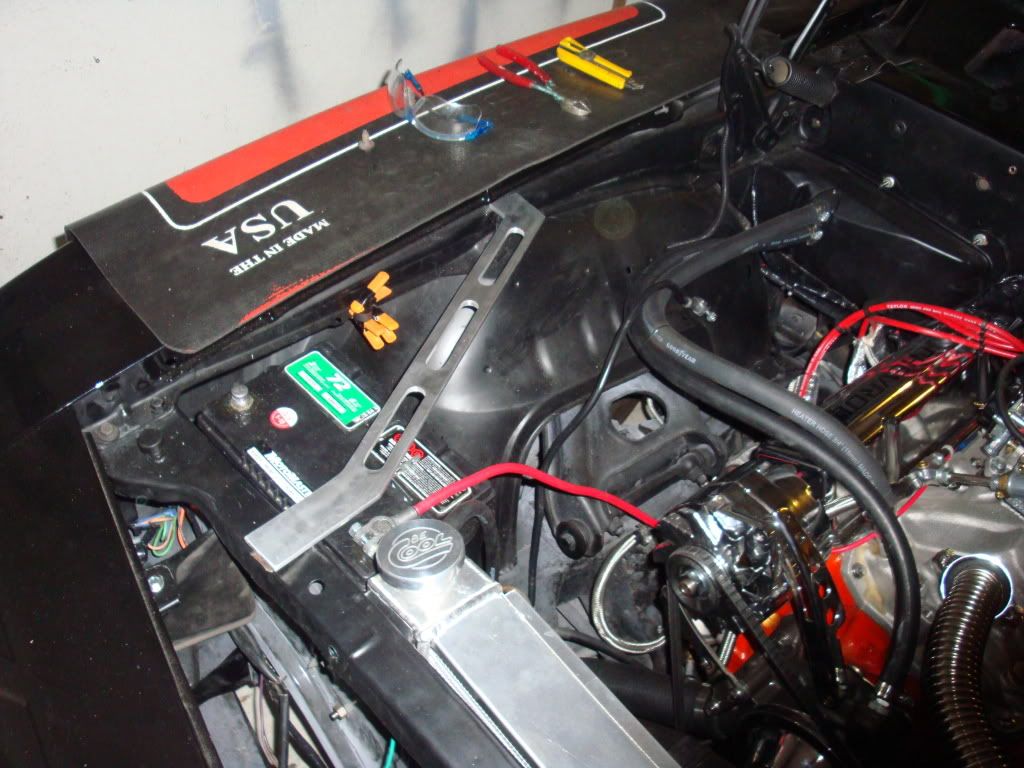

right before mounting
http://i361.photobucket.com/albums/o...9/DSC00932.jpg

dont mind my engine bay, super dusty!

Fender Braces


Good Work!!! Do You Think It Will Have Enough Material Left To Actually Do Some "bracing"?

Looks good so far! How are you going to finish it on the fender itself?

i have brackets that will mount on the existing fender and screw in the original brace holes

Thats the way to do it :thumbsup:

Very cool my man.
Good going!:thumbsup:
