DSE subframe connector install with removable subframe

I thought I would start this thread so maybe it will help someone in the future since I didn't find a whole lot when I was searching for the same. In the Jackass build and a few others you'll see the bolts so it is done but never much detail on this in particular.

Since I will be running the OEM subframe(replace when my ship comes in :) ) and likely have it on and off a few times during the build, I wanted the DSE subframe connectors installed in such a way that the subframe bolts to the connectors. I talked to Dan@Holohans about this before he got started with the install.

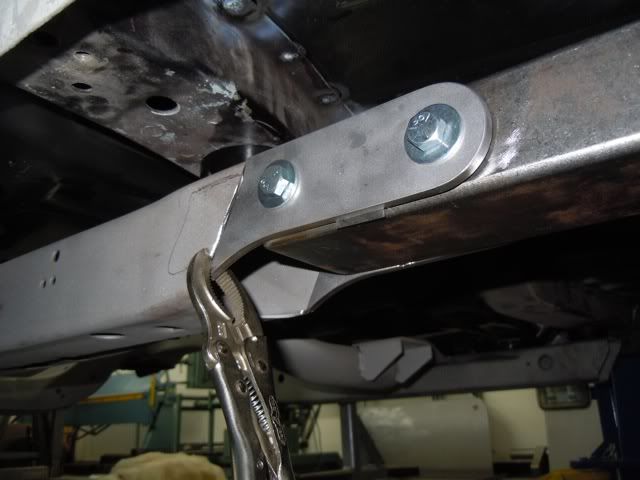

I'm extremely happy with the way they turned out. The install looks very good and I think it will work out nicely. What he did was closeout the DSE tube, bore holes through the tube, weld in a piece of thick walled tube tapped on both sides, then fab up the extensions for the OEM sub. There are 2 bolts coming in from both sides. Dan even used some few thou' shims between the pieces to account for the paint to come later. I think he must of done this before :lol:

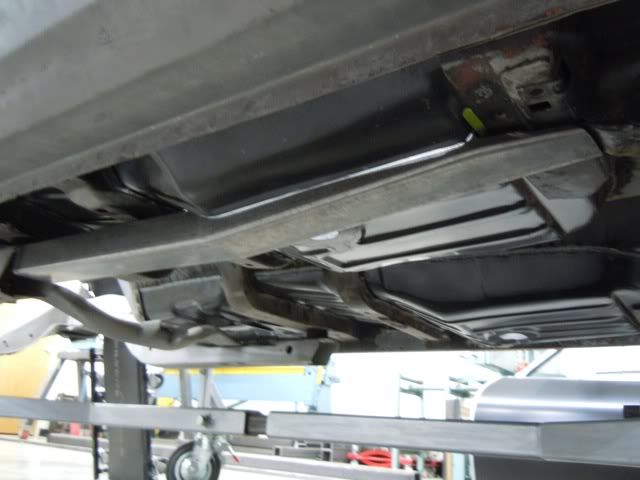

And here are some pics...
http://i33.photobucket.com/albums/d6...t/DSCN2494.jpg
http://i33.photobucket.com/albums/d6...t/DSCN2517.jpg
http://i33.photobucket.com/albums/d6...t/DSCN2521.jpg
http://i33.photobucket.com/albums/d6...t/DSCN2603.jpg
http://i33.photobucket.com/albums/d6...t/DSCN2595.jpg
http://i33.photobucket.com/albums/d6...t/DSCN2593.jpg

Gandalf 06-26-2011 11:34 PM

VERY nice work my friend - your builder did you proud on these!

Well done!
G.

Rick D 07-08-2011 08:15 AM

Looks good :thumbsup: I am going to make my connectors so you can unbolt the sub frame also so I can change later (see ship above) :yes:

HotRod68Camaro 07-08-2011 12:18 PM

That's quality work:thumbsup:

tgvettes 07-17-2011 09:07 PM

That looks great!

T
