Backyard gas vent filter


Needed to vent tank and this is how I did it.

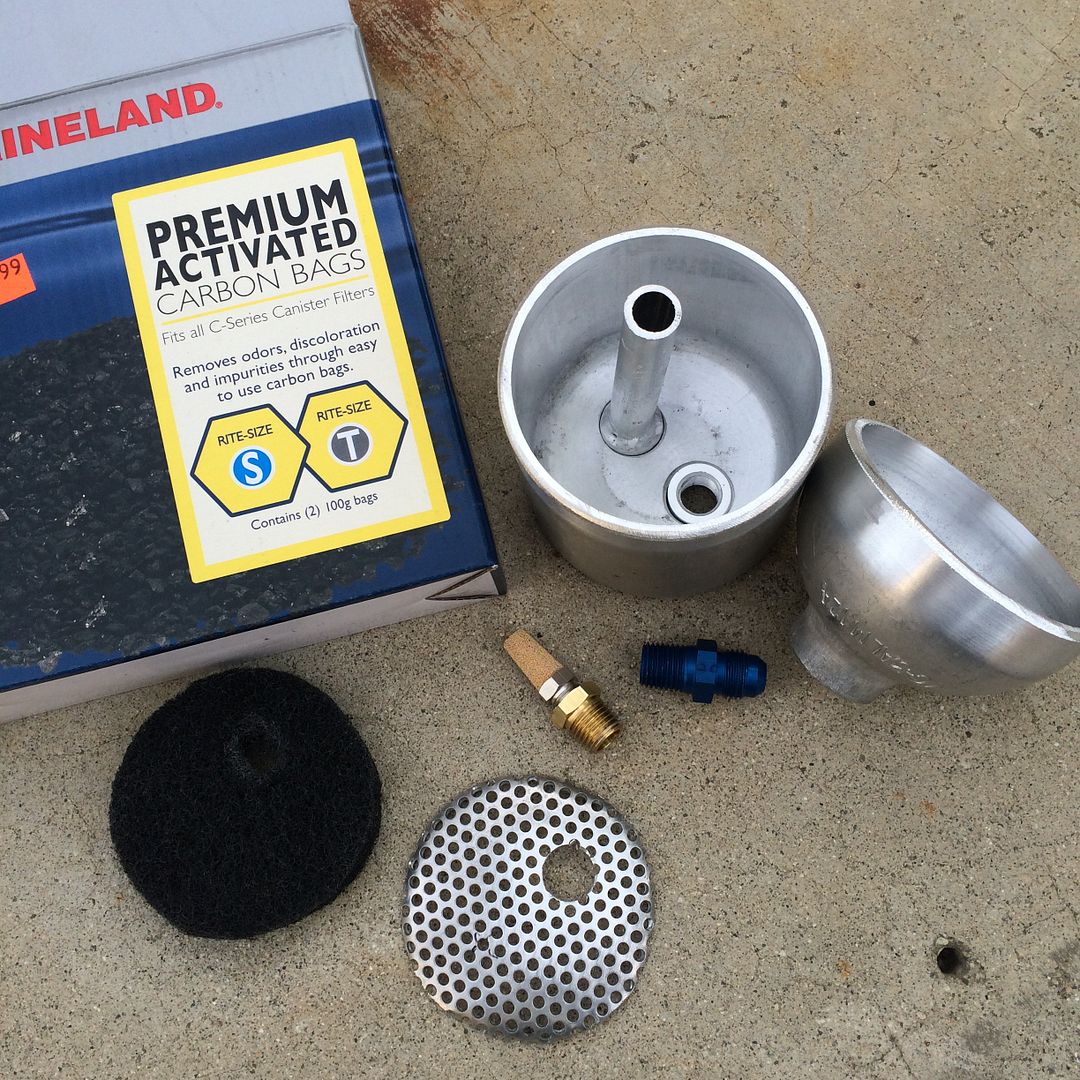

Carbon filter material

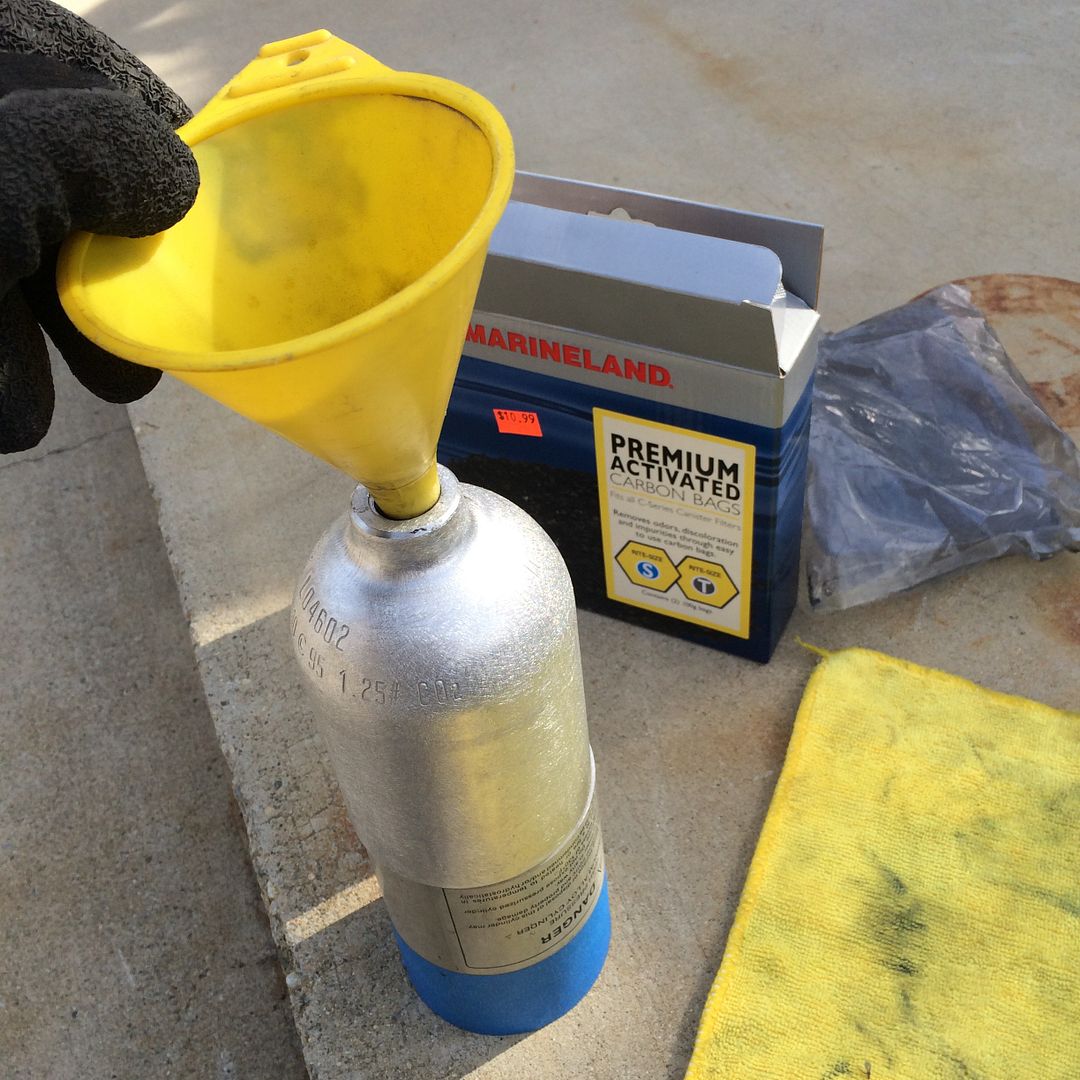

Some activated carbon from local pet shop

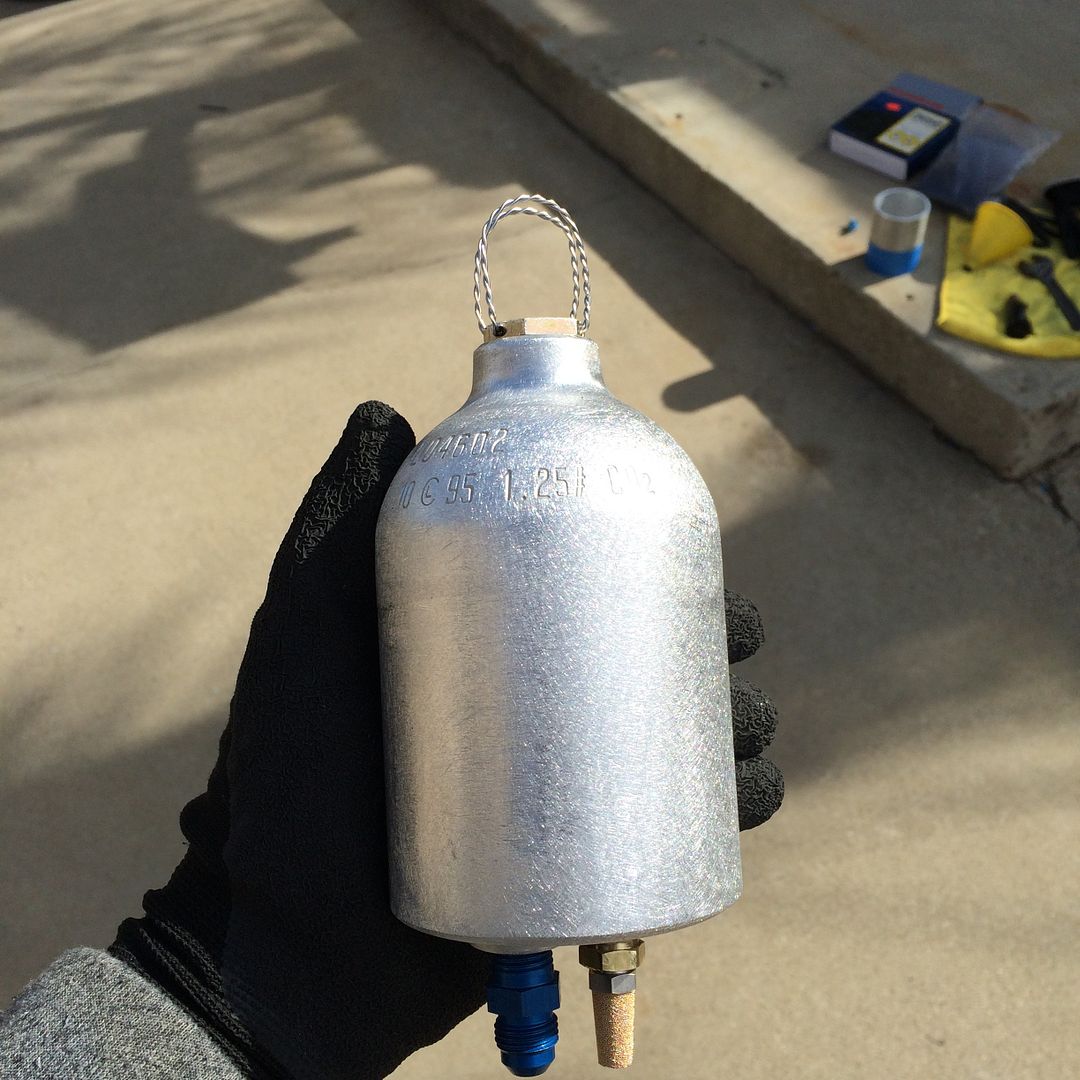

Co2 cilynder
Micro filter
2x 1/4" bungs

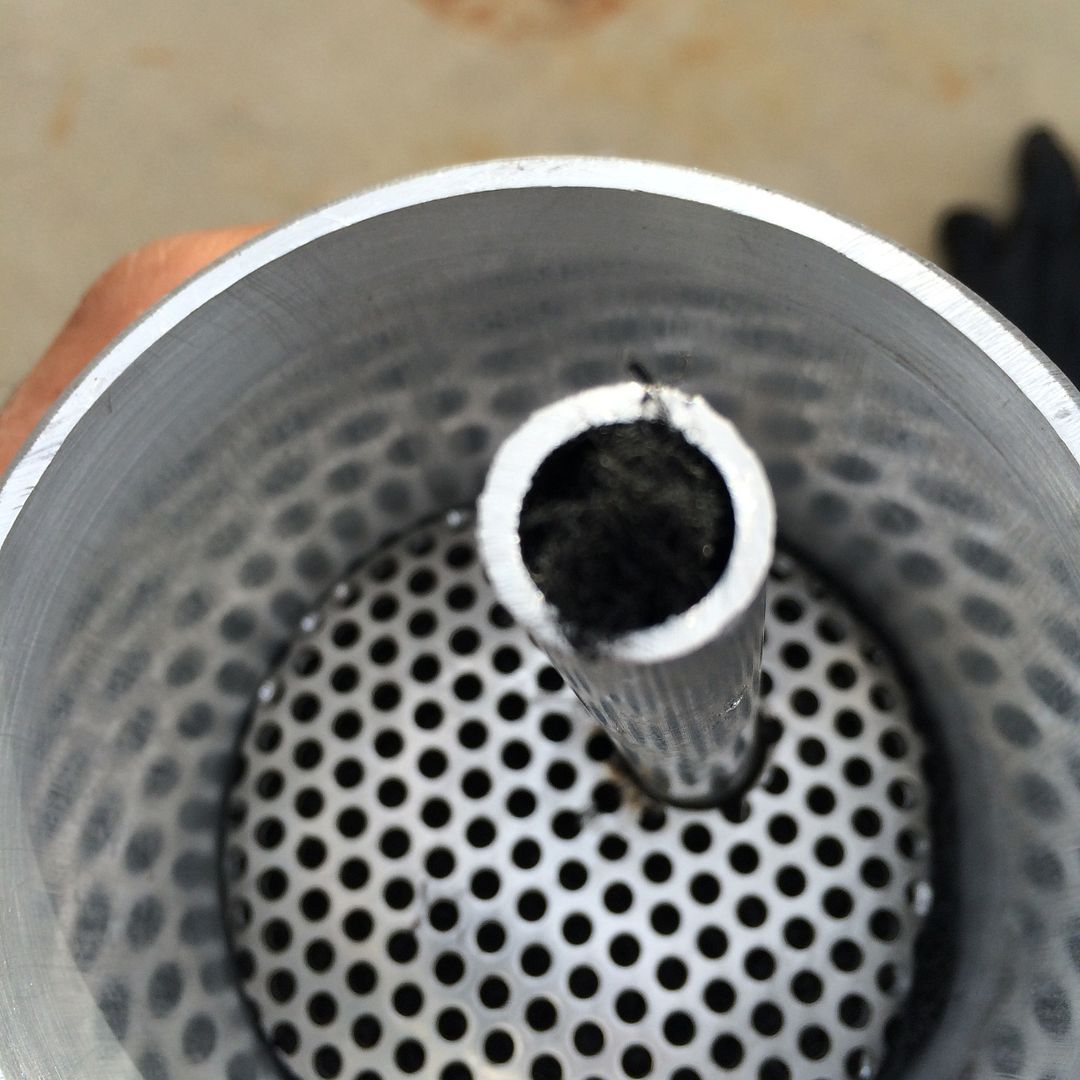

Aluminum tubing ( placed some carbon mesh inside ) to prevent clogs
Line going to tank is isolated from loose carbon.
Access on top to replace carbon if needed
Will put a safety valve on the line


http://i1232.photobucket.com/albums/...pscewmpart.jpg
http://i1232.photobucket.com/albums/...psjnhcsaip.jpg
http://i1232.photobucket.com/albums/...psdh3jm6fx.jpg
http://i1232.photobucket.com/albums/...pskb2bazjk.jpg

Very cool. I was going to build myself a couple. Did you cut the C02 tank in two pieces and weld it back together?

Yes it got cut and shortened by 4"

Well that beats my solution which was to give the vent line a couple of loops and then zip tying some pantyhose on the end.

That was plan B

Excuse my lack of knowledge but my curiousity is killing me, what exactly is this used for and where? Is this like a home made version of the II Much fuel vent?

Yes it's the " NOT MUCH "vent

LOL ^^^ ok

:idea: I Like It ! Nice idea.

Thanks Wayne .
It's now official it works . It's been in and out of garage ( 3/4 full tank ) with close to 100 dg temps and not a hint of fumes in garage.
