Lateral-g Forums - NEW - Moser 7900 - "Bolt-On" C6/C7 Hybrid Floater

C6/C7 Hybrid Floater System -

Installs onto any Rear-End that utilizes the Moser 7900 Ends.

That's right,,,, you can use your current rear-end housing, NO welding & simple installation. BOLT-ON! :headspin:

Advantages:

Bolts to your Moser 7900 Housing End (Chevy 10/12 bolt application now available! https://lateral-g.net/forums/showthread.php4?t=52854 )
Reduces/eliminates brake “knockback”
Eliminates axle deflection
Wheel & tire remains intact should an axle failure occur
Front or Rear Caliper / E-Brake Cable Positions
Utilizes the robust, zero maintenance C6/C7 ZO6 Hub Bearing Unit
Utilizes OEM C5/C6/C7 Corvette, and 5th Gen Camaro brake kits
Utilizes aftermarket C5/C6/C7 Corvette, and 5th Gen Camaro brake kits
Utilizes your existing BAER / WILWOOD caliper & rotor (some restrictions apply)
Super compact design compared to traditional style full floaters
All advantages of a traditional style full floater without the maintenance
Replacement parts available at local GM dealer or local parts house
No modifications required to the hub bearing unit as other kits in the marketplace

Note: this applications has a negative 1/8″ wheel mount surface per side (based on an existing 2.810″ axle/brake offset)
Fitment: Any rear-end housings that utilizes the Moser #7900/Strange #H1143 Style Housing Ends

The Moser 7900 End is very similar to the Big Bearing Ford End since it also has a 3.150" bearing bore, however this Moser 7900 End has the GM brake flange and bolt pattern. If you have this style end you are now able to bolt on a Hybrid Full Floater...

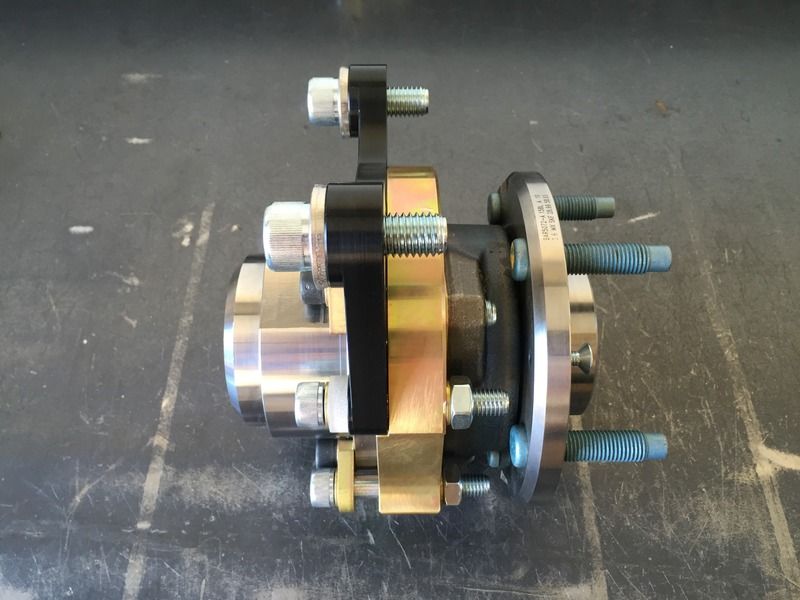

http://i35.photobucket.com/albums/d1...ps1bd7crhr.jpg

http://i35.photobucket.com/albums/d1...psa0ger1qj.jpg

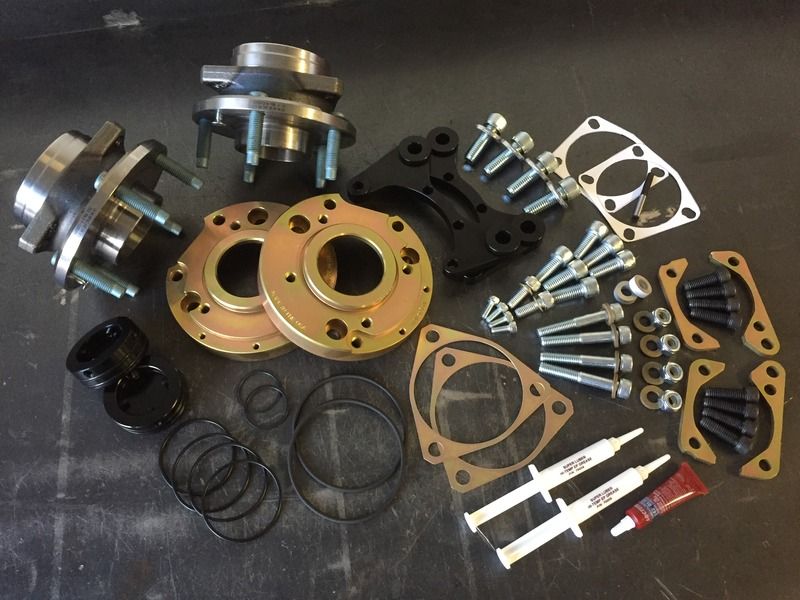

Moser 7900 Bolt-On “Base Kit” (pictured below)

http://i35.photobucket.com/albums/d1...psimrorrrh.jpg

Moser 7900 Bolt-On “Base Kit” (pictured above)

Base Kit Includes:
• (2) Billet Steel, C-Series, Hybrid Floater Adaptors
• (2) Billet Aluminum Caliper Brackets
• (2) C7 Corvette, SKF 33 Spline Hub Assemblies
• (1) Install Kit
• (2) Hub Spacers
• (2) Billet Aluminum Hub Cap Seals
________________________________________
PRICED AT - $1,398.00

Add Axles - $400.00
• (2) Hy-Tuf Full Float Axles

Add E-Brake items - $325.00
• (2) C5/C6 Corvette Complete E-brake Assemblies
• (2) C5/C6 Corvette Parking/E-brake Cable Brackets

Have interest?
Have questions?
Need more info?

Distributor Inquires Welcome!
