Josh@Ridetech

10-31-2017 02:11 PM

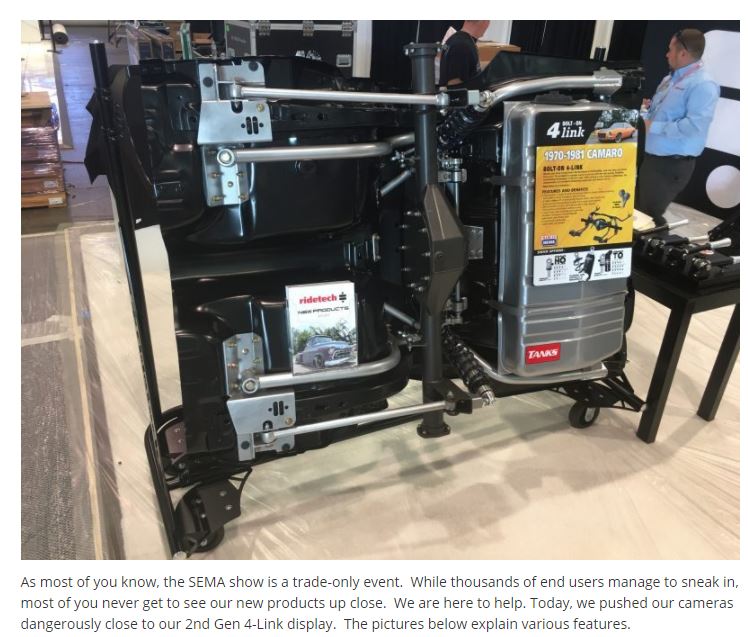

New 2nd Gen four link released at SEMA!

10 Attachment(s)

Attachment 63570
Attachment 63571
Attachment 63572
Attachment 63573
Attachment 63574
Attachment 63575
Attachment 63576
Attachment 63577
Attachment 63578
Attachment 63579

WSSix

10-31-2017 09:10 PM

Glad to see new, innovative products still being made for the 2nd gens. Will this work with the factory rear end? From the looks of it, the axle tube diameter is all that's critical for connecting up to your components.

Thanks for sharing, Josh. Enjoy your time out there.

Josh@Ridetech

11-01-2017 10:11 AM

Quote:

Originally Posted by WSSix (Post 668166)

Correct! It is set up around a factory rear but has been installed with a 9" set up as well.

and no problem! :D

bret	11-05-2017 04:59 AM

Quote:

Originally Posted by WSSix (Post 668166)

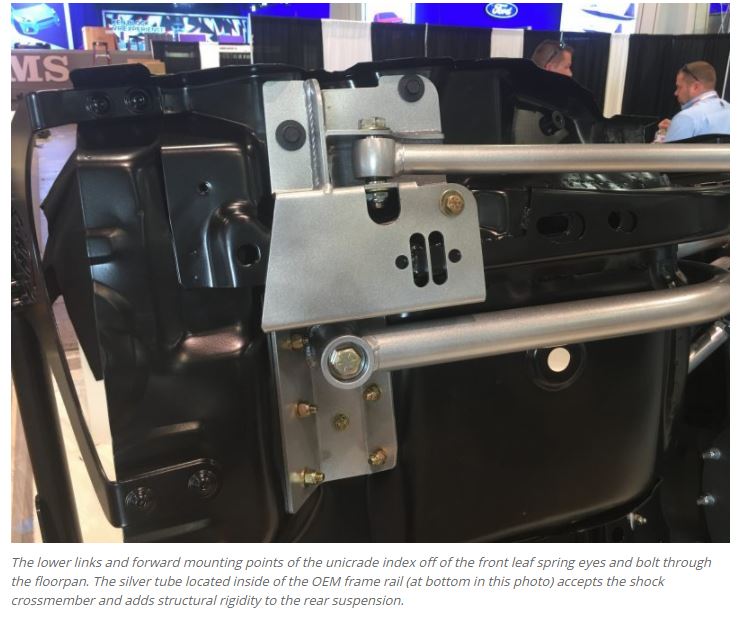

You can use your factory rearend. The oem leafspring brackets will be removed and our upper and lower bar brackets will be welded on. We have jigs available to properly locate these brackets. We also give you measurements and an assembly procedure so you can locate them without the jig.
Ridetech and Currie will be offering complete rearend housings with Ridetech bracketry already installed.

WSSix

11-07-2017 05:04 AM

Thanks Bret!
