Transcona, the Dirty Old Cougar

[egoman]

I manage to score a piece of 2024 t351 billet for a damn good price. 1-1/2 x6 and 12 feet long for 50 dollars, Oh and I GOT 2! This stuff drills like steel though, it’s tough! Thank you Air Canada for deleting old stock.

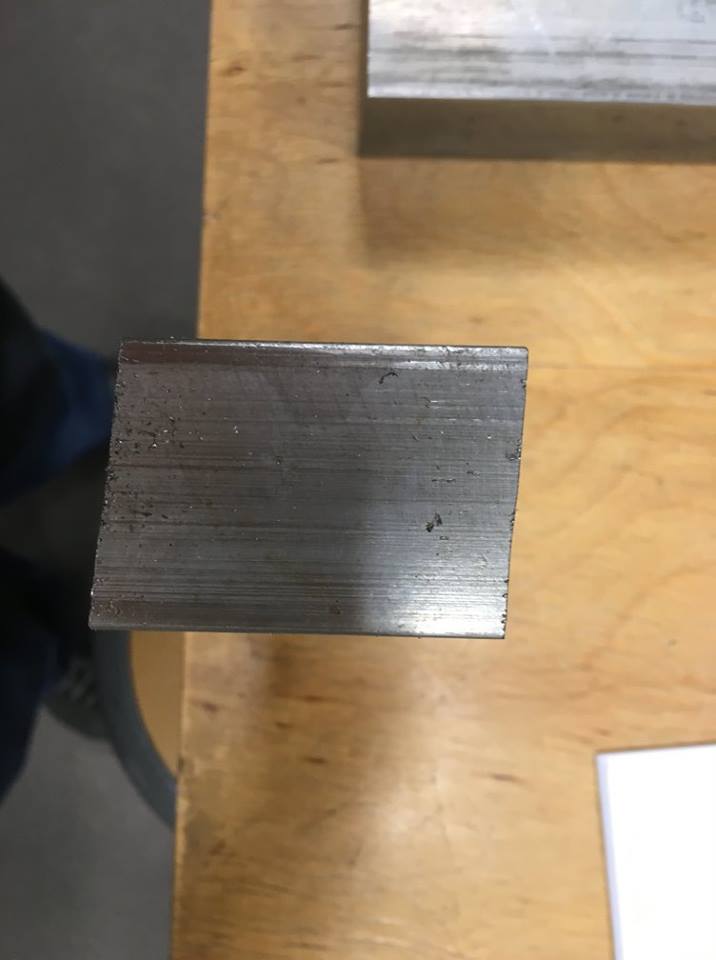

If those cuts look crooked, it’s not your eyes. A dull blade in the band saw resulted in that. We are cutting the spindles down and making the rocker for the watts linkage. I just printed out my drawing and taped it to the block. Cut and sand, cut and sand.
The larger squares that I cut out will be explained later. Some may figure this out, and well ……… some may not? I mean they have lines on them how hard could it be?
https://lateral-g.net/forums/attachm...1&d=1615264241

[Kmelander]

Deleted duplicate.

[Kmelander]

That bench top vise is definitely getting a workout! Impressive. I like the controlled distortion method to get to where you need to be with alignment too!


Sent from my iPhone using Tapatalk

[egoman]

Originally Posted by Kmelander

That bench top vise is definitely getting a workout! Impressive. I like the controlled distortion method to get to where you need to be with alignment too!


Sent from my iPhone using Tapatalk

Hey I am a pipefitter its what I do LOL!

[egoman]

Nothing like when you see some positive results.
The rear end with the tires and rims attached just plain looks cool.
We tacked it all together and then checked for straightness. Then we welded a quarter at a time and switched to opposite sides and checked for straightness. If it couldn’t roll cleanly in the jig we moved the welding around until it did. While I don’t do it here we did a roll test later and the tape measure never moved at all. VICTORY is mine, BOW BEFORE ME!
Ok I got a little out of hand……………………..
All welding to this point was done with a Lincoln SST machine at my Union hall. Nice to have the big power machine when welding this stuff. Thanks to my friend Brent Johnston for telling me the good settings for that machine. These are not your Harbor Freight welders, you actually have to know what you are doing to set them. That will seem funnier much later, believe me.
https://lateral-g.net/forums/attachm...1&d=1615687249

[egoman]

Pics and more pics, LOL
https://lateral-g.net/forums/attachm...1&d=1615687359

[egoman]

More going on here that it appears. Now I could have borrowed my buddy David’s belt sander and effed it up royally or I could go on KIJIJI and see if anyone has one for sale. Yes a quick check found on for 60 bucks and it had a few belts with it. I learned years ago from watching a sprint car builder named Jerry Frantzen that sanding aluminum looks good and gets rid of weight. I actually raced one of his sprint cars for a few years when I was a hero in the division. Well at least as far as drinking beer and telling stories makes you a hero.
Those 4 drill bits and that tap was the best part of $200. If you look at my parts and my drawings you will also see what I said earlier about sometimes the part only uses the drawing as a suggestion. Also I went with a thicker piece for the watts rocker and switched to a double shear design to capture the ½ inch rod ends.
If anyone is wondering about the ¾ rod coupling bolted to the rocker, I may tell you later and I may not. I mean honestly I actually drew it out for you, sorta?
https://lateral-g.net/forums/attachm...1&d=1616018080

[214Chevy]

There's some bad a$$ work going on here...

[egoman]

Originally Posted by 214Chevy

There's some bad a$$ work going on here...

Thank you! Like I said I am a lot further along. It gets much better.
