We’ve been busy with many different projects and it’s been a while since we’ve posted a build thread on one. This build is different from most cars we build and for good reason. It is being built as a shop car that (I hope) most people will relate too.
The timing (I think) couldn’t be better being that lately there have been quite a few threads about build costs etc. In a sea of current high caliber / high profile builds, we set out to build a car that most relates to the majority of potential clients. Although the high caliber cars are great for this hobby and for those who are building them, the reality is that most of the people calling or visiting the shop can’t relate to why a car of that caliber costs so much. That is simply because those cars are engineered and purpose built. With that said, the purpose of most car enthusiasts that inquire is to have a practical performance street driven car that sees more road and show time than track time. I as much as the next guy loves a great piece of eye candy that can out perform the new super cars of today but the bottom line is that most people can’t afford such a build and/or it is overkill for their particular situation. It would be like Grandma buying a Ferrari to go grocery shopping. So after a long design and thought process it was apparent that I should try to meet the majority demand of those who inquire. First we chose a car we believe is becoming very popular right now. Then we set out to minimize cost by lessening the amount of hardcore fabrication (which simply is time multiplied by hourly rate) and focused on attention to detail while using for the most part aftermarket bolt-on parts in lieu of over the top fabricated ones. I know this build won’t be for everyone as there always seems to be someone who thinks differently and has a better idea. But if most people view this build with an open mind on possibilities within a budget and not an open checkbook, it should be enlightening.
Here is some info on this build:
Vehicle: 1967 Chevrolet Nova (low mileage, super clean and solid Midwest car requiring NO body panel replacement or patching)
Body Mods (all cosmetic changes): Mini-Tubbed, Shaved Cowl, Shaved Locks, Shaved Firewall, Fabricated Front Valance, Modified and Smoothed Radiator Support, One piece Taillights
Front Suspension (aftermarket bolt on): Chris Alston’s Chassisworks G-Machine Clip (sanded and smoothed) with Street Machine Upper and Lower Control Arms, Manual Rack & Pinion, Dropped Spindles, Wilwood 13” - 4 Piston Brakes
Wheels / Tires (standard available wheels): 19x11 / 18x8 Intro ID321 Matte Charcoal, Hankook V12 Evo 285/35/19, 215/40/18
Drivetrain (available aftermarket / in-house built): Inglese Injected BBC / 4l65e
Color (standard modern production colors): All the suspension will be Powdercoated Matte Black / Matte Charcoal.
Engine Compartment will be Matte Charcoal / Black Anodized.
Body will be Slate Blue Met. and retain all factory trim.
HRBS CNC Hardware thru-out Engine Compartment (will be Black Anodized)
The car (exterior) will be painted Steel Blue off an 08 Magnum and 300c.
Its a blue/charcoal mix. The engine compartment and dash / interior metal will be satin graphite (different than the powder color).
The car (exterior) will be painted Steel Blue off an 08 Magnum and 300c.
Its a blue/charcoal mix. The engine compartment and dash / interior metal will be satin graphite (different than the powder color).
yep that's an awesome color
__________________ marty-mj
Is a car ever really done???? It's like a ball of yarn unwinding, that has no end... Author DKz Garage

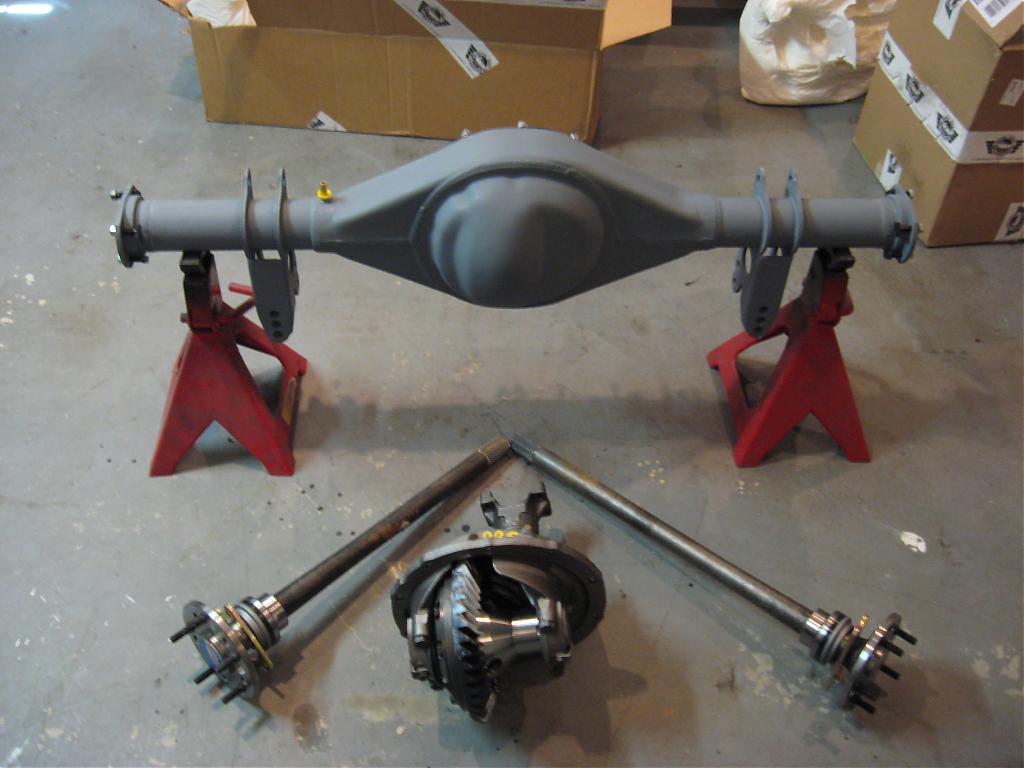

I little change in plans as far as the rear end goes. Trying to keep with all things "bolt-on" or available aftermarket, TCI (Total Cost Involved)stepped up with one of their "bolt-in" rear housing assemblies. This assembly is complete to order: cut to length, proper bracketry with proper drive angle, choice of gear ratio, 31 spline center section posi. Its as close to a custom made to order rear but in a "bolt-in" package.

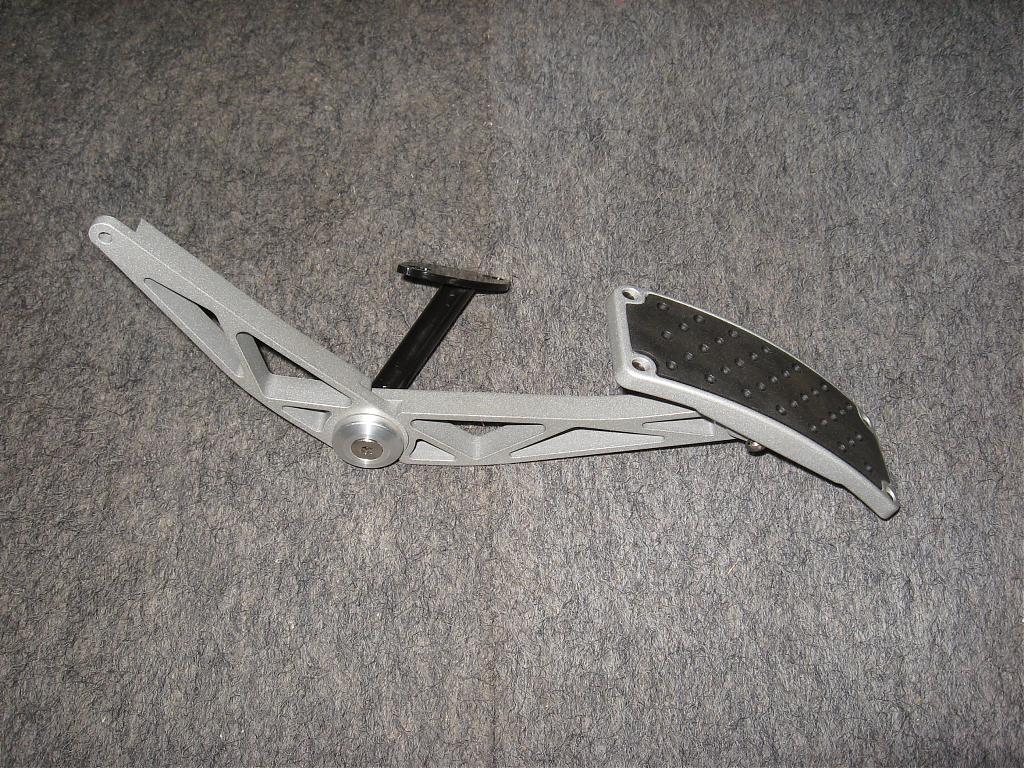

We have also opted for Clayton Machines Pedal assemblies. All I can say is WOW.... Stay tuned !
