C6 Weld-On Flange Ends

[Sonar Chief]

This is an outstanding idea ... I'm glad you are sharing with the folks your ideas, may need to do that conversion on my 12 bolt.

I will watch the progress fer sure, thanks again for sharing!

[MillerBuilt]

Originally Posted by Sonar Chief

This is an outstanding idea ... I'm glad you are sharing with the folks your ideas, may need to do that conversion on my 12 bolt.

I will watch the progress fer sure, thanks again for sharing!

Thank you Chief!

[MillerBuilt]

Here are a few shots of the Fixture Pieces. These are the pieces I am loaning out, I will be requiring a deposit that will be fully refundable upon safe return. You will also be responsible for the shipping to/from.

[IMG][/IMG]

[/IMG]

[IMG][/IMG]

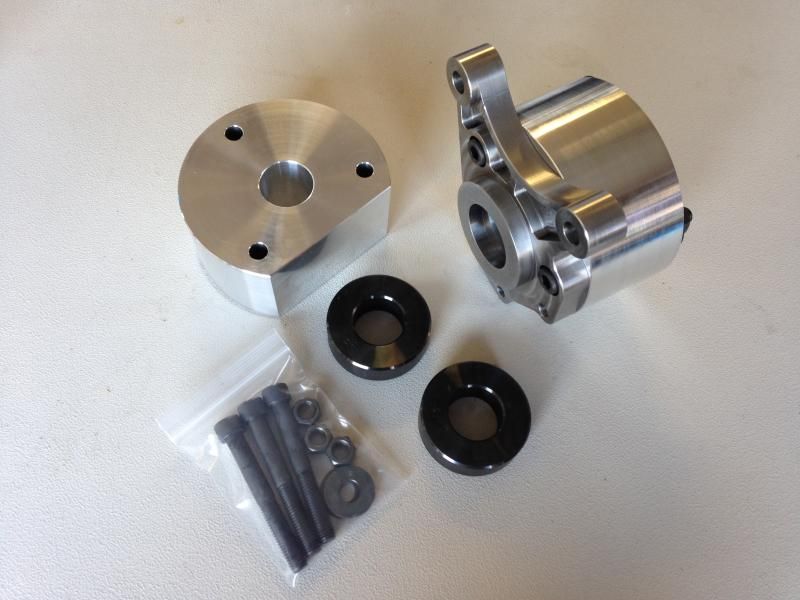

I designed the fixture block with a convenient flat spot to allow your Smart Tool or similar in clocking the weld-on C6 Flange so that you can get your Caliper orientation/degree just right!

[IMG][/IMG]

This is another nice little detail to help during installation of your weld-on C6 Flanges. The fixture blocks have been machined in thickness to mimic your wheel mount surface once all your finish components are installed. This way you can pull a tape from outside of fixture block to outside of fixture block and verify your exact WMS to WMS before welding!


[IMG][/IMG]

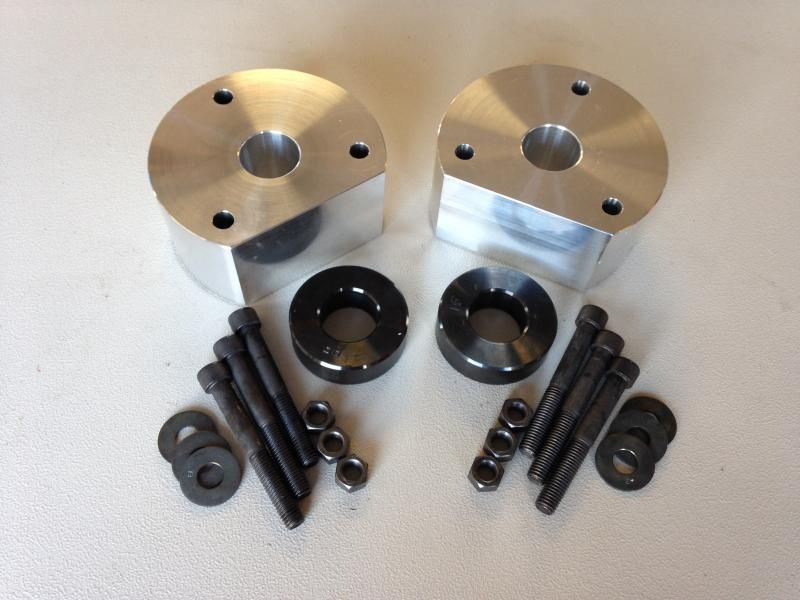

For you professional shops that may be wanting to make this rear setup a regular part of your builds, I am also selling these same pieces as pictured below... includes inner 3.062 pucks, outer C6 blocks, hardware $425.00 shipped

[IMG][/IMG]

[MillerBuilt]

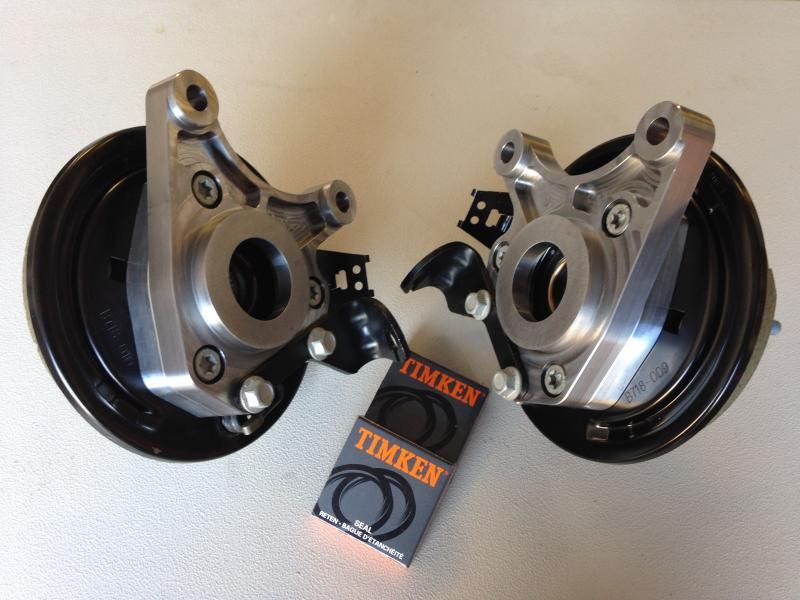

Here is a picture of a "Complete Kit". Please forgive me but I still do not have the pricing prepared. Hope to have this posted tomorrow. Figured I would go ahead and post the pics to at least give the viewers something



[IMG][/IMG]

Below are some "Complete Kit" assembled pictures. The only thing NOT in the picture, that IS included are the Caliper Bolts/Washers, and Axle Nuts, since they really had no purpose installed at this stage during pics (plus I forgot to set them out)

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[Vince@Meanstreets]

now lets see some universal axles for it.

I got your PM, trying to rally for it.

[MillerBuilt]

Originally Posted by Vince@MSperfab

now lets see some universal axles for it.

I got your PM, trying to rally for it.

Universal as in, Extra length on the carrier side splines so that you can stock multiple sets and cut to length yourself as needed?

[Vince@Meanstreets]

Originally Posted by JSM

Universal as in, Extra length on the carrier side splines so that you can stock multiple sets and cut to length yourself as needed?

Average length is 26 3/4" to 31" so a 5" spline run in a 31" axle should be good.

[mitch_04]

Absolutely beautiful!

[mfain]

I picked mine up yesterday. The quality is as good as it looks in the photos! Thanks Jay.

Pappy

[Ron in SoCal]

Great job Jay
