  #41
Old 12-28-2014, 02:32 PM
Flash68's Avatar
Flash68 Flash68 is offline
Moderator

Join Date: Sep 2005
Location: NorCal
Posts: 9,180
Thanks: 58
Thanked 158 Times in 104 Posts
Default

Quote:
Originally Posted by Ron in SoCal View Post

I can see Ron's setup working its way onto a lot of future hotrods, because it's basic, strong, and has clearly included "awesome sauce" in the recipe...
And the Sutton secret awesome hot sauce sprinkled on cheese balls can make even Ron Myers (TBD) and Sieg (already determined) FAST... just ask Sieg.

__________________
2004 NASA AIX Mustang LS2 #14
1964 Lincoln Continental
2014 4 tap Keezer
Reply With Quote
  #42
Old 12-28-2014, 06:31 PM
Ron in SoCal's Avatar
Ron in SoCal Ron in SoCal is offline
Senior Member

Join Date: Dec 2009
Posts: 5,044
Thanks: 6
Thanked 9 Times in 6 Posts
Default

^ creative editing right there

Davey
__________________
Ron in SoCal
69 Camaro in progress
https://lateral-g.net/forums/showthread.php4?t=31246

Reply With Quote
  #43
Old 12-28-2014, 07:56 PM
MillerBuilt's Avatar
MillerBuilt MillerBuilt is offline
Lateral-g Supporting Vendor

Join Date: Sep 2011
Location: AZ
Posts: 429
Thanks: 1
Thanked 3 Times in 3 Posts
Talking Fyi...

Quote:
Originally Posted by carbuff View Post
I can't wait to watch this, as I'm interested in Ron's setup as well. I have a question about the housing below, specifically the brakes. That looks a lot like the setup Speedtech (I think it was them) was putting together a couple of years ago which used the C6 bearing as an alternative to a full-floating brake setup. Can you give any more specifics?
Quote:
Originally Posted by Vince@MSperfab View Post
Doesn't DSE sell a version too? I remember Tommy had a version right before Steilow released his version. Interesting kit if you want a floater.
Quote:
Originally Posted by Ron in SoCal View Post
I know DSE had one in development. Not sure if they worked with Mark on that but wouldn't be surprised. Looking at Mark's, I really like the improvements he made in the axle end placement.

The one above is derived from Tom's original design, I think. I had heard a couple of different versions of that story. He did not manufacture the housing ends as far as I know.
Quote:
Originally Posted by Musclerodz View Post
DSE is in development of one, but they are currently only selling the Baer floater as far as I have been told.

First off, nice stuff Ron!

Second off, sorry in advance for self promotion below but couldn't resist (would almost give you a set if you want to cut off those proprietary units you have now)

Thirdly, I think this car may actually need/justify a set of my fabricated steel C6 Uprights


For what its worth in regards to above responses, I am machining a few sets next week of this type rear setup (C6 Flange end), and could easily machine a few more if anyone is interested....

Ok, back to Ron's build!
Reply With Quote
  #44
Old 12-29-2014, 12:21 PM
Ron Sutton's Avatar
Ron Sutton Ron Sutton is offline
Senior Member

Join Date: May 2013
Location: Folsom, CA
Posts: 2,422
Thanks: 45
Thanked 35 Times in 26 Posts
Default

Quote:
Originally Posted by Flash68 View Post
And the Sutton secret awesome hot sauce sprinkled on cheese balls can make even Ron Myers (TBD) and Sieg (already determined) FAST... just ask Sieg.


Aren't those YOUR cheeseballs ... Cheesball?


__________________
Ron Sutton Race Technology
Reply With Quote
  #45
Old 12-29-2014, 01:16 PM
Ron Sutton's Avatar
Ron Sutton Ron Sutton is offline
Senior Member

Join Date: May 2013
Location: Folsom, CA
Posts: 2,422
Thanks: 45
Thanked 35 Times in 26 Posts
Default

Quote:
Originally Posted by Ron in SoCal View Post



Quick tech updates on this 3-link ...

A.
With all 4-link, centered 3-link, torque arm, leaf spring & truck arm rear suspensions ... we experience a degree of "torque steer" ... where the left rear tire receives more loading ... and more grip ... under corner acceleration. This makes cars tighter on the exit of LH corners & looser exit of RH corners.

B. In an offset 3-link, we offset the top link to the passenger side a specific amount to eliminate torque steer, so the tire loading & grip are equal on both LH & RH corner exits.

C.
The amount to offset the top link is based on calculations I do involving the friction in the rear end assembly & track width.

D.
I do a lot of 3-links for racers where the top link is a typical tube with no torque absorber. If you have plenty of tire for the power output, they work fine. The torque absorber top link ... does just what its name implies ... absorbs some of the initial torque when the driver cracks the throttle. This softens the "hit" or "shock" to the rear tires ... which is especially helpful to tires of low profile, stiff sidewall, radial, harder rubber (58+ duro) ... or some combination of these designs.

E. I work out the durometer/spring rate of poly bushings to use ... and the number of bushings ... based on the power, gearing, length of upper mount, angle of top link, car weight & tires used in each application. I have 32 different combinations. For Ron Myers' track car ... with slicks, we only use 2 accel bushings & 1 decel bushing. All 3 are 80 durometer. The 2 accel bushings will compress about .70" with 1050# of force.

F. The top link mount you see clamped to the round tube is a top link screw adjuster. In Ron's car, a small aluminum rod with an upside down aluminum cone will pass through a bushing in his sheetmetal structure above the 3-link & behind the roll cage main hoop. Ron will be able to fine tune the top link angle easily with a 1/2" ratchet dropped into that cone. It is fine tunable as 3 full turns is 1 degree of top link angle change.

G. On track or autocross days when the track surface is not very grippy (too cold, too hot, dusty, old asphalt, etc) Ron can adjust the top link down in the front (increasing the top link angle) to add more initial grip. If you go too far & it pushes on exit ... simply raise it back up some.
* On really grippy days, too much down angle will provide initial bite but get the back end loose near the end of the corner exit. In this case, the tuner adjusts the front of the top link up until the "late loose" condition goes away.

H. If a tuner gets too greedy going for initial grip ... by lowering the front of the top link too far ... the car will start to get free or loose on entry. With a quick-n-easy adjuster like this, Ron can tune for optimum balance without ever getting under the car.

I.
One of THE most important design points on any link suspension is ... how long are the "levers" ... which is what the upper & lower housing brackets really are. The length of the upper & lower housing brackets determine how the rear end's rotational torque is distributed.

J. Just to help understand what we're dealing with ... a car with 550# of torque, a 2nd gear ratio of 1.76, rear gear ratio of 3.70 puts almost 3600# of torque attempting to rotate the housing (exiting a corner in 2nd gear).

K. With this Camaro, the lower link mounts 5.5" below the axle CL & the upper link mounts 5" above the axle CL. That ratio puts 52% of this 3600# torque through the lower links pushing the chassis forward ... puts 48% through the top link pulling up ... lifting the chassis & loading the rear tires. This ratio matters MORE than anti-squat, but is rarely understood.

L. Yes, a car can have too much or too little "lift & load" ratio. It all comes down to the power, gearing, car weight & tires. Every car has a different "optimum set-up."

M.
I have had occasional guys tell me they tried torque absorbers & it didn't work for them. They didn't understand the "lift & load" ratio ... and didn't understand the torque absorber bushing package has to be matched well to the "lift & load ratio."





__________________
Ron Sutton Race Technology
Reply With Quote
  #46
Old 12-29-2014, 02:38 PM
carbuff's Avatar
carbuff carbuff is offline
Senior Member

Join Date: Dec 2004
Location: Austin, Tx
Posts: 1,320
Thanks: 15
Thanked 23 Times in 16 Posts
Default

As always, love the detailed explanation Ron! One simple question...

If the top link comes all the way up to the roll bar of the car, how will / do you isolate it from the outside of the car? It will pass through a firewall where the rear seat was, but given that you want internal access to adjust it, where would you seal off the rear firewall to isolate the interior of the car?

Probably a simple answer that I'm just not thinking of at the moment...
Reply With Quote
  #47
Old 12-29-2014, 03:25 PM
Ron Sutton's Avatar
Ron Sutton Ron Sutton is offline
Senior Member

Join Date: May 2013
Location: Folsom, CA
Posts: 2,422
Thanks: 45
Thanked 35 Times in 26 Posts
Default

Quote:
Originally Posted by carbuff View Post
As always, love the detailed explanation Ron! One simple question...

If the top link comes all the way up to the roll bar of the car, how will / do you isolate it from the outside of the car? It will pass through a firewall where the rear seat was, but given that you want internal access to adjust it, where would you seal off the rear firewall to isolate the interior of the car?

Probably a simple answer that I'm just not thinking of at the moment...

Hi Bryan,
Great question.

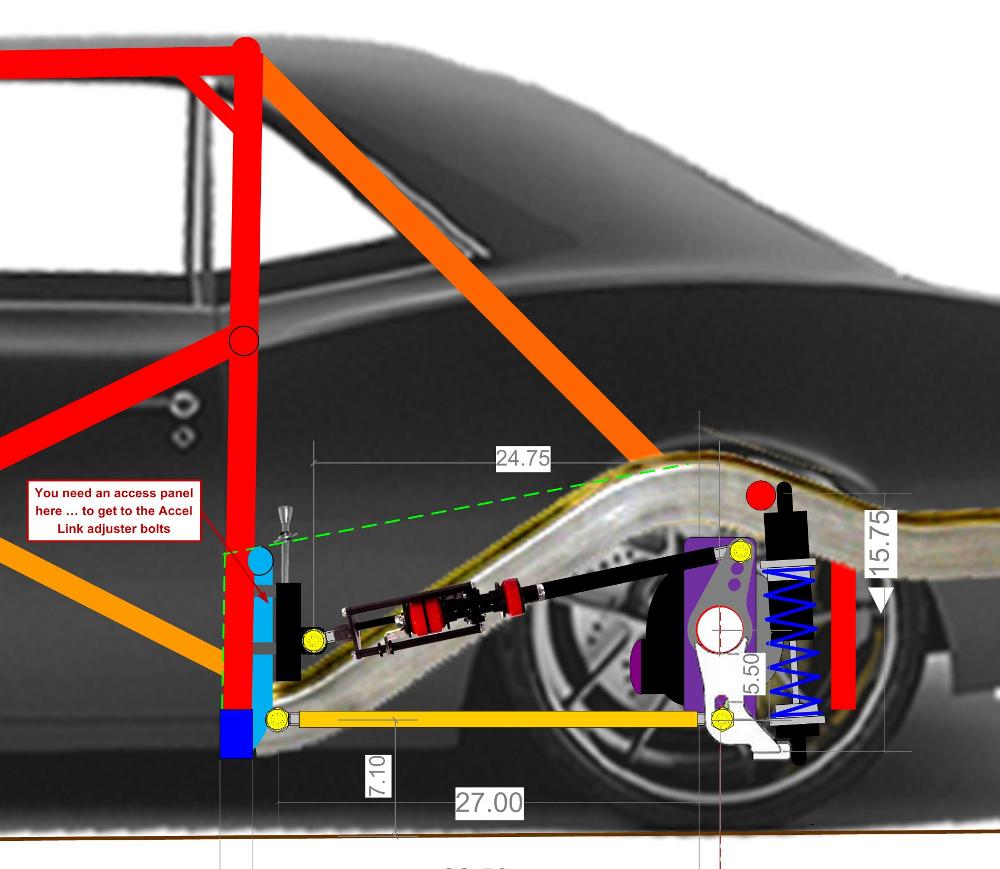

there are three different ways we have done what you're asking about. The original illustration I provided Ron Myers (that he posted) did not show how we do that. The illustration at the bottom shows the option Ron Myers choose.

In this case, Mike Tolle of Tolle Fab will build the upright tube that the top link adjuster clamps to (light blue bar in the illustration) ... with a bottom curve in it. This curved tube butts & welds to the back side of the 2"x3" crossmember. There is horizontal cross bar from one leg of the main hoop to the other. It is also curved to set it back. The upright tube attaches to this horizontal cross bar. You can see them both (light blue) in the illustration.

We do this to set the upright tube & the toplink adjuster back behind the main hoop. Then the green dotted line shows where the aluminum sheet metal work goes ... sealing the rear suspension off from the cockpit. The top link adjuster sticks through the sheet metal with a special bushing. It is just behind the passenger seat (remember ... the top link is offset) for easy access & tuning.

Make sense?



.
Attached Images

__________________
Ron Sutton Race Technology
Reply With Quote
  #48
Old 12-29-2014, 04:19 PM
Ron in SoCal's Avatar
Ron in SoCal Ron in SoCal is offline
Senior Member

Join Date: Dec 2009
Posts: 5,044
Thanks: 6
Thanked 9 Times in 6 Posts
Default

Way to bring it Ron!

Happy New Year
__________________
Ron in SoCal
69 Camaro in progress
https://lateral-g.net/forums/showthread.php4?t=31246

Reply With Quote
  #49
Old 12-29-2014, 05:02 PM
Vegas69's Avatar
Vegas69 Vegas69 is offline
Senior Member

Join Date: Dec 2006
Posts: 8,692
Thanks: 87
Thanked 215 Times in 120 Posts
Default

I'd like to see one modification to the design. A major adjustment available to the driver. He'll clearly be out of excuses when this one hits the road in his golden years.
__________________
Todd
Reply With Quote
  #50
Old 12-29-2014, 05:08 PM
Flash68's Avatar
Flash68 Flash68 is offline
Moderator

Join Date: Sep 2005
Location: NorCal
Posts: 9,180
Thanks: 58
Thanked 158 Times in 104 Posts
Default

Quote:
Originally Posted by Ron Sutton View Post

Aren't those YOUR cheeseballs ... Cheesball?


Nope. Weld brought em... and he went home with em. What happened in between is anyone's guess.
__________________
2004 NASA AIX Mustang LS2 #14
1964 Lincoln Continental
2014 4 tap Keezer
Reply With Quote
