coolwelder62 · #51 02-08-2013, 03:12 PM

Quote:

Originally Posted by sixnina

Scott,
Awesome work looking at subframes for my project and was wondering about options and pricing as well if you don't mind Pm'ing me.Thanks Shane

PM,sent Shane. Thank's for asking.

exwestracer · #52 02-09-2013, 08:15 AM

Nice piece, Scott!

Sorry if this is a stupid question, but are you using a curved sway bar arm? I ask because the bar tube seems pretty close to the height of the LCA mounts.

Any pics of the bar "mocked" up in there with the end links, etc?

coolwelder62 · #53 02-09-2013, 10:38 AM

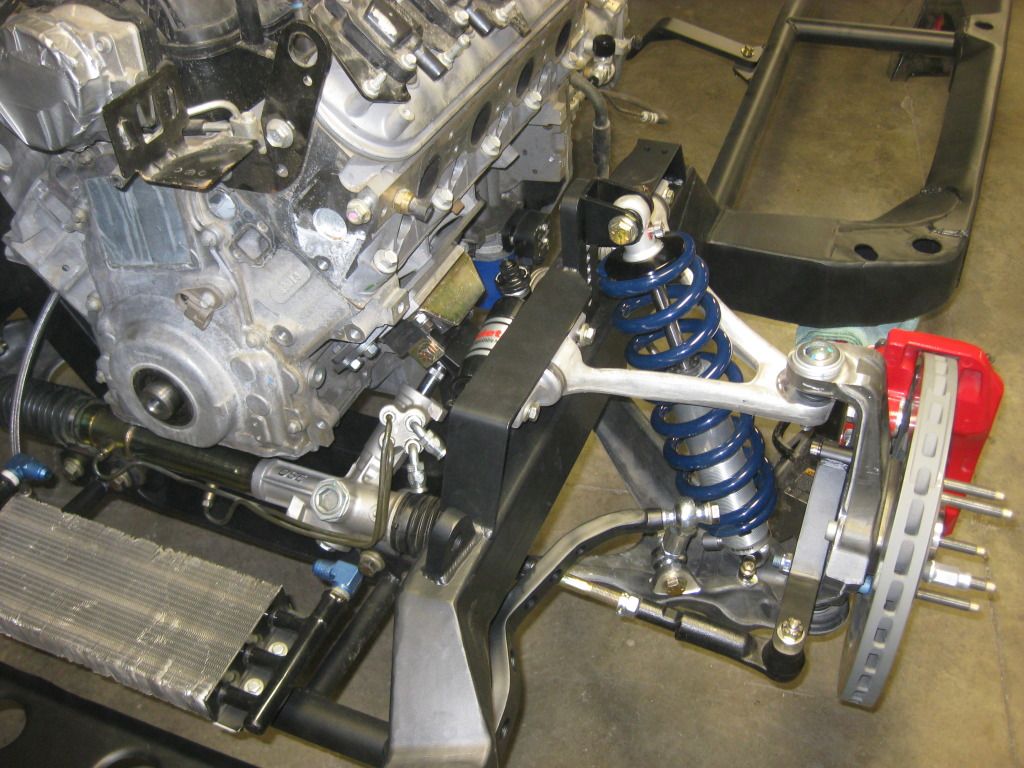

The center of the sway bar is 1.25 higher than the LCA mount center.And I bent the splined sway bar arm so there is no binding with 1/2 rod end links.

exwestracer · #54 02-09-2013, 11:11 AM

Quote:

Originally Posted by coolwelder62

The center of the sway bar is 1.25 higher than the LCA mount center.And I bent the splined sway bar arm so there is no binding with 1/2 rod end links.

Ah. Are you using a M/F heim set up for the end link?

p51mus · #55 02-09-2013, 11:50 AM

Did I see that you are going to build an all aluminum frame also? Thanks, Garry.

coolwelder62 · #56 02-09-2013, 04:30 PM

Quote:

Originally Posted by exwestracer

Ah. Are you using a M/F heim set up for the end link?

Yes, 1/2 male & 1/2 female heim w/cone spacer's.I will find you a close up photo.

Quote:

Originally Posted by p51mus

Did I see that you are going to build an all aluminum frame also? Thanks, Garry.

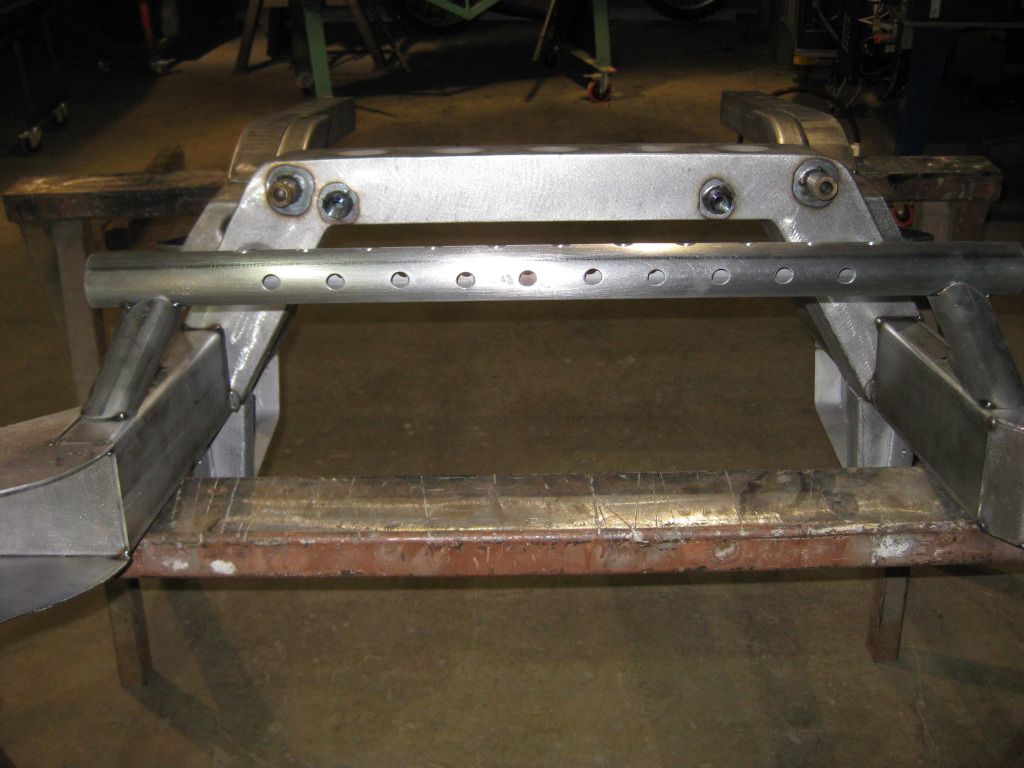

Yes,Making drawing's Now for the CNC cutting table.Materials in house.
Going to build one proto type then test.Figure's show that the bare will only weight #58-62 lbs.6061 material & completely tig welded.(No paint needed)
