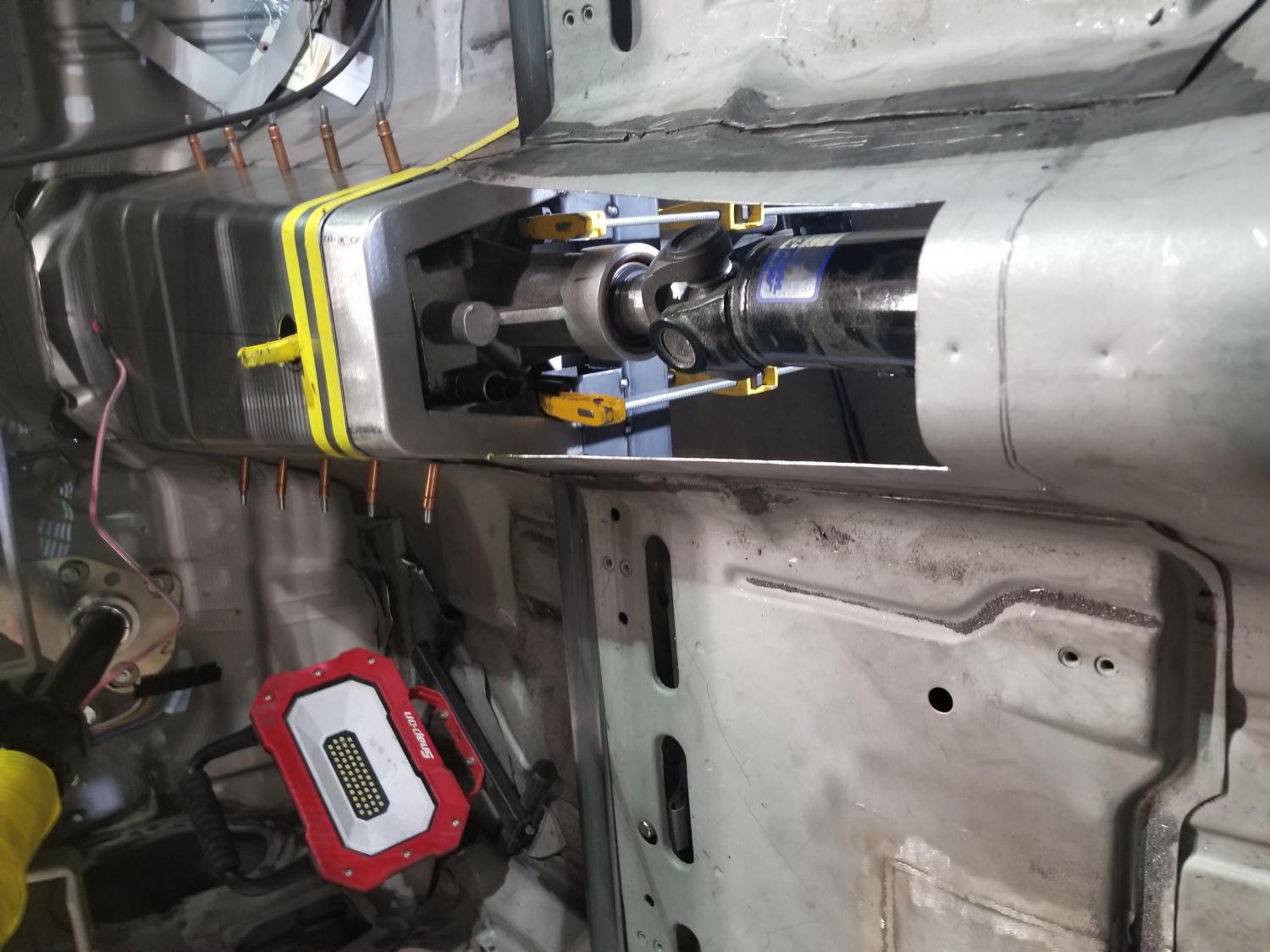

Engine, transmission and rear end are in. Setting drive line angles measuring for the driveshaft, fabricating the tunnel to the Tremec., but first we looked for a trans cross member. We looked for something strong but would allow enough room for a 3 inch exhaust to tuck nicely under the floor. The bottom cross member came from Bowler, the middle Chris Alston and not sure where the top one came from.
Last edited by colorado80439; 11-02-2022 at 08:44 AM.
The Following User Says Thank You to colorado80439 For This Useful Post:

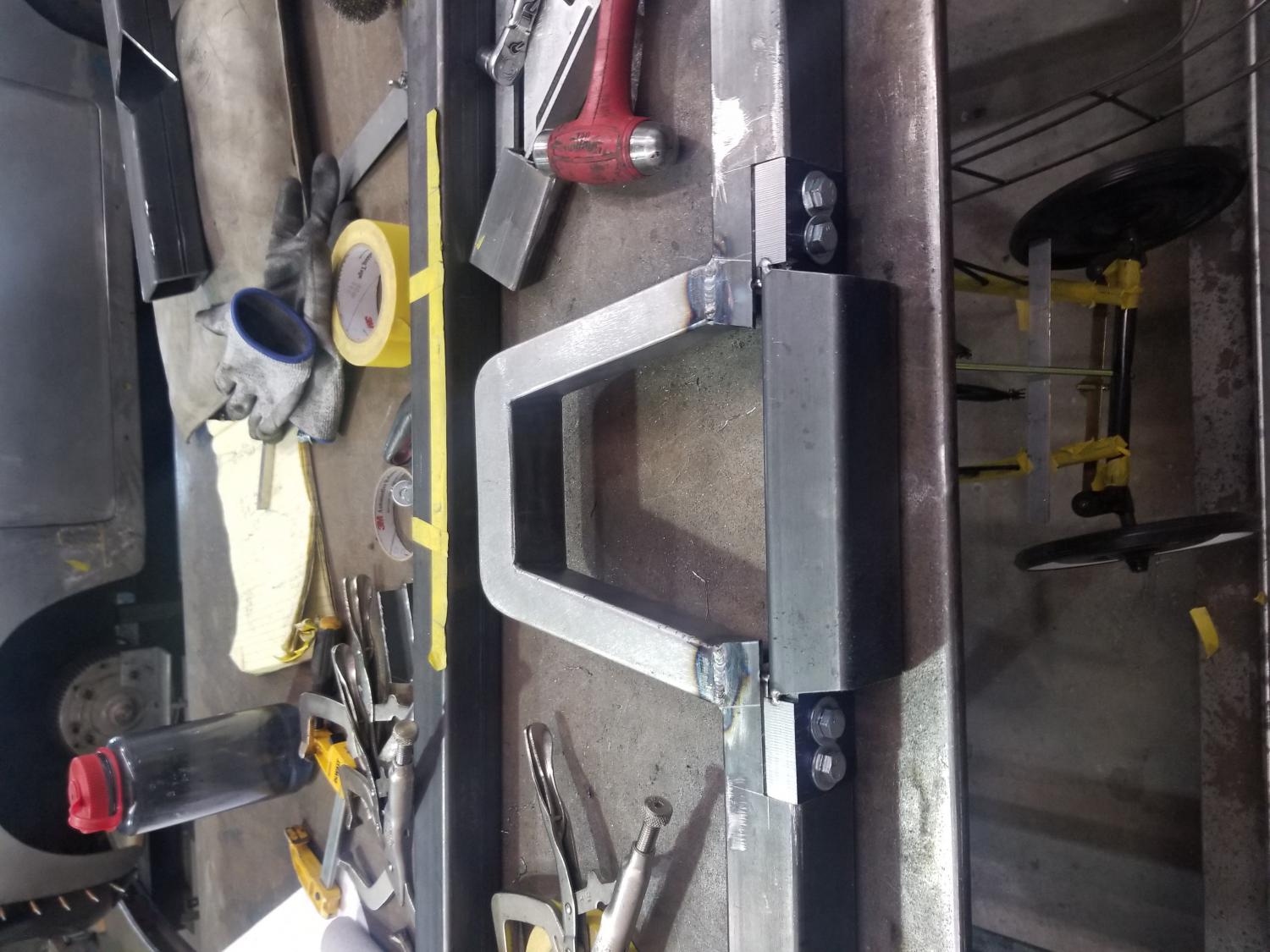

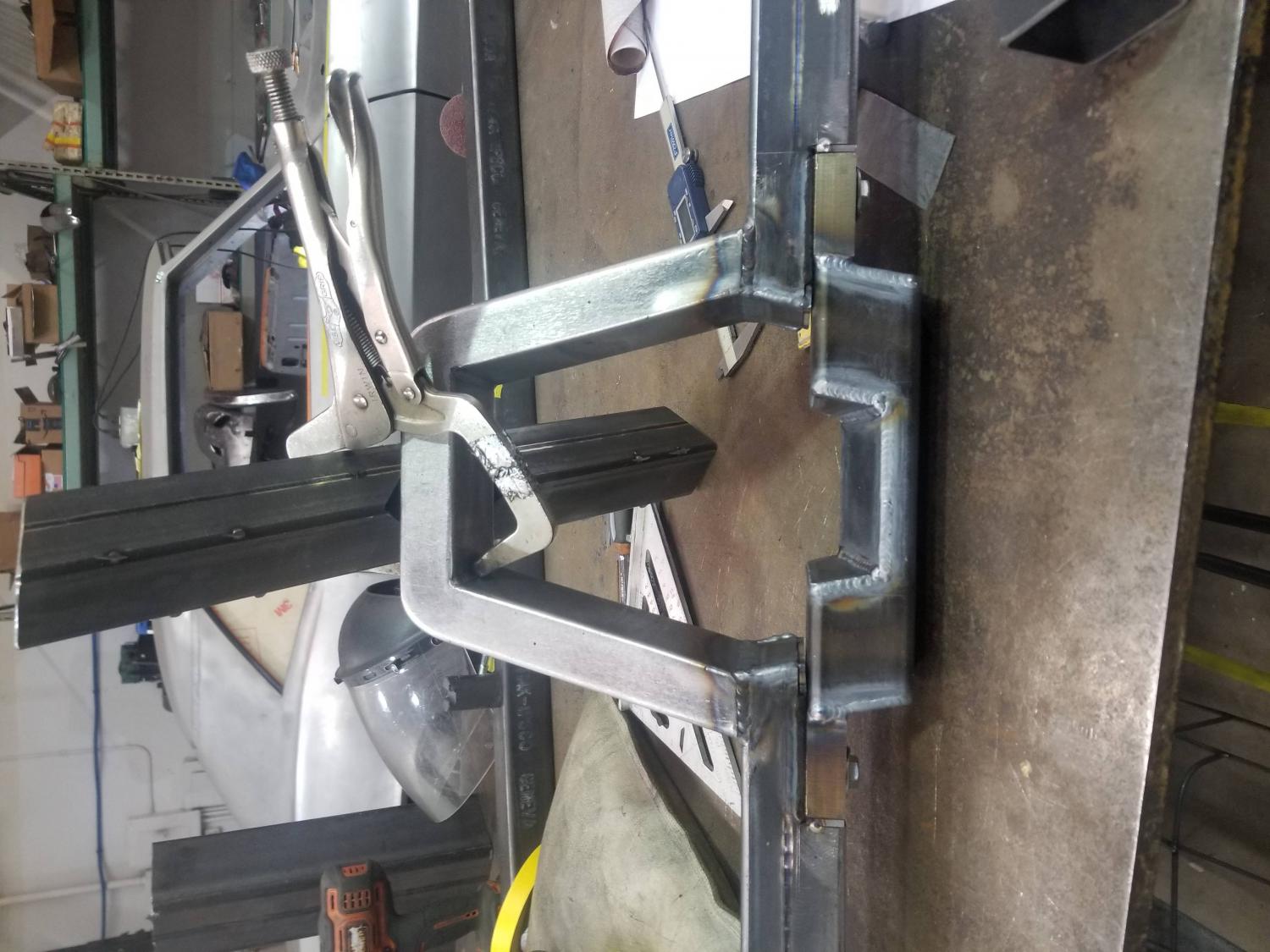

After test fitting the transmission cross-members we decided to go a different direction and Kennedy fabricated a cross-member that's welded to the floor and rockers. In a discussion with Sled Alley it was suggested to use a rubber transmission mount to avoid vibration issues.
Last edited by colorado80439; 11-02-2022 at 09:22 PM.
The Following 6 Users Say Thank You to colorado80439 For This Useful Post:
I was curious about your steering column firewall mount. Could you give me some details?
It's just an ididit steering column firewall mount. It's been a while but it may be Borgeson product, they make good stuff!
Since then we returned the Ididit column and went with a GM tilt steering column.
Last edited by colorado80439; 11-06-2022 at 09:52 AM.
The Following 3 Users Say Thank You to colorado80439 For This Useful Post:
