Thanks Jp i'm watching your build too. Gonna be very nice!
Quote:
Originally Posted by syborg tt
I agree with you on the stock dash. I guess it's time I post up the plans for my interior and actually get working on the my car again.
ps Your car & posts have re-inspired me.
Hey Marty I'm glad you're being inspired!! Thanks lol

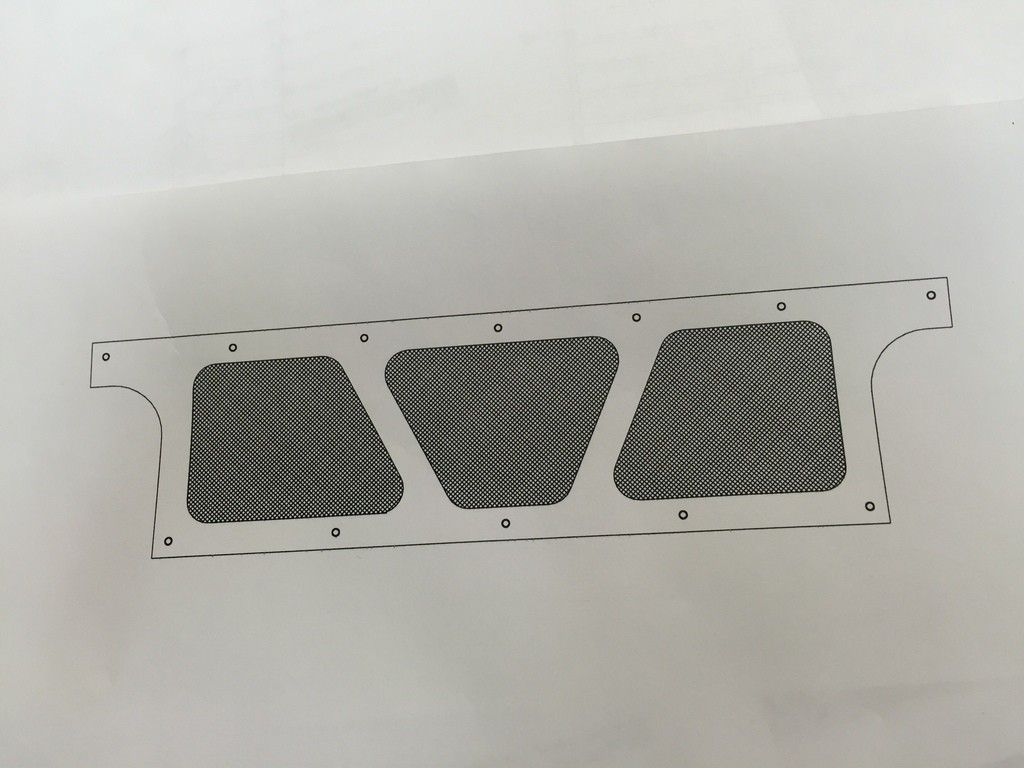

Btw I forgot to post the pic of my idea for my rear firewall. It's the same idea as the dash inserts. 1/8" alum. trim piece with carbon fiber inserts. Plan on doing something similar as an insert on the door panels also.
Thanks, Pic coming up!! lol We welded a panel over the pass. vent hole from the outside when we had the cowl area open to mount the oil tank there. Going to weld a panel over the driver side also.
Thanks for the info. I agree with Marty, this project is getting me motivated to get out in the garage and work on my 73. It's great to see more second gens in here.

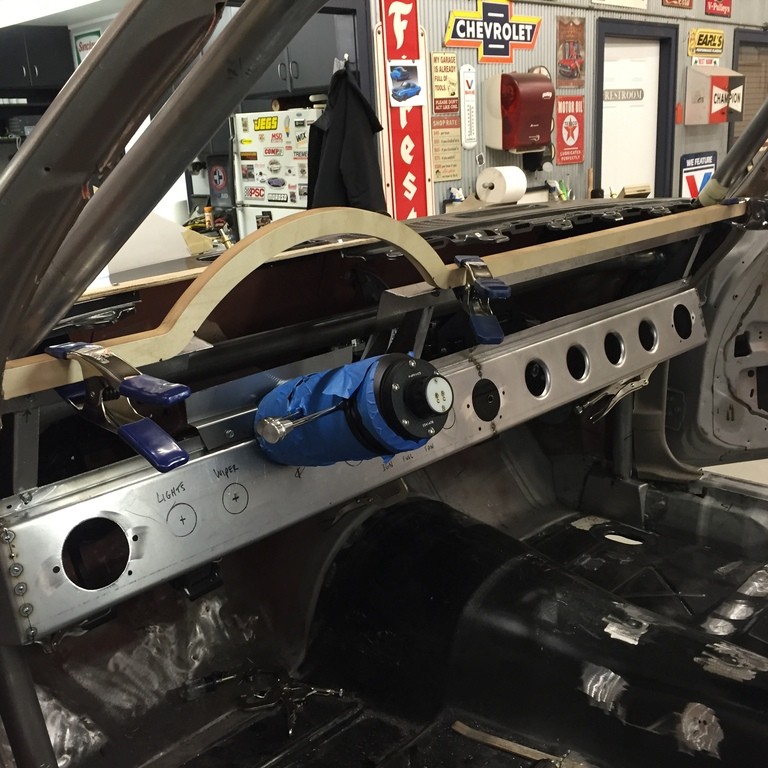

[QUOTE=slenning;631719]Cut the front edge of the dash top out of 3/4 mdf on one of the cnc's at the cabinet shop. Pretty handy lol
Rule number ONE in auto design......
"No Straight Lines on a Styled Surface"
U might want to redo the dash top slightly.
I suggest u slim down the frame around the instrument cluster by increasing the radius of the topmost line by an inch, then drop the center point till the top is a quarter inch LOWER than original.
Then....the top line that heads over to the right towards glove compartment needs to be lifted 3/8" at the cluster end, and a HUGE radius like 200" to finish 1/4" BELOW original. Mirror that change to the small section on the left of cluster.
From Jim Grant....Australia......ex-Holden division designer.
__________________
Jim Grant
Melbourne, Australia
(Dual citizen)

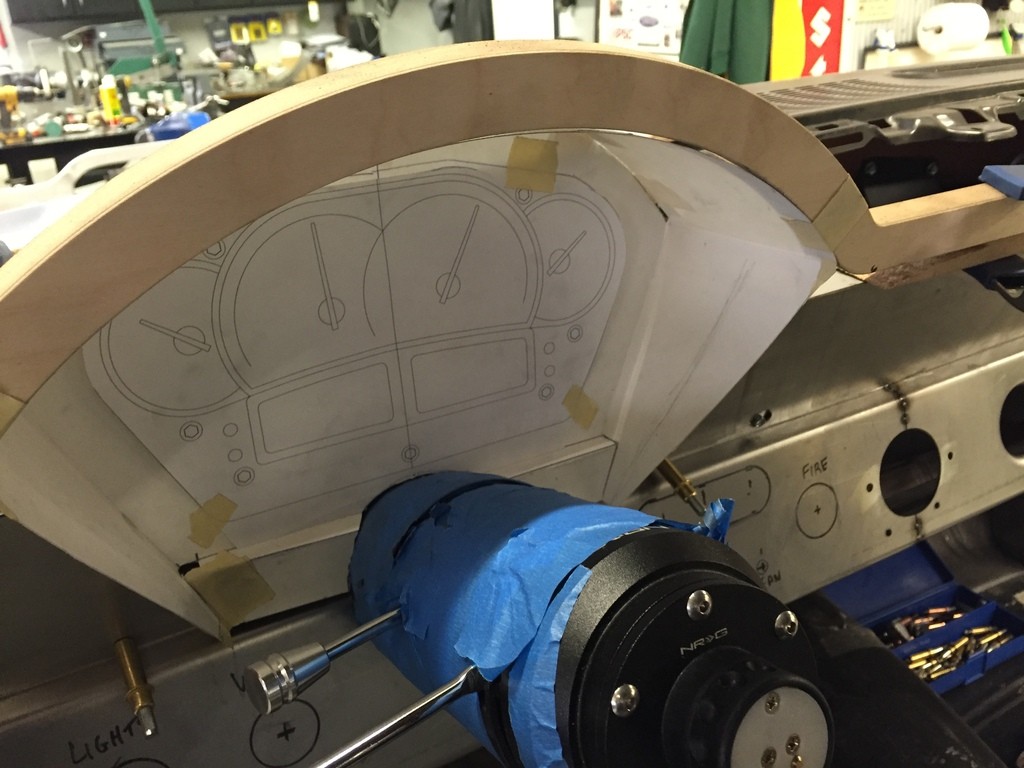

Cut the front edge of the dash top out of 3/4 mdf on one of the cnc's at the cabinet shop. Pretty handy lol

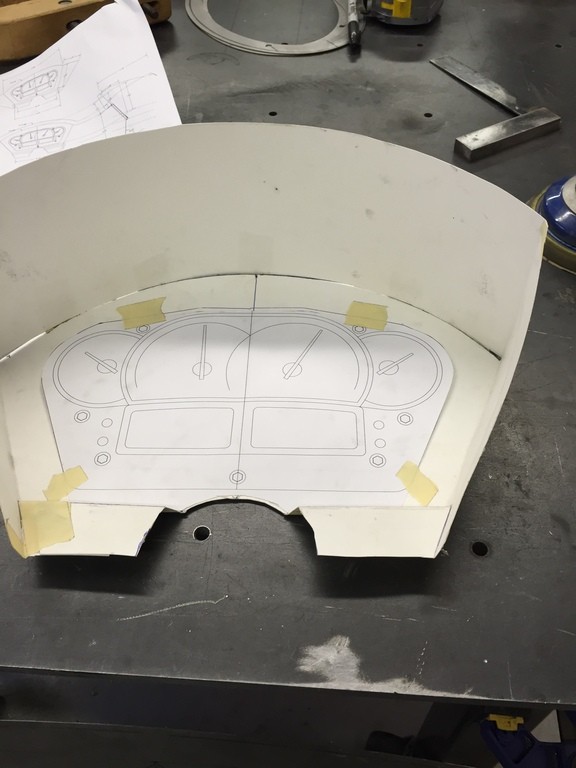

Mocked up the "can" for the gauges using poster board

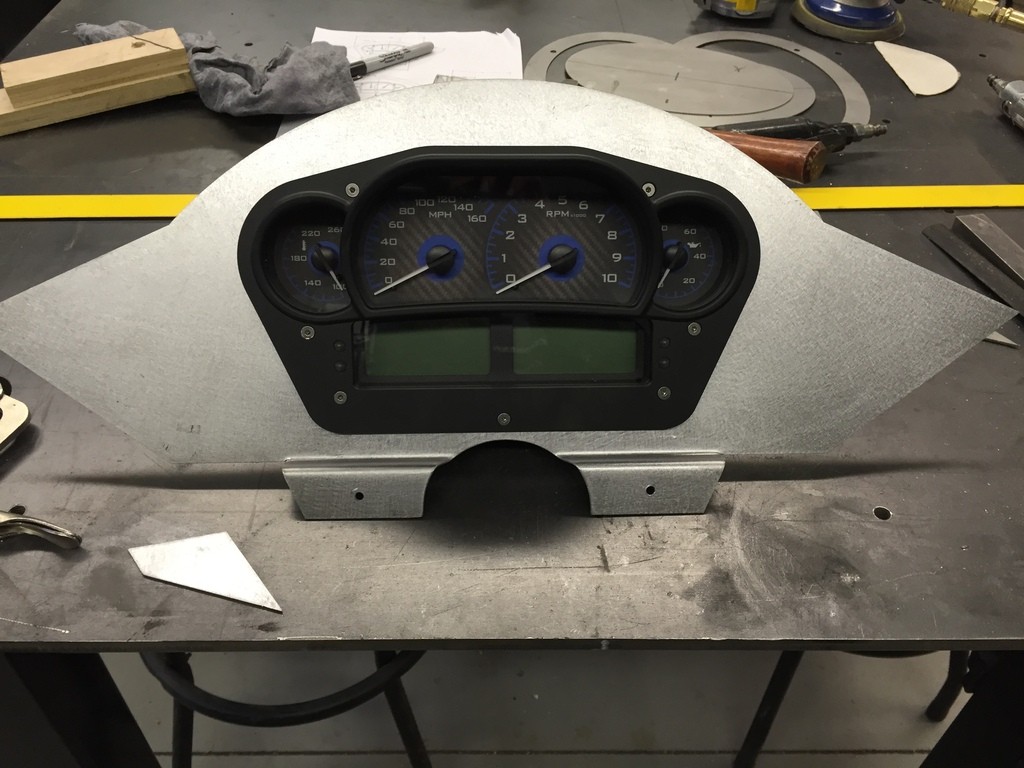

Taylor cut the can out on the waterjet
Love to see cabinet guys building cars. LOL
High tech CNC router table for the win
Cut the front edge of the dash top out of 3/4 mdf on one of the cnc's at the cabinet shop. Pretty handy lol
Rule number ONE in auto design......
"No Straight Lines on a Styled Surface"
U might want to redo the dash top slightly.
I suggest u slim down the frame around the instrument cluster by increasing the radius of the topmost line by an inch, then drop the center point till the top is a quarter inch LOWER than original.
Then....the top line that heads over to the right towards glove compartment needs to be lifted 3/8" at the cluster end, and a HUGE radius like 200" to finish 1/4" BELOW original. Mirror that change to the small section on the left of cluster.
From Jim Grant....Australia......ex-Holden division designer.

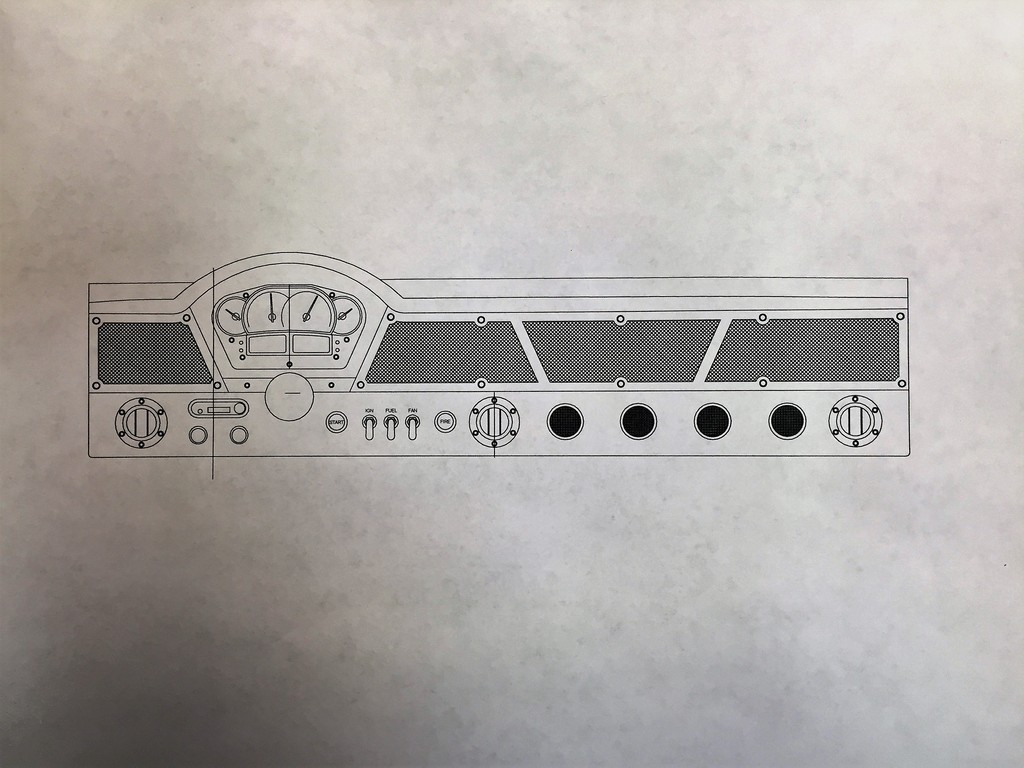

Hi Jim thanks for the suggestions, I have included a new drawing showing most of the changes you had mentioned. I did slim down the area above the cluster. You had suggested lifting the top line 3/8" at the cluster end but I thought that it looked too thick when I did that. I used a 1200" radius to finish at 1/4" below the original height at the "glove box" end. I pretty much have all of the programming done to cut the whole top of the dash out of wood. I have cut the front section out based on the new design and I think it looks pretty good! Will post pics when I have a little more.
Thanks again!
BTW I do have about a 36" radius on the top from front to back also.
