Default whipple intercooler setups in 1st gen camaros

Lets see how you guys installed your intercooler systems in your 1st gen camaros. What brand parts did you use and how did you route your cooling lines..... Post pics



Thanks
Reply With Quote
  #2
Old 09-05-2019, 08:59 PM
732ndgen 732ndgen is offline
Senior Member

Join Date: Mar 2008
Posts: 139
Thanks: 1
Thanked 0 Times in 0 Posts
Default intercooler

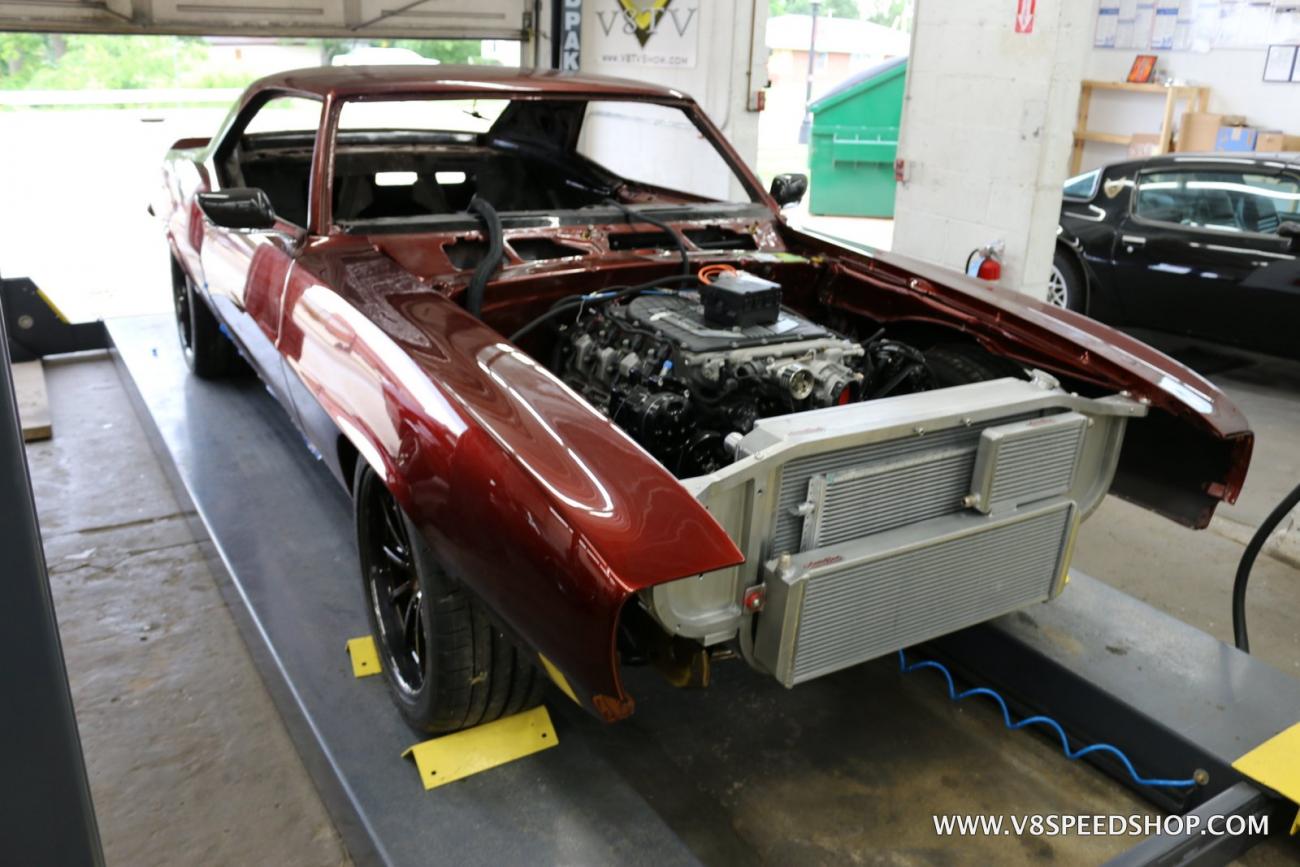

[attach]1969_Chevrolet_Camaro_DJ_2019-07-25_0016.jpg[/attach]
Attached Images
File Type: jpg 1969_Chevrolet_Camaro_DJ_2019-06-14_0020.jpg (128.7 KB, 0 views)
Reply With Quote
  #3
Old 09-05-2019, 10:40 PM
Dave95z28 Dave95z28 is online now
Senior Member

Join Date: Apr 2005
Posts: 129
Thanks: 0
Thanked 4 Times in 3 Posts
Default

Is that whole stack all Autorad? I have their radiator and core support I bought from some one before getting a LSA and I was thinking about getting their heat exchanger. Whatís the small one up top? Transmission or Oil?
Reply With Quote
  #4
Old 09-07-2019, 08:12 AM
jmac jmac is offline
Senior Member

Join Date: Mar 2008
Location: Howell, NJ
Posts: 112
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Man that Autorad setup looks killer. Love the car, nice work!
Reply With Quote
  #5
Old 09-26-2019, 11:43 AM
214Chevelle's Avatar
214Chevelle 214Chevelle is offline
Lateral-g Supporting Member

Join Date: Jul 2008
Location: Good, Ole Texas
Posts: 3,807
Thanks: 15
Thanked 92 Times in 57 Posts
Default

I'm waiting on my AutoRad setup. Ordered it last week and was told it would a 16 week build time.... roughly the end of the year into the first of 2020. Geesh, but oh well, I can't wait to get it.
__________________
'68 C10 swb
'69 Camaro convertible
'72 Chevelle

Reply With Quote
  #6
Old 09-26-2019, 12:01 PM
nicks67ca nicks67ca is offline
Senior Member

Join Date: Oct 2007
Location: Southbury Ct
Posts: 286
Thanks: 5
Thanked 13 Times in 7 Posts
Default

I used a gt500 intercooler. its a tight fit and took some notching of the hood support but it fits and its huge. The lid and lines have been close to ambient after a few highway and around town driving. Hood vents are essential to getting all that heat out.
Reply With Quote
  #7
Old 09-26-2019, 05:26 PM
214Chevelle's Avatar
214Chevelle 214Chevelle is offline
Lateral-g Supporting Member

Join Date: Jul 2008
Location: Good, Ole Texas
Posts: 3,807
Thanks: 15
Thanked 92 Times in 57 Posts
Default

Quote:
Originally Posted by nicks67ca View Post
I used a gt500 intercooler. its a tight fit and took some notching of the hood support but it fits and its huge. The lid and lines have been close to ambient after a few highway and around town driving. Hood vents are essential to getting all that heat out.
Thatís the thing Iím most worried about...hood vents. I like the Ring Brothers Razor hood as well as Anvilís Extractor hood. But, Iím highly concerned with, the way my superchargerís air intake exits the rear....that the hood vents of either of those hoods will hit the throttle body and intake tube, thus preventing it from closing.
Attached Images
File Type: jpg thumbnail 2.jpg (75.7 KB, 0 views)
File Type: jpg thumbnail.jpg (58.2 KB, 0 views)
__________________
'68 C10 swb
'69 Camaro convertible
'72 Chevelle

Reply With Quote
  #8
Old 09-26-2019, 09:44 PM
Che70velle's Avatar
Che70velle Che70velle is offline
Senior Member

Join Date: Aug 2012
Location: Dawsonville Georgia
Posts: 2,072
Thanks: 176
Thanked 48 Times in 38 Posts
Default

Quote:
Originally Posted by 214Chevelle View Post
Thatís the thing Iím most worried about...hood vents. I like the Ring Brothers Razor hood as well as Anvilís Extractor hood. But, Iím highly concerned with, the way my superchargerís air intake exits the rear....that the hood vents of either of those hoods will hit the throttle body and intake tube, thus preventing it from closing.
Marcus, send me the supercharger and you wonít need hood vents. Fixed.
__________________
Scott
---------------------------------------------------------------
70 velle' on custom chassis w/custom RideTech coilovers, RED sleeved 434Ē with Mamo 265ís, built T56, 12 bolt 3:73, wilwood 6/4's, bla, bla, bla...build. thread https://lateral-g.net/forums/showthread.php4?t=39631
New 434Ē engine build here https://ls1tech.com/forums/generatio...ved-block.html

Thanks Dad!!

My Chevelle is old school... It has a belt driven power steering pump.
They're 17's, but I keep em clean!
Reply With Quote
  #9
Old 09-27-2019, 08:04 AM
nicks67ca nicks67ca is offline
Senior Member

Join Date: Oct 2007
Location: Southbury Ct
Posts: 286
Thanks: 5
Thanked 13 Times in 7 Posts
Default

I used the track spec hood vents before they came out with the fist gen version. Mine are long but narrow. I will upgrade to the first gen version. They typically occupy the space behind the hood stops on the radiator support. The other option is to do what they did with Lous change camaro and use a ZL1 style vent in the middle of hood.
Reply With Quote
  #10
Old 09-27-2019, 08:11 AM
dhutton dhutton is offline
Senior Member

Join Date: Nov 2006
Location: Mountain Springs, Texas
Posts: 1,501
Thanks: 165
Thanked 87 Times in 53 Posts
Default

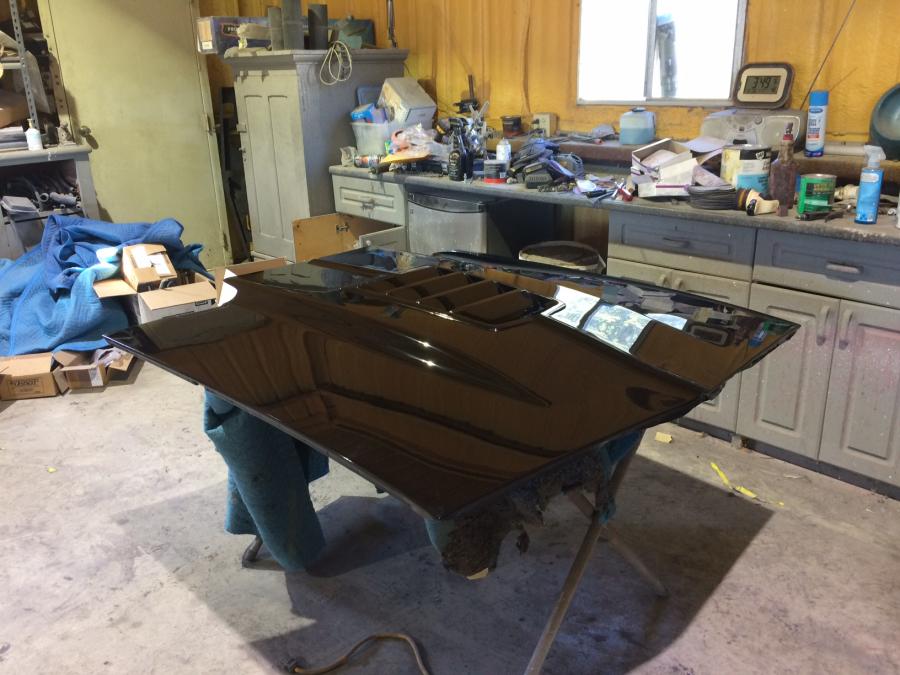

I did this low budget hood for Kevin.

Don
Attached Images
File Type: jpg 424DCCC4-7972-4B7F-AA5B-182977AB2B57.jpg (82.8 KB, 0 views)
File Type: jpg A0806659-E490-43F2-BA7D-49725FEE0D62.jpg (71.8 KB, 0 views)
