Project "Payback"

[Yenkostyle]

Great build! Cant wait to see it all finished and hitting the streets!

[fesler]

Car looks sick, did you go with Billet hinges yet? I did not see it in the post anywhere. We have some nice black or brushed that would look sick in there along with our billet Fender braces. I also have a bolt kit. If you are interested I will work you a killer deal for all to get them on your car. I really like the build and like you said you cant go wrong with black. Frank did a kick azz job

[Vegas69]

Originally Posted by fesler

Car looks sick, did you go with Billet hinges yet? I did not see it in the post anywhere. We have some nice black or brushed that would look sick in there along with our billet Fender braces. I also have a bolt kit. If you are interested I will work you a killer deal for all to get them on your car. I really like the build and like you said you cant go wrong with black. Frank did a kick azz job

Hey Chris, Frank already got in my trousers This won't be the last project for me. Next time around we'll have to do some business.

[Vegas69]

It's been a while since I updated my project. As some of you know I had some fuel system problems after a few test drives. Very noisy pump and low pressure when hot. Replaced the pump and it was junk out of the box.

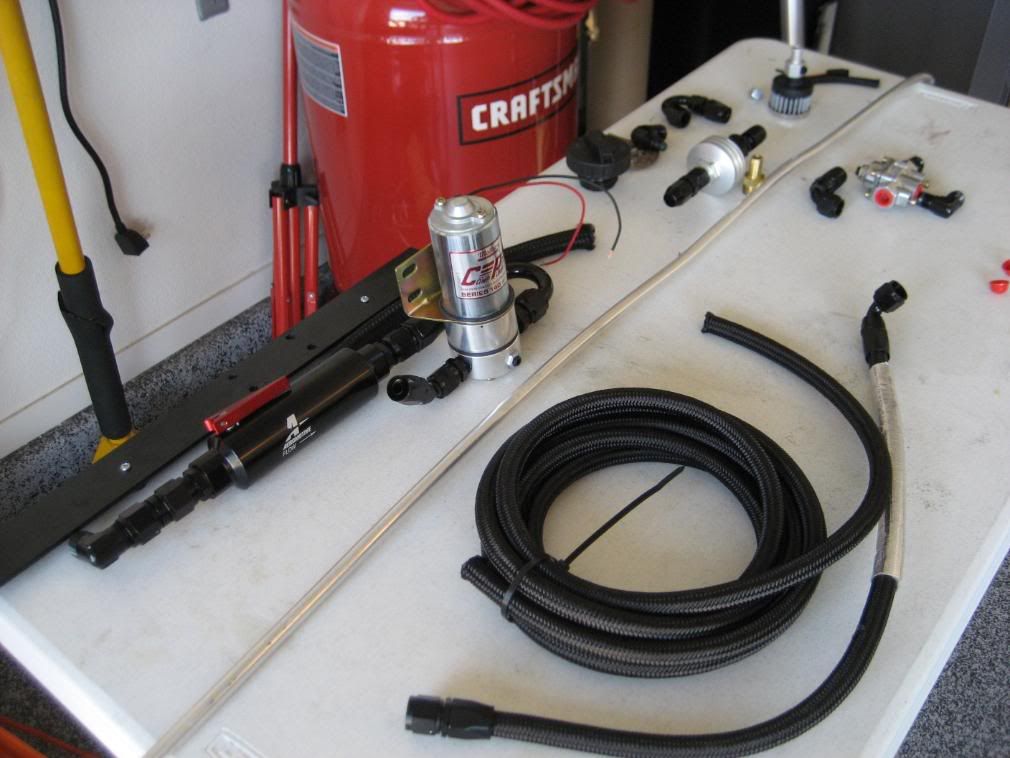

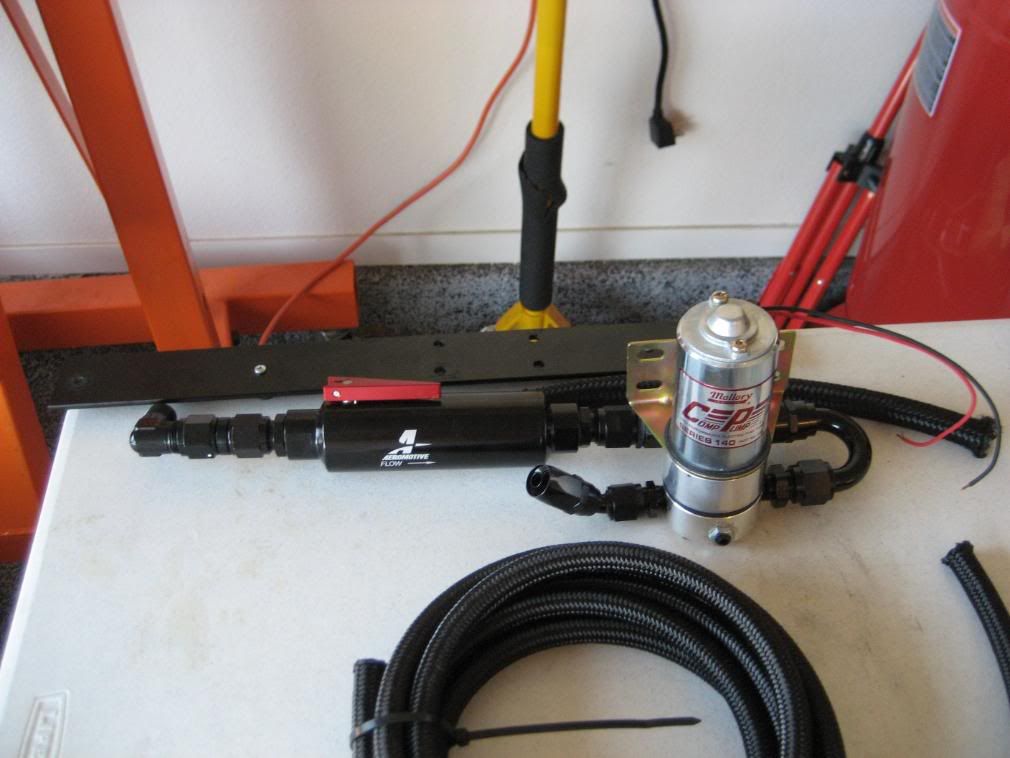

I was very burnt out after working on the car nonstop since it showed up in April and haven't done much to it for a few weeks. The 100-110 degree temps will zap you pretty quick. After all this is supposed to be fun. I am ready to dig back in with fall and decent temps around the bend. I have redesigned the fuel system with new components and old. I will be running a return style system with the following components:

Feed: 1/2 npt to 10an
New Aeromotive shut off valve/filter 10an
Mallory 140 fuel pump
1/2 hardline and 8AN after pump
Holley return style regulator(Wanted to use the same bracketry)
1/2 hardline and 8 an return line into the top of the tank
1/2 to 10 an Vent from the top of the tank

I am still waiting on two 1/2 stainless fittings from Ricks so I can have ATS weld them in for my new return and larger vent. Ricks only puts a 1/4 npt vent standard. It should be atleast as large as your fuel line. As soon as I get the tank squared away I'll have it knocked out in a couple nights or a day.

[Vegas69]

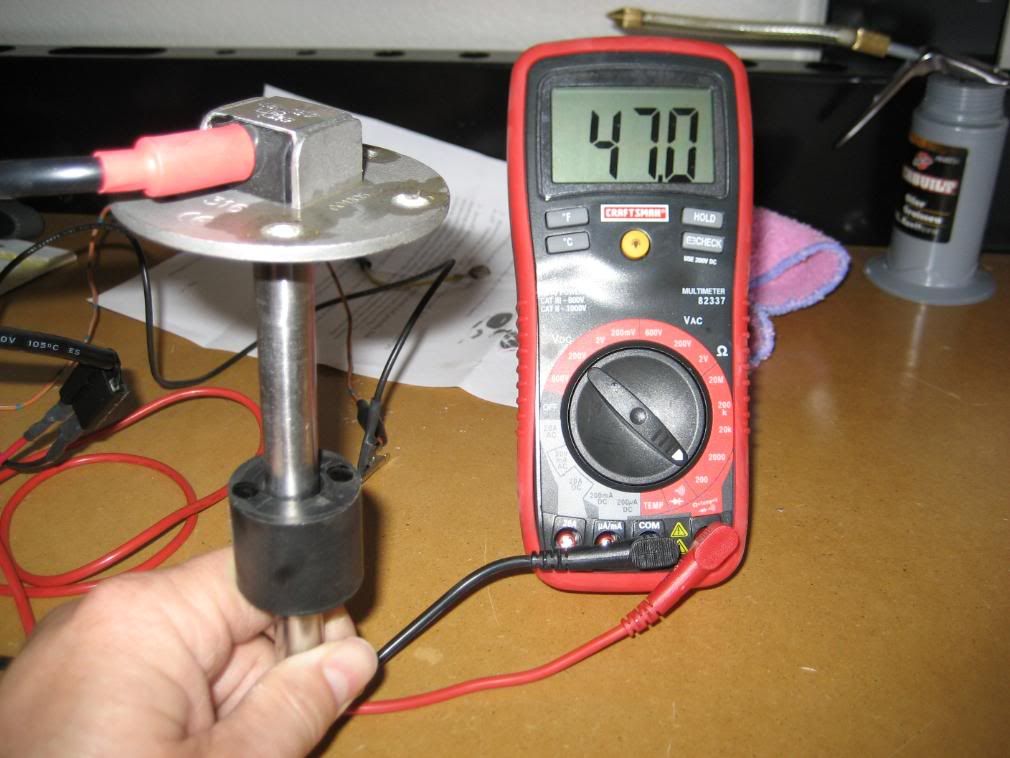

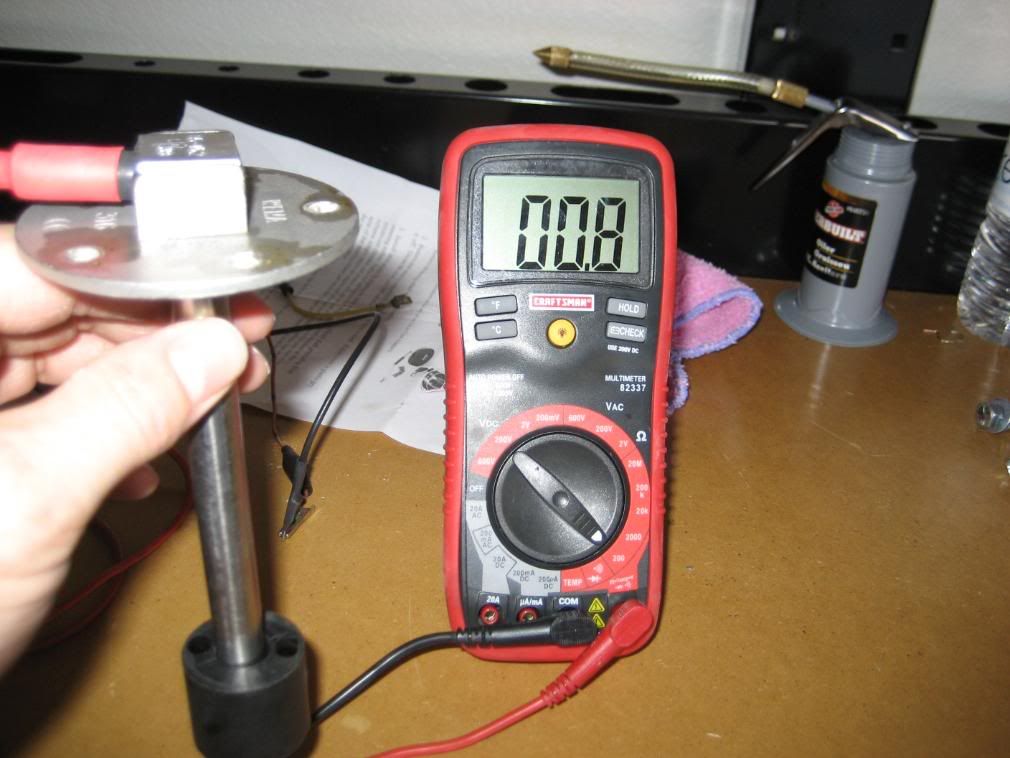

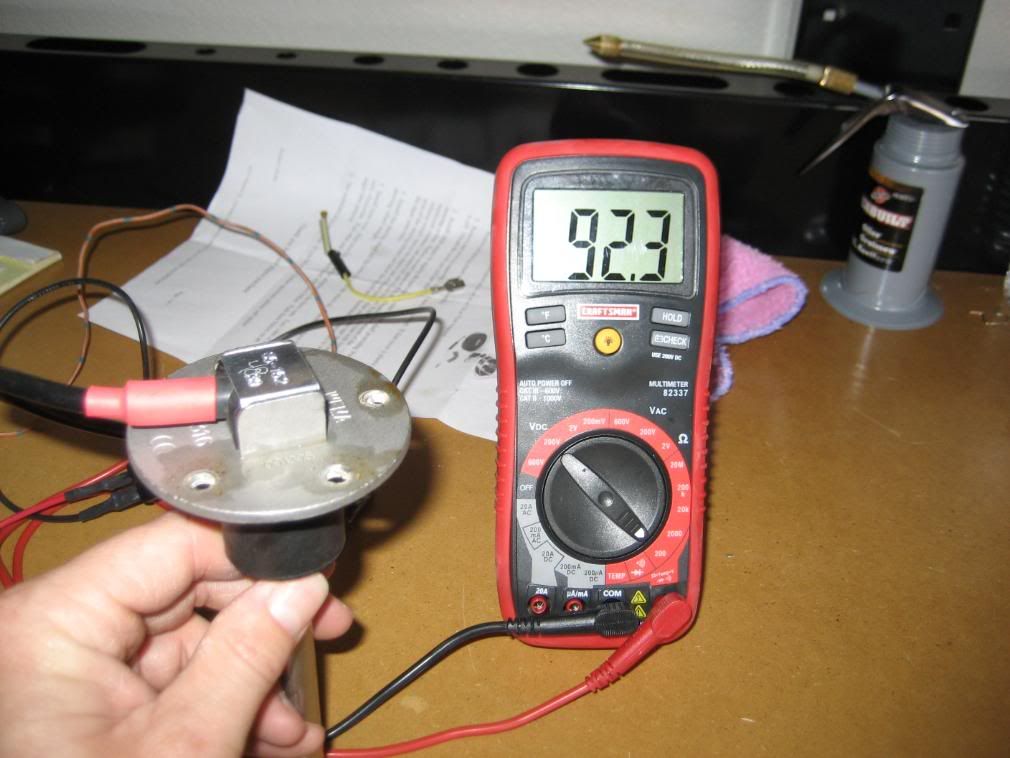

I also had some major concerns about the fuel sender. The needle has always been pegged on Empty. Knowing I had 4 gallons in the tank I checked the resistance at my sender plug and found .5 ohms. That explains why it's pegged on empty. After a call to Hector over at Ricks Tanks I discovered that they have the sender off the tank floor more than I expected. Now that I have the tank out and the entire fuel system apart it was time to test it. I found nothing wrong with the sender. It looks like I'll have one hell of a reserve. That could get me in some trouble.

[Vegas69]

It's been a adventurous few weeks to say the least. Business had been crazy busy and I spent the better part of 2 weeks redesigning my fuel system to a return style system which included ATS welding in some stainless stell bungs. I ended up with a mallory 140 pump and three 1/2 npt bungs. Feed, retun, vent. I ran 1/2npt to 10an feed to the pump and 8an hardline and braided to the regulator, 8an and 1/2 hardline return to the top of the tank, 1/2 vent from the top of the tank. Everybody said it was overkill to run that size vent. I filled my car up tonight with the pump at full blast. With a 3/8 barb it would barely take fuel. Mallory really lead me in the right direction. Highly recommend those guys!

After all my fuel fun it was time to take her down to ATS for exhaust. Frank at prodigycustoms sent me my magnaflow system in stainless with 3" pipes and mufflers. After getting the fuel system dialed in and open headers I decided to drive her down to ATS. It's about 15 miles from my place. The car ran absolutely fantastic and I hadn't calibrated the speedo and was running 90-100mph down the I 15 into Vegas. Car felt so good! I get down to the frontage road to ATS and goose it to show off and slammed on the brakes to make the turn. The engine floods out and the headers catch fire from the excess fuel. Now the air cleaner catches fire. Luckily I grabbed my extinguisher for the ride and Tyler came running. I popped the hood immediately and we got it out before much damage. Well turns out the rear float level on a 850 holley being to high will dump fuel into your engine under hard braking especially to a stop. I had the pleasure of spending 4-6 hours sanding headers with soap, water, and fine steel wool, brushing floor boards, and replacing a couple wire loom nylons. I got so damn lucky . She's about 80% of what she was pre fire. Meaning detail wise.
So I pulled the carb off and ripped it apart to see if any debris was present from my fuel plumbing job. Carb was clean. Had to be rear float level. Put her back on the car and it leaked like a siv. Replaced the float bowl gasket and it leaked. Had to replaced the bolt nylons to get it to quit. This is when I went to school on holley float adjusting. Finally got her dialed in tonight .
Time for the test drive. Take her out and hammer her pretty hard. This biatch flys! Running down the freeway doing 80 and it sputter and dies. Just what I need right now. It's out of gas. Best news I have had in 3 weeks. Old lady bring a gas can and she fires right up and I filled it up dialed in the idle and there she sits.
Springs are settling super fast. I need to crank up the coil overs again to get it to where the front doesn't rub and the back looks proportional.
Pictures and a killer video are coming very soon .

[fleetus macmullitz]

Originally Posted by Vegas69

The engine floods out and the headers catch fire from the excess fuel. Now the air cleaner catches fire. Luckily I grabbed my extinguisher for the ride and Tyler came running. I popped the hood immediately and we got it out before much damage.

Wow! You are like a 'Camaro Batman'

Seriously, glad it wasn't worse.

[Flash68]

Good stories Todd! You're getting there!

Cant wait for pics and video!

[Rybar]

Fun working out the bugs in a new build. Glad you are starting to enjoy all your hard work.

And YES we need PICS!!

[7TSS]

Wow.....15 mi w/ open headers. Music to my ears hehe.
Glad to hear everything is gettin done.
Can't wait for pics and vids.
