  #231
Old 05-14-2012, 05:17 PM
MSTSFabbed MSTSFabbed is offline
Senior Member

Join Date: Jan 2009
Posts: 132
Thanks: 0
Thanked 6 Times in 5 Posts
Default
Unbelievable... Alright help me understand if you don't mind- Youre interior panels/package tray and maybe dash too(?) are aluminum, I'm gonna guess 3003-H6? If you get a chance do you mind showing a picture of the back side of your door panels?? I'm curious if you butt weld all those panel edges or lap weld them?

When you do your insets like on the trunk floor, are you using a flange die or a buck and blunt chisel? I keep warping the tar out panels with a flange die...I'm sorry I don't mean to pry on trade secrets or anything, you just obviously know what youre doing haha!

Youre work is frickin amazing! Can't wait to see more!
__________________
Stephen S.
Reply With Quote
  #232
Old 05-14-2012, 06:30 PM
BBT FAB's Avatar
BBT FAB BBT FAB is offline
Senior Member

Join Date: May 2010
Location: Champaign, IL
Posts: 208
Thanks: 0
Thanked 0 Times in 0 Posts
Default
Quote:
Originally Posted by MSTSFabbed View Post
Unbelievable... Alright help me understand if you don't mind- Youre interior panels/package tray and maybe dash too(?) are aluminum, I'm gonna guess 3003-H6? If you get a chance do you mind showing a picture of the back side of your door panels?? I'm curious if you butt weld all those panel edges or lap weld them?

When you do your insets like on the trunk floor, are you using a flange die or a buck and blunt chisel? I keep warping the tar out panels with a flange die...I'm sorry I don't mean to pry on trade secrets or anything, you just obviously know what youre doing haha!

Youre work is frickin amazing! Can't wait to see more!
Yes all the interior panels are 3003 aluminum. Everything is butt welded no lap welding. Once we have the front all welded we weld the back side of all the seams as well. This allows all the finish work to be done (hammering and sanding the welded areas flat) with out any cracks in the weld.

As far as the offset inserts go we used a step die in our pullmax machine to acheive this. I will post pics of both once I am back at work.

-troy
__________________
BBT Fabrications--Mahomet,IL--bbtfabrications.com
Reply With Quote
  #233
Old 05-14-2012, 06:51 PM
Rick D's Avatar
Rick D Rick D is offline
Senior Member

Join Date: Jun 2005
Location: Third Rock From the Sun!! 😃
Posts: 3,437
Thanks: 0
Thanked 2 Times in 2 Posts
Default
Quote:
Originally Posted by BBT FAB View Post
Yes all the interior panels are 3003 aluminum. Everything is butt welded no lap welding. Once we have the front all welded we weld the back side of all the seams as well. This allows all the finish work to be done (hammering and sanding the welded areas flat) with out any cracks in the weld.

As far as the offset inserts go we used a step die in our pullmax machine to acheive this. I will post pics of both once I am back at work.

-troy
Man you guys have a Pullmax Nice!
__________________
Rick

[SIGPIC]https://neversaynever0304.files.wordpress.com/2014/07/you-didnt-see-anything.gif[/SIGPIC]
Reply With Quote
  #234
Old 05-14-2012, 07:06 PM
syborg tt's Avatar
syborg tt syborg tt is offline
Lateral-g Supporting Member

Join Date: Jun 2005
Posts: 8,449
Thanks: 5,669
Thanked 2,043 Times in 1,100 Posts
Default
Quote:
Originally Posted by Rick D View Post
Man you guys have a Pullmax Nice!
he should have mention the Pull max used to be at Rad Rides.
__________________
marty-mj
Is a car ever really done???? It's like a ball of yarn unwinding, that has no end... Author DKz Garage

Projects - Syborg TT 4.3l v6 Mini-Truck, 2nd Chance Camaro & SLP575 Bumble Bee - 4Sale
Reply With Quote
  #235
Old 05-14-2012, 07:50 PM
Rick D's Avatar
Rick D Rick D is offline
Senior Member

Join Date: Jun 2005
Location: Third Rock From the Sun!! 😃
Posts: 3,437
Thanks: 0
Thanked 2 Times in 2 Posts
Default
Quote:
Originally Posted by syborg tt View Post
he should have mention the Pull max used to be at Rad Rides.
Let me guess this one wasn't big enough for Troy??
__________________
Rick

[SIGPIC]https://neversaynever0304.files.wordpress.com/2014/07/you-didnt-see-anything.gif[/SIGPIC]
Reply With Quote
  #236
Old 05-15-2012, 06:34 AM
MSTSFabbed MSTSFabbed is offline
Senior Member

Join Date: Jan 2009
Posts: 132
Thanks: 0
Thanked 6 Times in 5 Posts
Default
Ooooooohhh ok that all makes more sense. Dang that is alot of welding time if youre doing both sides, but that makes good sense. Explains some of the cracking issues I've had. Ah, yeah a Pullmax would make some quick work of that haha. Sweet!

What thickness Al and steel do you typically work with? I'm guessing like 0.030'' AL and about 20-20ga steel?

Thanks for the insight!!
__________________
Stephen S.
Reply With Quote
  #237
Old 06-21-2012, 02:07 PM
BBT FAB's Avatar
BBT FAB BBT FAB is offline
Senior Member

Join Date: May 2010
Location: Champaign, IL
Posts: 208
Thanks: 0
Thanked 0 Times in 0 Posts
Default
Small update:

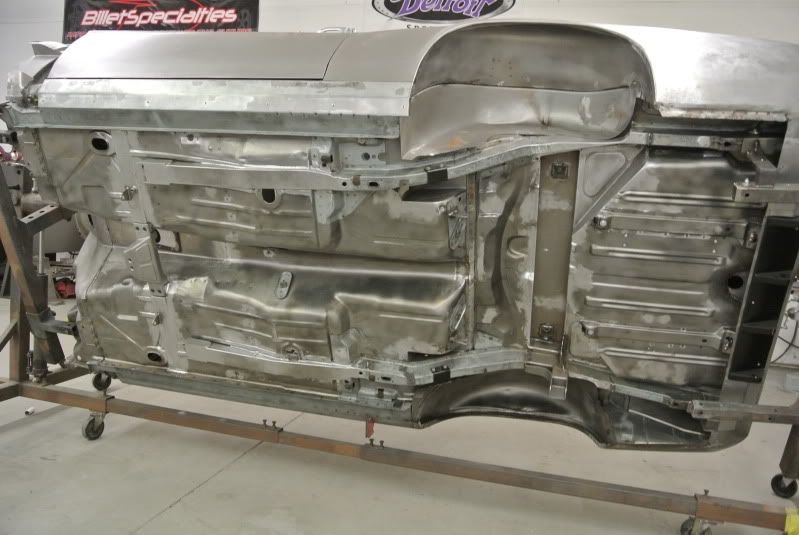

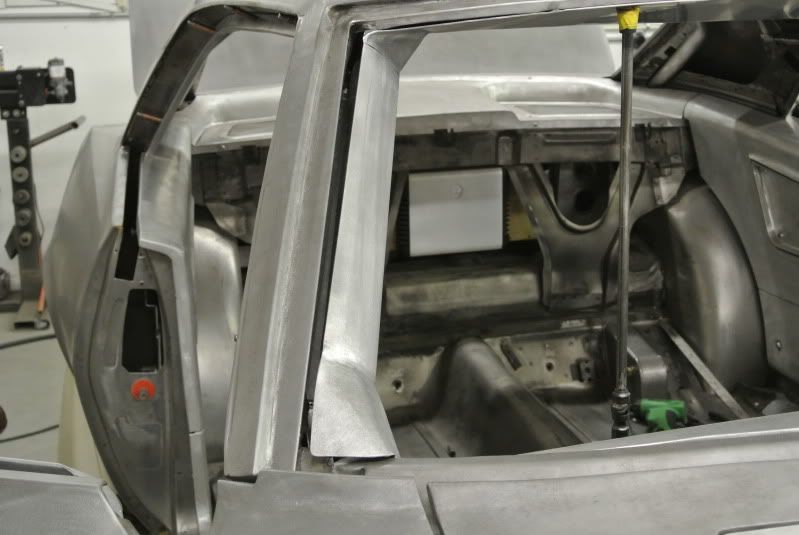

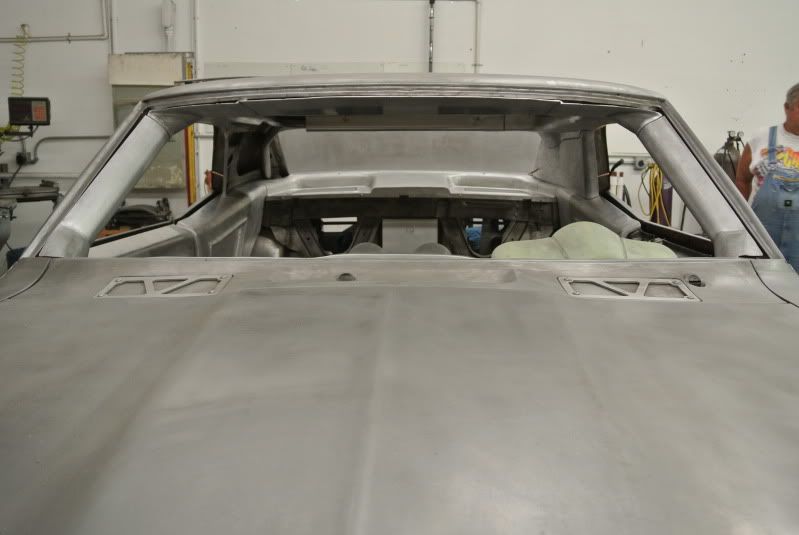

Finished out the under side and still building interior panels







-troy
__________________
BBT Fabrications--Mahomet,IL--bbtfabrications.com
Reply With Quote
  #238
Old 06-21-2012, 08:21 PM
elitecustombody's Avatar
elitecustombody elitecustombody is offline
Supporting Member

Join Date: Dec 2008
Location: Jacksonville Florida
Posts: 1,126
Thanks: 0
Thanked 0 Times in 0 Posts
Default
Nice work as usual. Troy, I was wondering if you make upper control arm for Trailblazer SS, I saw on your website that you offer Colorado arms.
__________________
Stefan B. Do what's right,not what's easy!

Elite Custom Body


1998 Supra APU 6spd
2007 TBSS
1998 GS400TT widebody
1969 Firebird
1979 Firebird LS3,DSE,Baer
1938 Dodge LC pickup
Reply With Quote
  #239
Old 06-22-2012, 09:47 PM
214Chevy's Avatar
214Chevy 214Chevy is offline
Lateral-g Supporting Member

Join Date: Jul 2008
Location: DALLAS, Texas
Posts: 4,699
Thanks: 460
Thanked 711 Times in 432 Posts
Default
Quote:
Originally Posted by Rick D View Post
Man you guys have a Pullmax Nice!
X2!! Didn't even know what a Pullmax was and Googled it and from what I saw, it is a fine piece of equipment to have.
__________________
'68 C10 swb
'69 Camaro convertible
'72 Chevelle

Reply With Quote
  #240
Old 07-13-2012, 08:53 AM
BBT FAB's Avatar
BBT FAB BBT FAB is offline
Senior Member

Join Date: May 2010
Location: Champaign, IL
Posts: 208
Thanks: 0
Thanked 0 Times in 0 Posts
Default

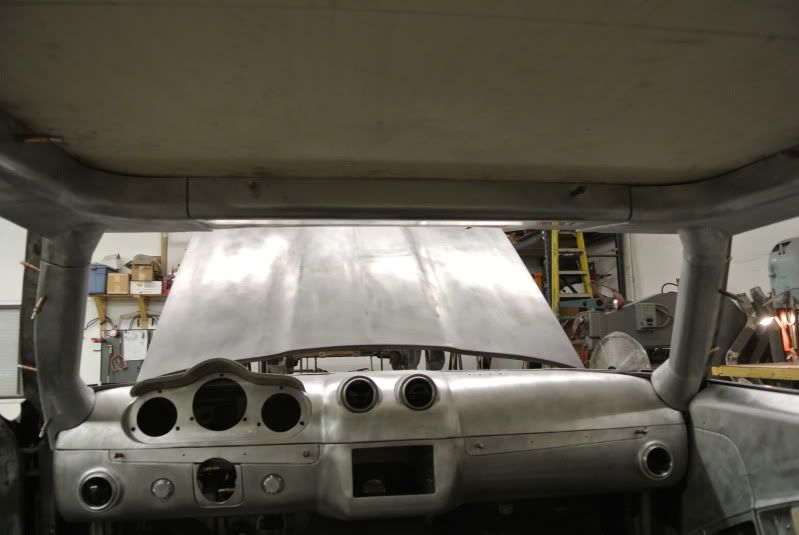

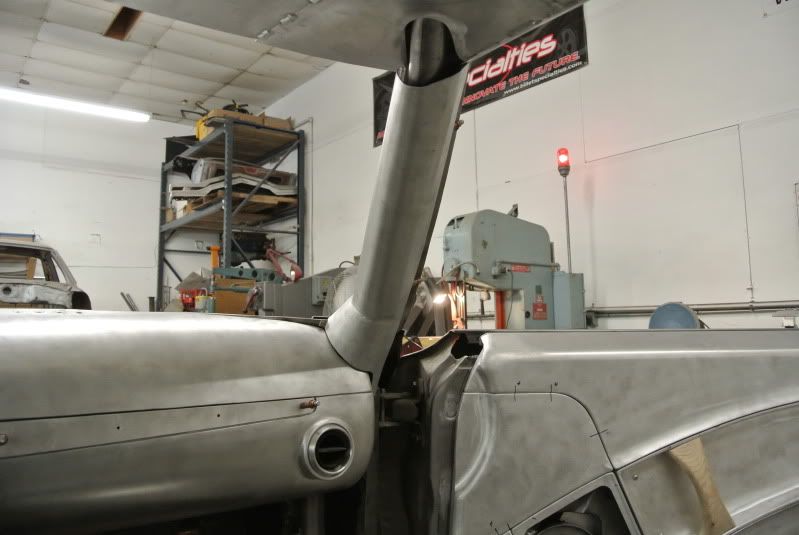

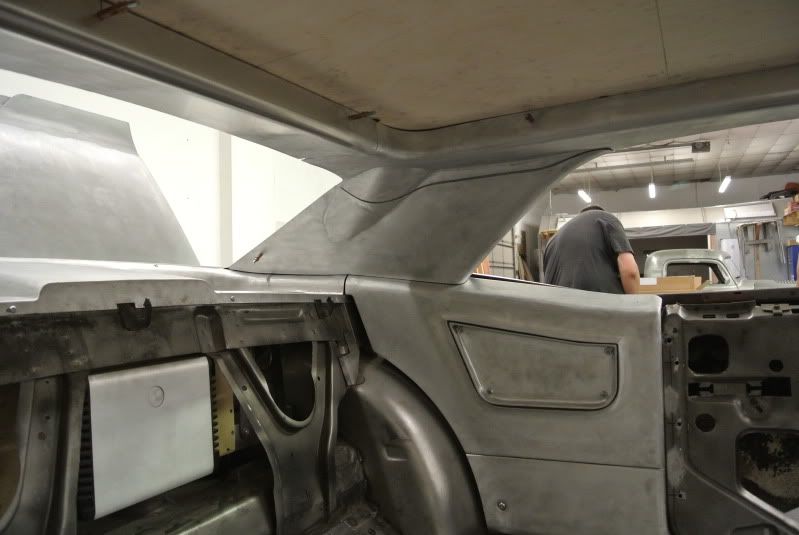

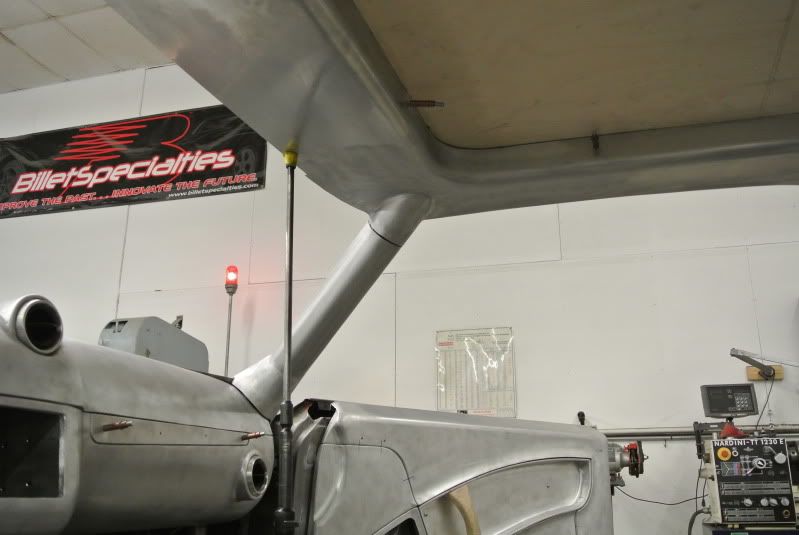

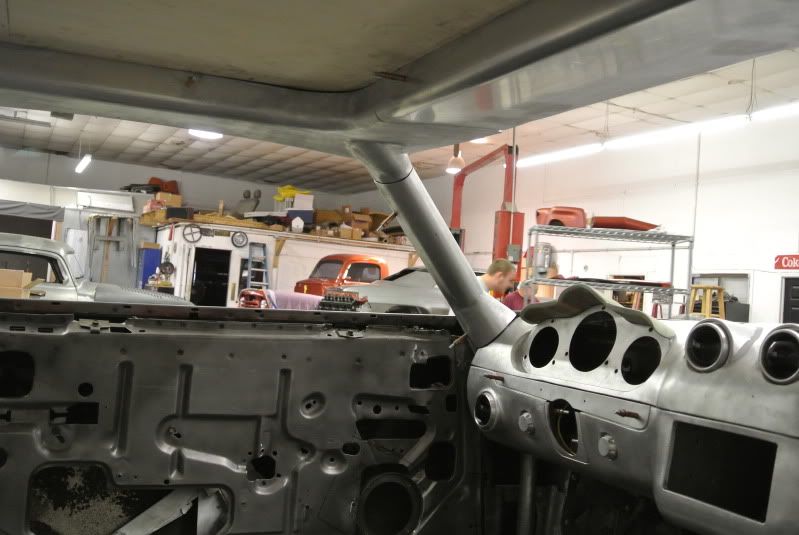

working on the headliner...












-troy
__________________
BBT Fabrications--Mahomet,IL--bbtfabrications.com
Reply With Quote
