Preston's 1967 Mustang

[GregWeld]

I gotta say it ---- I like the do it yourself attitude -- I like the engineering...

The welding -- not so much.

Before you go out and start stressing stuff -- I'd have those spindle additions ground out and welded by a professional.


I'm not trying to be critical -- But I'd like you to be safe, for yourself, as well as others that share a track with you.

[INTMD8]

Wow, crazy amount of fab work here. Very cool build.

Good point on the cabin vents. I thought those GM door jamb vents were to release pressure when doors were closed (and windows shut) but it makes sense that it would work with outside air intake as well.

As for your worries with the fuel cells, have you considered a carbon fiber driveshaft?

And holy hell, those are the thickest brake pads I've ever seen

[itsals1]

Originally Posted by GregWeld

I gotta say it ---- I like the do it yourself attitude -- I like the engineering...

The welding -- not so much.

Before you go out and start stressing stuff -- I'd have those spindle additions ground out and welded by a professional.


I'm not trying to be critical -- But I'd like you to be safe, for yourself, as well as others that share a track with you.

I'm with Greg, those welds scare the hell out me!

Travis

[preston]

Your concerns may be wider ranging and I will certainly take it under advisement, but I did want to point out that the brake bracket is connected by two 1.25" .375 wall square tube stanchions that are fully perimeter welded to the main body. That particularly ropey weld running the length of the upright body is just for a 16awg gusset. That doesn't excuse my lapse in quality on that and now that you've called it out I will have to go back and fix it up (it was a bit of an afterthought at the time as it should be plenty strong without it) but I can see how that particular part would look totally unacceptable if you were thinking that was the primary weld for the brake mounting.

[preston]

I'm pretty lazy about updating my thread I spend all day on the computer and would rather spend my time building the car. Also this is a bit of a weird thread as most of the car is already built and I am only posting old pictures. But at some point I want to bring the thread up to date as I'm very excited about my current wide body project. So what I am posting up tonight is a bunch of "old" photos. however they are good fab photos of some homegrown work and I think some of you may find them interesting, and I wanted to post where I've been before I post where I'm going, so y'all can appreciate the journey a bit more. As you can see giant flares were the only way to encapsulate the monster tires and massive lowering that I wanted in the car, but after awhile the aesthetic compromise always bothered me. But before I reveal any of the wide bodywork I wanted to kind of purge the last of the old build photos. So a lot of these are kind of out of order, some are actually the older chassis and most are from before the brake setup I was posting earlier.

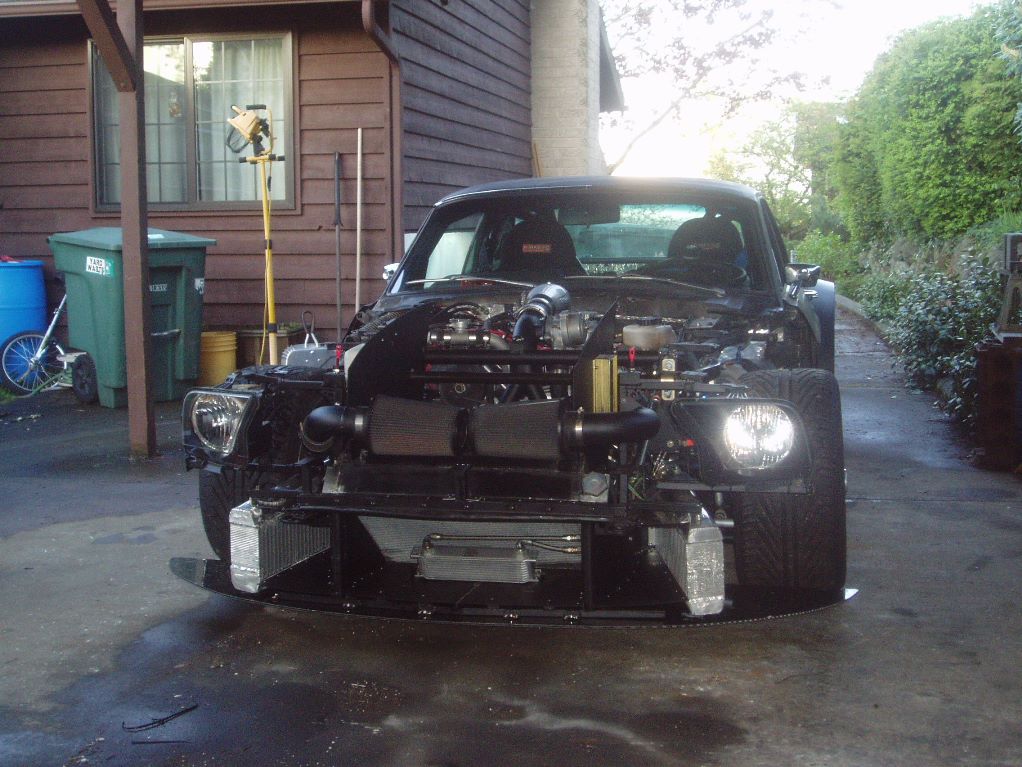

here is one featuer I really like - Undo some wiring and plumbing, and 4 bolts, and the whole front tray comes off. This tray supports the rad, the IC's, the oil cooler, the tow loops, the splitter/undertray and indexes the hood and front fenders, AND serves as a front crush structure. This is the old version with V'ed IC and Rad before moving to twin IC's flanking the rad.

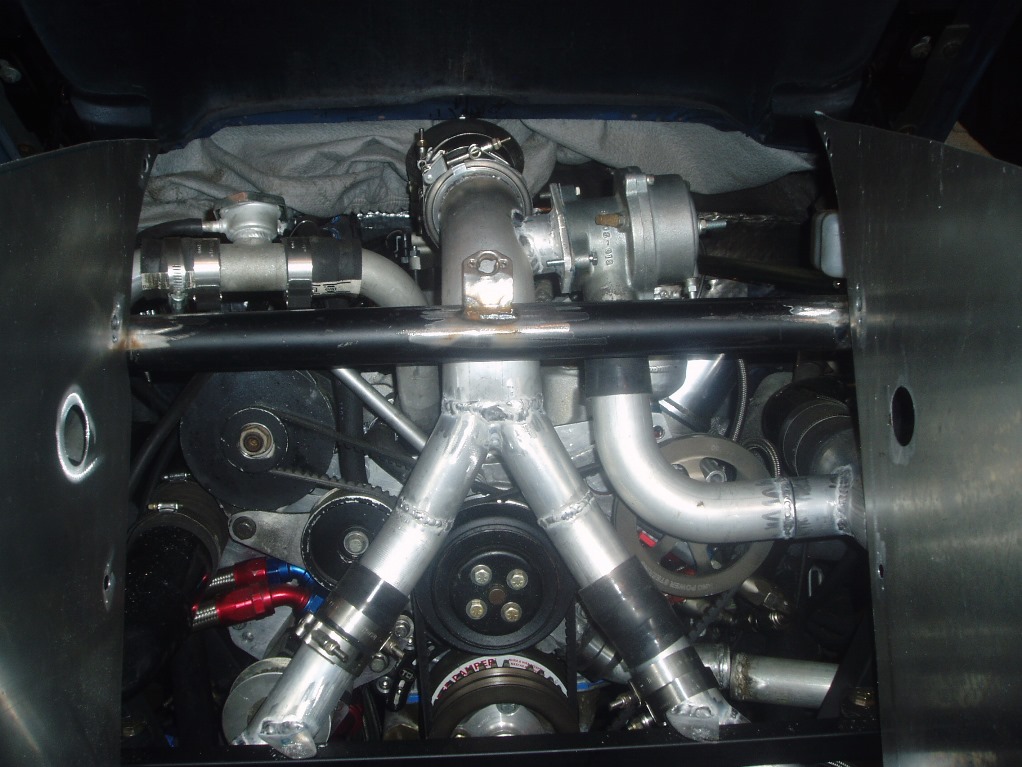

Also, I'm no master TIG welder, but I like to think my alum welding has improved a little bit since these pictures were taken, but then again, none of the welds leak or have cracked.

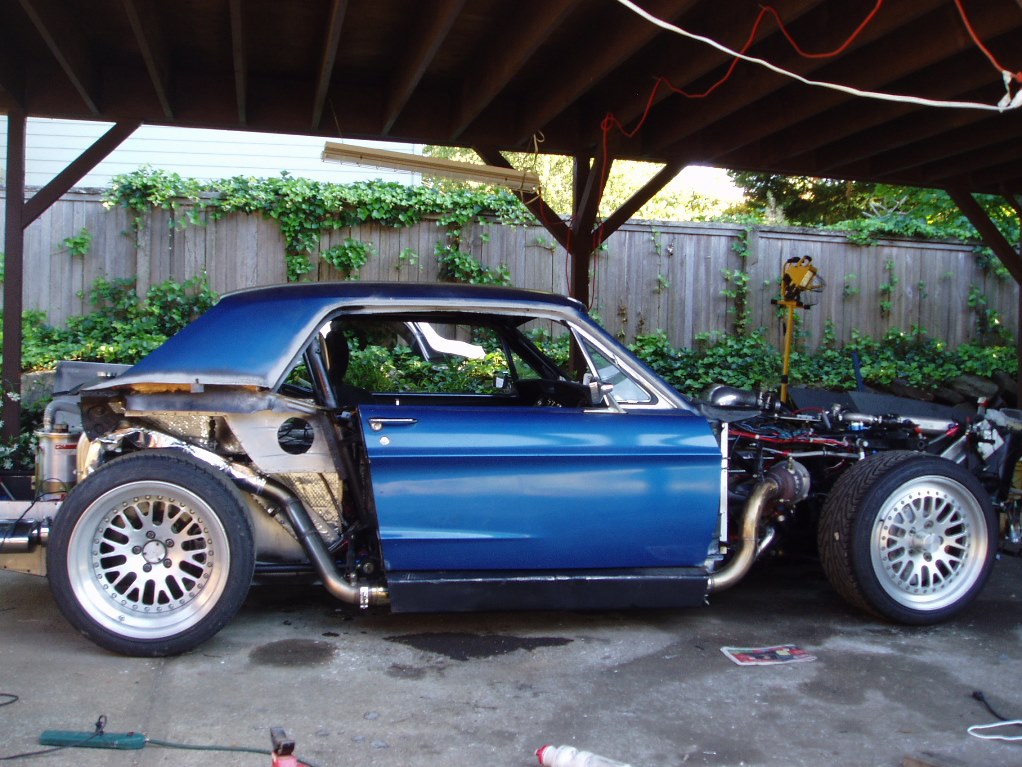

One of about 5 versions of giant flares I've built - it really hurt one day when someone called them "dually truck fender flares"

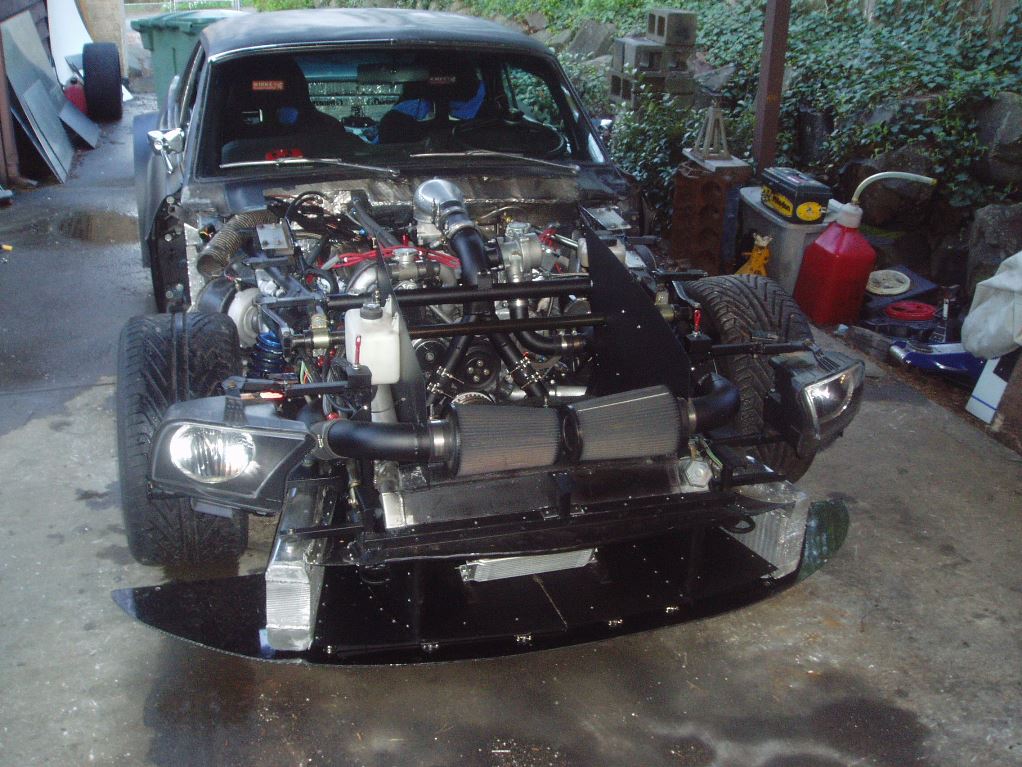

air comes in the front end to feed the air filters and also the radiator, each one has its own exit duct. Note also I had teh "window into the engine" idea about 6 months before anyone saw the ZR1 and its hood window.





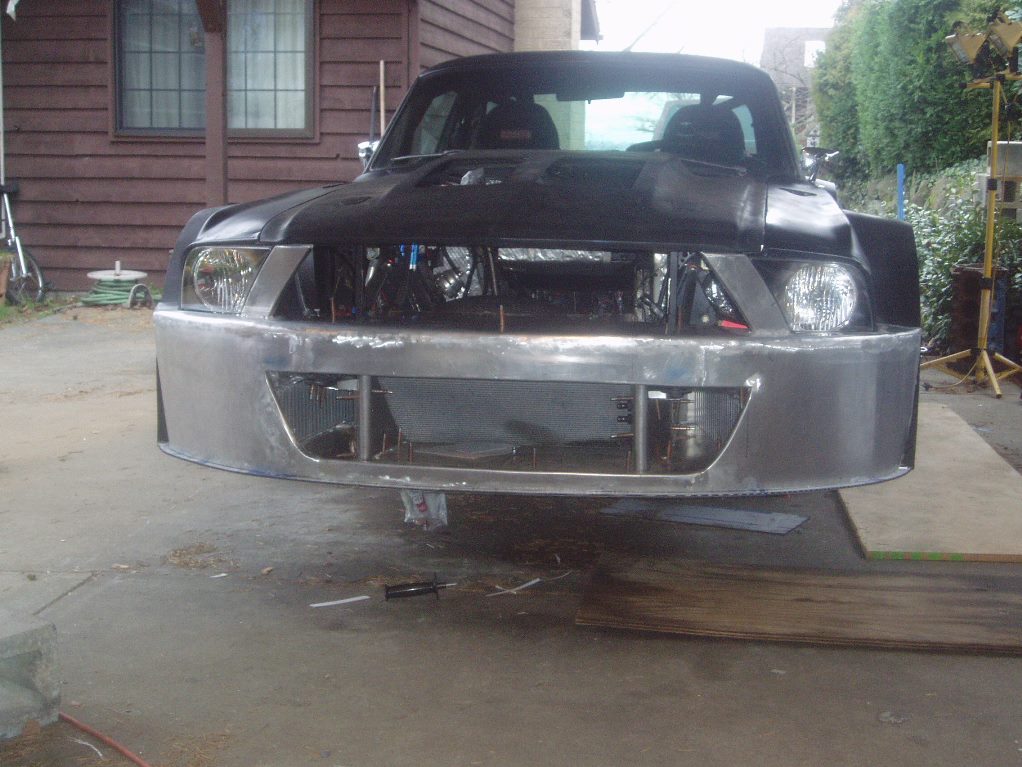

one iteration of the bodywork



rear diffuser/undertray a la Porsche GT2 RSR

[preston]

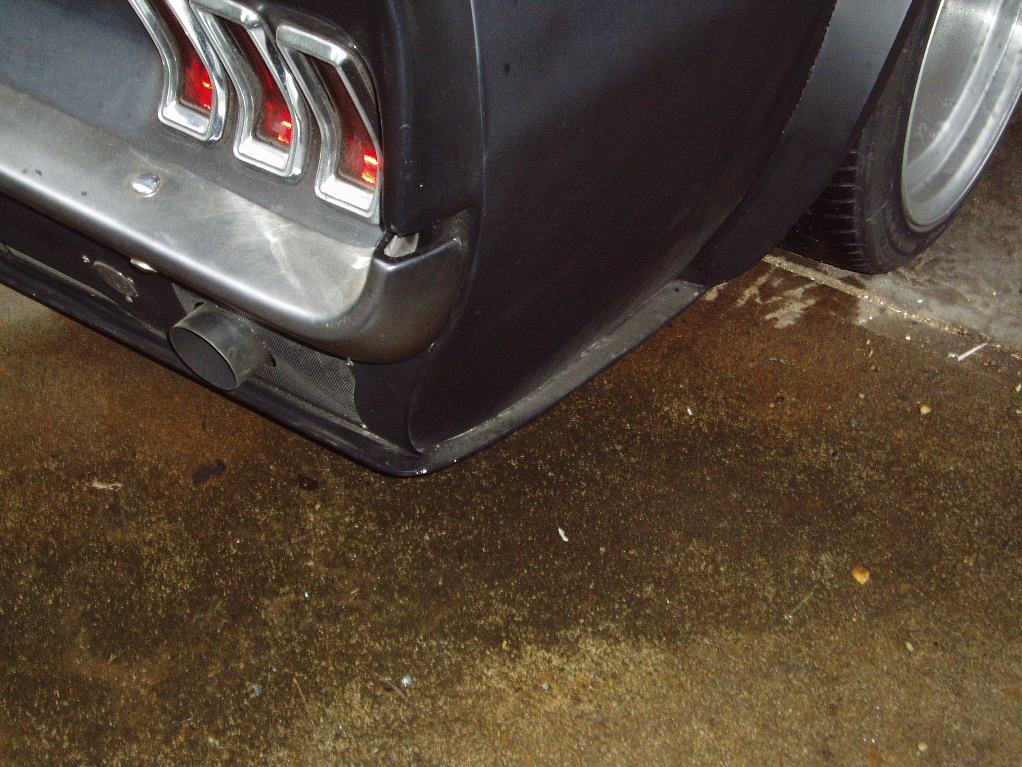

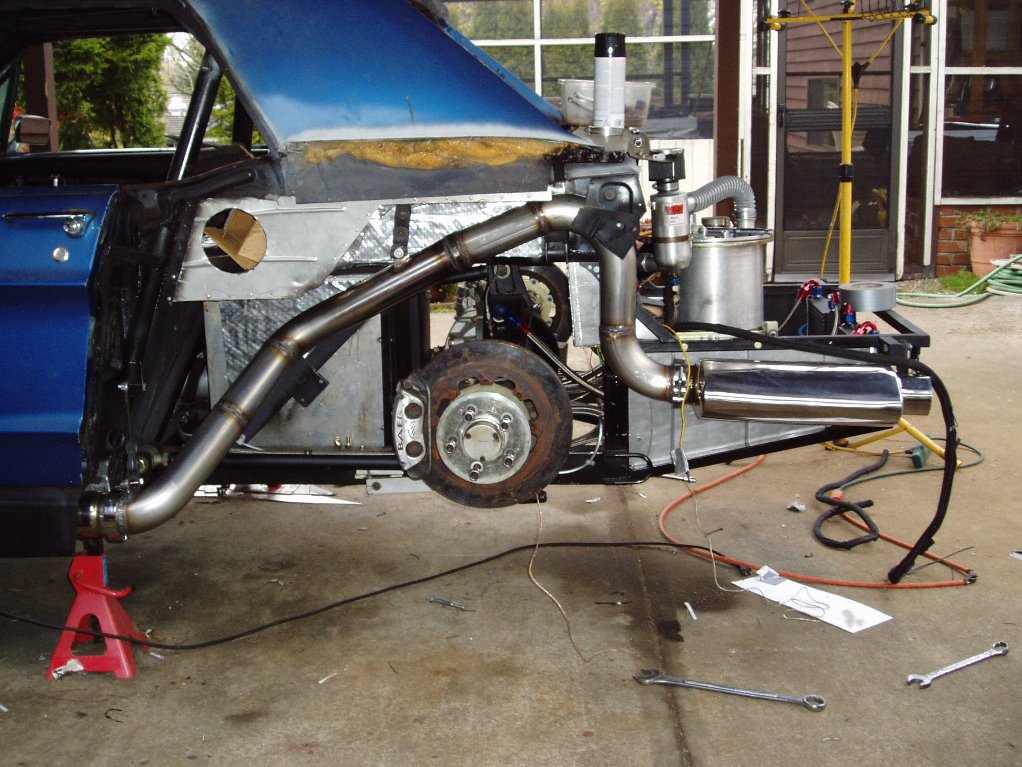

Also one of the more innovative parts of my build IMO - You've seen side exhaust before but have you ever seen it carried all the way out to the tailpipes ? Yeah it costs 50 lbs and probably drives some heat into the tire, but I like it somewhat quiet. Note I now wrap those pipes in Aerogel and exhaust wrap and you can hold that assembly in your hand during a hot idle.
(these are very old photos)











Well, sometime later I will be motivated to post my wide bodywork photos. I really like the way it is coming out - I'm kind of following something I read from the Roadster Shop - one trend is going back away from the super smooth pro-touring modernize them look and re-captue some vintage appearance in these cars, like the "Boss 429 Falcon" they built. I also notice I used to love scoops, flares, wings, etc (as long as they were functional) but the older I get the more I appreciate the classic lines of these cars. After all if we like old cars why are we trying to make them look like new cars ? So I am building a wide body but trying to move back to a much more "vintage" appearance, at least as vintage as an old mustang that's 50" tall and 76" wide can be. And I will still have aero management too. It should be a pretty unique take on the genre.

[palmsprings]

Thats a staunch looking Mustang, great work

[WSSix]

This car is so badass. Good job Preston!

[Jr]

[QUOTE=preston;524460]









QUOTE]

Looks pretty tough! Any more pics of the complete car?

[preston]

First of all I apologize for being a poor photographer. I know when I look at the pro build threads
there is a massive impression of quality because the best shops put forward a totally clean work environment,
excellent fabrication - but also clear, well lit quality photography.
So while I've never been prouder of the fabrication work I'm doing, I admit it always looks a bit ghetto
after i take a picture of it.

I had an extra door, so the first thing I did was cut that in length, space it out 2", and mounted it on
the car to see what it would look like.
(doorsplit.jpg)



(doorsplitmounted.jpg)



Not bad I thought.

The next step was to figure out what the fenders would look like pushed out. The fit great, but I had to cut
out the windshield corner and move it in so it would still mate up with the windshield.
honestly there is enough "variation" in these $150 Tawain fenders that that kind of bodywork is halfway needed
anyway ha ha.



After that I had the confidence to get going. I added metal to the door jamb



Then the next step was welding a 2" string all around the door. I had one good Ford door and I bought one replacement
door from NPD, which was of excellent quality btw, only flaw is maybe the window slot is about 3/16" too wide, but
it fit the car good. Note I also had to weld in a 2" strip of .120 on the front where the hings mount.
I also found out the hard way that I needed to space the front hinges out 2". Unfortunately I
don't have any pictures of that I will get some, but I just bolted and then welded on some sections of 2"*3".
it sounds "rough" but it actually looks really good (when the door is open and you are inspecting the hinges).
I don't know why I only have pictures of the end of the door instead of the important part (the top).
The way I approached teh welding is where I had excellent fit up, I TIG'ed it for superior cleanup and to
keep the metal soft for hammer and dolly, but where I had a gap I MIG'ed it for sanity sake. The combination
of the 2 techniques worked for me.



doorjamb2 .jpg
