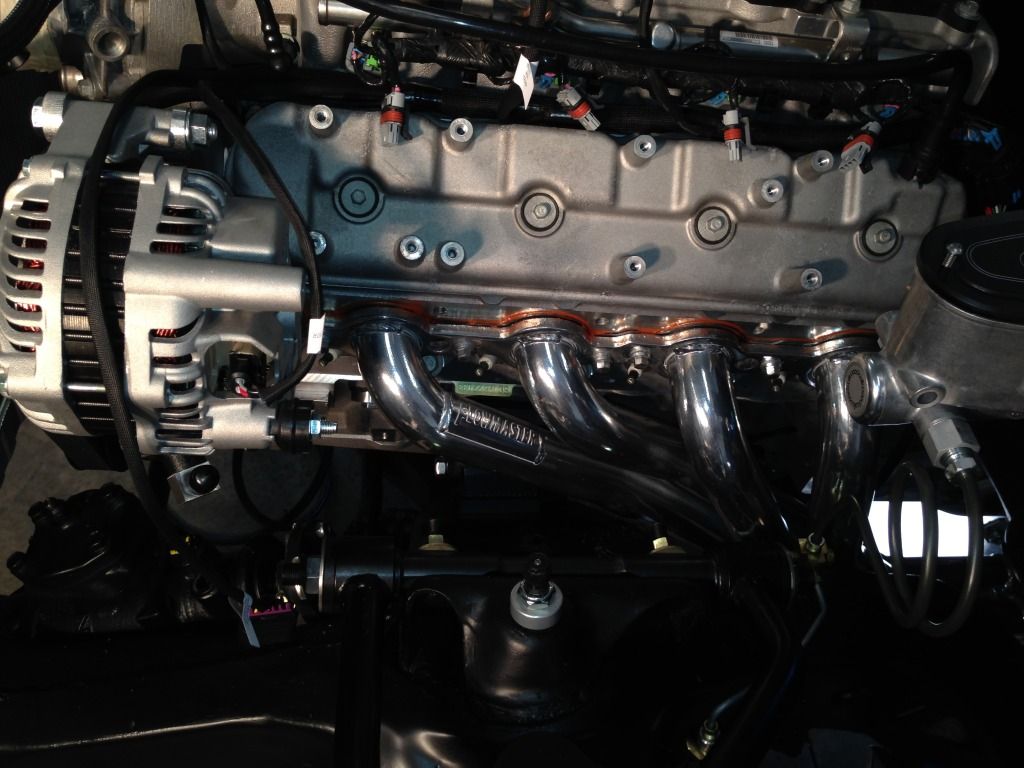

I got the driver side Flowmaster header installed.........It wasn't as simple as the passenger side........Seems Flowmaster forgot about the lower control arm mounting bracket on the Drivers side.........Had to remove a good sized chunk of the bracket to clear the pipe......structurally is won't matter.....But!!!.......for what they charge for them , they should fit without any mod's.......and .....my engine is about 3/8 higher than using stock adaptor plates.......So.....it would have been much worse with the header if the engine was lower.......I also have to rework the trans crossmember as the collectors run right into it.........

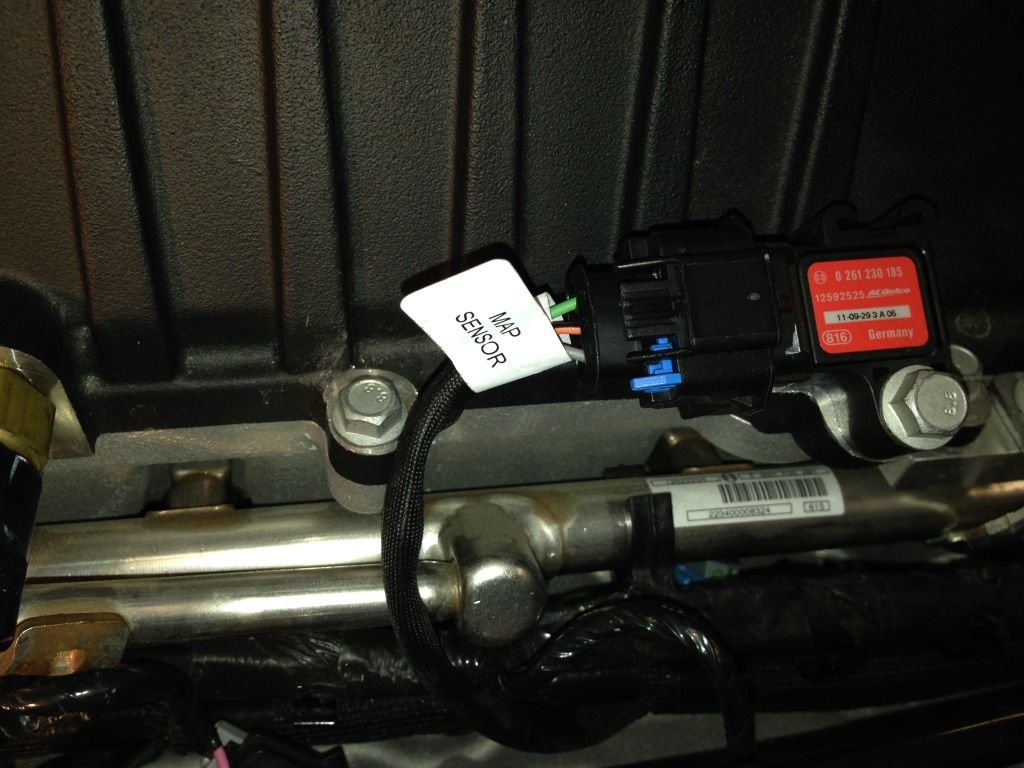

On the good side........installing the Speartech harness on the engine took about 5 minutes.......Great Job Speartech.......everything marked and labeled perfectly.........
I got the driver side Flowmaster header installed.........It wasn't as simple as the passenger side........Seems Flowmaster forgot about the lower control arm mounting bracket on the Drivers side.........Had to remove a good sized chunk of the bracket to clear the pipe......structurally is won't matter.....But!!!.......for what they charge for them , they should fit without any mod's.......and .....my engine is about 3/8 higher than using stock adaptor plates.......So.....it would have been much worse with the header if the engine was lower.......I also have to rework the trans crossmember as the collectors run right into it.........
On the good side........installing the Speartech harness on the engine took about 5 minutes.......Great Job Speartech.......everything marked and labeled perfectly.........

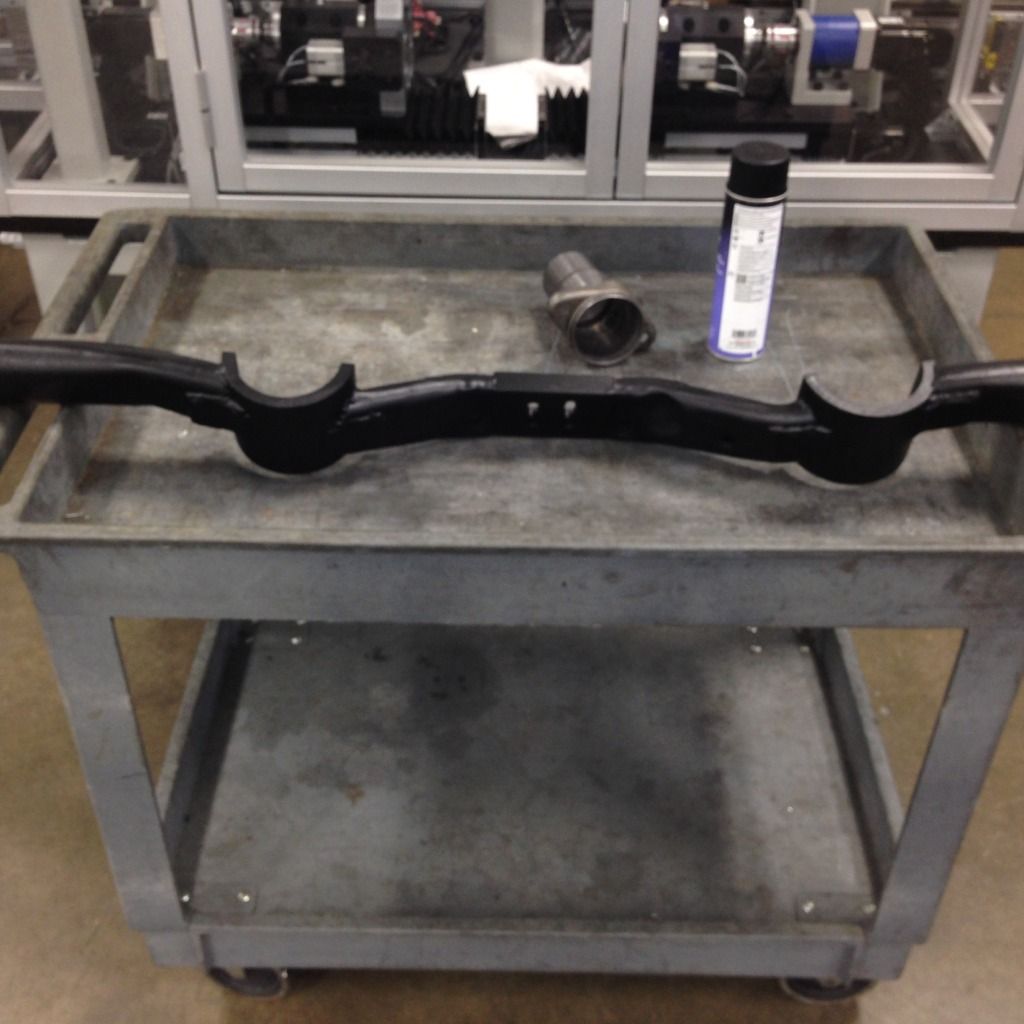

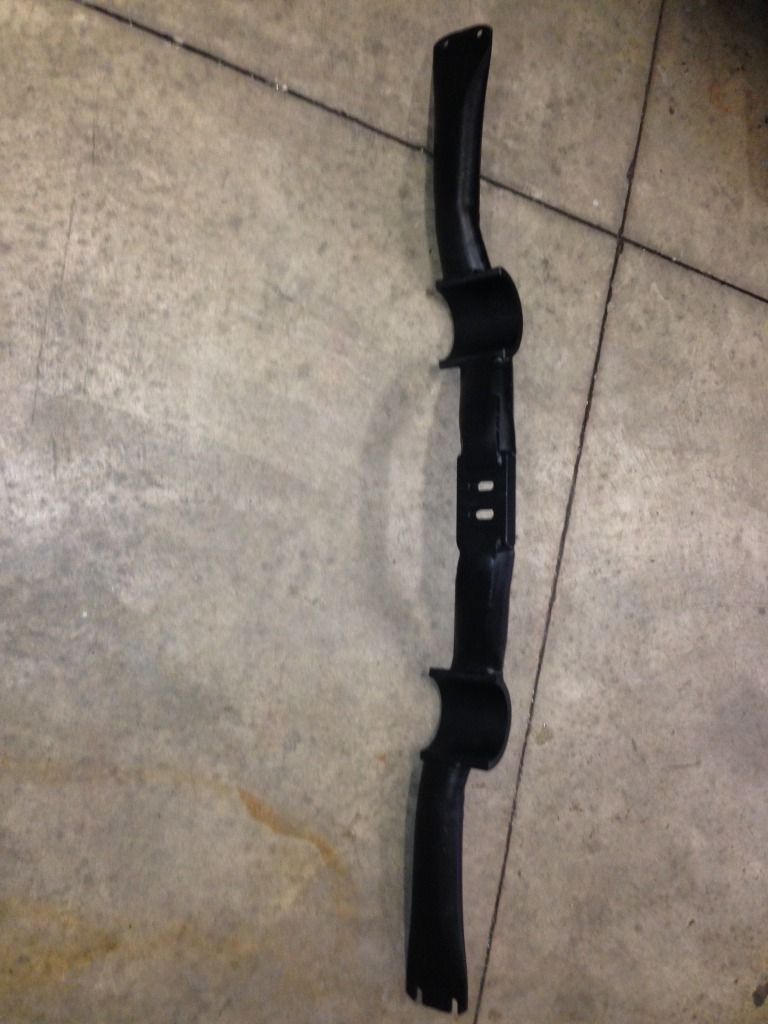

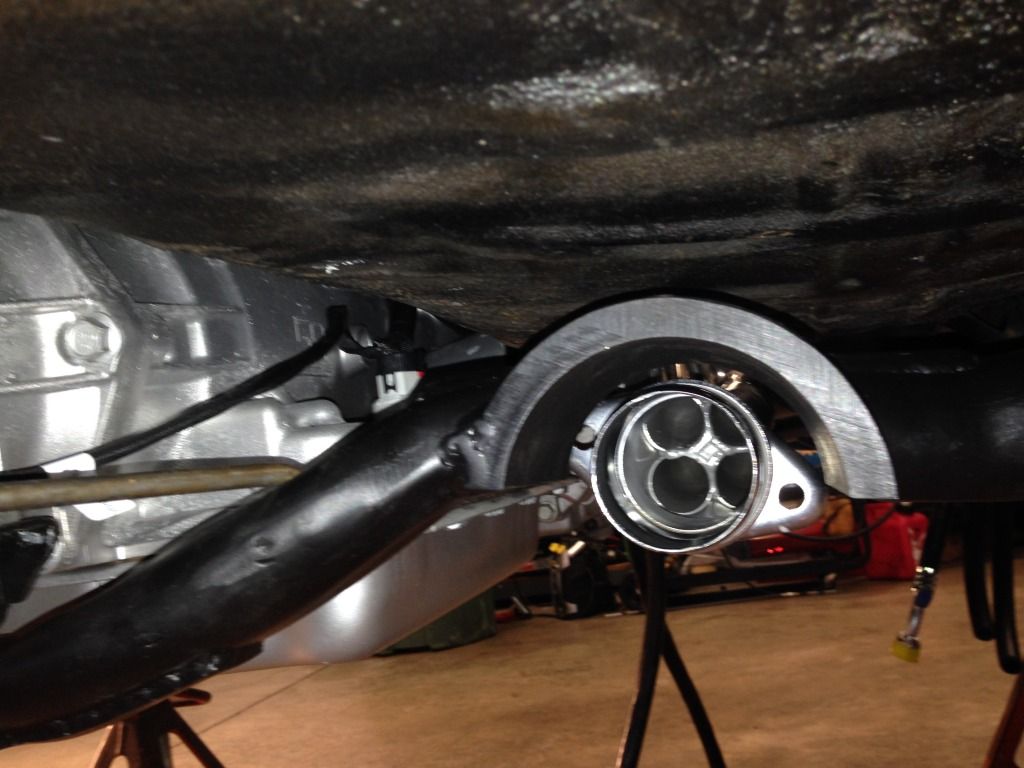

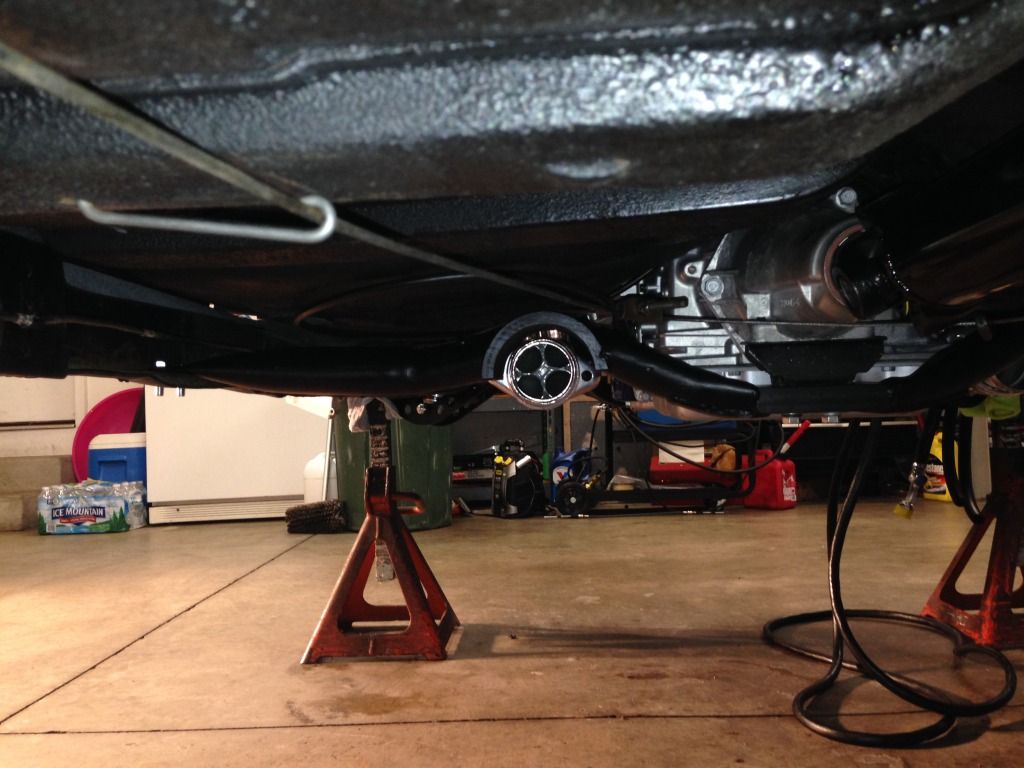

After getting the Headers installed the other day.......another little issue popped up........LOL.......The collectors went right thru the trans crossmember..........Always something...........As long as I had to modify it .....I added some reinforcement plates to the areas welded previously.........It is now in to stay....(I hope).......Also I put the coil pac's back on and realized the factory spark plug boots aren't going to work.....so I ordered some new ones........always something......

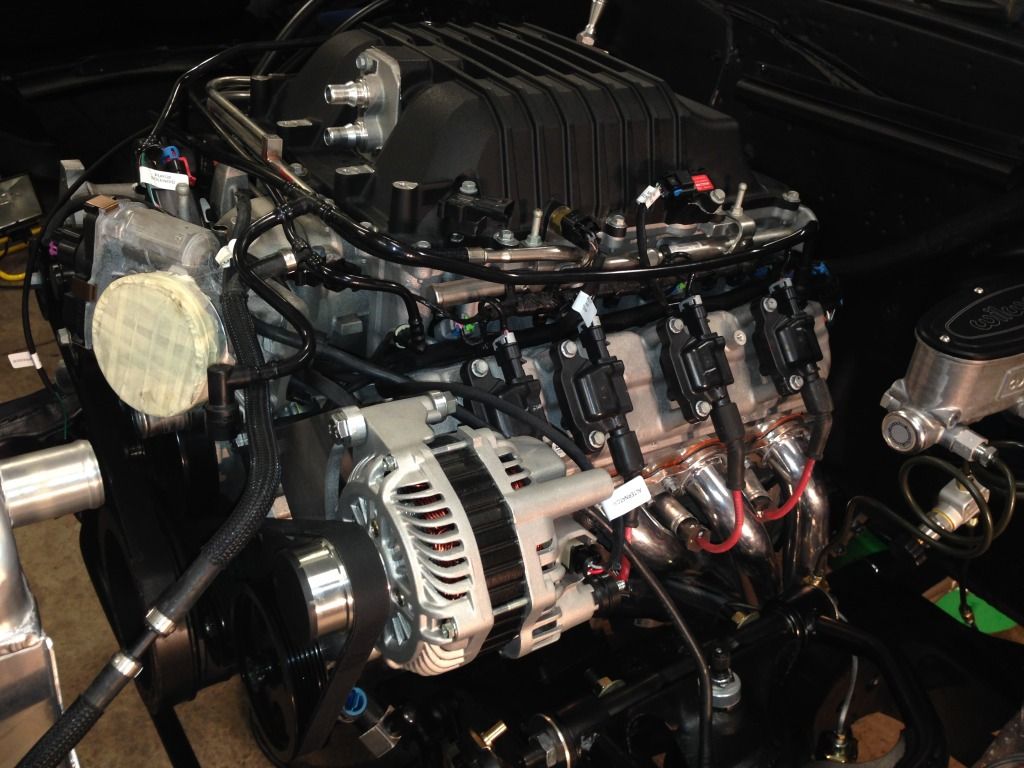

Expect the unexpected..........LOL..........By not being able to use the stock Camaro exhaust manifolds......I had to buy Headers.......The Headers didn't fit as advertised.......so we had to make things fit to the Headers.....then the Headers ran into the trans cross member........fix that........then I go to install the spark plug wires......the Boots hit the tubes.....new spark plug wires.........(two sets.....the first set I ordered didn't fit either)......The MSD wires had a bendable Boot and worked perfectly............
I also ordered a Vaporworx fuel pump control unit....instead of the pump running full speed all the time and having to use a Corvette Filter regulator.......this system monitors the fuel pressure and only feeds enough Voltage to the pump to satisfy the demand that the engine requires......hence.....no return line to the tank......I have been waiting for this unit to show up so I could install the wiring harness to the pump on the tank for installation........so......I also got some 1" dia electrical shrink tubing and installed it on the gas tank straps and then heated them up and shrunk them on.......Pretty Neat .......almost "Spiffy".......LOL..........Got the tank ready to go in but it was time for a Nap..........I'll get the tank in tomorrow after all the kids leave.............Happy Thanksgiving to all!!!!
I finally got the Gas tank installed.........would have been a lot simpler if they would have supplied bolts for the straps that were 1/2" longer........Just couldn't get the nuts started........went and got some longer ones today and 5 minutes later it was in.....I also have the fuel line installed and completed........I also got the drive by wire gas pedal installed.......As long as I have the room while waiting for the new radiator to show up I'm going to get the intercooler pump and lines all run..........need to find a reservoir for the system........
