I probably spent the most time on the harness. It's mostly Teflon coated 20AWG wire with Raychem DR25 heatshrink over all the wire bundles. Every split and termination is covered with heatshrink boots and glued using high shear epoxy.
The terminations are labeled using printed heat shrink.
The harness comes through the firewall with a 32 pin MIL-DTL-26482-II bayonet lug connector.

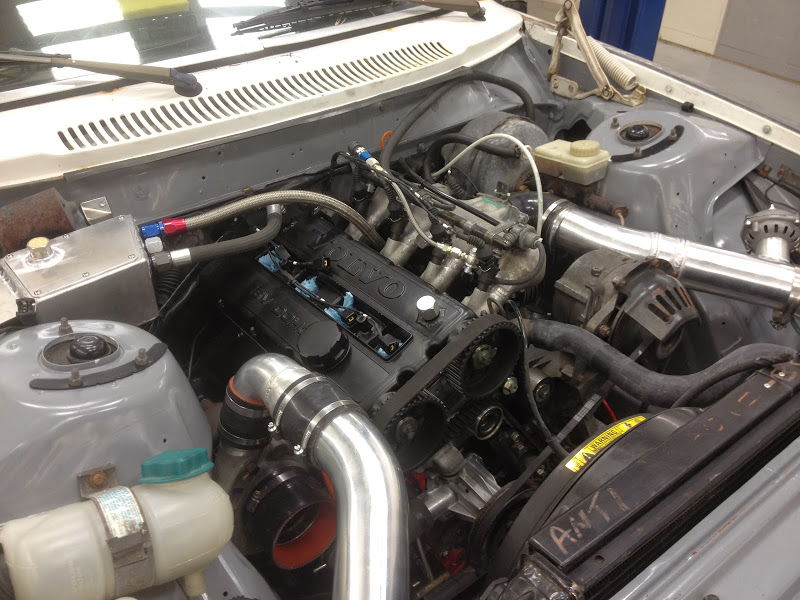

Here's everything in place. There's also a baffled catch can on the left that we built.
The car also got a different headlight/turn signal/grill/hood combo off an early 70s 240 and some new wheels on custom spacers.
By christmas 2013 it was even running and driving.
It still needs quite a bit of tuning, especially in higher boost. In its current state it should be able to make about 400hp reliably.
Finally scraped a set of dampers together. I think the grand total for these four has been about $400 shipped. Double adjustable Öhlins reservoir deals.
Alex made a nice write-up about the chassis progress, so I'll hand over to him:
Quote:
Assembled the starter and mounted it to the bellhousing with the correct lash:
Lately both Karl and I have become disenchanted with the idea of keeping the stock "frame rails" on the car and patching up the half cut-out floor. Mostly because it will be more or less impossible to quantify the chassis stiffness until the frame is completely done and can be tested. Also, the more I looked at the cruddy floor pan and firewall sections, the more I saw nothing but a piss-poor compromise that wasn't going to work well or look good.
I drafted up a proof of concept for a tube chassis, re-using most of the existing cage tubes until I was reasonably happy with load paths, triangulation, room for the driveline and driver/passenger.
The floor of the chassis is all straight mitered 2x2x0.065" and 2x3x0.083" ERW to make fixturing easy. The "drivers cell" is 1.75x0.095" DOM and the rest of the chassis is a mix of 1.5x0.065" DOM, 1x0.049" DOM, and .75x.75x0.065" square.
I'm going to break my own personal rule of not posting CAD screenshots. Here's one of the draft quality versions that started homing in on the final layout:
Making a stiff enough chassis that's also light is a bit of a brain buster, especially when you have to work around silly nuisances like an engine, transmission, and people.
I ran a really simple first cut beam analysis in Solidworks so I could iterate fast and get a rough idea of the stiffness:
These results gave us enough confidence to start building the chassis. At the same time, I'm now working on a much more comprehensive analysis model in different software that doesn't suck.
Chopping up some tube and laying it out:
Both halves tack welded and roughly positioned:

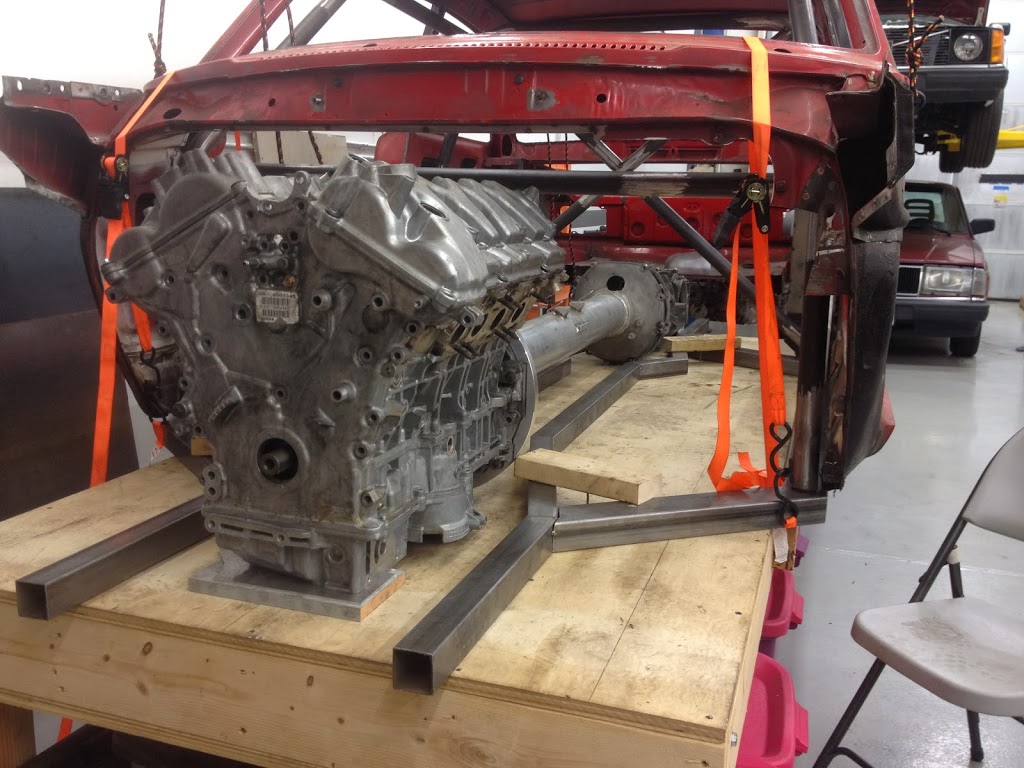

Dropped the body and driveline on the table just to see how it would look:
So that's where we're currently at. Sorry for the slow progress. **** happens I guess.
Option A is actually somewhat ironic. Alex currently spends his days building actual space ships at SpaceX in Los Angeles. I'm going out there for an internship this summer as well.
You have got to be kidding me... That is freaking awesome!
So this is what rocket scientists do for fun. Interesting.
I love yall, but you make me feel a little insecure as an engineer haha!
Thanks for sharing and keep us posted on your craziness as you can, its a hoot to watch!
As a fellow enginerd (I'm mech.. you?) it's great to see 1) such awesome attention to detail, and 2) such insane fabrication skill, backed up by legit computer calcs. Not enough engineers out there getting their hands dirty, be it for work or for play.
You have got to be kidding me... That is freaking awesome!
So this is what rocket scientists do for fun. Interesting.
I love yall, but you make me feel a little insecure as an engineer haha!
Thanks for sharing and keep us posted on your craziness as you can, its a hoot to watch!
Quote:
Originally Posted by frojoe
As a fellow enginerd (I'm mech.. you?) it's great to see 1) such awesome attention to detail, and 2) such insane fabrication skill, backed up by legit computer calcs. Not enough engineers out there getting their hands dirty, be it for work or for play.
Again.. keep up the impressive work and updates.
