How many times have you been told this so far Sieg?


"Something seems off with X measurement, can you recheck it?"





Thing is, he was right every time...something was wrong with MY measuring...

[57hemicuda]

Originally Posted by SSLance

How many times have you been told this so far Sieg? lol:

I know Scott knows what he is doing, I've just never been able to do any reliable measurements using centerline. Unless a car was set up for centerline measuring, like cup cars are, I find it extremely hard to get repeatable numbers. That might just be me.

[Sieg]

Originally Posted by 57hemicuda

I know Scott knows what he is doing

Originally Posted by 57hemicuda

I've just never been able to do any reliable measurements using centerline. Unless a car was set up for centerline measuring, like cup cars are, I find it extremely hard to get repeatable numbers. That might just be me.

Simply stated..........I'm hunting and picking my way around the underside of the car getting familiar with it and try to figure out what is what. When both ends are disconnected and the center section is a crudely stamped piece of sheetmetal it's not easy to establish a reasonable baseline.

I attempted to establish center via the rear subframe locating holes and I'm now trying to establish outer lines to reference the hubs/wheel mounting surfaces. The centerline was to give a reference to 'square' for all other measurements.

I'm beginning to understand the value of having a full framed vehicle. If I had the equipment to create a digital horizontal and vertical halo around the car it would be somewhat simple.

[57hemicuda]

That is why I stressed using the pinch welds, on a subframe car the pinch welds are the only true constant. The rest of the car (subframe, rear, etc., etc.) can be way off. If referencing suspension off of a subframe that is crooked in the car your wasting your time.

Its easy as falling off a log. Level the car on stands, 4 plumb bobs vise gripped to the pinch welds, mark floor with tape, making sure the tape is square, and measure away.

[Greg from Aus]

Come on Mate, get this measuring stuff all sorted, with lots of pictures as I have to start mine and I'm

[Sieg]

Originally Posted by Greg from Aus

Come on Mate, get this measuring stuff all sorted, with lots of pictures as I have to start mine and I'm

It's an education mate..........in a somewhat masochistic way.......similar to croc wrestling I guess.

Back to the garage!

[Sieg]

Originally Posted by Greg from Aus

Come on Mate, get this measuring stuff all sorted, with lots of pictures as I have to start mine and I'm

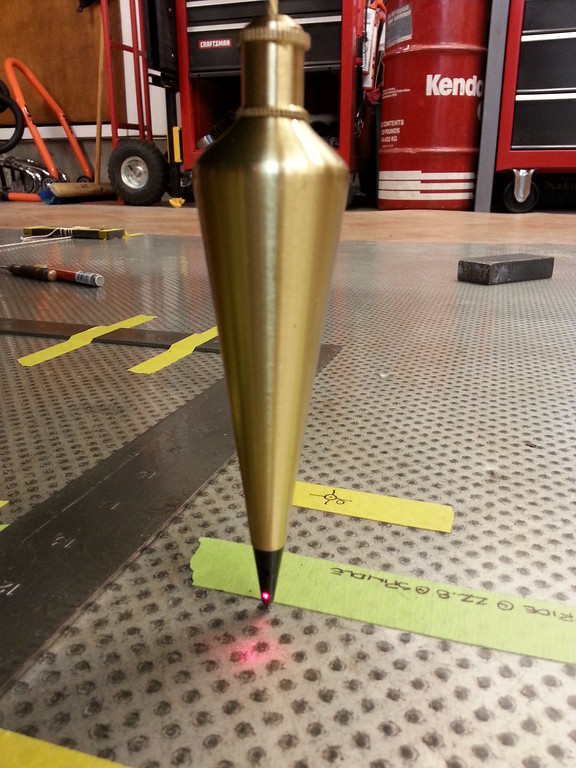

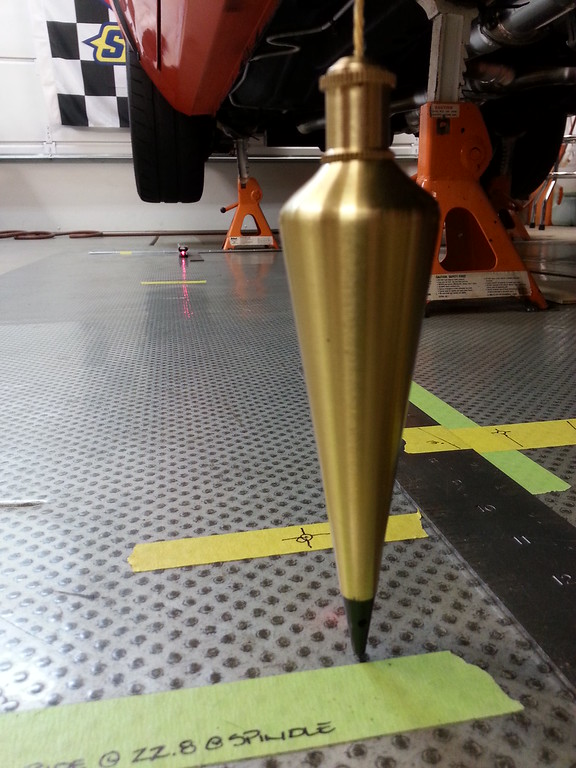

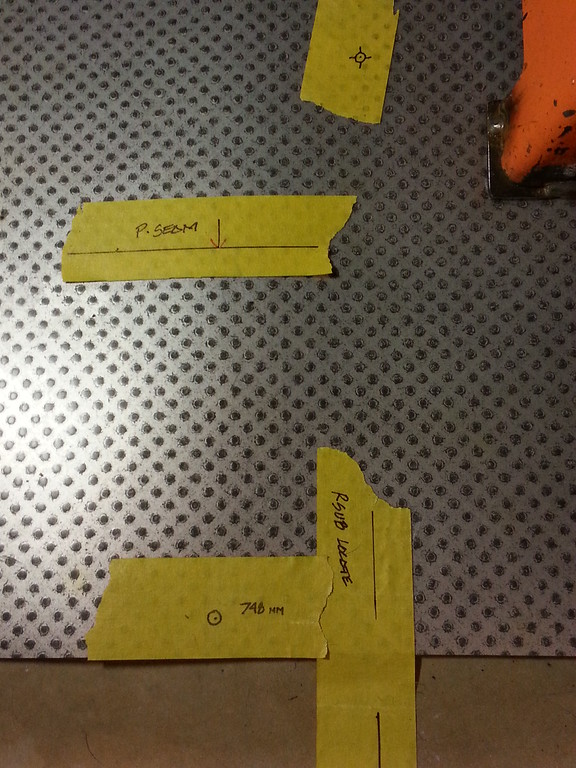

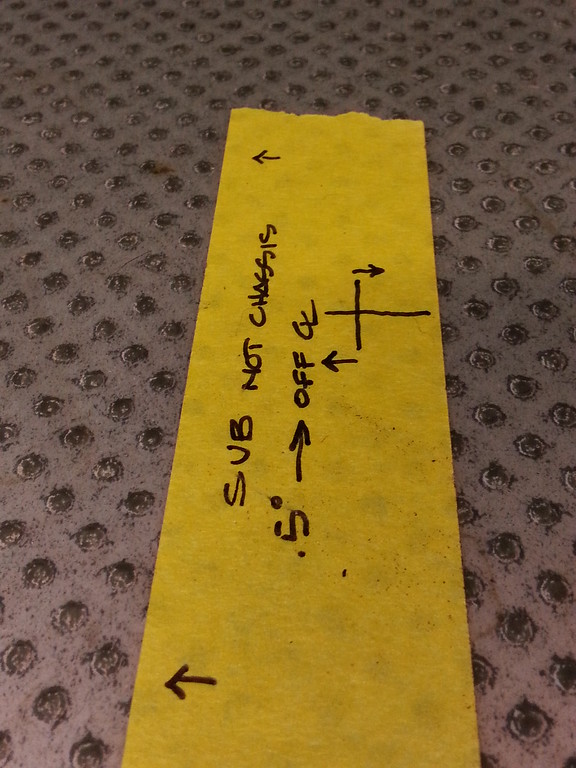

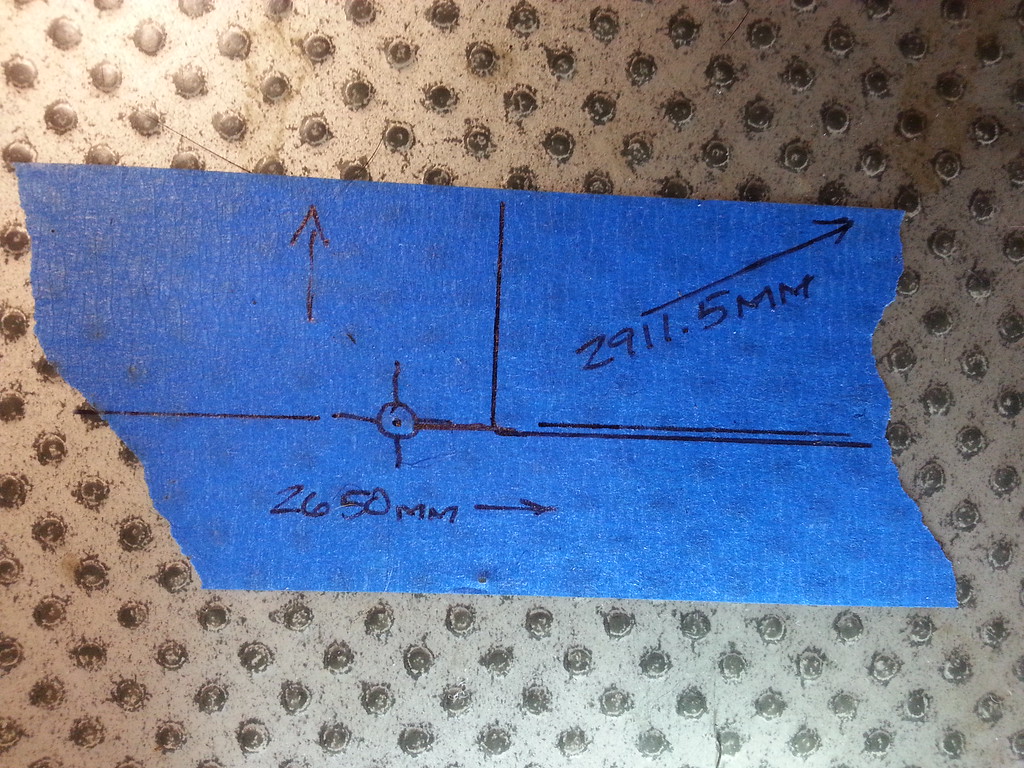

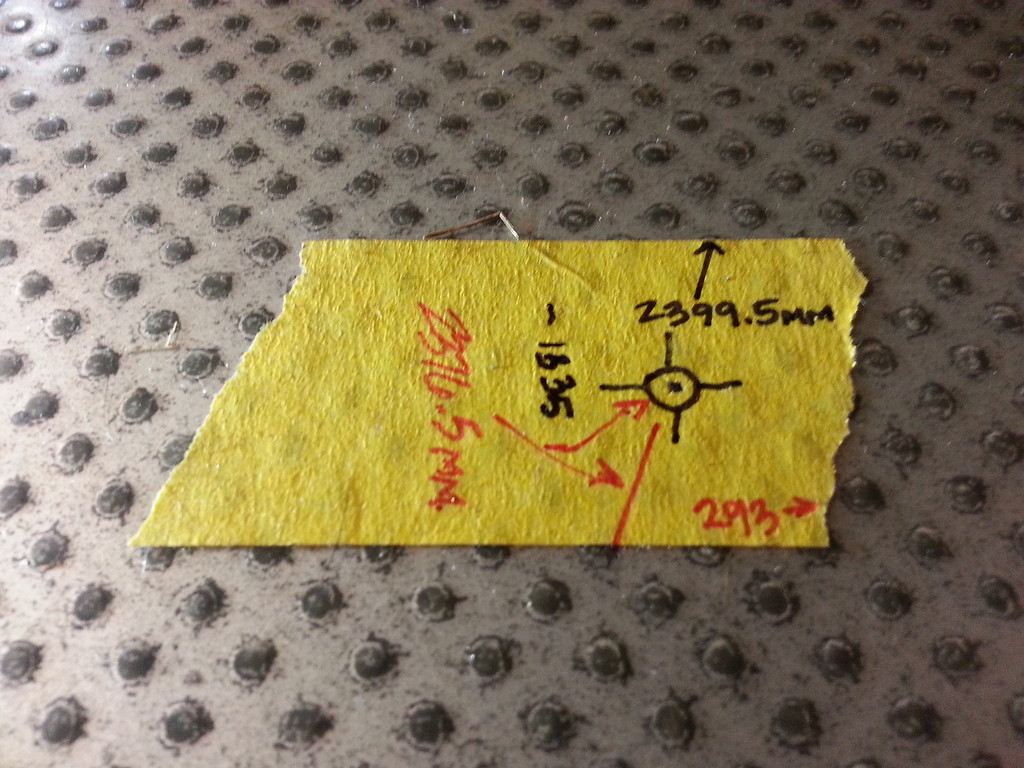

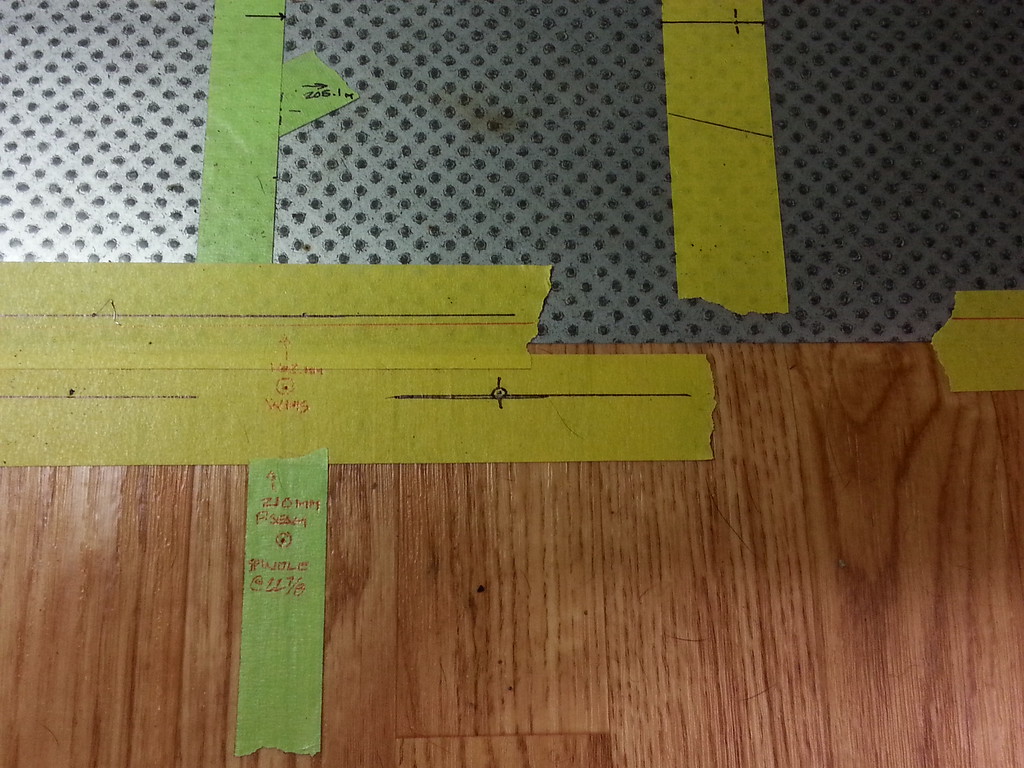

Pictures? You want pictures? Here ya go Mate:

[Sieg]

Tedious work is an understatement. My core strength/tone has improved as this has basically been 4+ day palates workout.

Not having a means to accurately replicate the acquired data points in the future is frustrating. Wishing I had copied Stielow's hitch ball jackstands and locating pockets as those would give you a chance of accurately duplicating data. Though without a surface plate the measurements are still only approximates.

The upside is the measuring techniques I've learned will apply to future fabrication projects.

To summarize: I'd suggest slamming your appendages in the shower door until you come to your senses, then go find a shop in your region similar to BMR and throw your wallet at them.

[Sieg]

Originally Posted by 57hemicuda

That is why I stressed using the pinch welds, on a subframe car the pinch welds are the only true constant. The rest of the car (subframe, rear, etc., etc.) can be way off. If referencing suspension off of a subframe that is crooked in the car your wasting your time.

Its easy as falling off a log. Level the car on stands, 4 plumb bobs vise gripped to the pinch welds, mark floor with tape, making sure the tape is square, and measure away.

I'm getting there today buddy! All the references I have created are good to verify square once true square is established.

Those pinch welds on the rocker being the one source of true square exemplifies how crude these cars really are.

4 plumb bobs and 4 vice grips..........you're one rich sob. Harbor freight micro bar clamps are $.99.........3 more plumb bobs is an issue for those of use in the pro-tinkering class!
