I prepped my "CAD" table and started building to scale, my rear back-half.
Using a 1:1 scale my chassis is 3x3 and I laid it out how to best be used for the bag on bars suspension and the rest of the parts that need to be inside of it.
IE fuel tank, air tank, compressors, floor bracing ect.

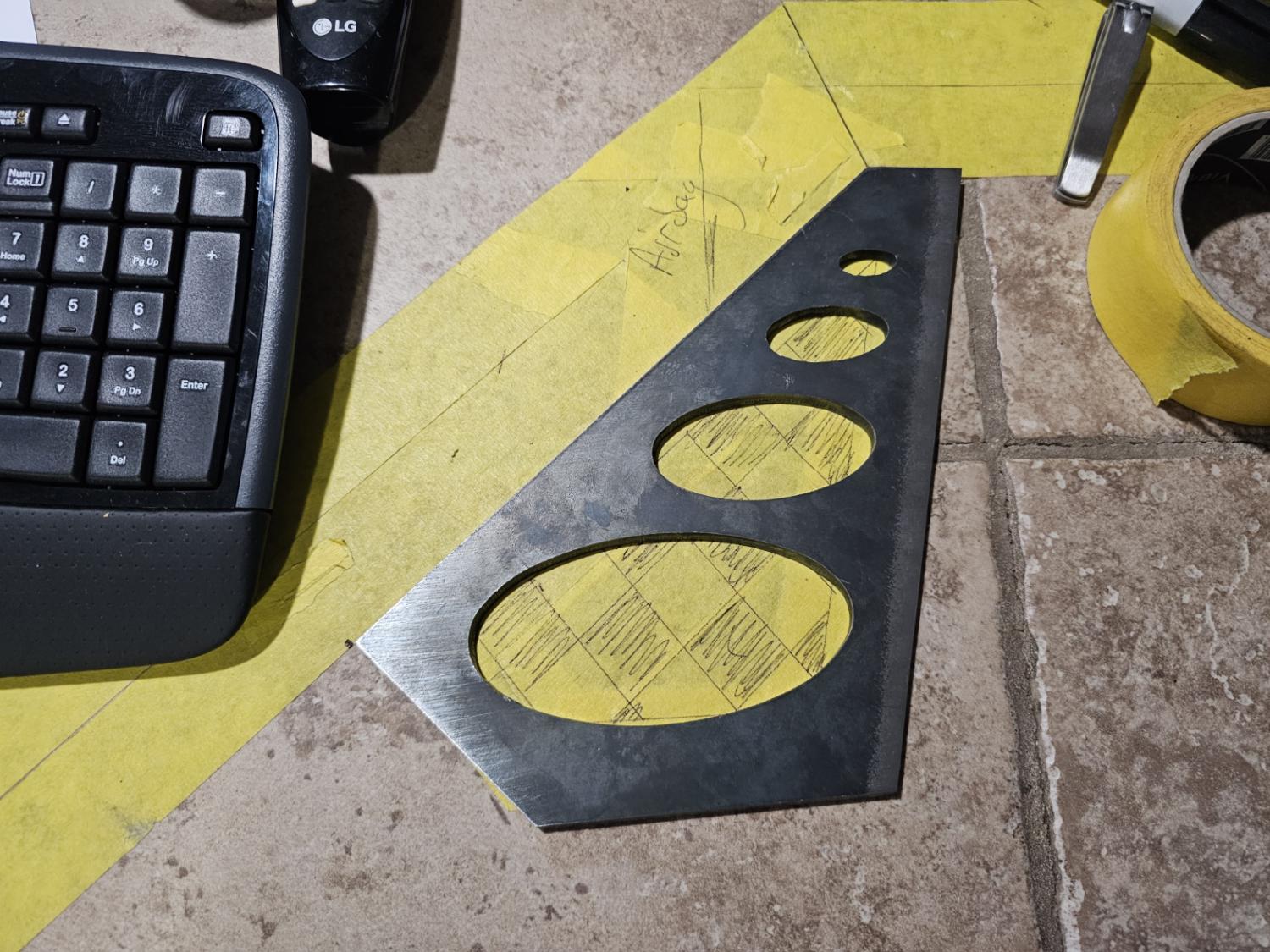

Once I got everything lined up to where and how it should look, fit and work, I made some templates for some CNC cut brackets for the lower 4 link bars, and the upper air bag mounts. Hopefully these are done this week. I used oval holes instead of the normal circles for ‘speed holes’.. I might use this oval theme throughout the build.
I’ll start piecing together the back half and get them all tacked together.
The front ‘s10’ suspension portion/clip/frontend needs to be clearance for the air bags, and then it can be mocked up under the front fenders to see where the frame splicing will occur. I will install the front wheels, upper/lower control arms onto the frame piece to make sure the wheels are centered in the wells. I build them so when they are aired out the wheels are centered. I don’t really care if they’re not centered when driving down the road. It’s sitting, aired out, that matters to me.
Enjoy the pics…
The Following 2 Users Say Thank You to bk2life For This Useful Post:

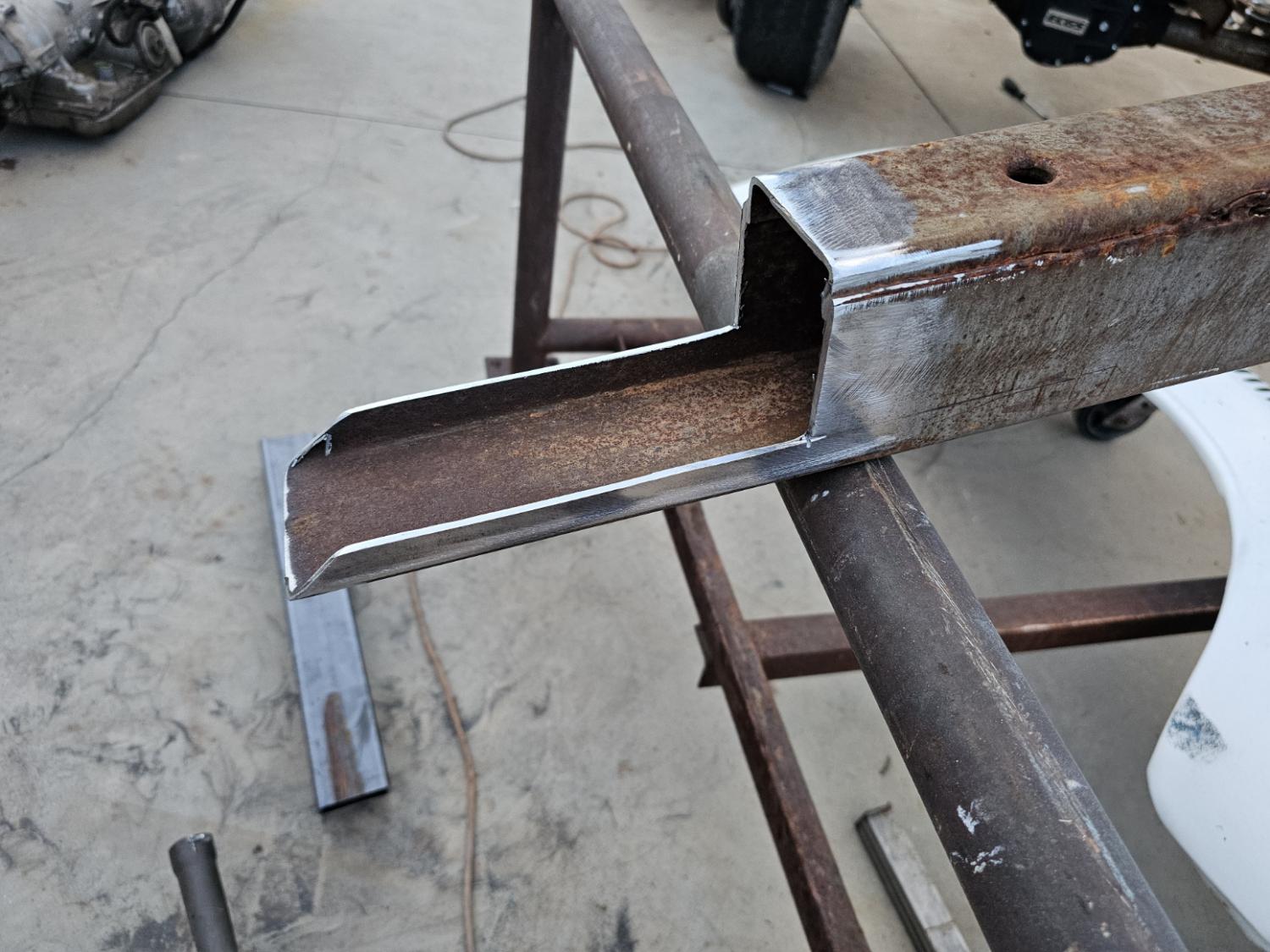

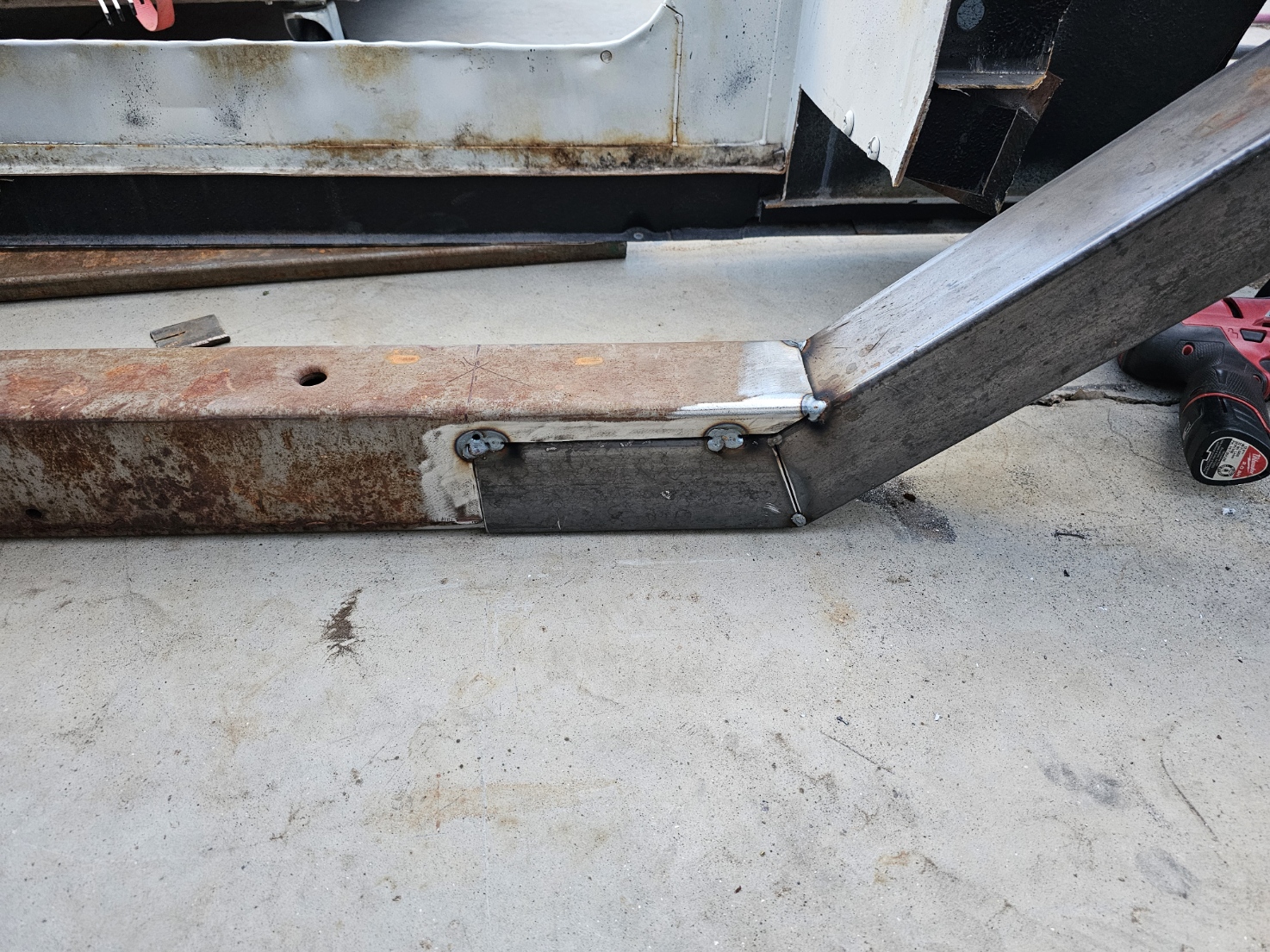

it was kinda neat attaching the 1963 frame rail to the new 2024 frame rails..the stories that could be told of the last 61 years.
ill next be moving up to splicing the front suspension to the frame rails.
then we'll have a near complete chassis again. I wanted to keep a piece of the original Scout frame, instead of complete new rails from the rear to the front crossmember. Something for a bit of nostalgia for me.
My trans builder has an core 4l80e case for me and i had him take it apart so its just a case. Much easier to move an empty case around when making motor/trans mounts.
Once everything is tacked together I'll smooth everything out, grind down the old scout brackets, plus the ones i have installed for off-roading over the years.
Still have to clearance the front for the air ride.
Then everything will be sent out for powder coating. I think the engine will be painted body color, but not sure yet. I don't want too many other colors being involved.
The Following 4 Users Say Thank You to bk2life For This Useful Post:
Keep posting the updates as I am looking forward to more posts.
I will, It'll slow down for this week as I have a another chassis i have to ready for customer to approve and then strip to send out for powder coating.
-you know, customers are always first as they pay the bills
