Nothing like when you see some positive results.

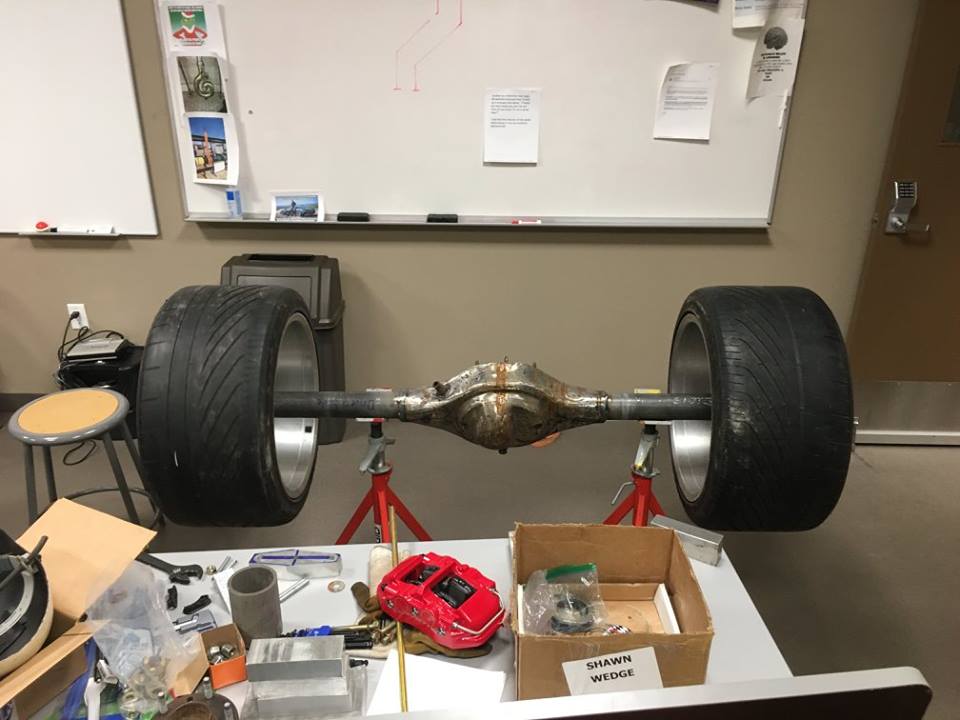

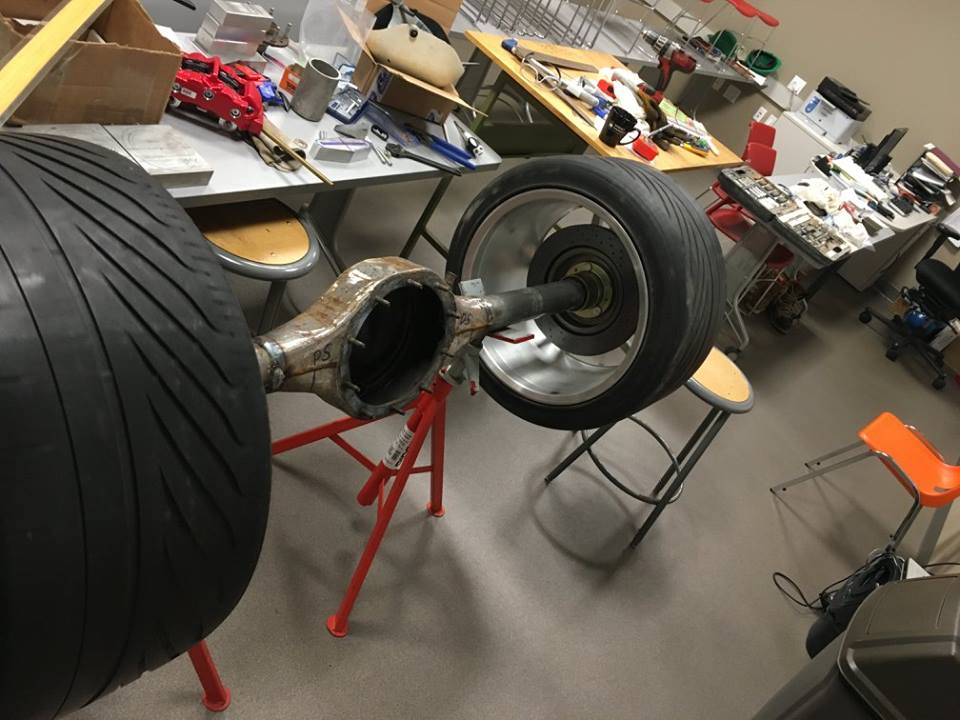

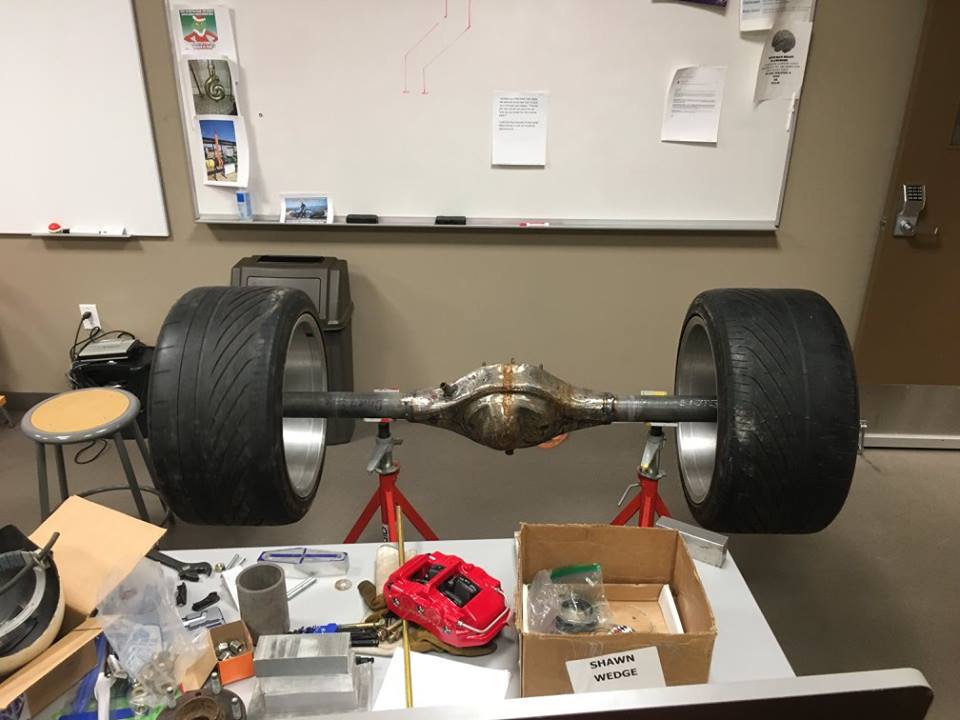

The rear end with the tires and rims attached just plain looks cool.

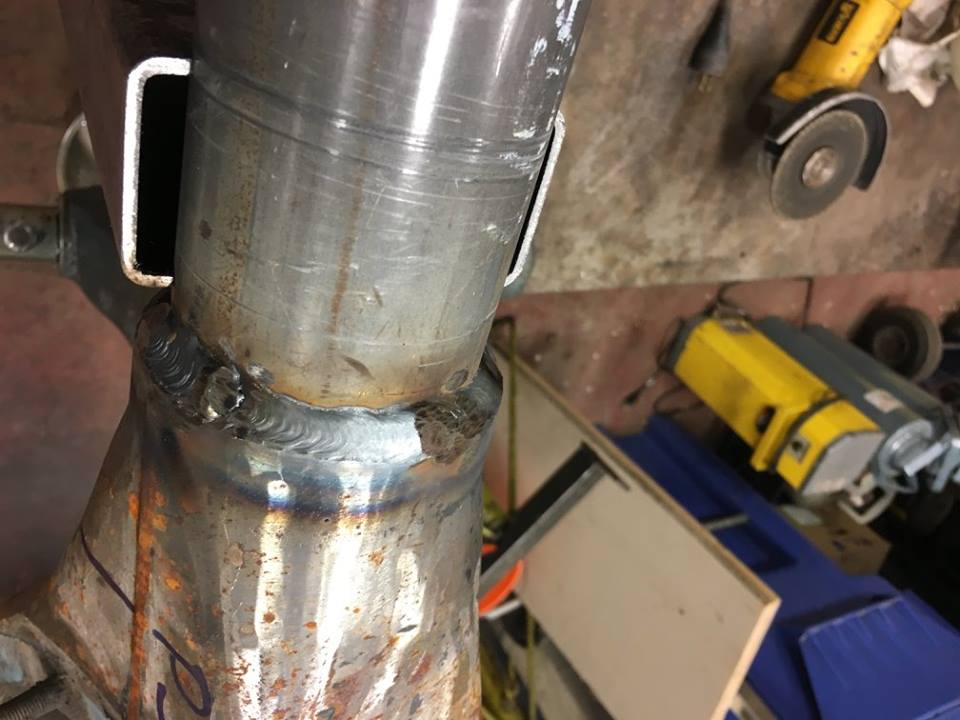

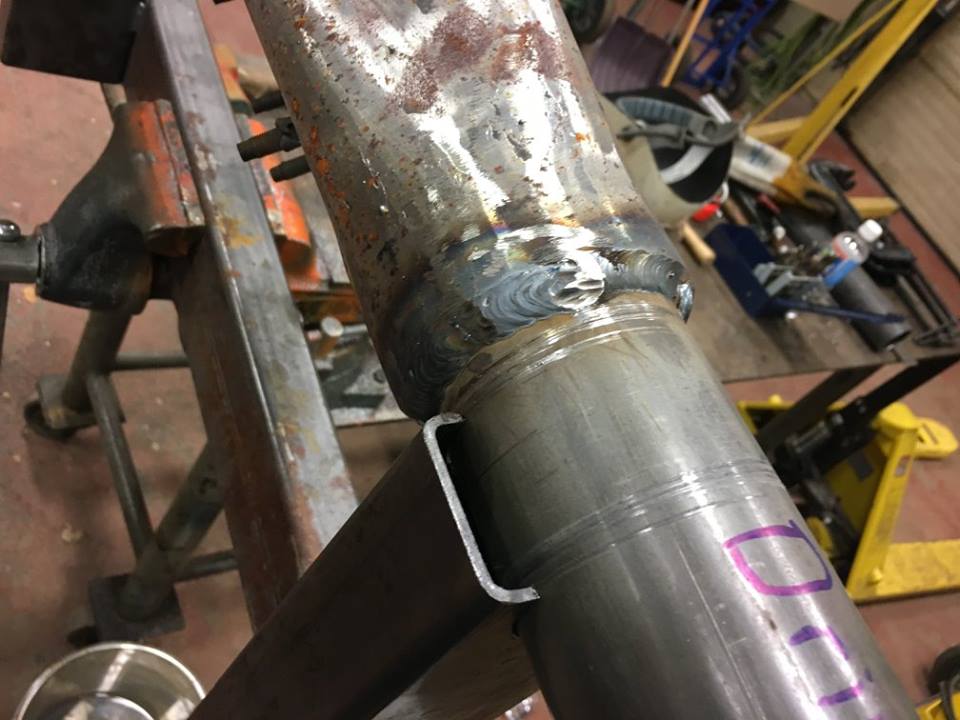

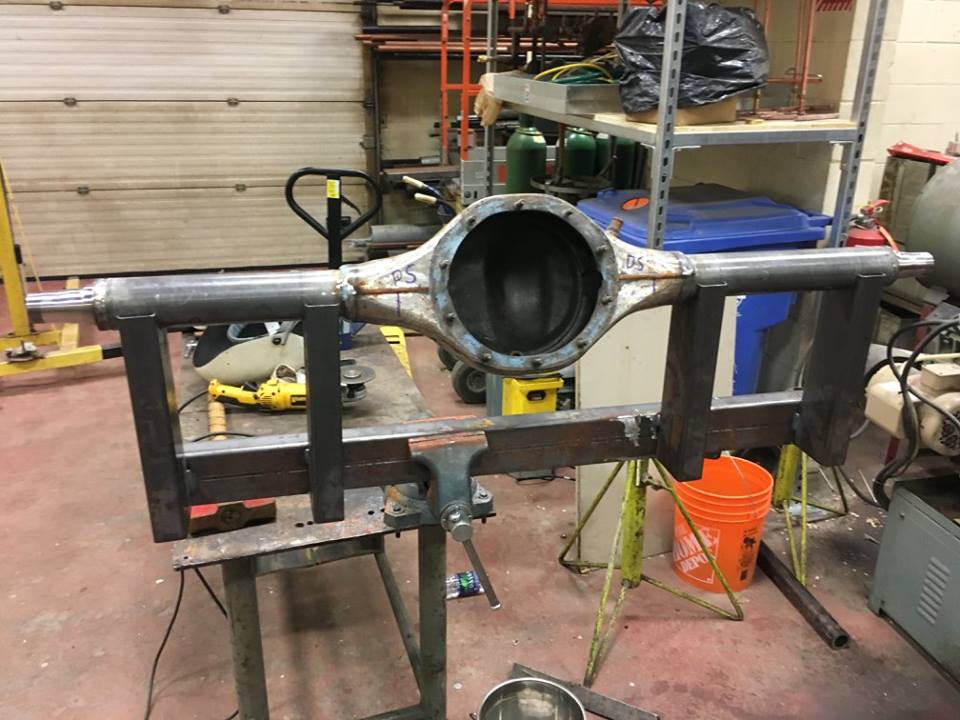

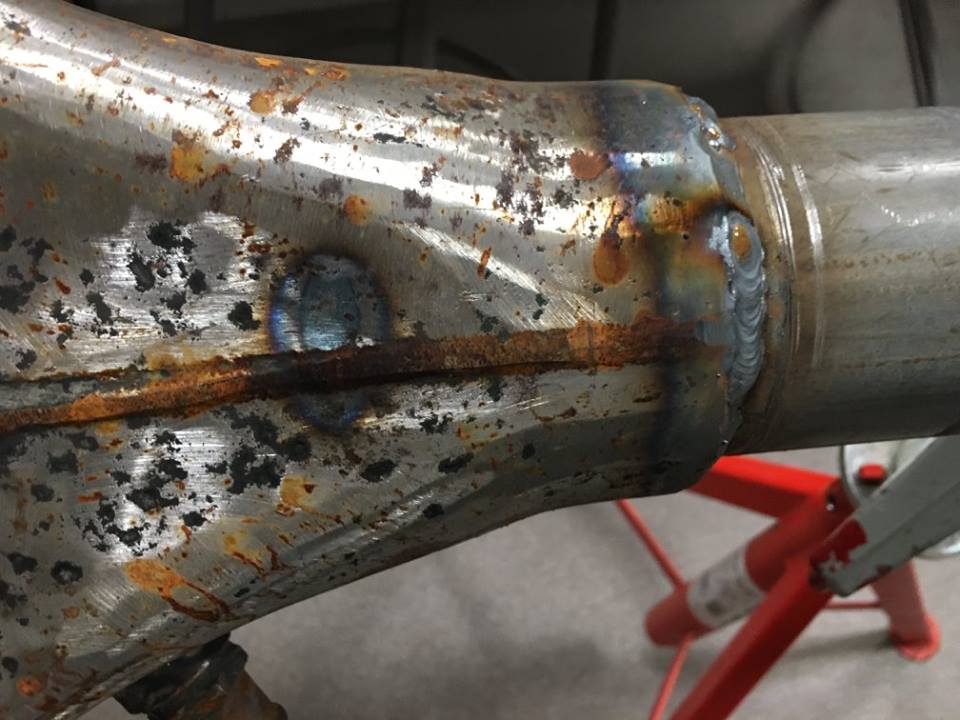

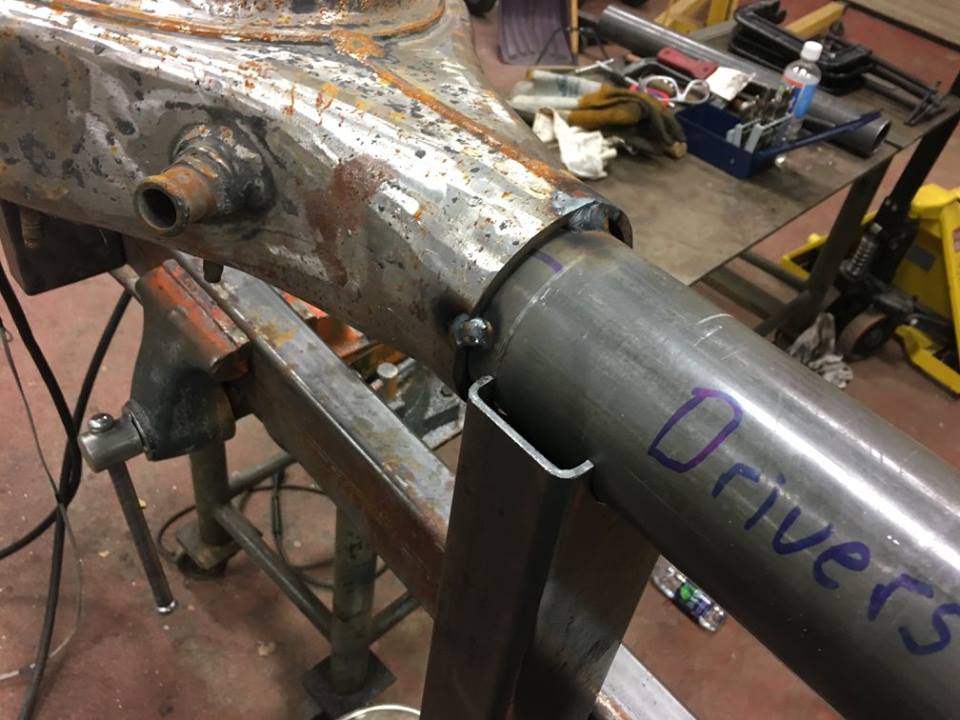

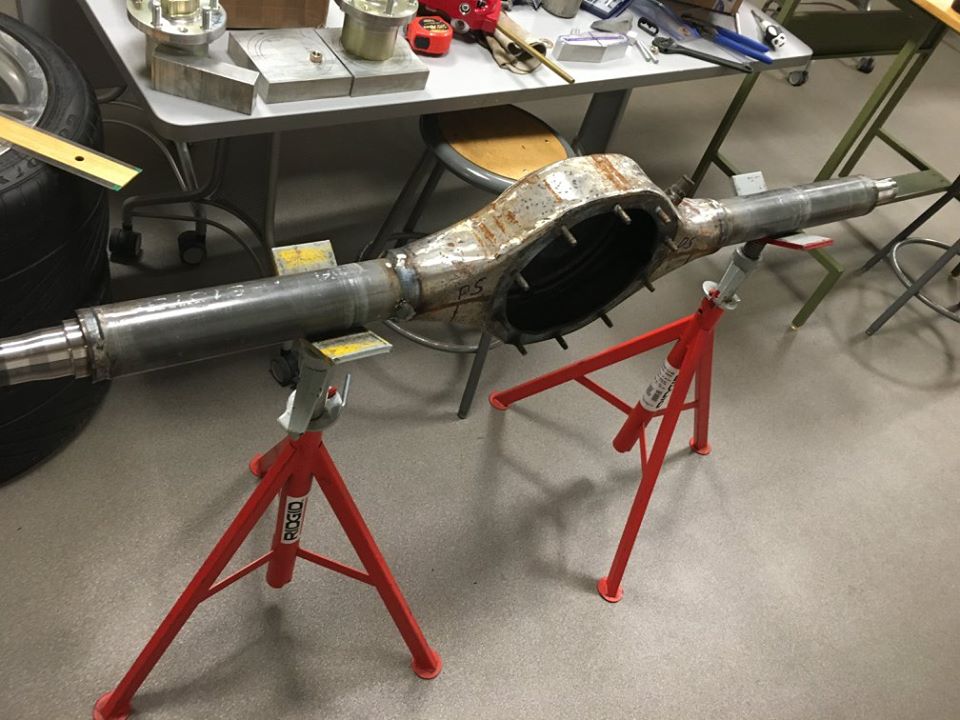

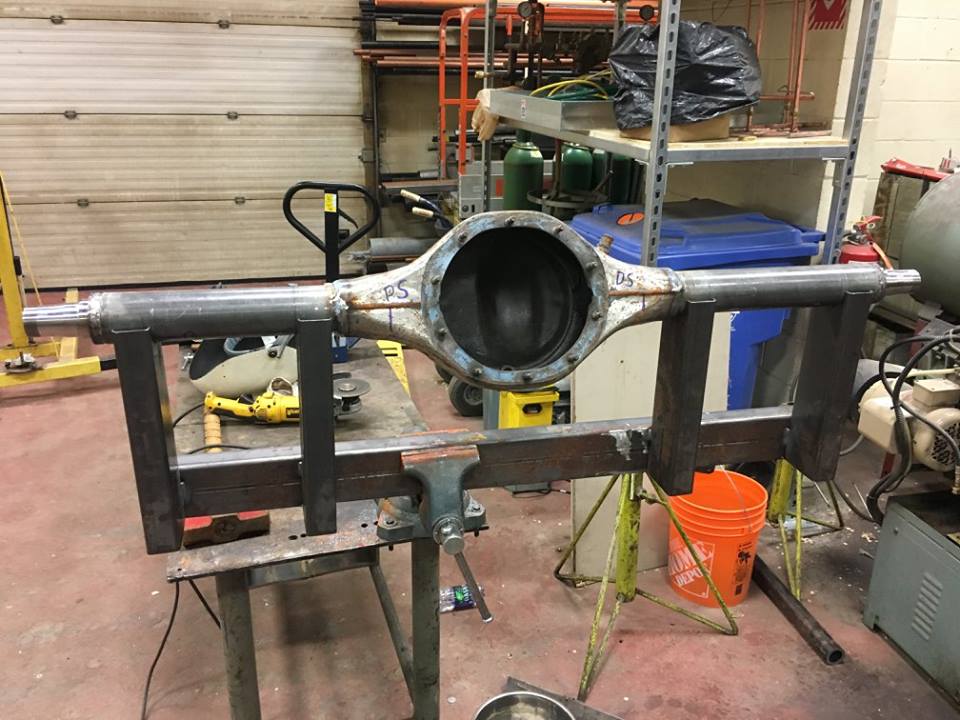

We tacked it all together and then checked for straightness. Then we welded a quarter at a time and switched to opposite sides and checked for straightness. If it couldn’t roll cleanly in the jig we moved the welding around until it did. While I don’t do it here we did a roll test later and the tape measure never moved at all. VICTORY is mine, BOW BEFORE ME!
Ok I got a little out of hand……………………..
All welding to this point was done with a Lincoln SST machine at my Union hall. Nice to have the big power machine when welding this stuff. Thanks to my friend Brent Johnston for telling me the good settings for that machine. These are not your Harbor Freight welders, you actually have to know what you are doing to set them. That will seem funnier much later, believe me.
https://lateral-g.net/forums/attachm...1&d=1615687249

[egoman]

Pics and more pics, LOL
https://lateral-g.net/forums/attachm...1&d=1615687359

[egoman]

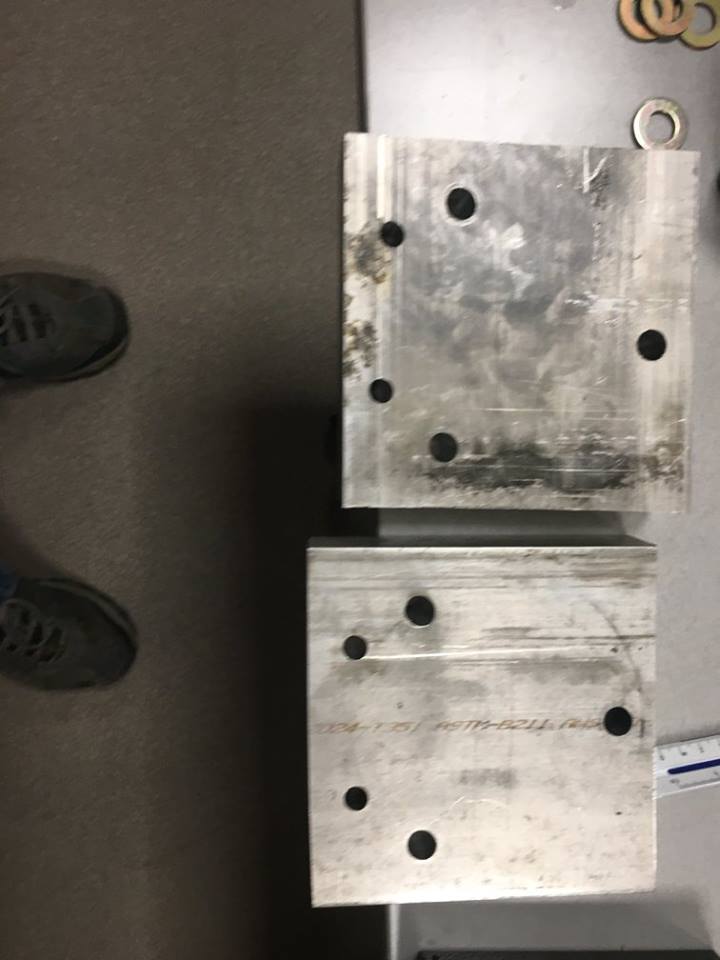

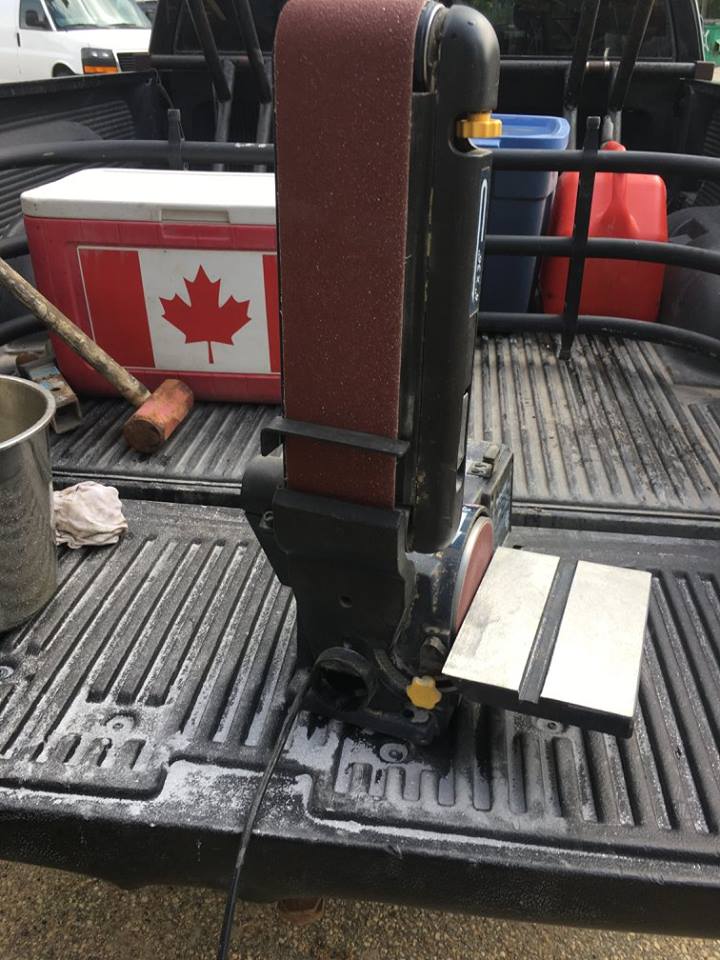

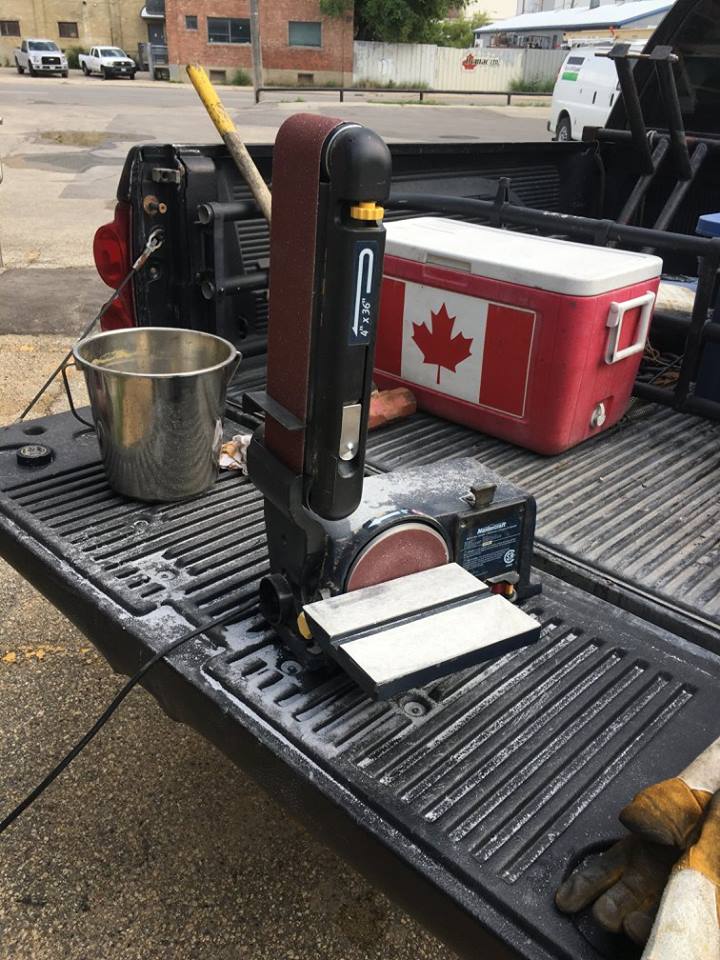

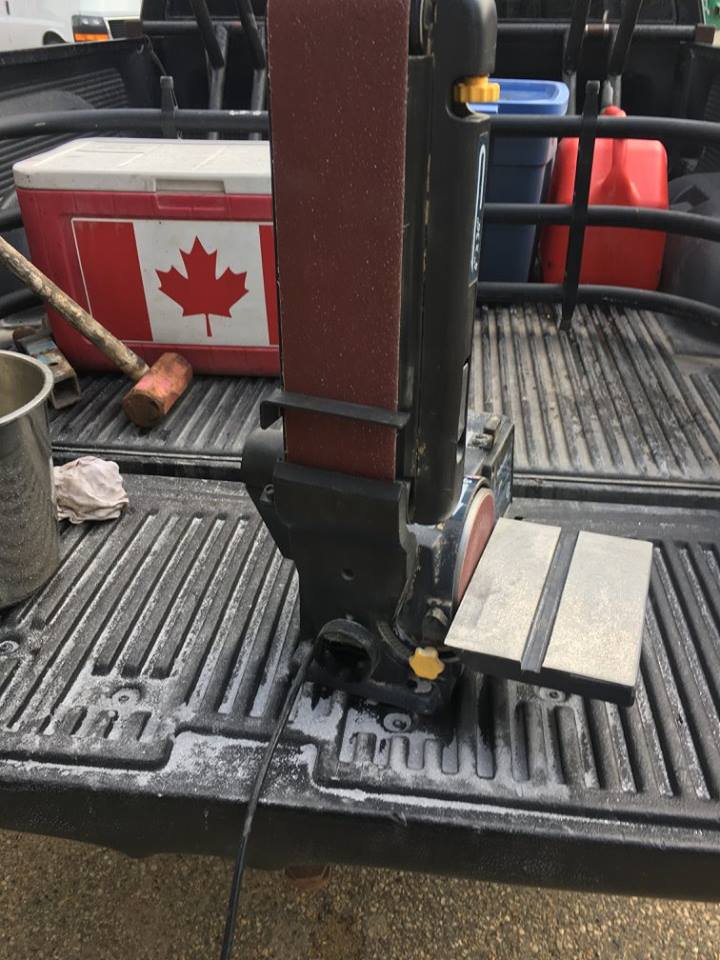

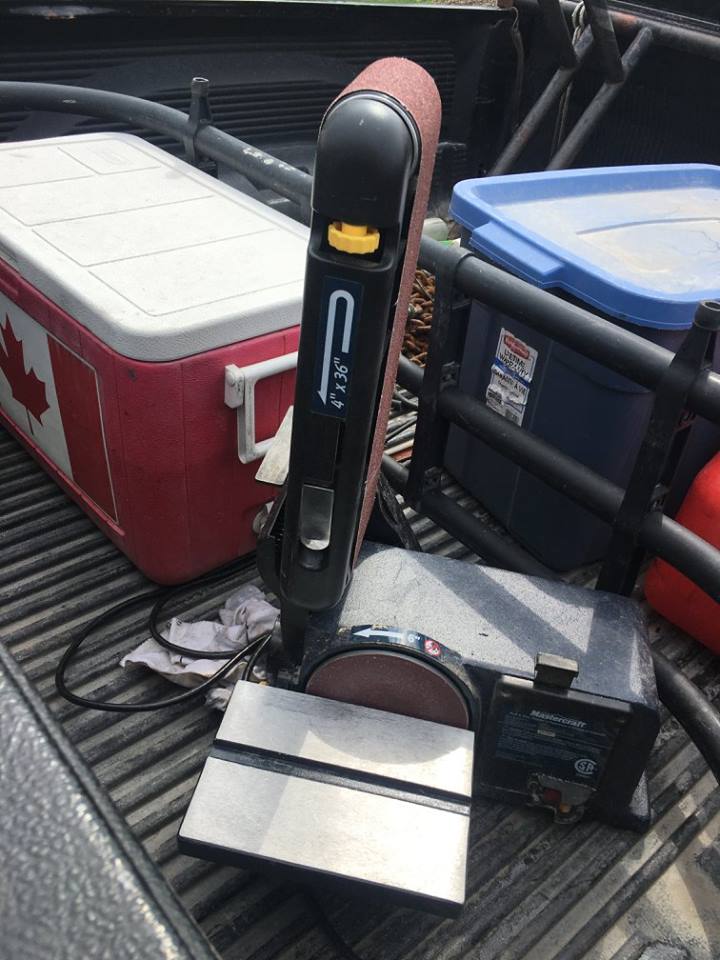

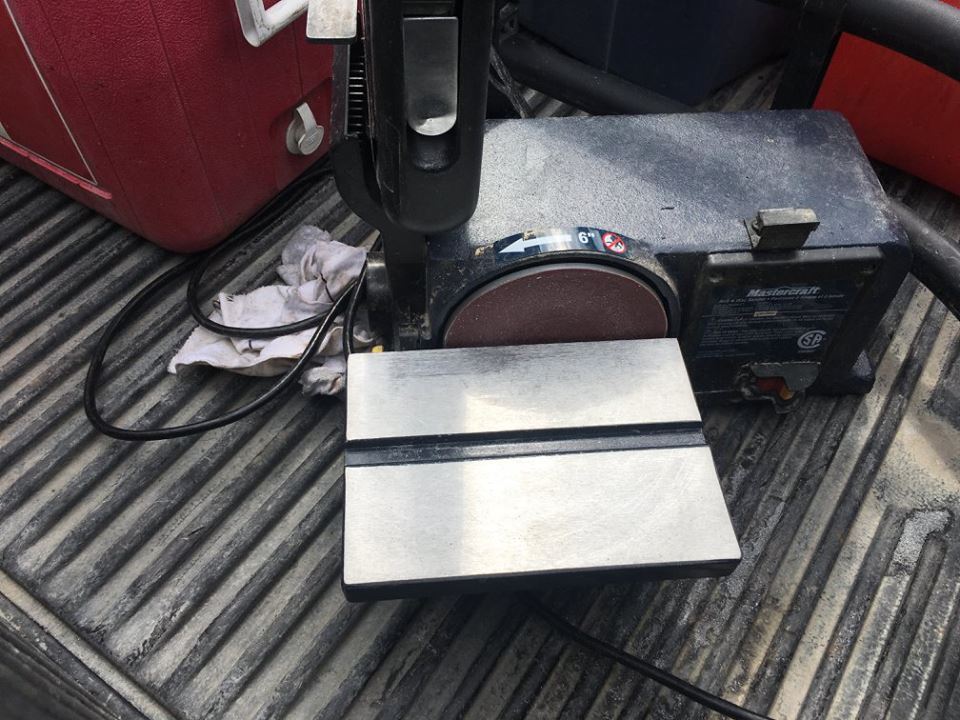

More going on here that it appears. Now I could have borrowed my buddy David’s belt sander and effed it up royally or I could go on KIJIJI and see if anyone has one for sale. Yes a quick check found on for 60 bucks and it had a few belts with it. I learned years ago from watching a sprint car builder named Jerry Frantzen that sanding aluminum looks good and gets rid of weight. I actually raced one of his sprint cars for a few years when I was a hero in the division. Well at least as far as drinking beer and telling stories makes you a hero.

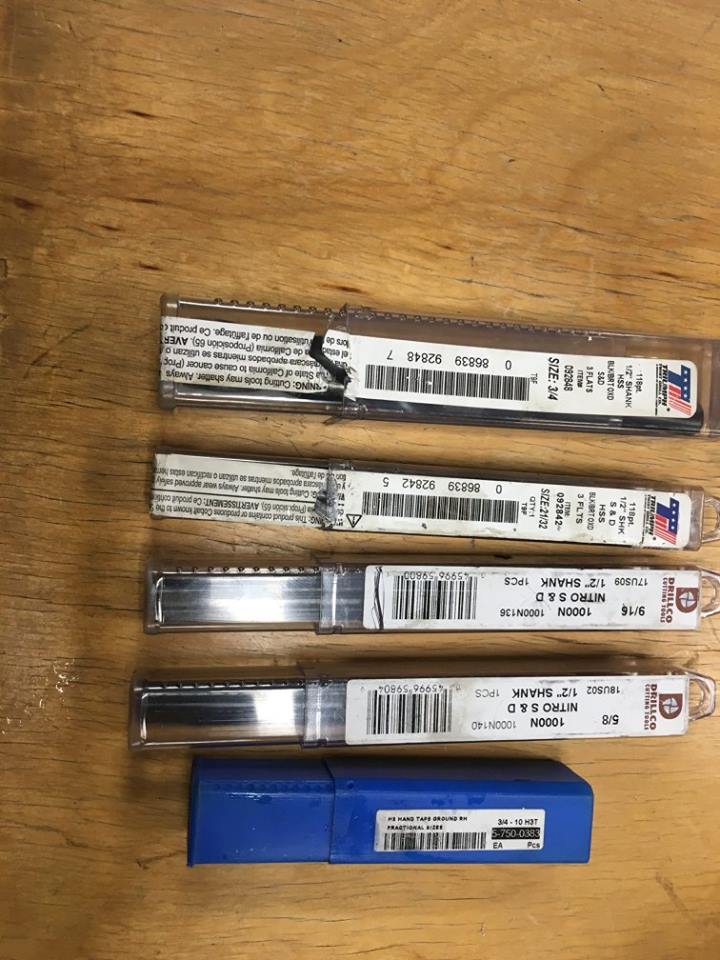

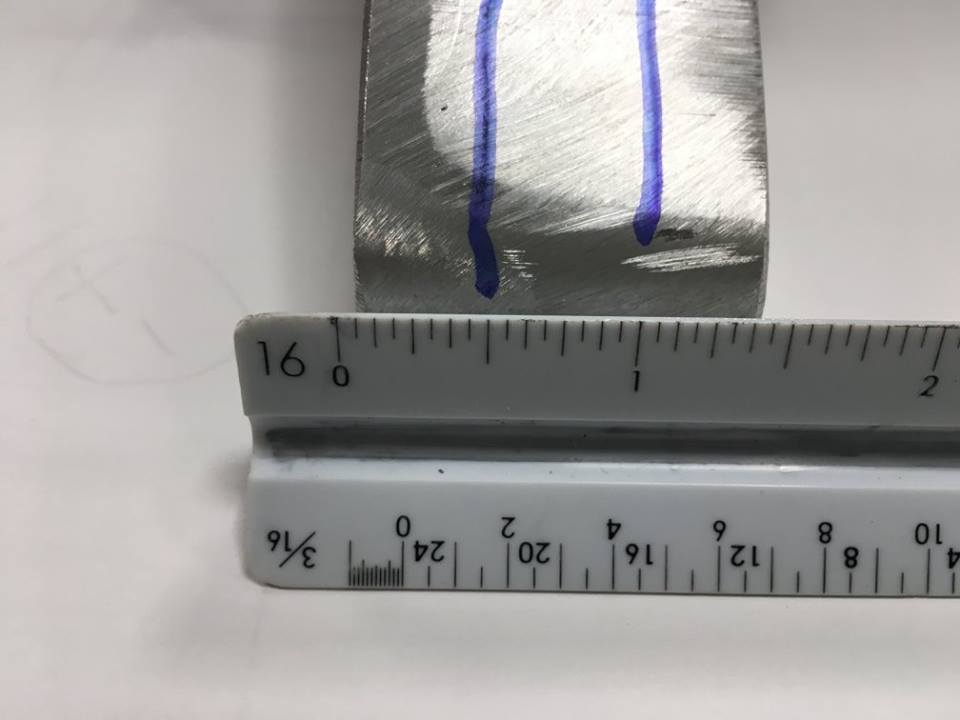

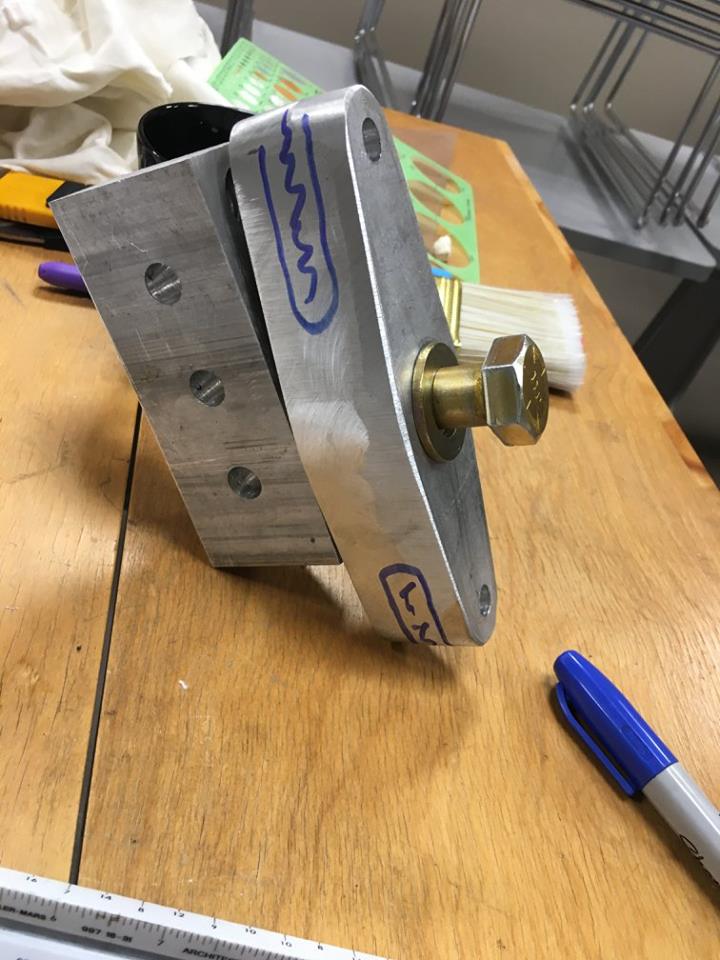

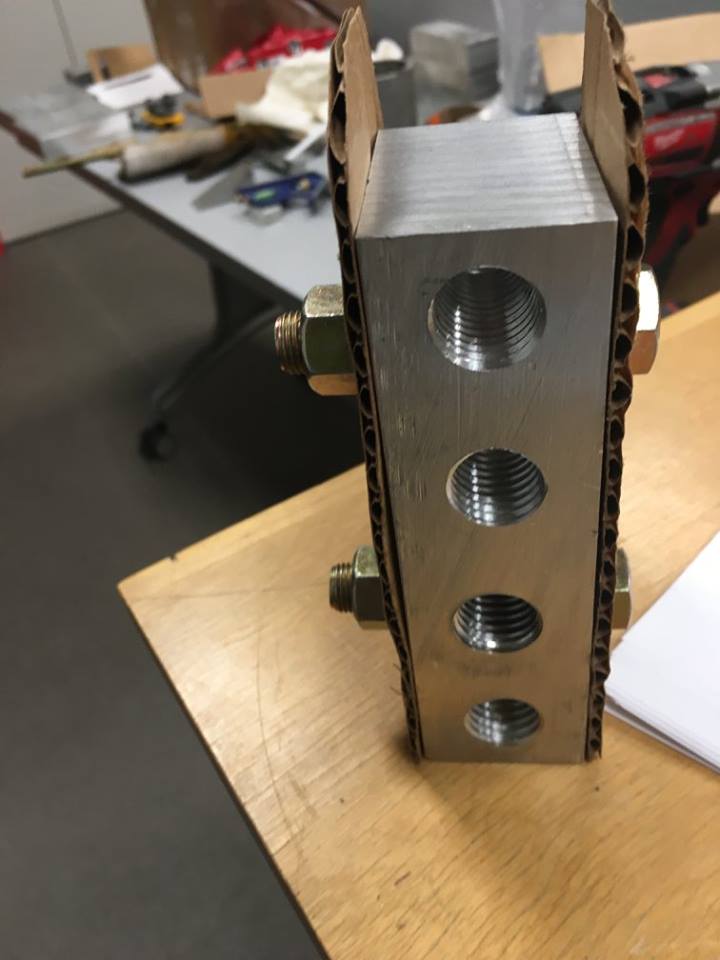

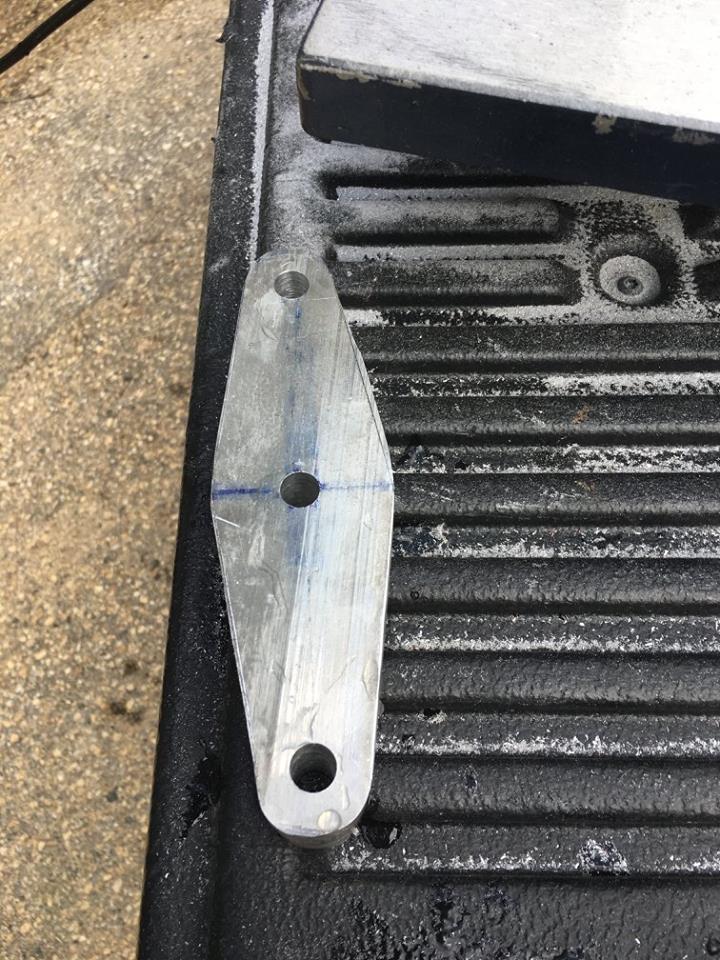

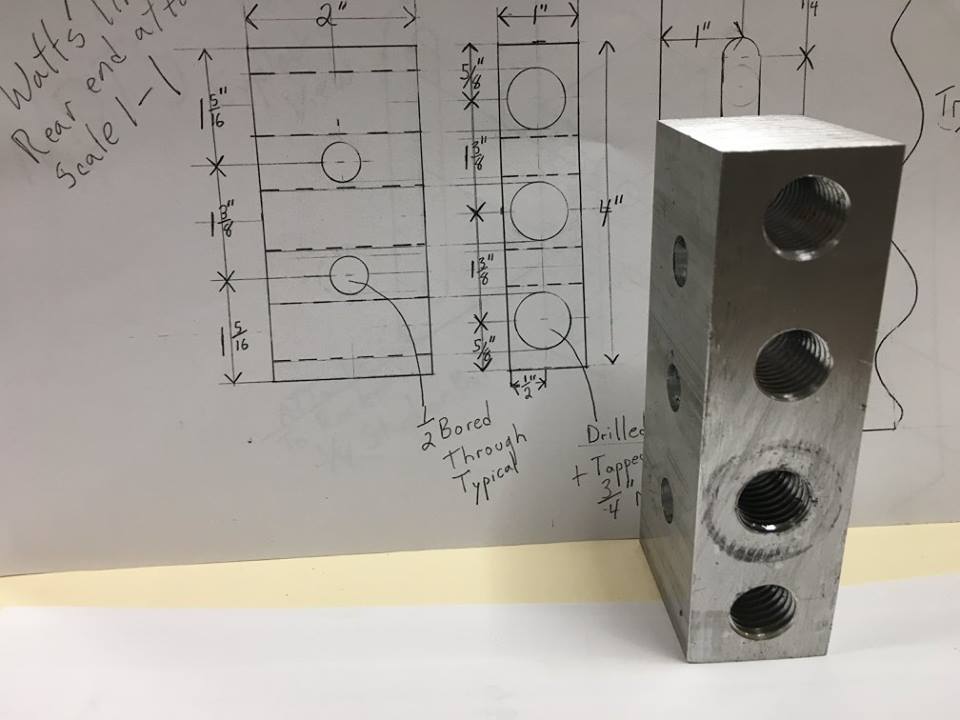

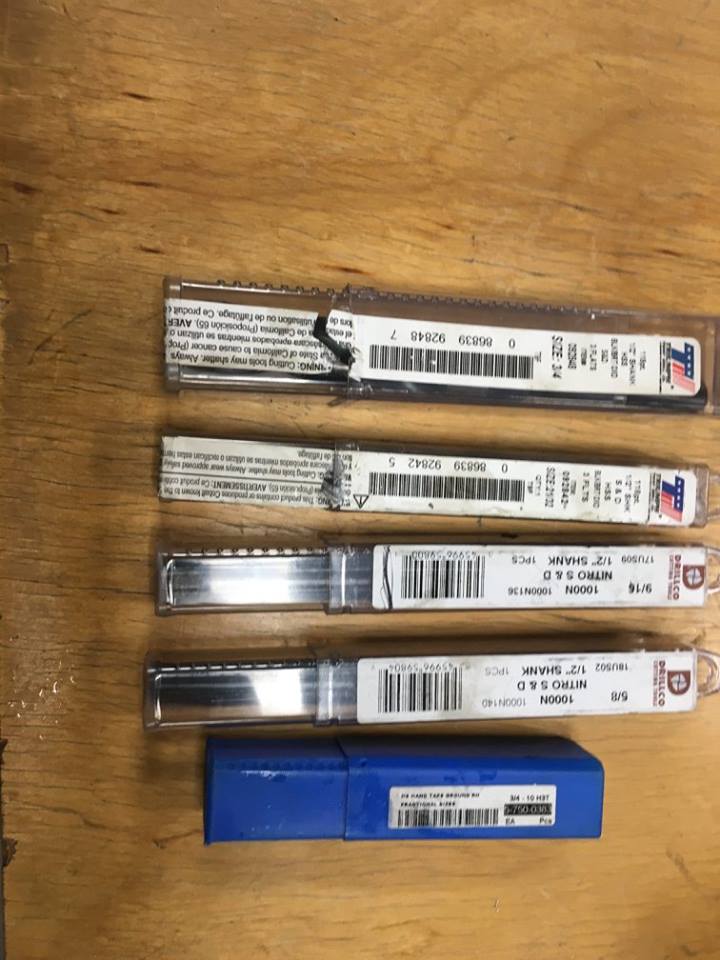

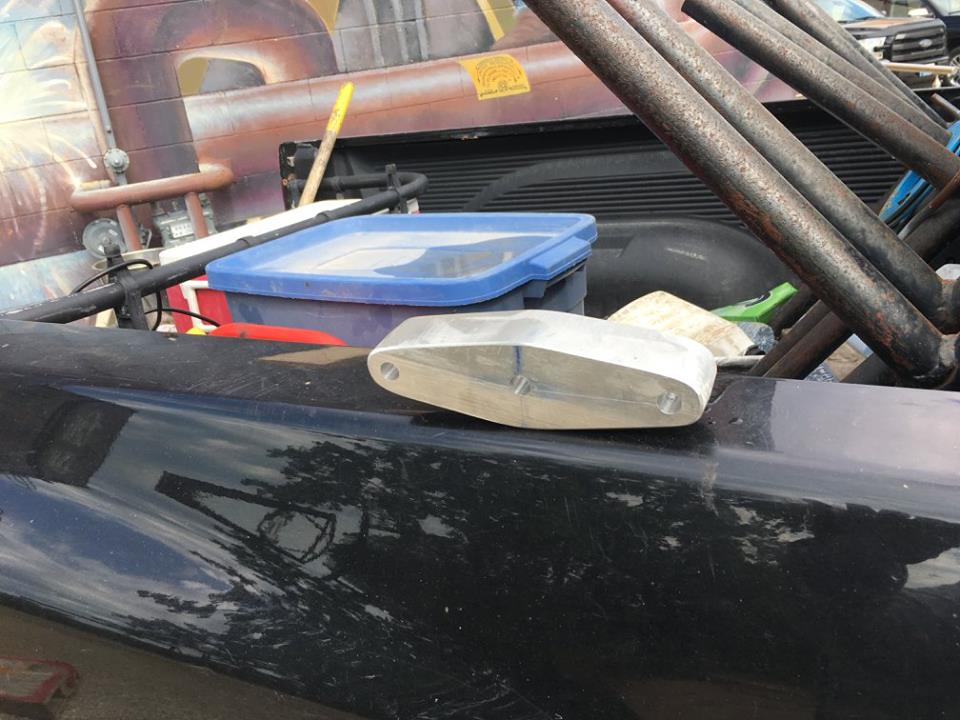

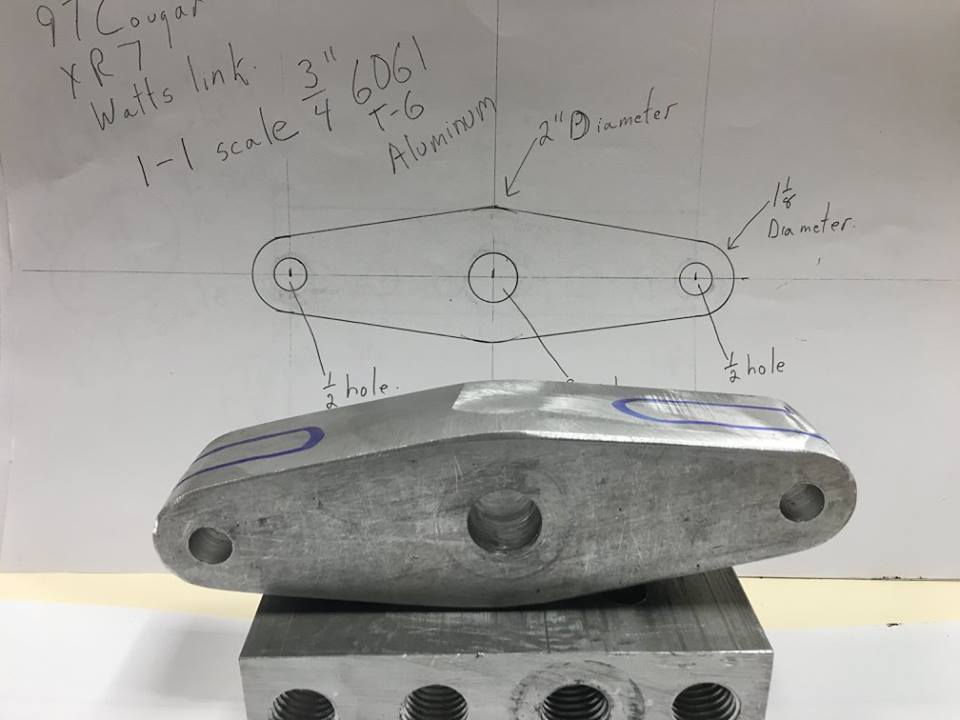

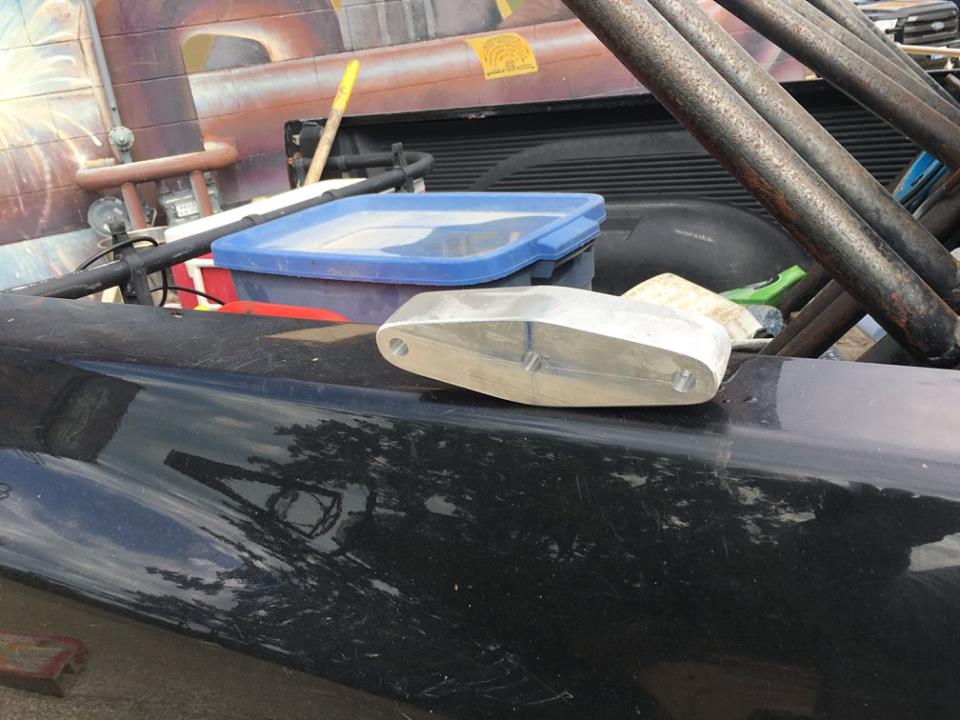

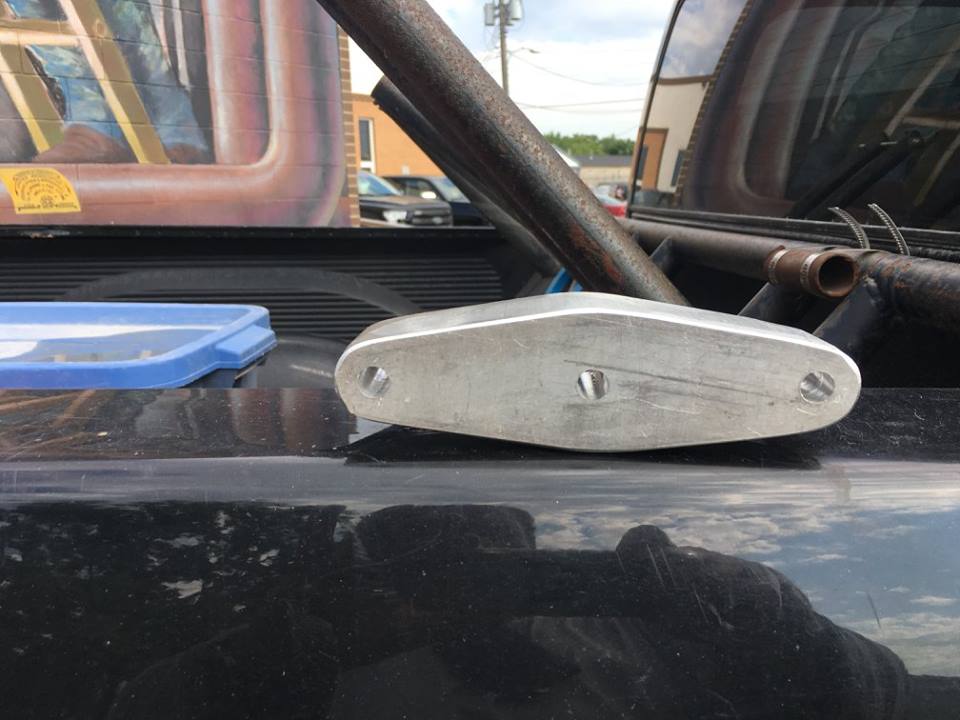

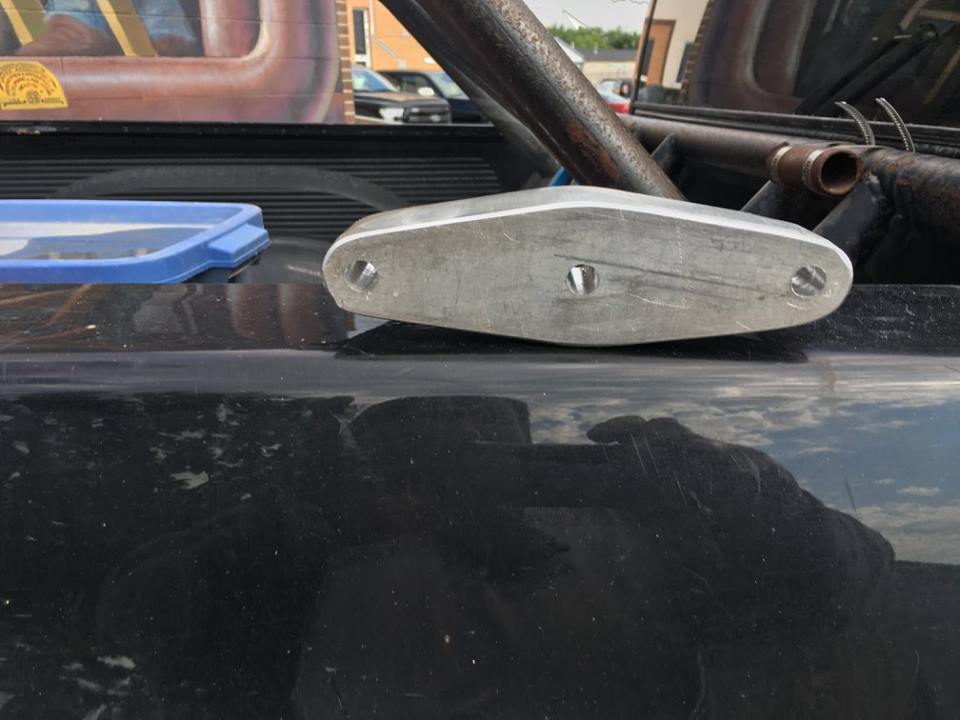

Those 4 drill bits and that tap was the best part of $200. If you look at my parts and my drawings you will also see what I said earlier about sometimes the part only uses the drawing as a suggestion. Also I went with a thicker piece for the watts rocker and switched to a double shear design to capture the ½ inch rod ends.

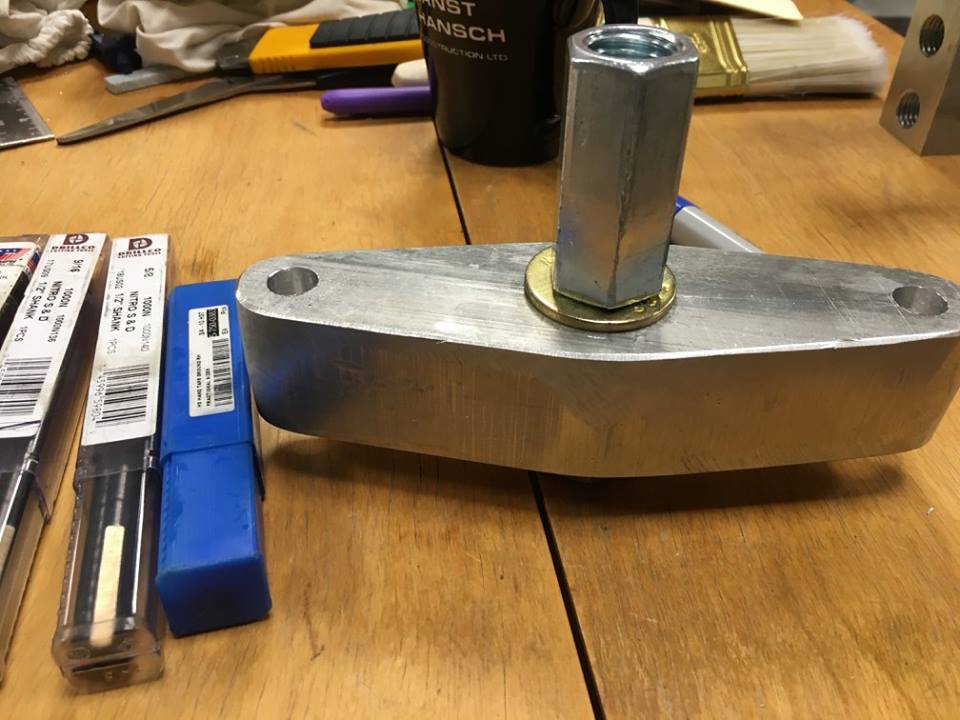

If anyone is wondering about the ¾ rod coupling bolted to the rocker, I may tell you later and I may not. I mean honestly I actually drew it out for you, sorta?
https://lateral-g.net/forums/attachm...1&d=1616018080

[egoman]

I warned you guys that I ost lots of pics. Here are a lot of pics LOL.
https://lateral-g.net/forums/attachm...1&d=1616018253

[egoman]

More!!!!!!!!!!!!!!!!https://lateral-g.net/forums/attachm...1&d=1616018379

[egoman]

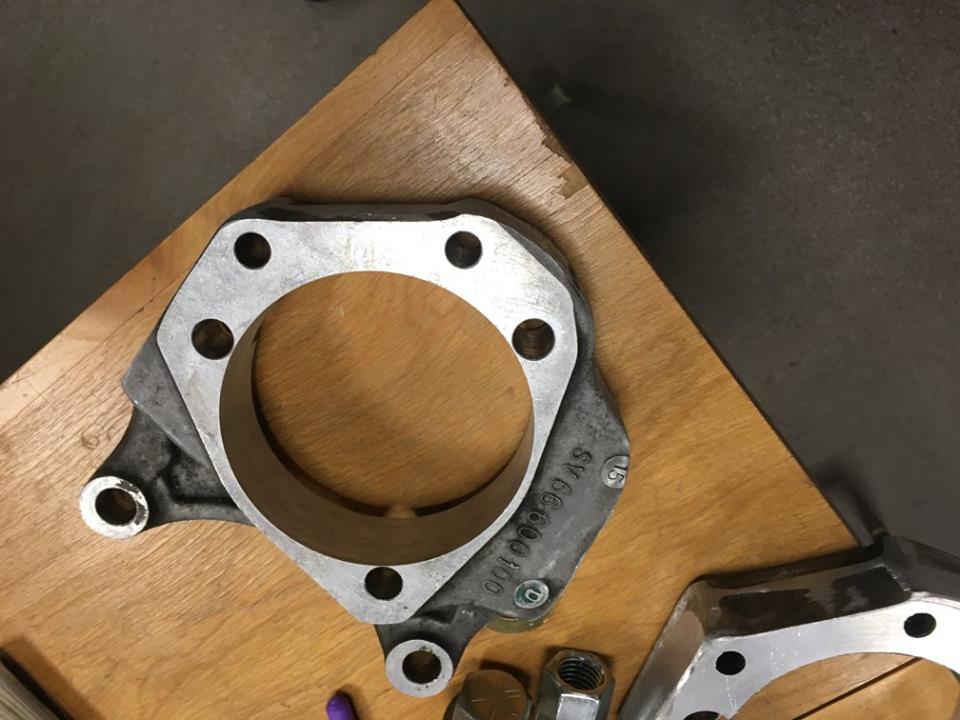

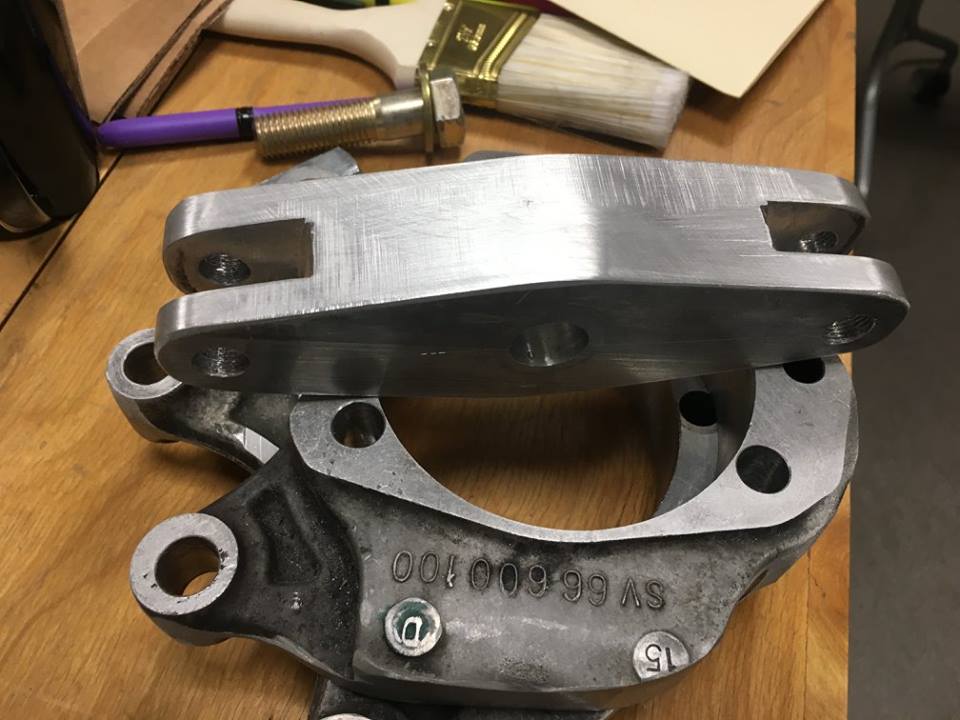

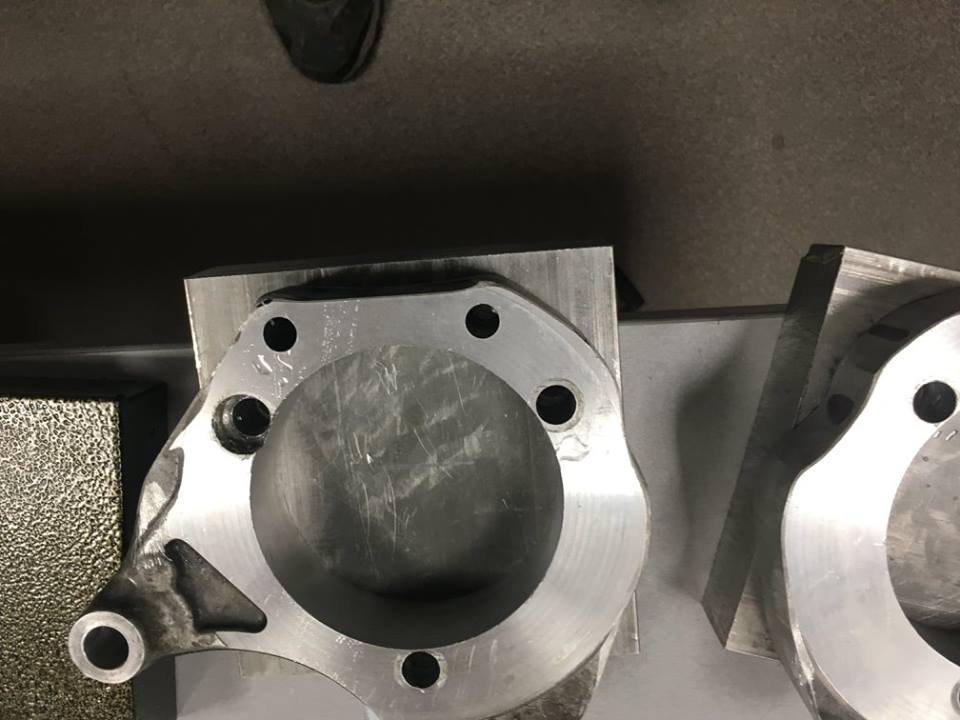

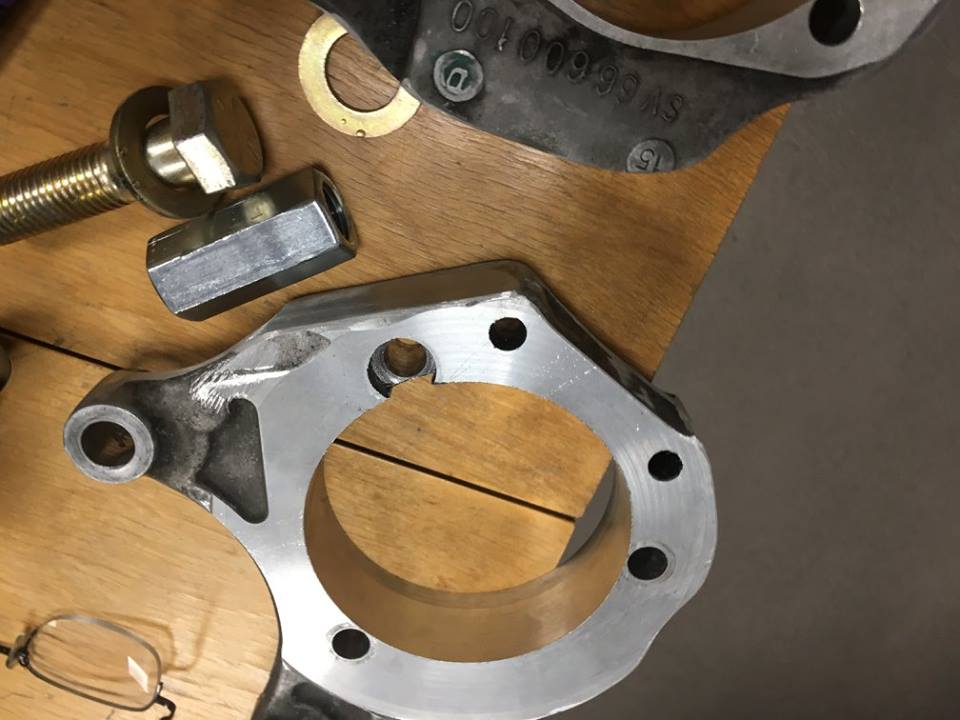

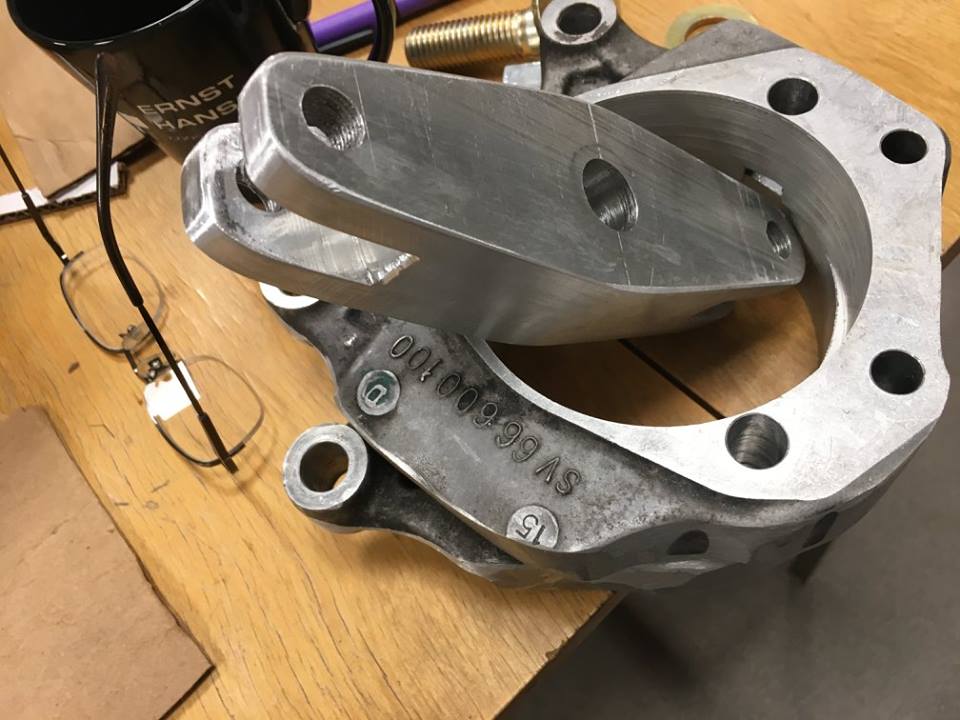

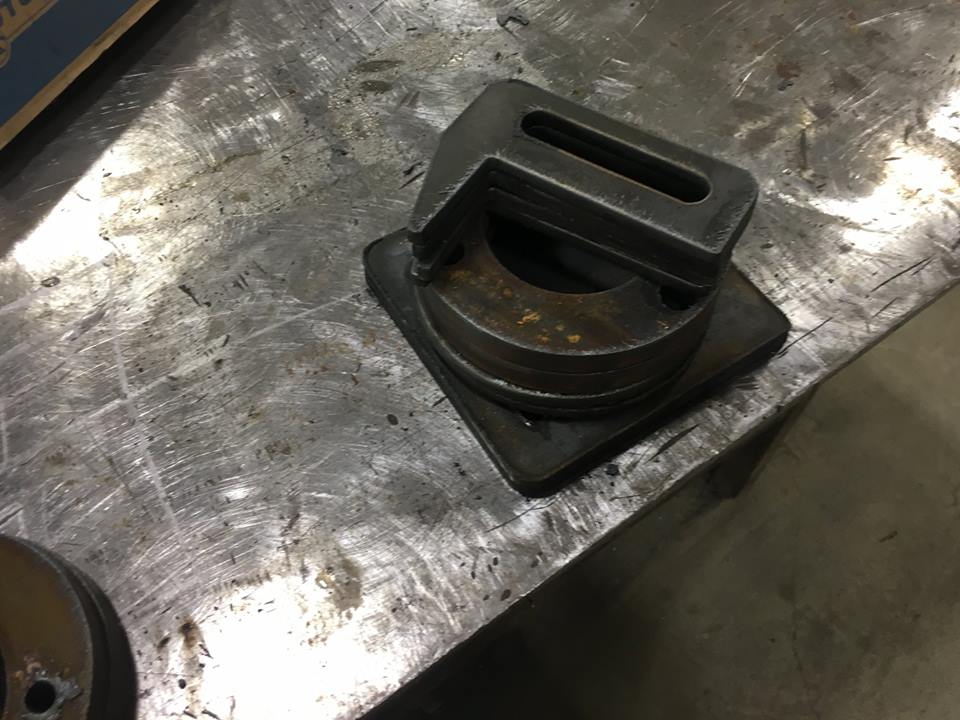

Here you can see how I am reducing the spindles to their simplest form to use as a bracket for the floater.

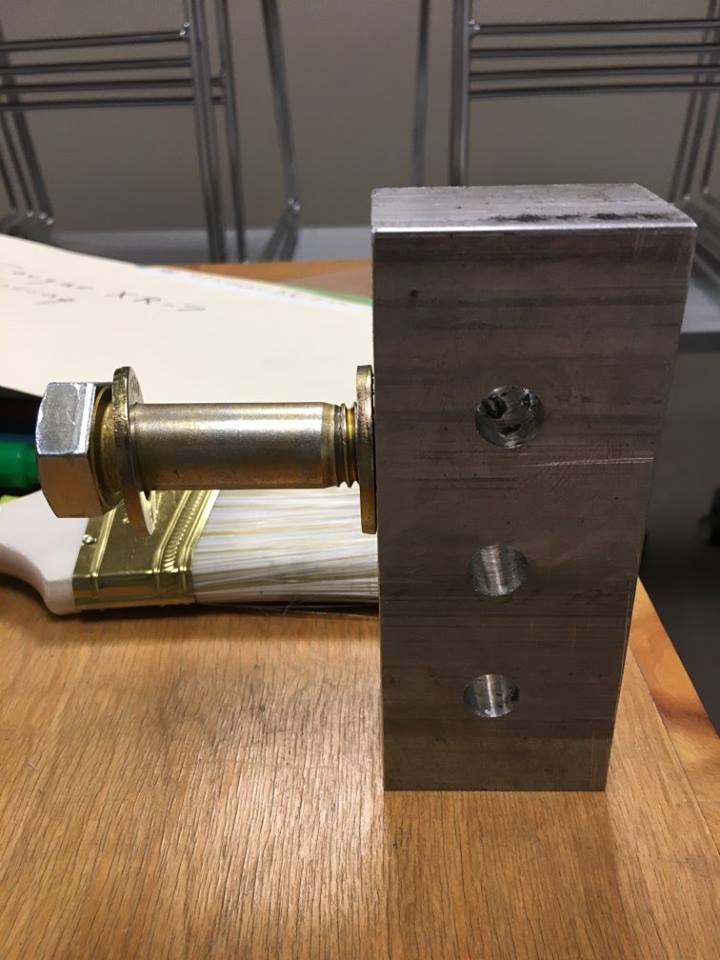

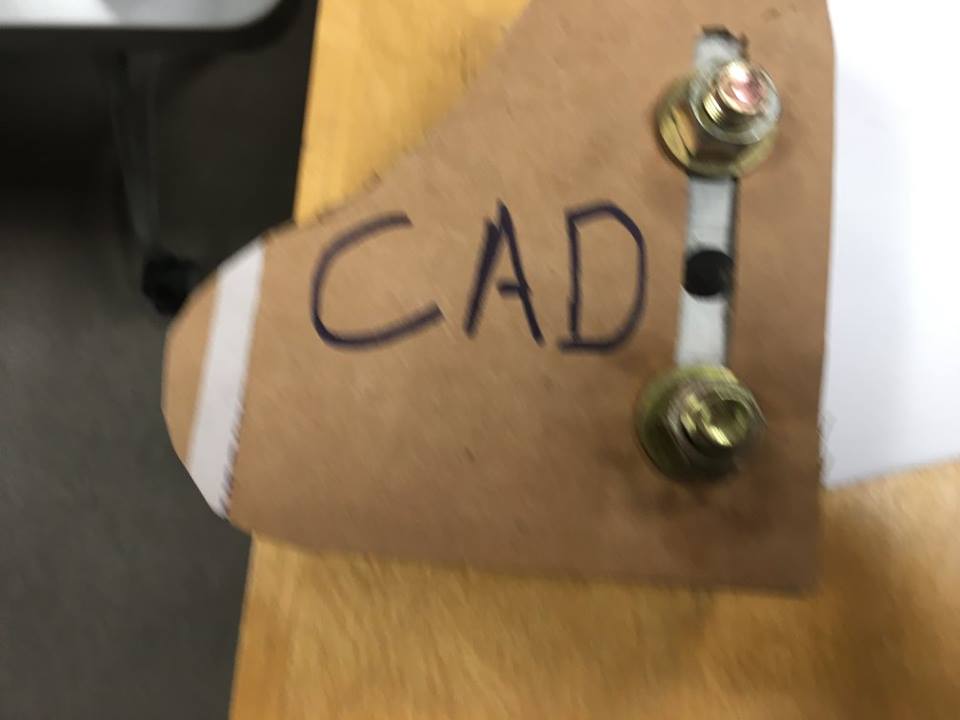

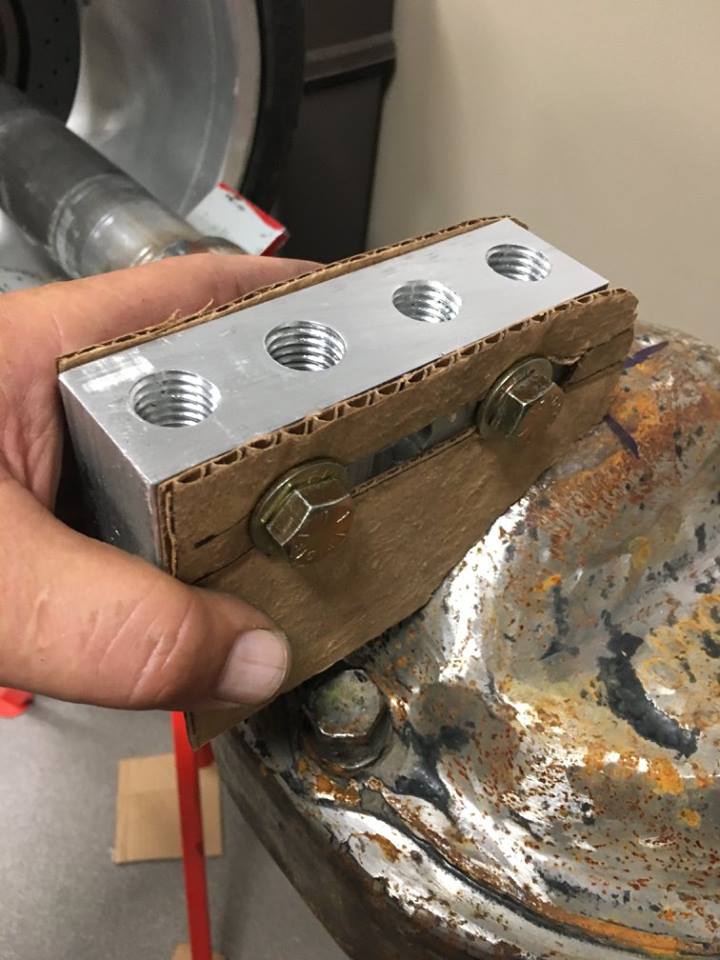

I also got into the CAD work for my watts link brackets for the rear end. (Cardboard aided design)
A lot of this stuff is my first real attempts at using a lathe accurately.

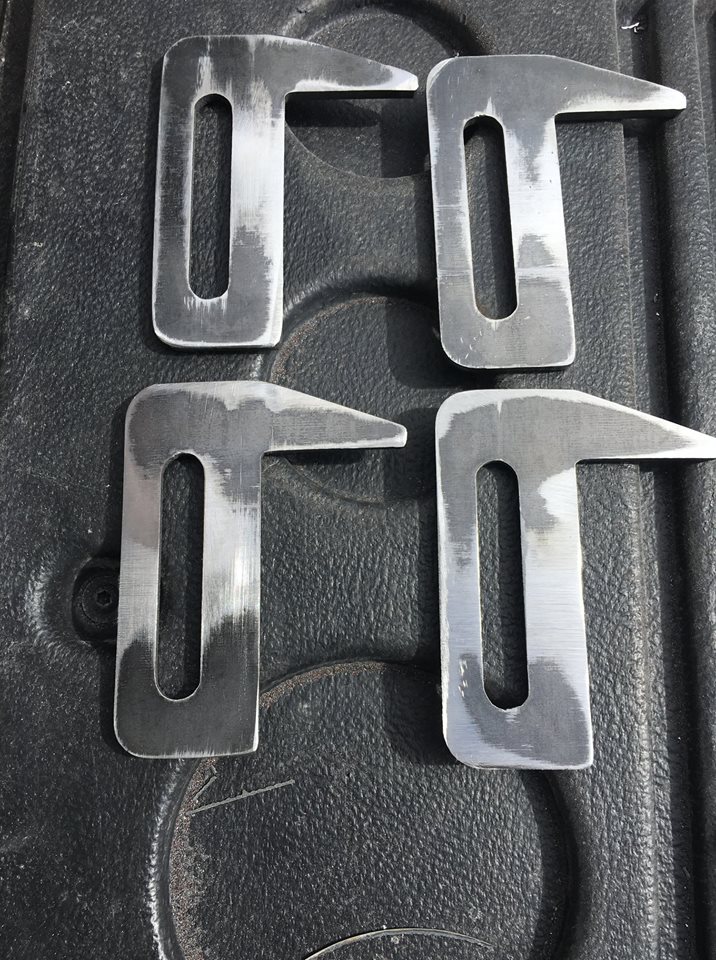

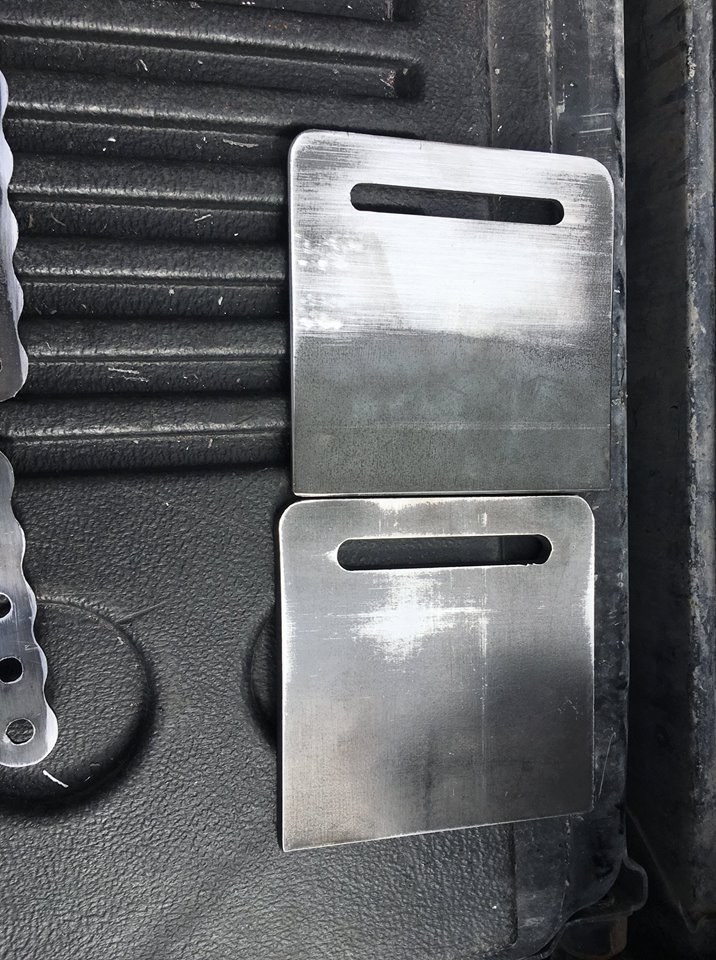

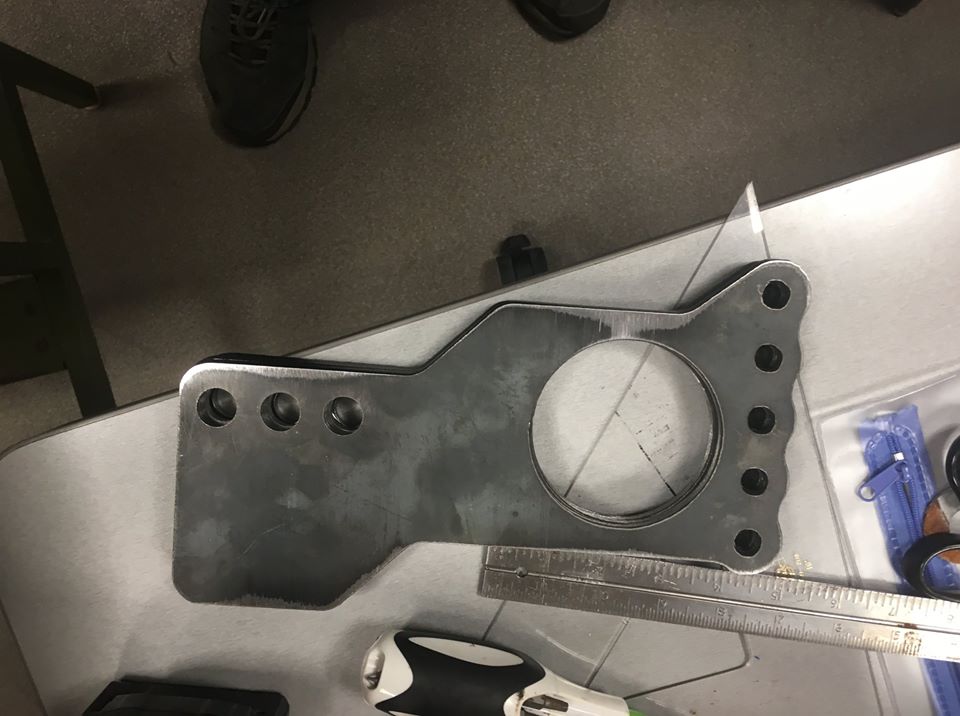

I also had my buddy Doug do some more plasma work for me. Then the boring job of sanding it all down had to be done.
https://lateral-g.net/forums/attachm...1&d=1616344896

[egoman]

Another picture dump for details I may not have discussed
https://lateral-g.net/forums/attachm...1&d=1616345005

[214Chevy]

There's some bad a$$ work going on here...

[egoman]

Originally Posted by 214Chevy

There's some bad a$$ work going on here...

Thank you! Like I said I am a lot further along. It gets much better.

[egoman]

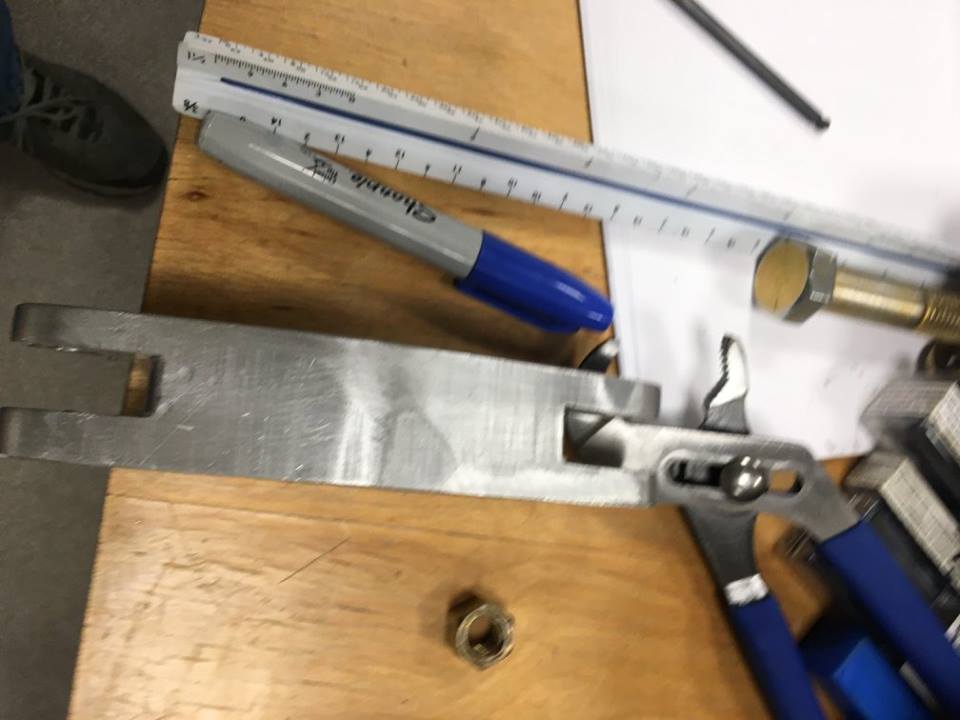

Those brackets from the other day are deburred and sanded smooth. Brainless but tedious work. The bars that have all the holes in them are just suspension stiffeners and are for, well suspension stiffening! Don’t exactly know why I had to say more there HMMM?

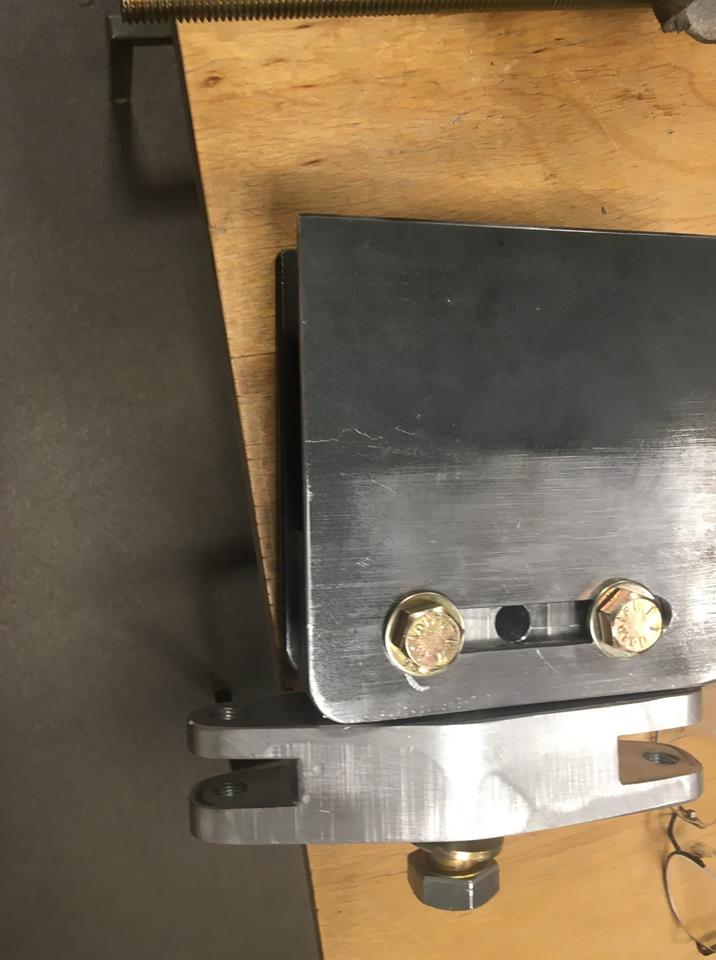

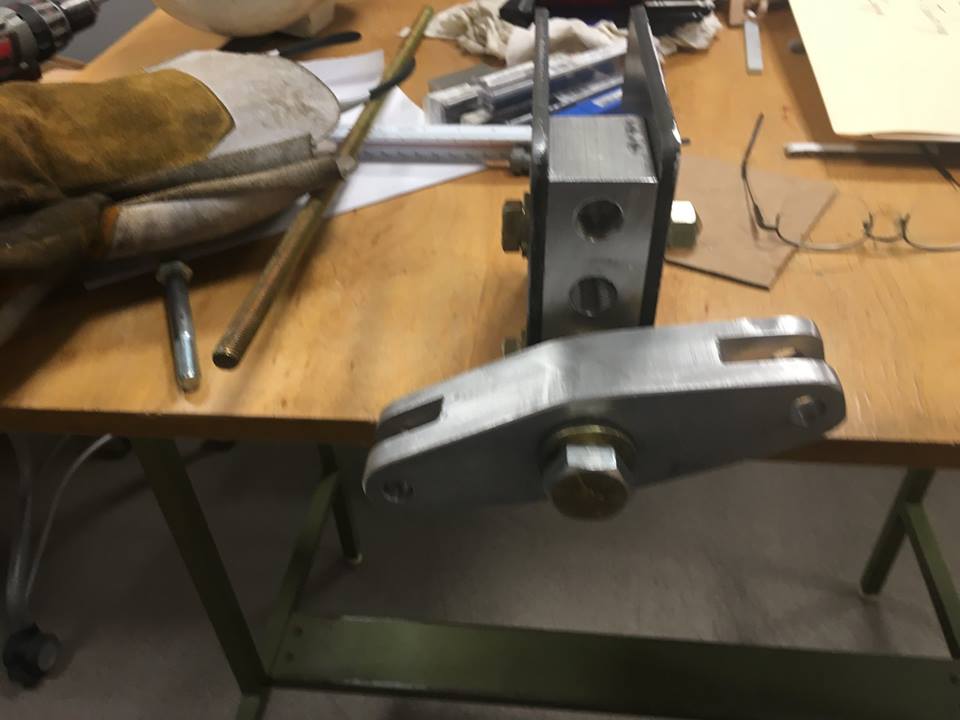

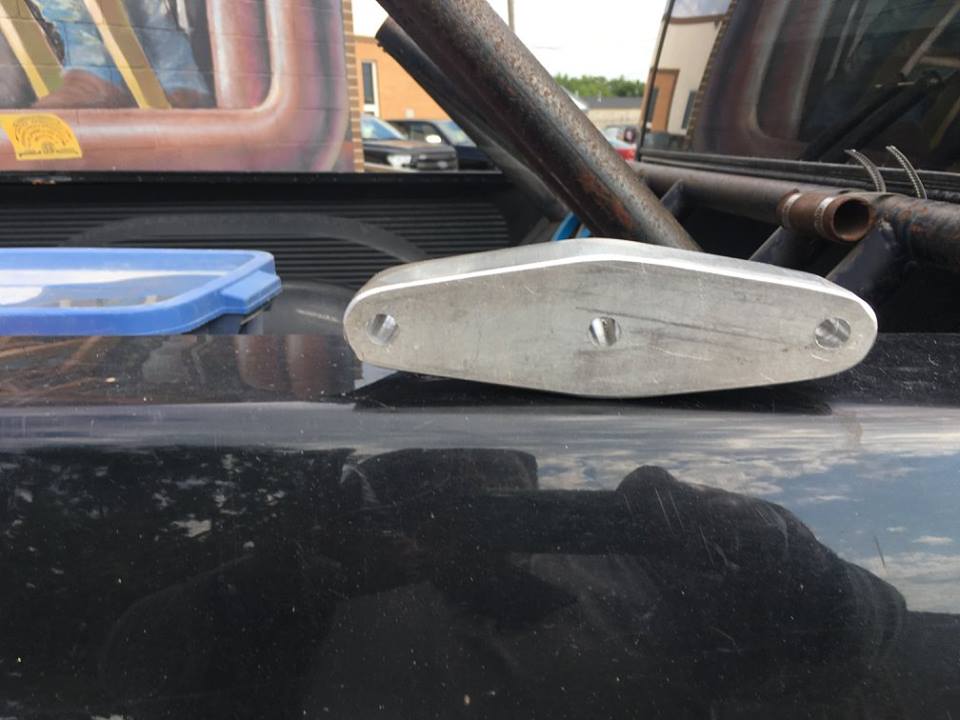

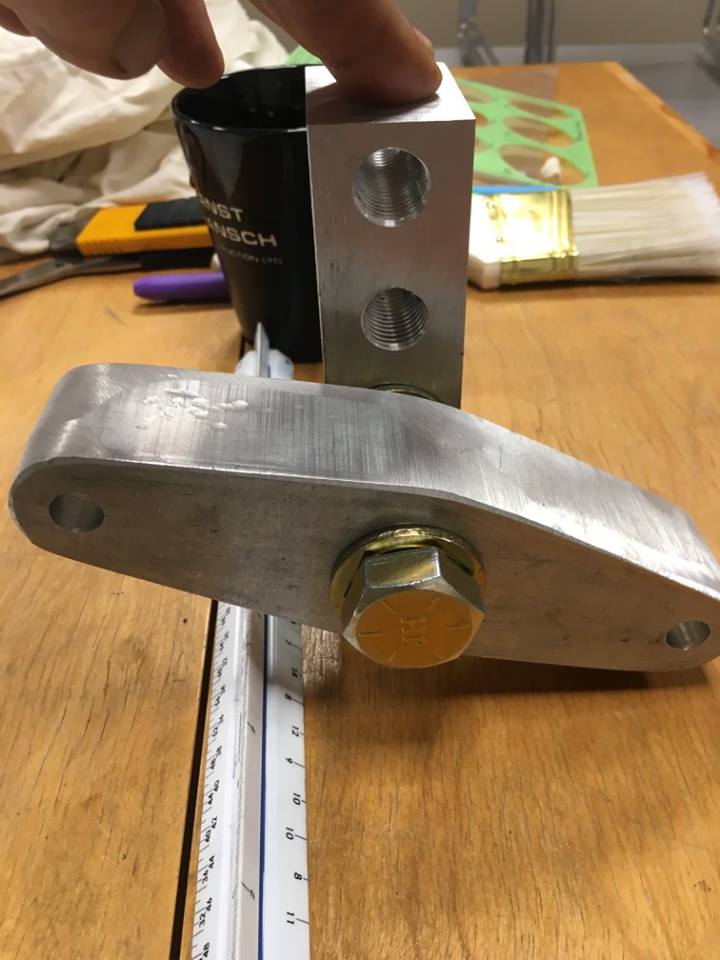

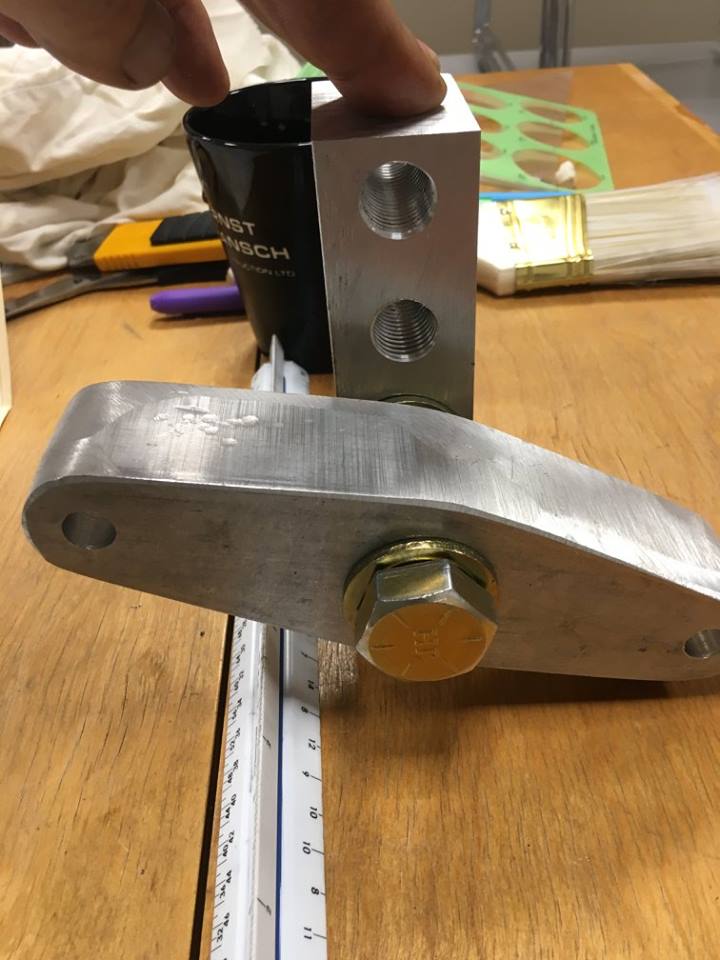

You can also see that I have machined the watts rocker so it works in double shear. I used that ¾ rod coupling that I mentioned before as a mandrel to chuck it all in the lathe. Oh by the way it’s actually a 7/8ths rod coupling and I trusted my memory again when I really shouldn’t have.
