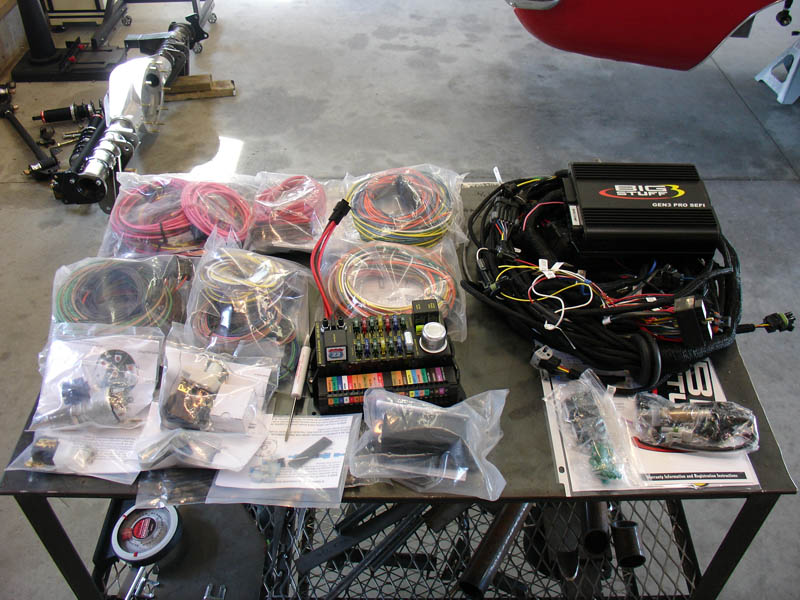

I thought I'd post a pic of the wiring for the car. Between the BS3 EFI and the American Autowire Hwy 22 kit, I should stay busy for a little while. I decided to go with the AAW Hwy 22 kit over a stock replacement since I'll be mounting the battery(s) in the trunk, the EFI, etc. The kit has everything, even a color coded schematic. Now I just need to decide where to mount the BS3 box.
I thought I'd post a pic of the wiring for the car. Between the BS3 EFI and the American Autowire Hwy 22 kit, I should stay busy for a little while. I decided to go with the AAW Hwy 22 kit over a stock replacement since I'll be mounting the battery(s) in the trunk, the EFI, etc. The kit has everything, even a color coded schematic. Now I just need to decide where to mount the BS3 box.
That layout looks oh so familar. Get it all figured out them I'll pick your brain once I start wiring mine. Both these companies make killer stuff.
Do the wires have print on them as to what they are for?
I can only speak for the AAW kit, but yes. The wires are printed every 3 inches and are color coded to plug into the color chart of the panel you see in the photo. The schematics are also color coded and labeled.
That looks like fun. I want to play.
I will eventualy have to get some wiring for the rear of my 69 Camaro. My tail lights are all screwed up. I am sure I will purchase them from AAW. Sounds like they have a lot of great products. The LED tail lights are sooo tempting. I just cant afford them for a while.
