Header Help!

[Sieg]

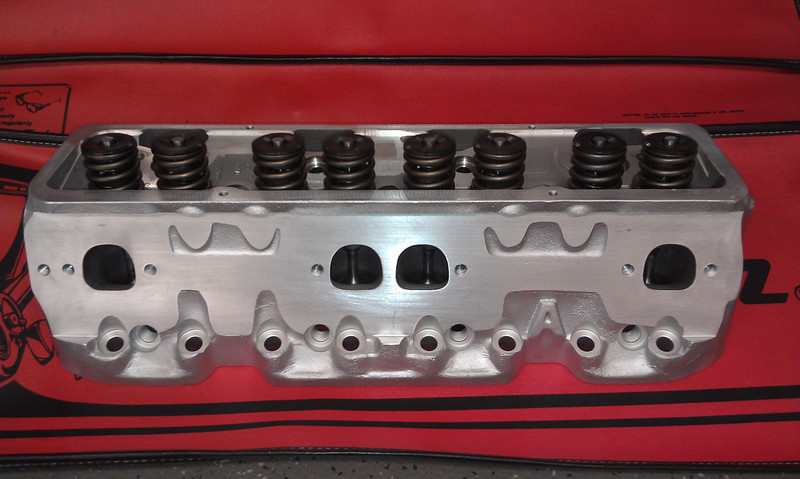

I'm the process of getting AFR 190 heads with D-ports installed on my 69 Camaro and found out the hard way (opened the box) that the Hooker Comps I ordered won't work with the D-port. Contacted Hooker and they do not offer a product that works with these heads. So far I have inquiries into Summit, Doug's, and Heddman.

Need to find an option asap!

I can go short or mid length if required.



Thanks!

[Sieg]

Shorty from Sanderson supposedly designed for D-ports with 1-7/8" tubes


Less weight, heat, noise. Not ideal performance but probably not enough impact to matter in my application.

[Sieg]

Anyone have experience with Doug's 368 model with Saginaw 700 box?

They work with the D-port but the 1 -3/4" tube layout is different than my current set-up:



Doug's 368


Doug's 308

This looks like it should clear the box but the oval 1-5/8" tube doesn't match up ideally to the D-port creating a curb in the lower corners.

Help!

[69znc]

www.elstonheaders.com

If you want great headers and, while not the cheapest, they are a small part of the build cost. I have had them on several cars and they are now on many friends cars.

If you want one of the best he can make them

[badmatt]

Lemons, But far from cheap but some of the nicest headers.

[Sieg]

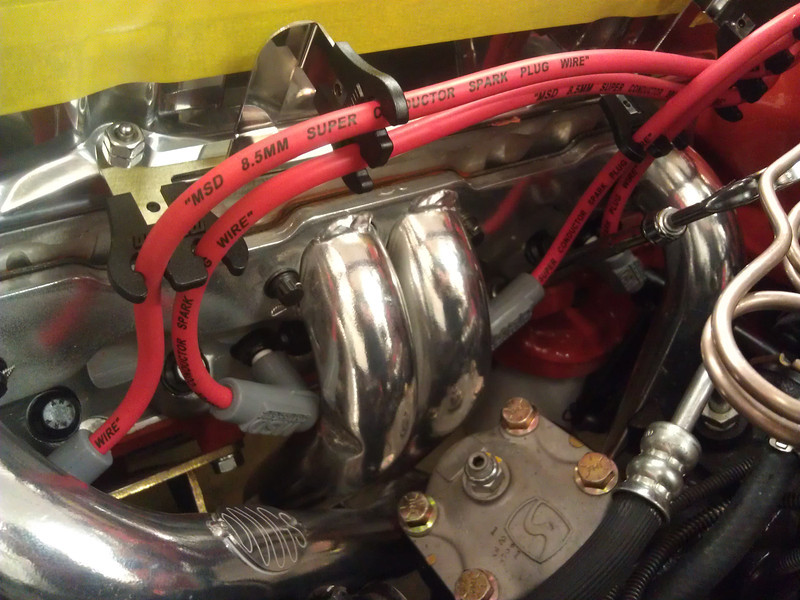

I ended up with the Doug's 368's and they fit great. The only nit-picks are had to trim the drivers upper control arm cross-shaft bolt to clear the #1 tube, the MSD plug boot is tight against #5 tube, and I can't get my Snap On swivel socket on plugs #5 & 7, short box end wrench is no problem though.

[Flash68]

Dude that thing is lookin nice and clean! Great aerial shot.

[Sieg]

Originally Posted by Flash68

Dude that thing is lookin nice and clean! Great aerial shot.

Thanks Dave.........too bad it's all show and NO go right now.
