The Most Detailed LS3 In The Universe!

[canrc]

Originally Posted by Al Moreno

Thanks guys.

Thanks for the suggestion on the MAF. This is the intake that was on the car before.

Attachment 44717

We will keep our fingers crossed as you know how it is with this stuff. You never know until you try.

That there is a good point sir! Mine is still mounted close to the throttle body -- I am now a year later having it changed so it couldn't have been that bad, haha!

Again the build is amazing!

[Al Moreno]

Originally Posted by bentfab

Awesome stuff Al !!

What do mean plumbing is time consuming and difficult....

Thanks Mark! LOL on the pluming.

Quick pic of the engine mock up as next week they are doing all the wiring. It’s all going to be mill spec, Raychem DR25 motorsport heatshrink, etc…..

[syborg tt]

Very impressive for a first project.

[Jr]

Al,

Looks great!

What kind of black braided hose are you using in the engine compartment?

[camcojb]

I really need this to be a feature over on our sister site! Absolutely incredible build.

http://www.thecamarosite.com/forums/

[Al Moreno]

Originally Posted by syborg tt

Very impressive for a first project.

Thanks Marty, the boys took your advice and are doing a replacement dry carbon roof panel. Should save about 30 lbs. They are also getting a rear tubular cradle done which should drop approx 70 lbs. I also heard talk about billet spindles.....

Originally Posted by Jr

Al,

Looks great!

What kind of black braided hose are you using in the engine compartment?

Jr it's all XRP stuff. Really top shelf

Originally Posted by camcojb

I really need this to be a feature over on our sister site! Absolutely incredible build.

http://www.thecamarosite.com/forums/

Jody, I will let the boys know.


Here is a little update on the harness. This is what came off.



This is whats going in.

[Bowtieracing]

Best just gets better Can you share more details what you did for wiring?

[Al Moreno]

Originally Posted by Bowtieracing

Best just gets better Can you share more details what you did for wiring?

Thanks! The cars has Five harness. Two have been completely redone and the other three were given a hair cut.

Here is whats left of the interior harness after removing all the unnecessary wires and connectors.






Over 9 lbs of wires remove off the interior harness alone.

This is the accessory harness. You can see how it is now routed through the frame instead of the engine bay.



The speed sensor connector not drops into the wheel well instead of cluttering the engine bay.

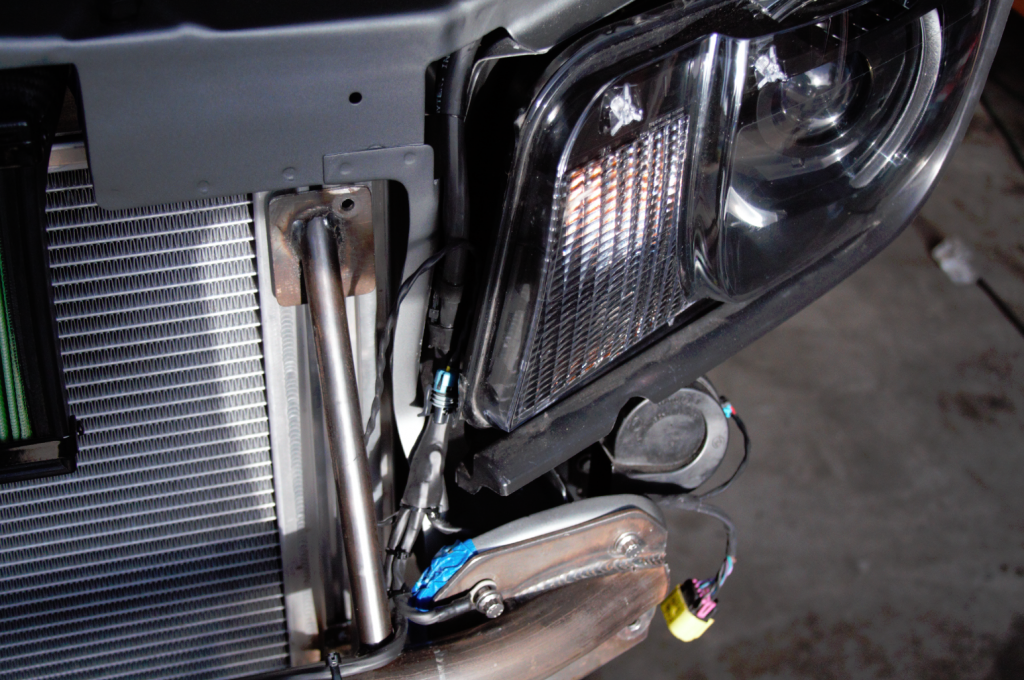

You can see were it comes out of the frame and feeds the horns, radiator fans, air temp sensor and ground.



Here you can see how the harness runs across and over to the passenger side.



We really need to give and HUGE thanks and shout out to Eric from EJ Wire Works http://www.ejwireworks.com who has been doing all the wiring. He is definitely a God send!



He's been in the business over 25 years, and specializes in Trophies trucks where those harness are just over the top. He worked at Alpine at one point where they made those custom SEMA cars. Hot Rods and Custom Stuff uses him as their go-to guy for all of their wiring. So for any home builder or Pro shop looking for a great guy, Eric is your man as he is mobile and does works in all the west coast states.

Here is another one of those cool little details. Notice how the water vapor line now goes into the radiator tube instead to the actual radiator. Next the radiator cap will be welded into the tube also. Lot's of thoughts and work into this tube!



The engine was missing something...... So for the crowning jewel, OZMO is making the first single long runner single TB intake. Should arrive in 6 weeks.

The runners are 6.8" long. It will run a 102 Nick Williams Billet TB.





The boys are contemplating whether to go with the rails on the inside or outside but are leaning to outside as it compliments the mechanical theme..

[Bowtieracing]

Thanks Al for great detailed info. This is so far coolest topic i have seen!

[Ricochet]

Beautiful!! The intake is slick! Where do you get those radiator hose clamps?

Thanks in advance!
