The Most Detailed LS3 In The Universe!

[Al Moreno]

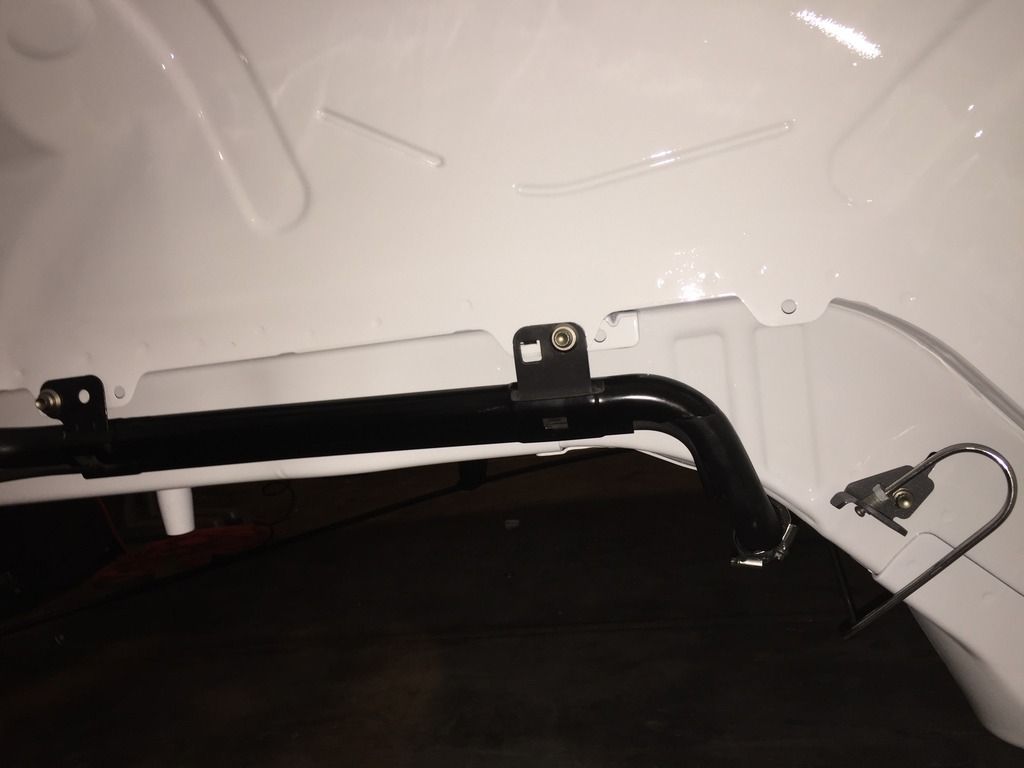

Roll cage being painted.







Replaced all the GM electronics. The gray box is Racepak's Smartwire which replaces all the fuse box and relays, plus it controls all the body functions. Its a really cool piece. It also cut down your wiring to about half. The red box is a mock up of Racepak’s G2X Data logger. The black box is Holley's Dominator EFI ECU.



Modifying the CF Z28 diffuser with an aluminum tunnel.






Every line was replaced with stainless hard lines



Suspension work:







Made our own end links







All the bolts on the Stop Tech Brakes were nickle plated. The little struts in the pictures are Racepak ride height sensors.

[Al Moreno]

More of Dan great work!







One of three fire suppressant nozzle

[Al Moreno]

There is a lot more detail work then I have time to post right now. Hopefully we can get her done in time for SEMA.

[waynieZ]

I'm rooting for you guys! I hope it all comes together so you get it to SEMA. It deserves to be seen for everyone to enjoy.

[Al Moreno]

Originally Posted by waynieZ

I'm rooting for you guys! I hope it all comes together so you get it to SEMA. It deserves to be seen for everyone to enjoy.

Thanks Wayne, I know you are!

[Ron in SoCal]

Pretty sick Al. The thought, detail and execution is mind boggling. Props to you and the boys

Hoping you make SEMA and walk me through every bit of it

[Jay Hilliard]

Awesome Al. Great work! You and your boys are setting a new standard. Any aftermarket pieces potentially coming from the build?

[Al Moreno]

Thanks guys for the props, its been a while since we've updated the thread.

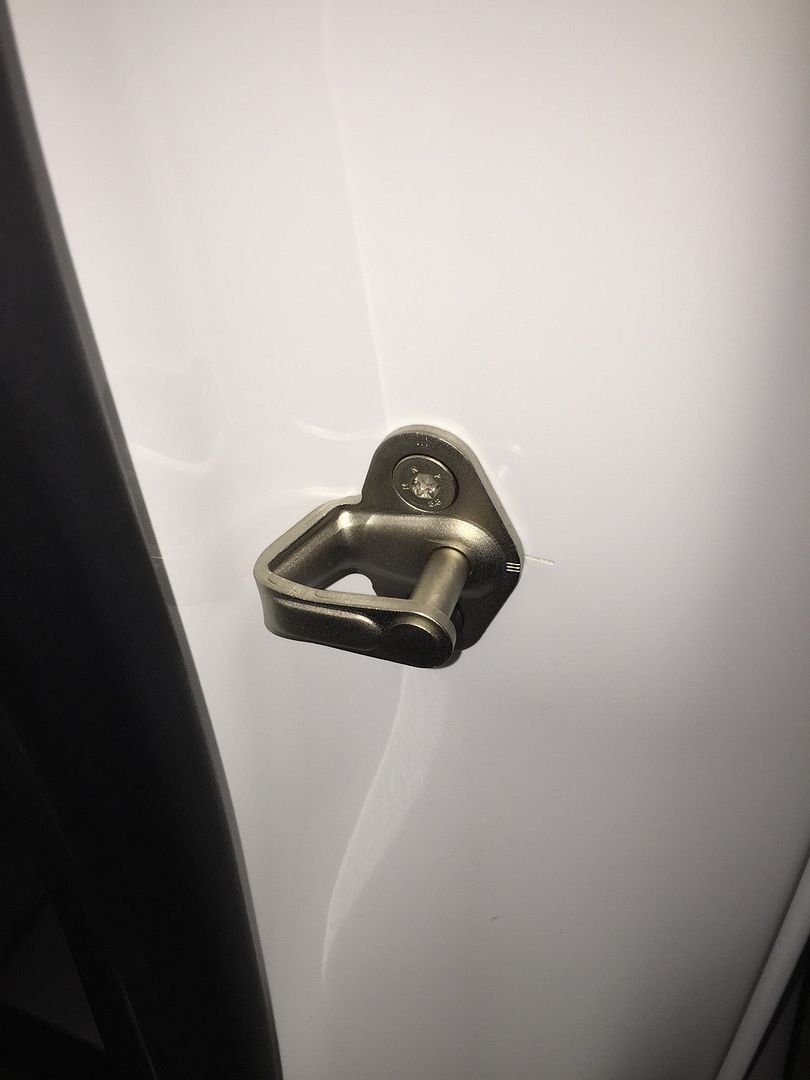

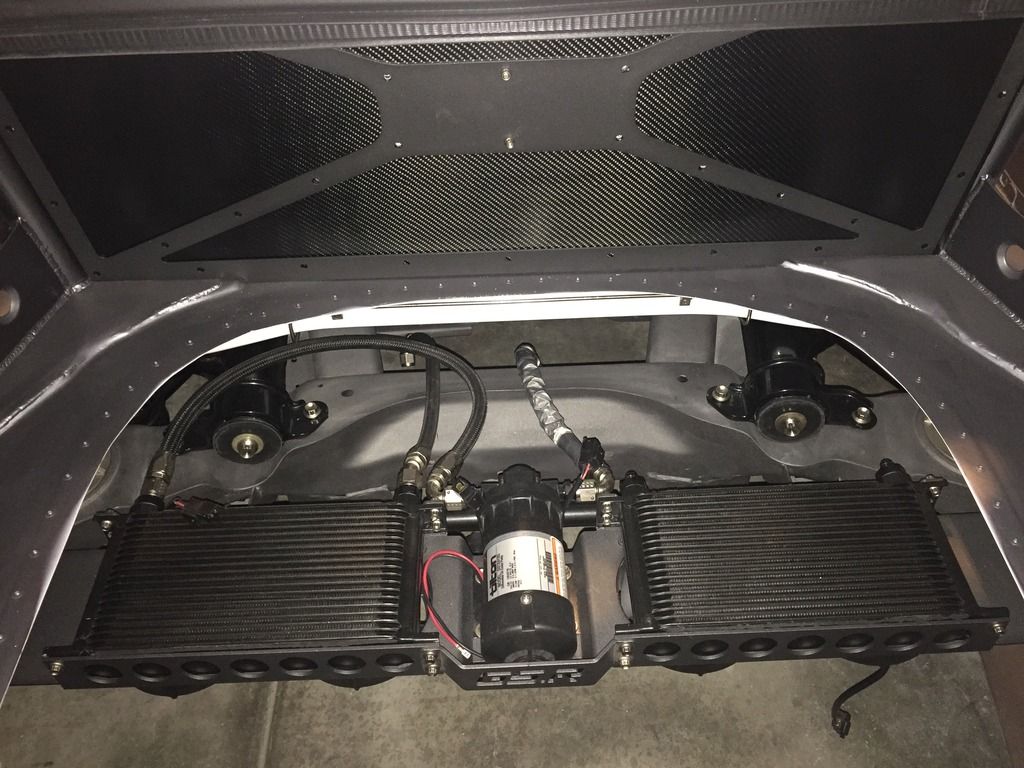

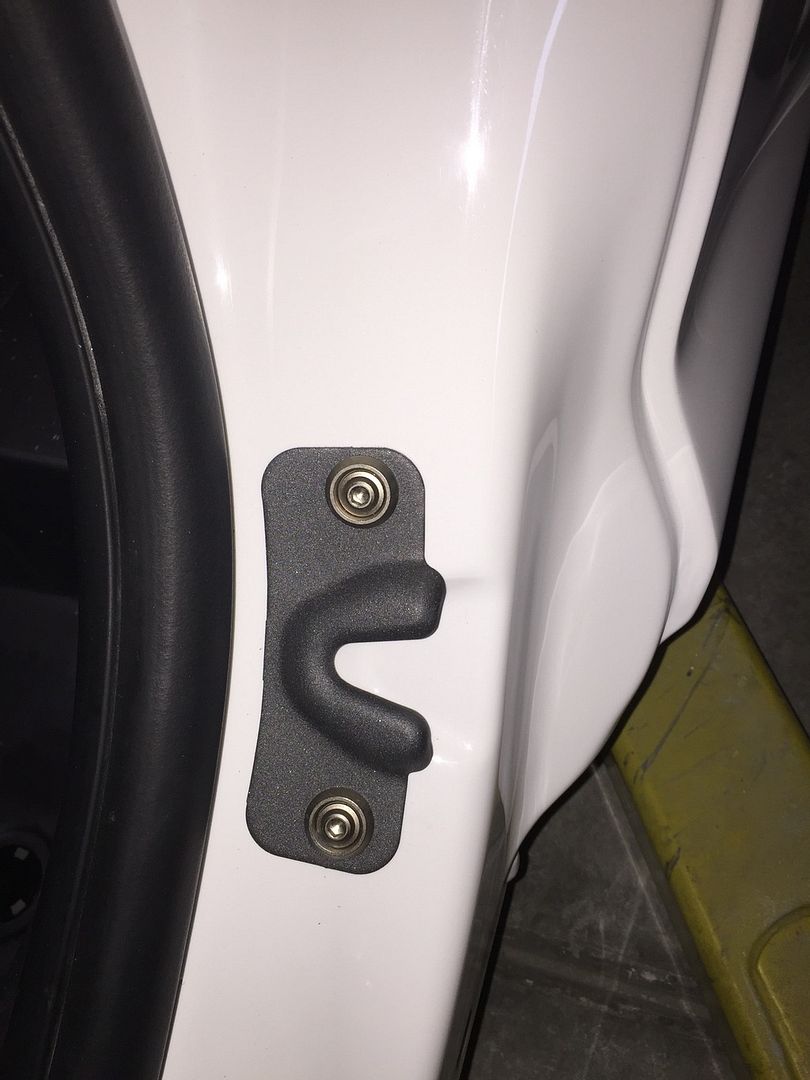

Here a few random pics of the details stuff.....

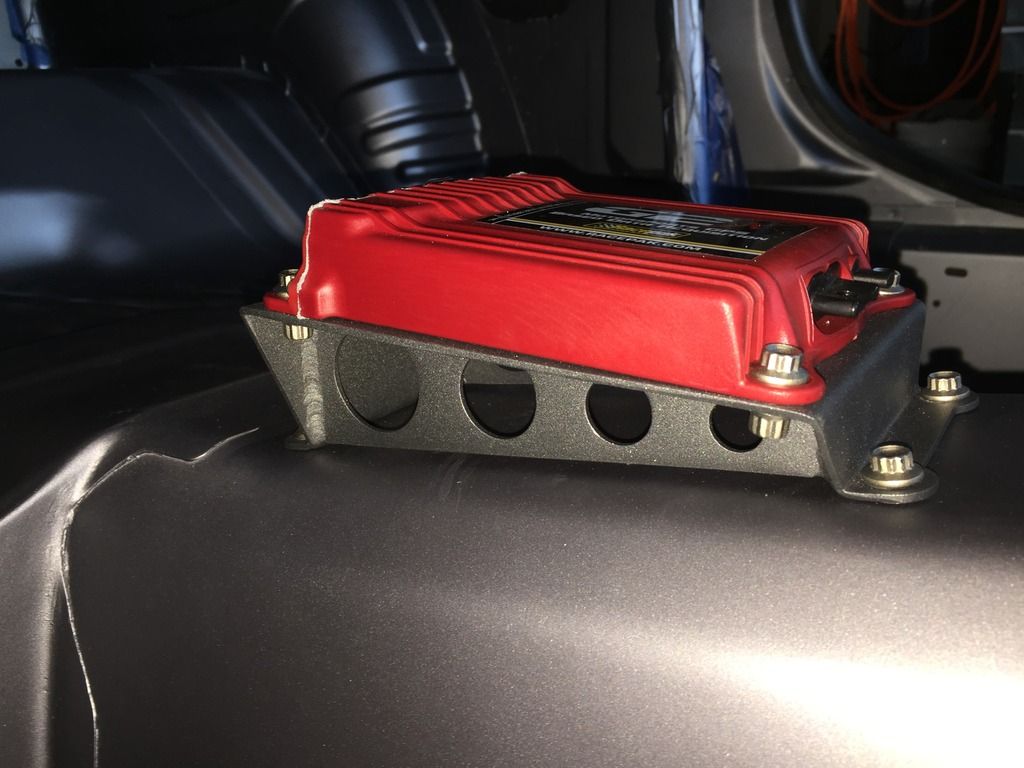

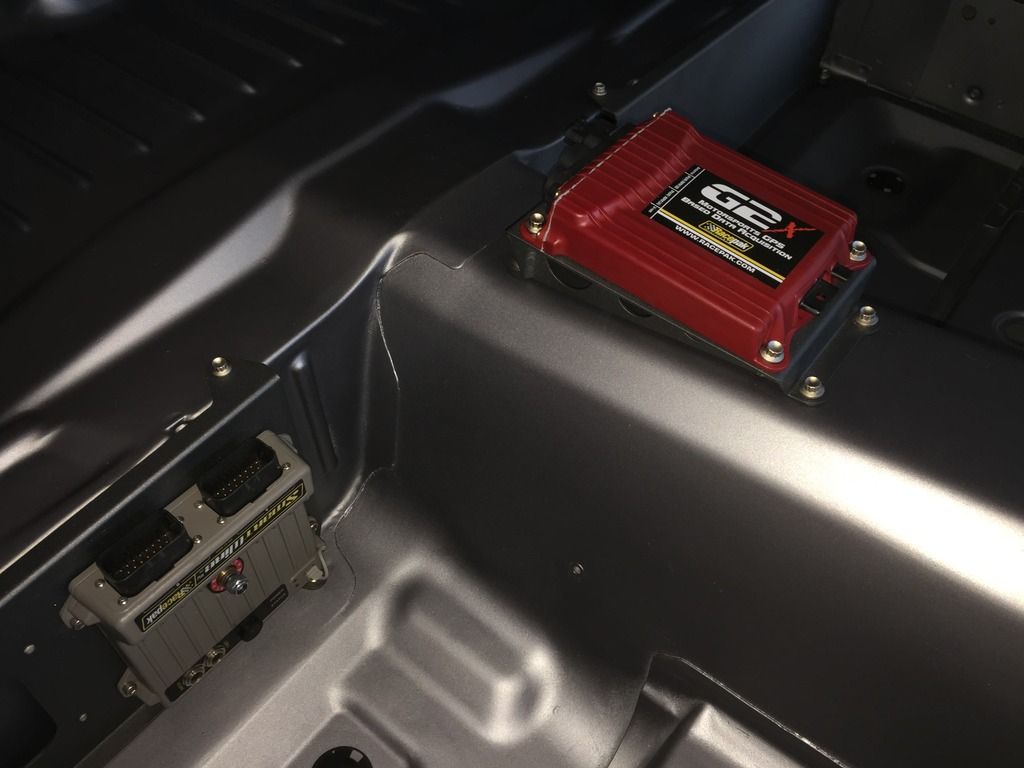

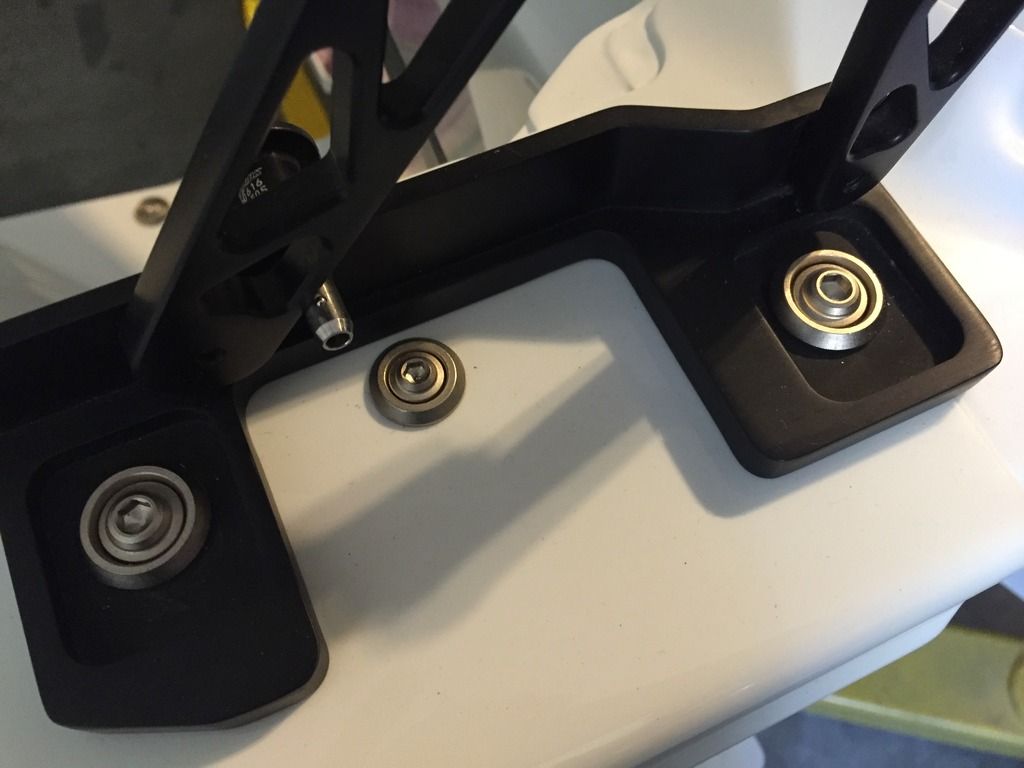

Custom made bracket for the Racepac data logger. All the bolts are ARP 12 point stainless that have been milled, blasted and nickel plated



The Smart Wire eliminates all the fuse boxes and relays. It also uses half the wires you's normally would need in a harness. We calculated a weight savings of about 20 lbs .

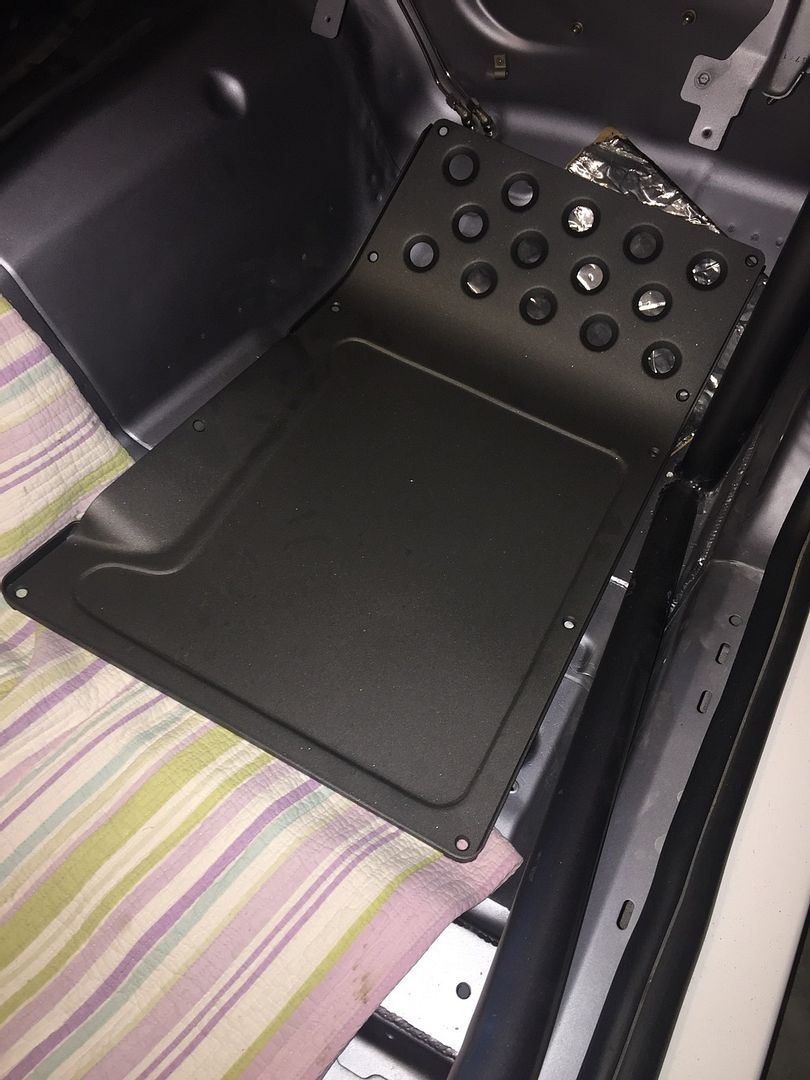

The floor mats were just placed for the pictures. Once installed, they will bold to the floor.

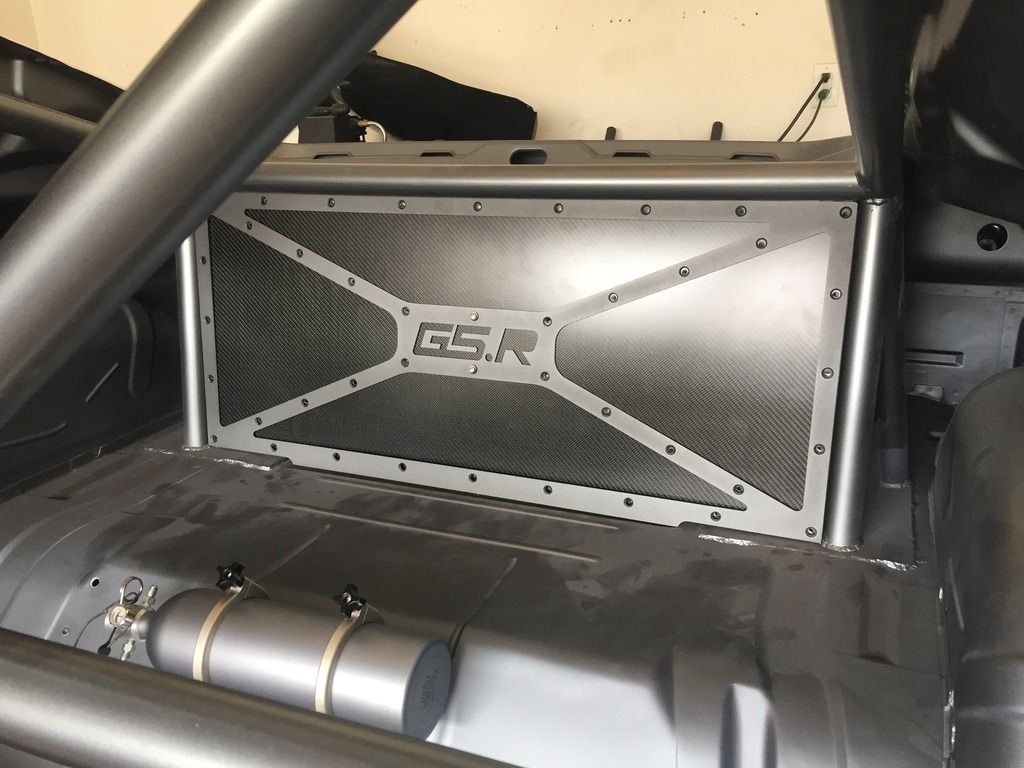

The divider panel is just mocked up. The "R" is missing the center piece. It will be installed once the panels is bolted on.

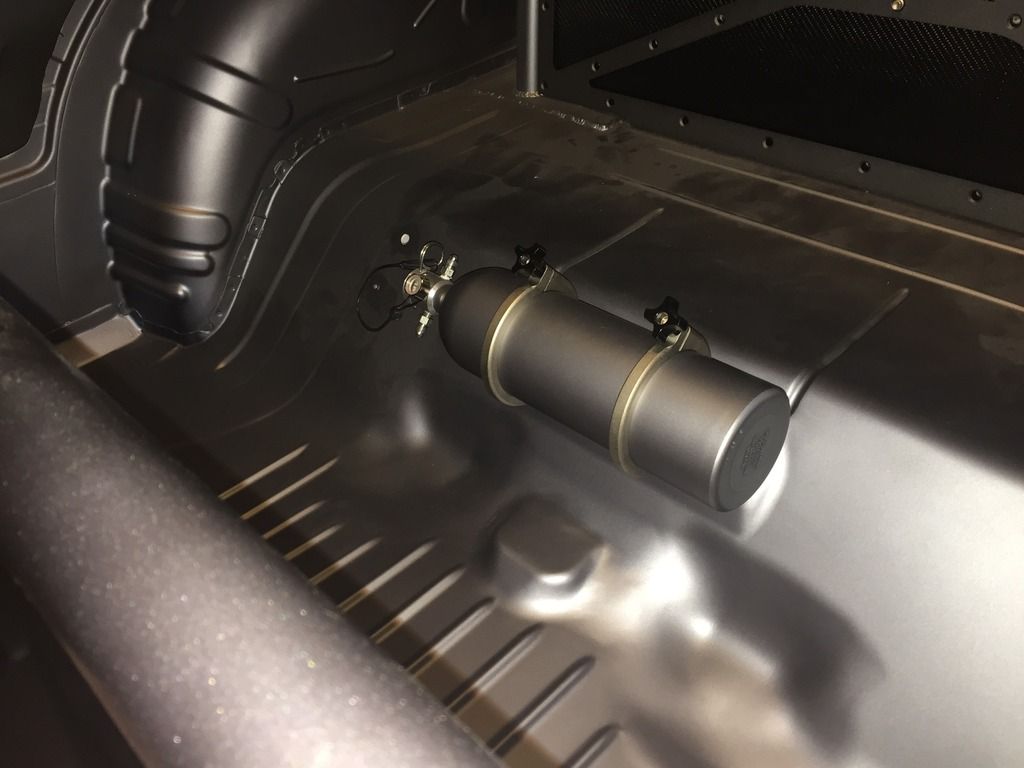

The extinguisher was painted a lighter shade of gray. The brackets were blasted and nickle plated.

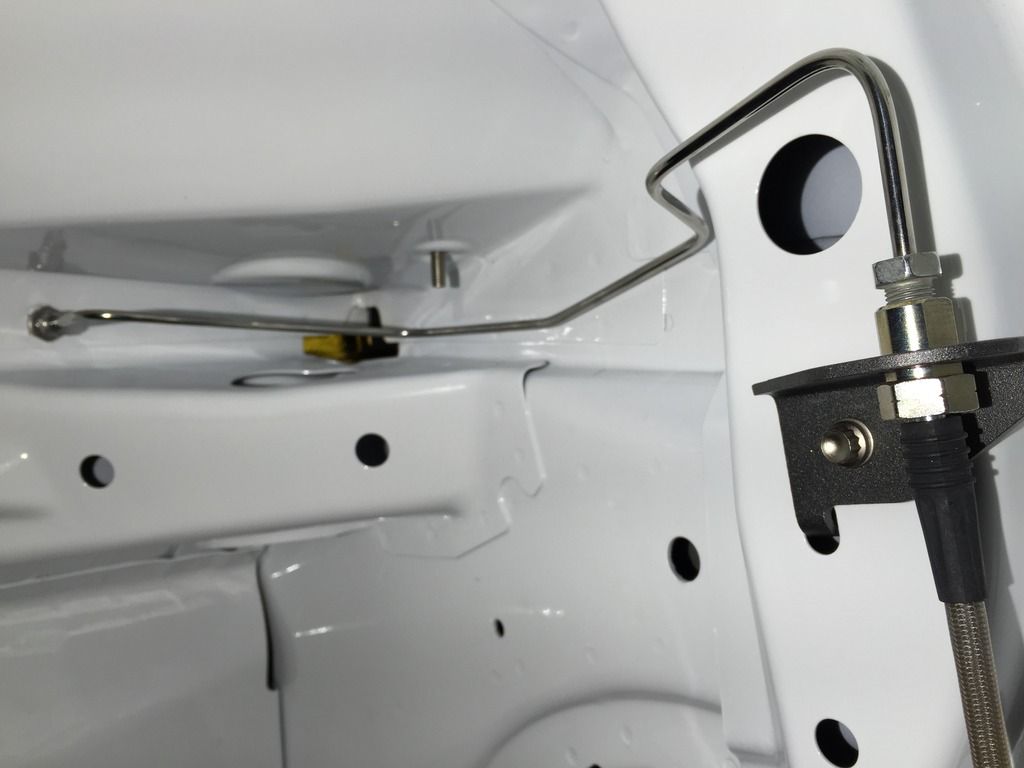

All the hard lines were polished

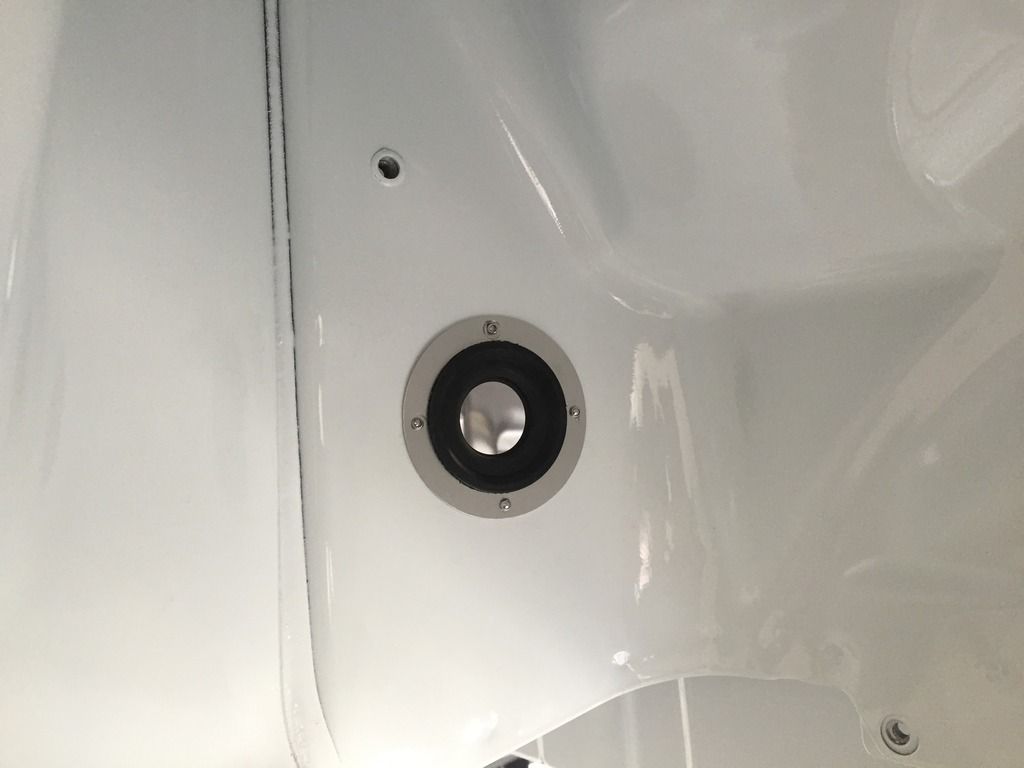

The pass through grommet for the fuel line. We also put a grommet on the other side.



All the brake line brackets were ethier powder costed or nickel plated.
