Project "ItDoRun" - Phase Two

[ItDoRun]

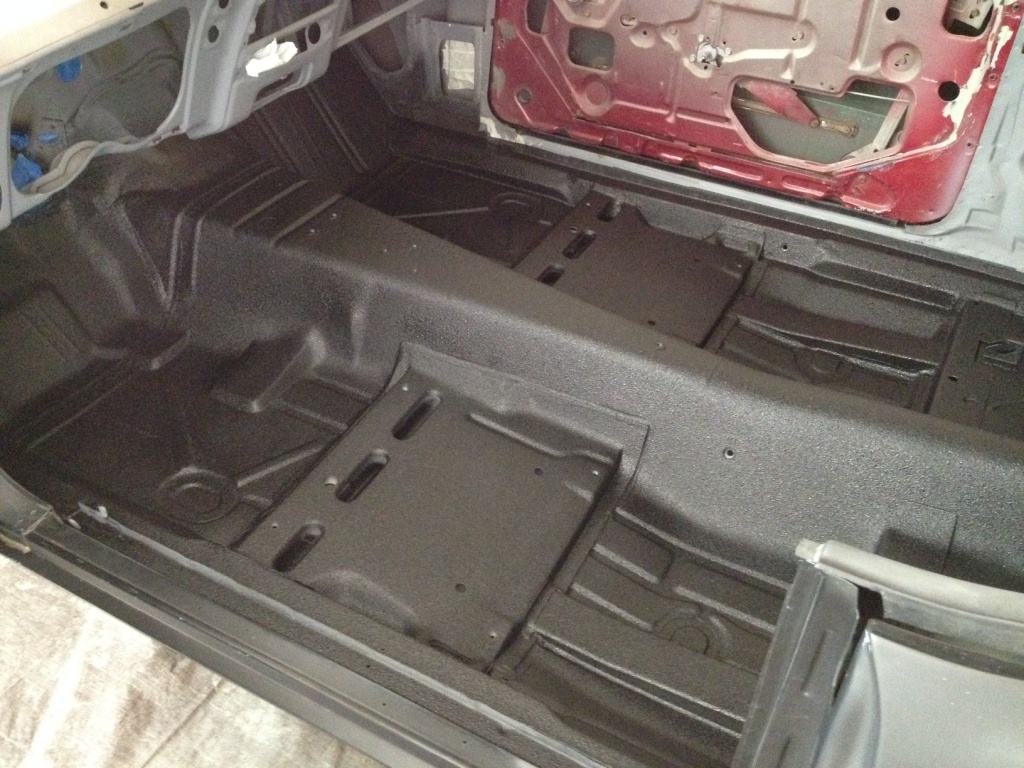

Bed Lined Floor Pan

[ItDoRun]

Custom built 4L65E

[ItDoRun]

Off to paint

[waynieZ]

The floor looks nice, which bed liner did you use?

[ItDoRun]

Originally Posted by waynieZ

The floor looks nice, which bed liner did you use?

Raptor Liner

[Roberts68]

Originally Posted by ItDoRun

Yeah, that's it. It's made by USC. Has a silver wrapped can with red and blue graphics. As for the cracking, I'm not sure if it's been proven against creaking or not. I fully welded my seams on the frame so I would expect it not to. If it does, well.....not sure what I'll do at that point. I personally don't think it will. I didn't build it up thick at all, just enough to hide some of the welding.

Thank you. I am trying to keep my welds nice but 40+ year old steel with oily gunk hiding in the seams has thrown me a curve just when I think I am doing alright. I may just try following your path.

Everyone else's Ridetech cap looks more flush than mine did when I mocked it up last Christmas. It looks like it fills the factory recess nicely and ends up pretty flush. Perhaps I just need to bite the bullet, drill and cinch it down to get the full effect?

[ItDoRun]

Originally Posted by Roberts68

Thank you. I am trying to keep my welds nice but 40+ year old steel with oily gunk hiding in the seams has thrown me a curve just when I think I am doing alright. I may just try following your path.

Everyone else's Ridetech cap looks more flush than mine did when I mocked it up last Christmas. It looks like it fills the factory recess nicely and ends up pretty flush. Perhaps I just need to bite the bullet, drill and cinch it down to get the full effect?

I put a torch on my seams after i blasted it to try and cook some of the 40 year old gunk that had accumulated. Know anyone with a powder coating oven? You could cook it several times.

I found that gas cap a pain to install because of the filler neck o-ring. Makes for a tight fit but as intended to do.

[waynieZ]

Originally Posted by ItDoRun

Raptor Liner

It came out great!

[ItDoRun]

Originally Posted by waynieZ

It came out great!

Thanks. Real easy to apply. Just mix the catalyst, set the pressure at 60psi and spray.
